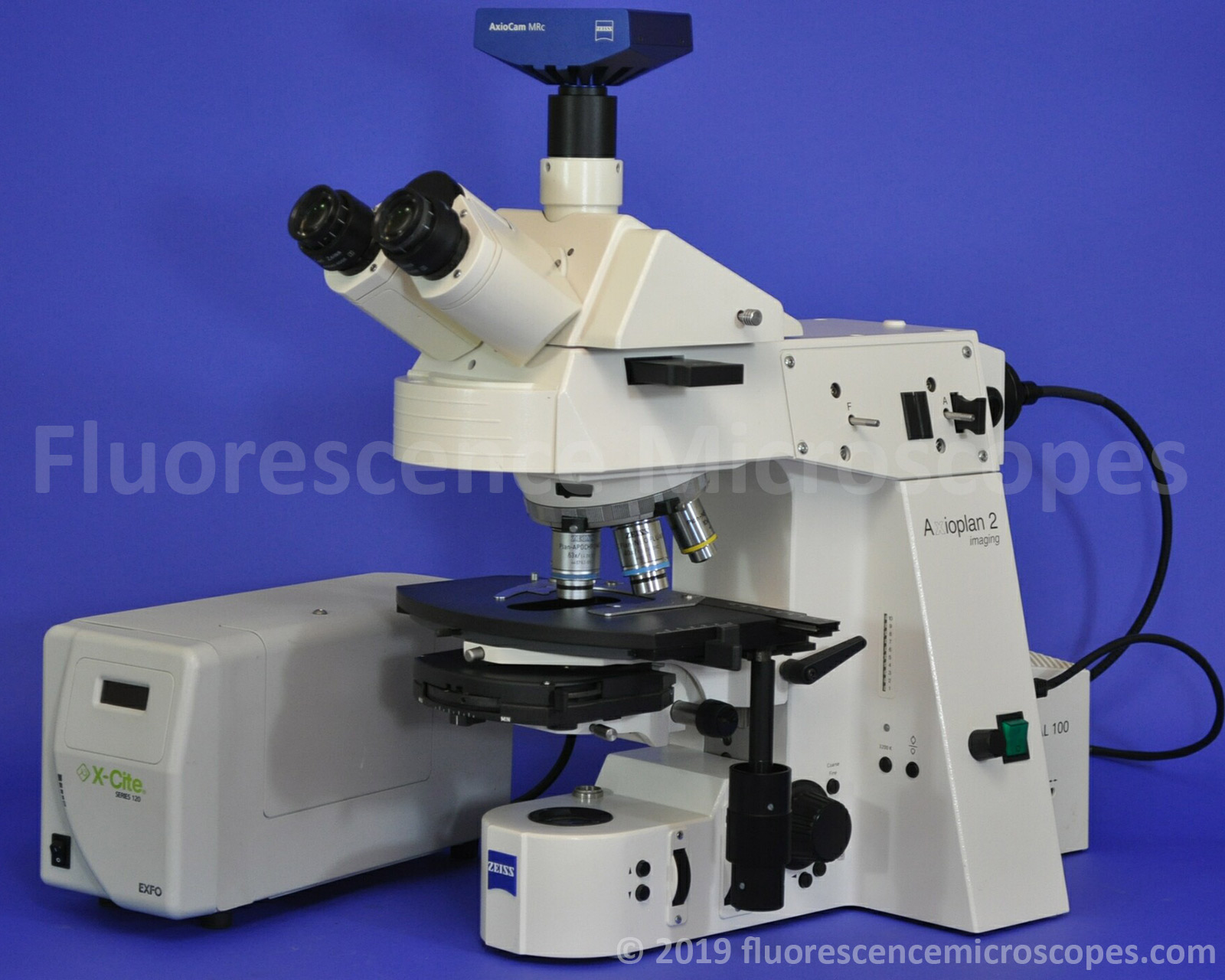

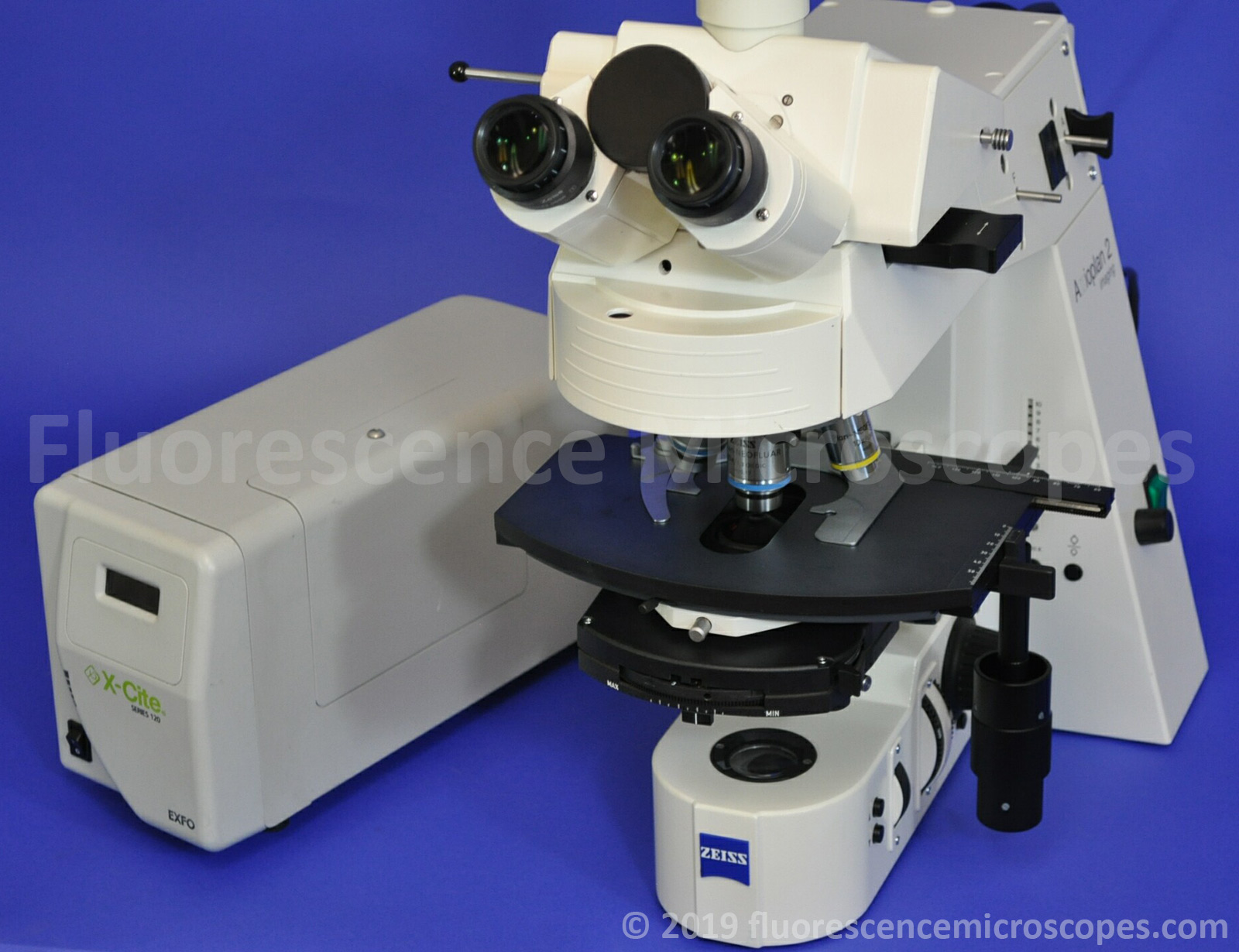

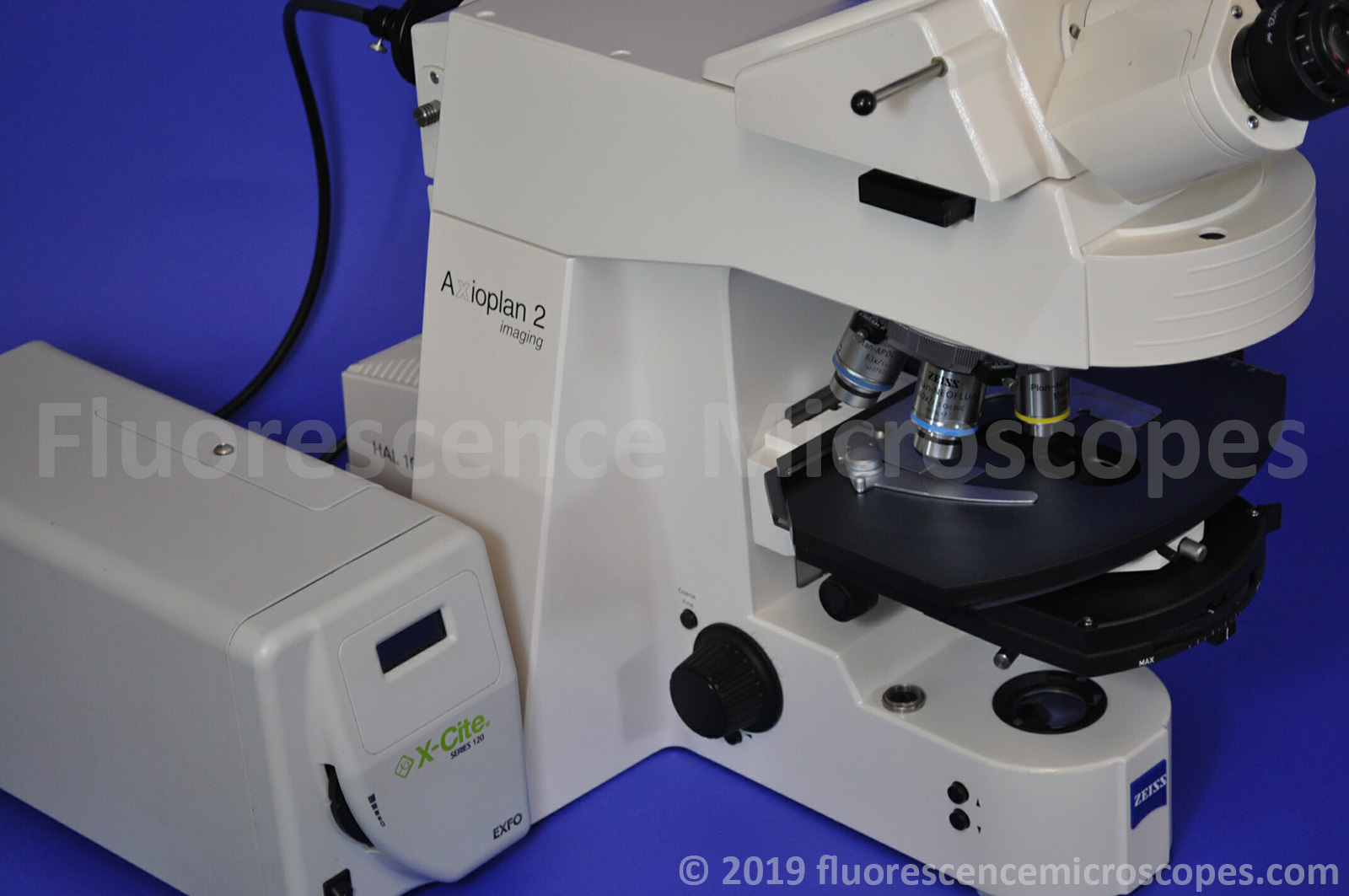

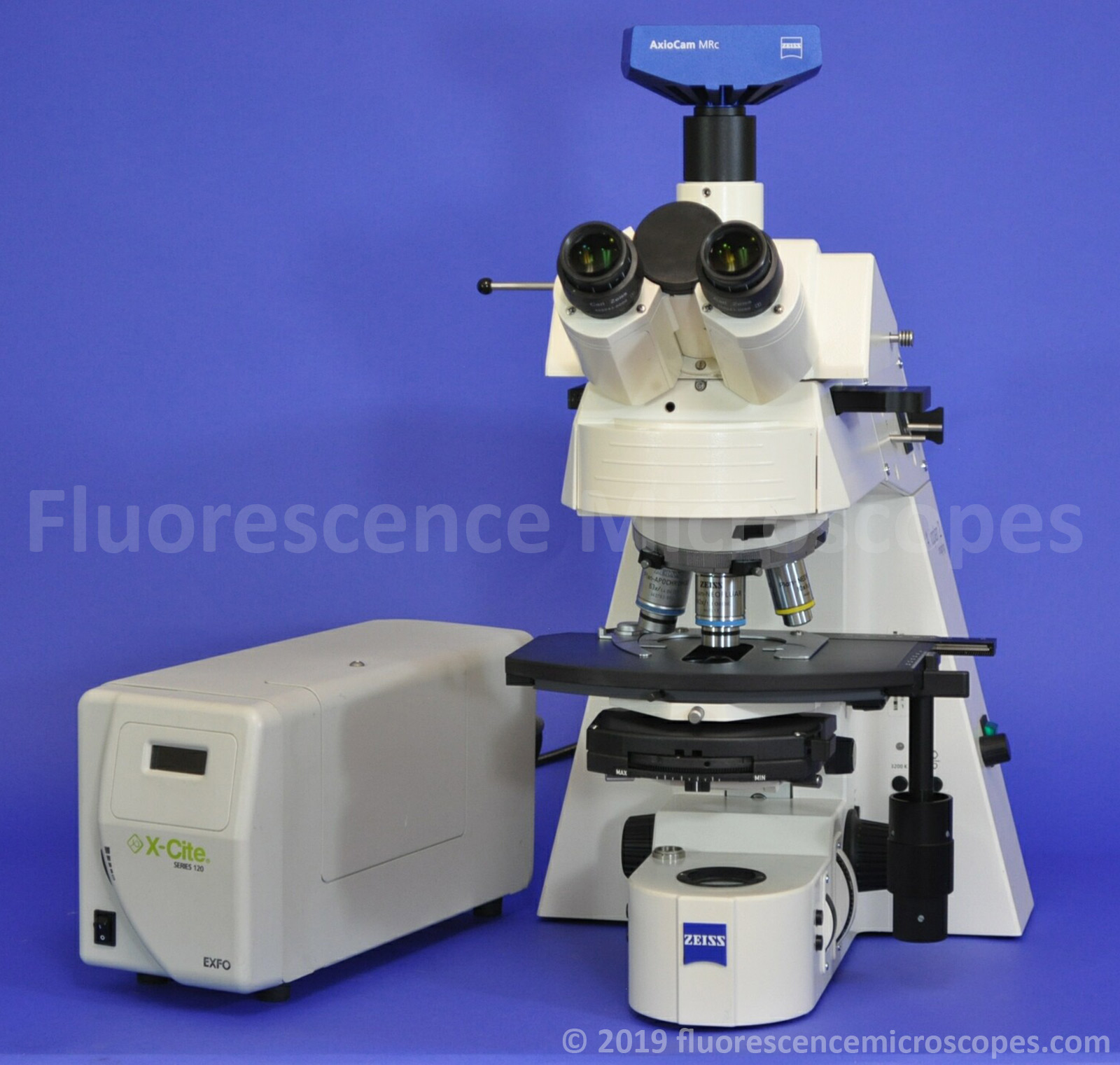

Zeiss AxioPlan 2 imaging
Upright Motorized Fluorescence
DIC Darkfield Microscope

USD $13,000

ITEM CODE: SKU-115
Model: Zeiss AxioPlan 2 imaging
Shipping Cost: Free USA Shipping.

SOLD

Main Features:

  • Loaded configuration. This unit has been set up with some of the best options.
  • Specifically configured for high resolution images.
  • Depending on your application, this system may or may not be the best for you. It is recommended that you contact us first, telling us specifically what you are trying to image.



DIC – Differential Interference Contrast Microscopy:

  • DIC has been configured for the 40x and 63x objectives.  Both of these objectives are oil immersion so they will provide the highest possible optical resolution.
  • Also, both of these objectives are rated for DIC and have “DIC” stamped on them. These types of objectives will provide a better quality DIC image.
  • Includes a DIC rotatable stage.
  • Excellent, textbook quality DIC images were obtained.
  • It can be beneficial to acquire DIC images simultaneously with fluorescence images since it can provide useful morphological information. This system has the capability to do that.



Darkfield Microscopy:

  • This is another excellent way of examining live cells, usually without any staining.
  • This condenser includes a Darkfield dry setting.



Phase Contrast Microscopy:

  • Condenser has the following phase contrast annuli:  Ph1, Ph1, Ph3.
  • If phase contrast is desired, you can simply add some phase objectives. The objectives that come with this microscope are not phase, and therefore, are going to give better fluorescence imaging. A phase objective is not as good for fluorescence since the phase ring blocks some of the light transmission.



Fluorescence Microscopy:

  • We completely tested the fluorescence system. Everything performed properly.
  • Field Aperture and Field Diaphragm sliders on incident illumination path.
  • IR cut off filter to protect internal lenses from overheating.

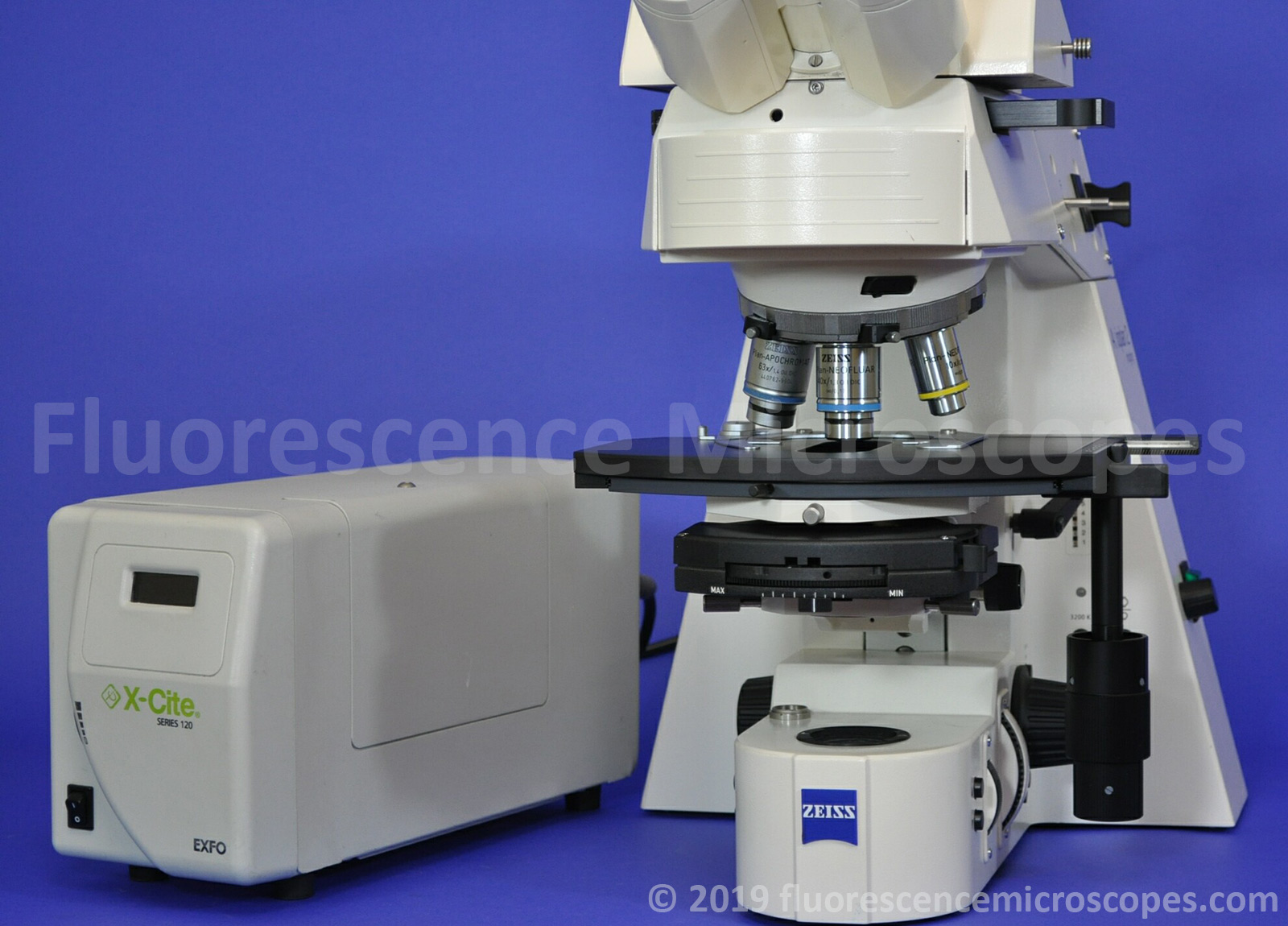

  • Metal Halide Exfo X-Cite 120 Florescent Illuminator:
  • This type of illuminator does not need to have any bulb adjustment.
  • It has a liquid light guide, a slightly used bulb (35 hours) and a collimator included.



Dichroic Filter Cubes:

  • Includes three dichroic filter cubes.
  • The reflector cube turret has eight spaces. Since only three are used, the remaining five have blockers installed to protect your eyes from harmful UV radiation.
  • FITC/GFP. Semrock Brightline. GFP-3035D-ZHE.  This gave excellent imaging and has minimal to no visible wear. This is an expensive set.
  • DAPI. Zeiss filter set number 02. G365, FT 395, LP420. This gave excellent imaging and has minimal to no visible wear.
  • TRITC. This gave excellent imaging but has some visible wear.

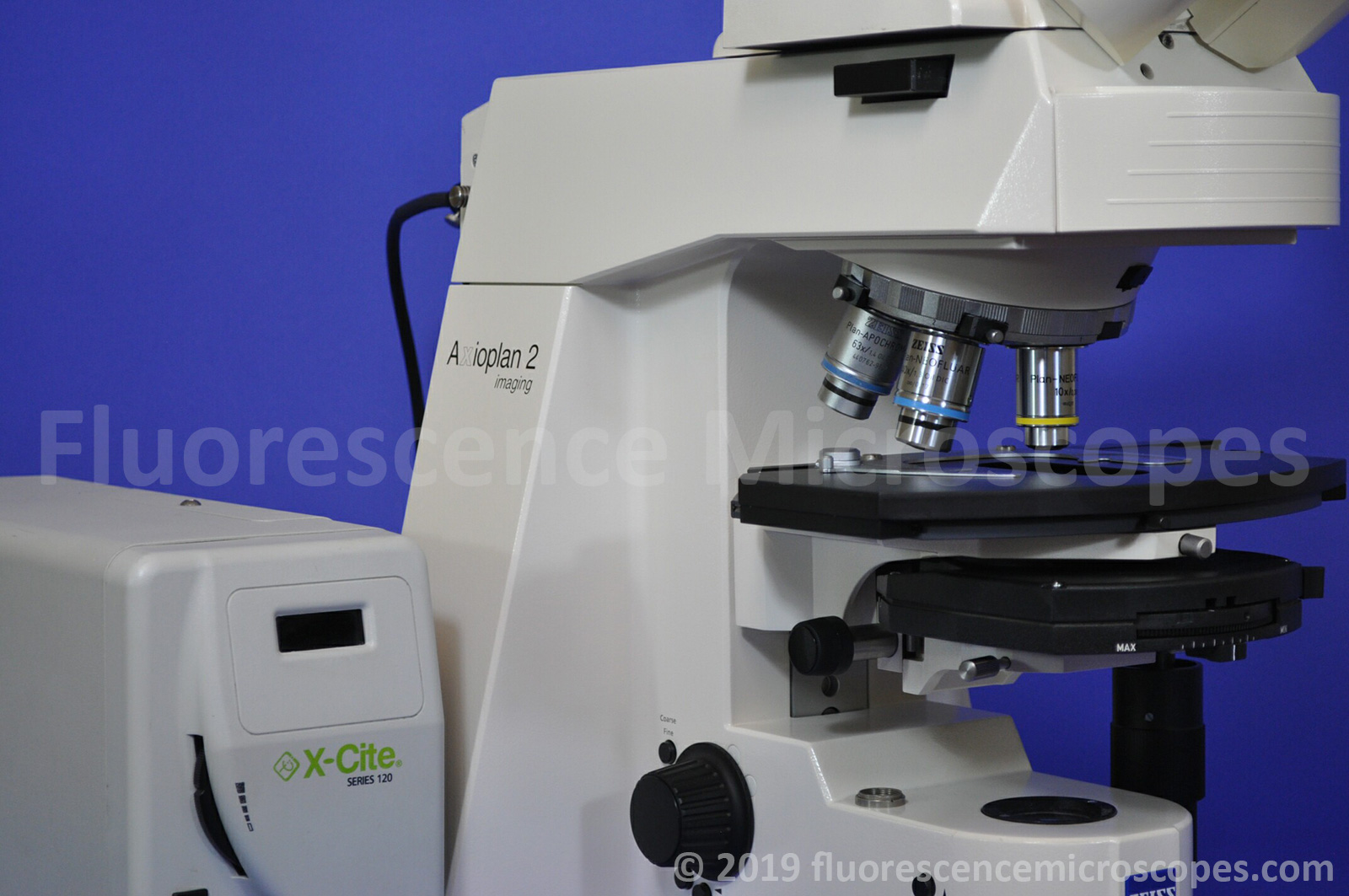

Objectives Lenses:

  • 6-Place DIC objective nosepiece with thread size M27.



Includes these objectives:

  • Plan-Neofluar 10x/0.30, Infinity/0.17. Part number 440330.
  • EC Plan-Neofluar 40x / 1.30, Oil Immersion, DIC, Infinity/0.17. Working distance 0.21 mm. Part number 440452-9903. Zeiss price list year 2012: USD $5537.
  • Plan-Apochromat 63x / 1.40 Oil Immersion. DIC, Infinity/0.17. Working distance 0.19 mm. Part number 440762-9904. Zeiss price list year 2012: USD $6075.



Motorized Frame:

  • Motorized focusing and reflector turret rotation.
  • Manual operation of objective nosepiece rotation, field iris diaphragm, and both rotary ND filter wheels.



General Specifications:

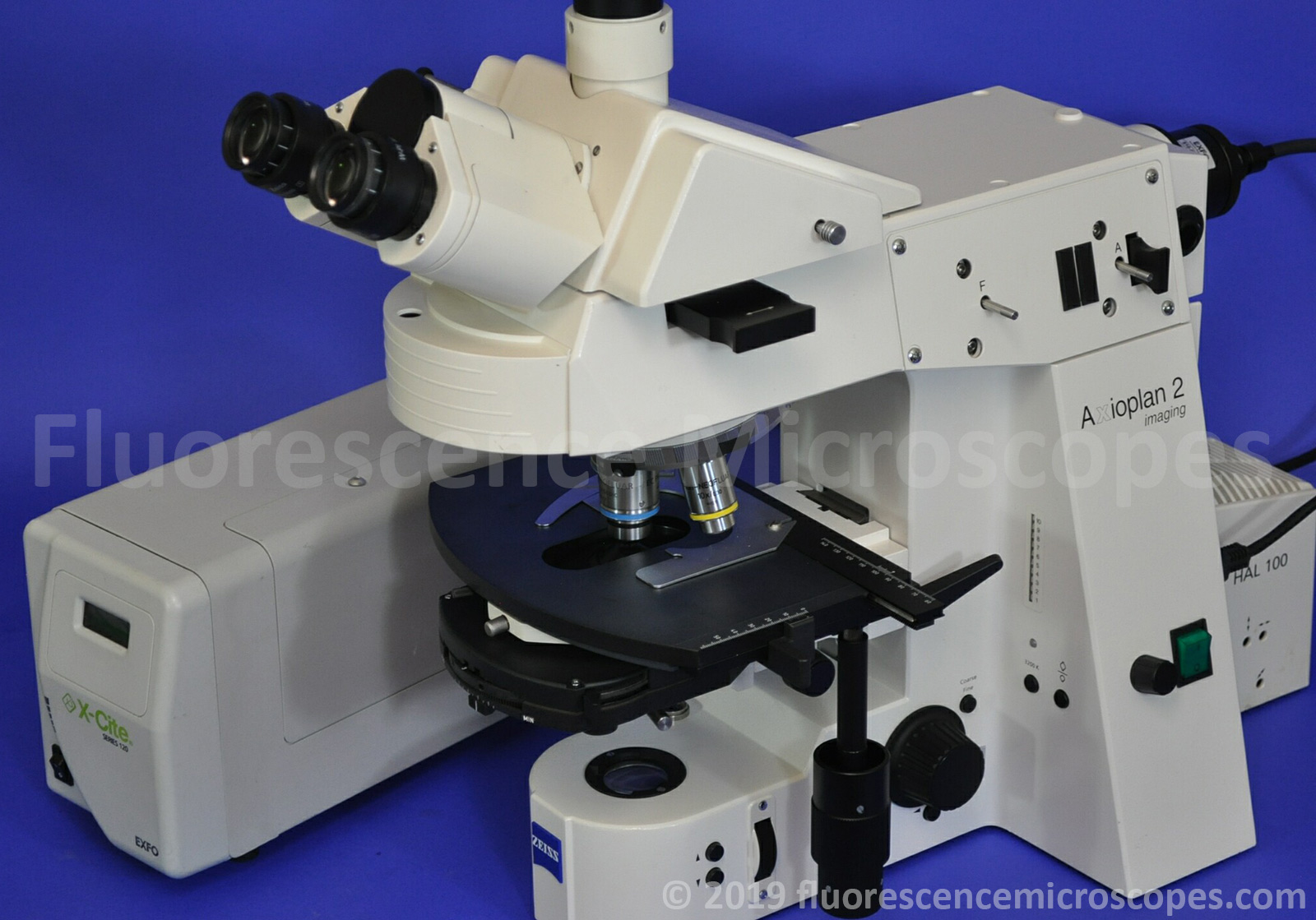

  • High power 100W halogen illumination. Compare this to the simple 30W versions. The 100W is superior for phase and DIC.
  • This microscope does not have a light manager system.
  • Koehler illumination was tested and works properly.

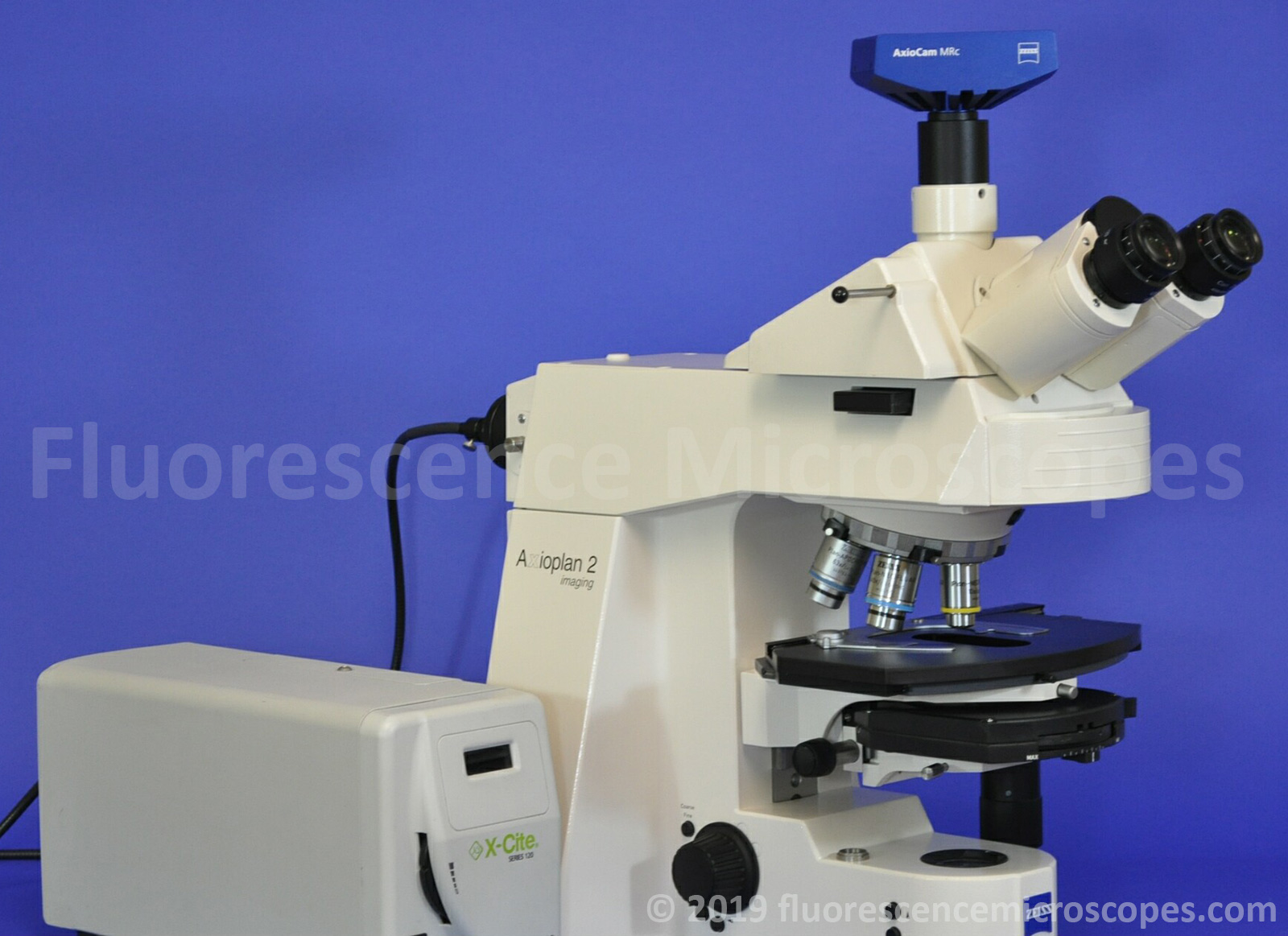

  • Top camera port.  100 percent to eyepieces, 100 percent to camera, or split between eyepieces and camera.
  • Electronic shutter to immediately cut the fluorescence light.  Also includes manual shutter slider.
  • Includes IR cut-off heat reflecting filter to protect internal lenses from the extreme heat.
  • Eyepieces: W-PL 10 X/23 high eyepoint for use with or without eyeglasses.

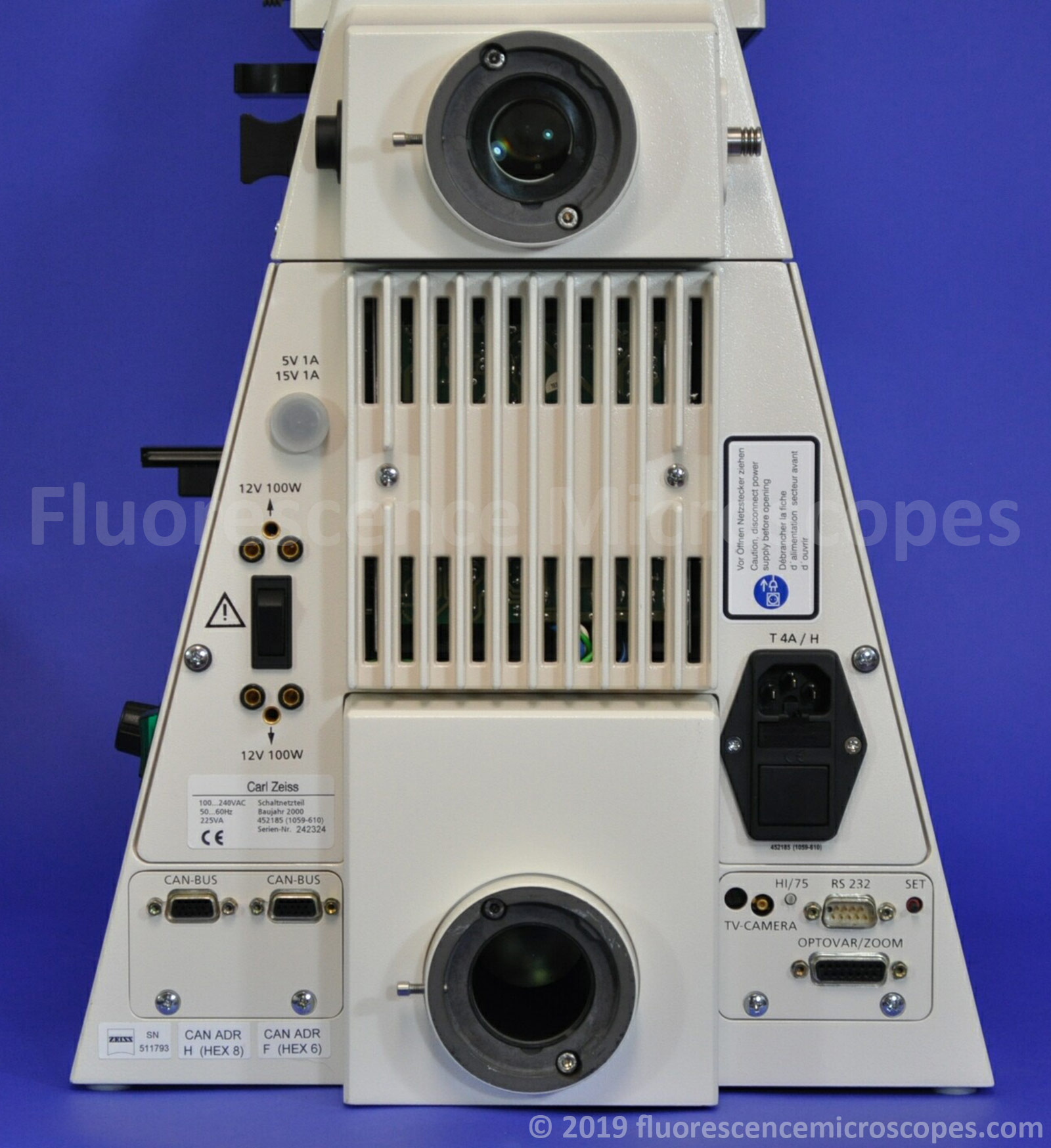

  • Worldwide voltage. 100 to 240 VAC. 50 to 60 Hz.
  • XY right-hand mechanical stage with slide movement fingers.
  • Includes two neutral density filter wheels.
  • Does not include a camera or c-mount. That is only shown to demonstrate how one can be connected.



Buy with Confidence:

  • Note: Unlike others who often describe equipment as being DIC, we actually test our equipment.
  • We obtained high quality differential interference contrast images with our configuration.
  • Oftentimes, mismatched or improperly configured DIC systems may initially appear to be correct until you try to get an actual image showing relief contrast. We were able to obtain textbook quality images. Anything less to us is unacceptable and indicative of improperly functioning equipment.



Comments:

  • This microscope is in great condition.
  • Includes all the tools for proper assembly and disassembly.
  • This is a high quality Zeiss (Made in Germany) optical instrument.
  • We have a wide variety of optional scientific cameras, both monochrome and color, with and without Peltier cooling.
  • Upon purchase, we will email links to the user manuals / instructions.
  • When comparing prices, keep in mind the extras that we are providing.

We are including a one year warranty, money back guarantee, and free shipping that are value added additions not given by most resellers.
