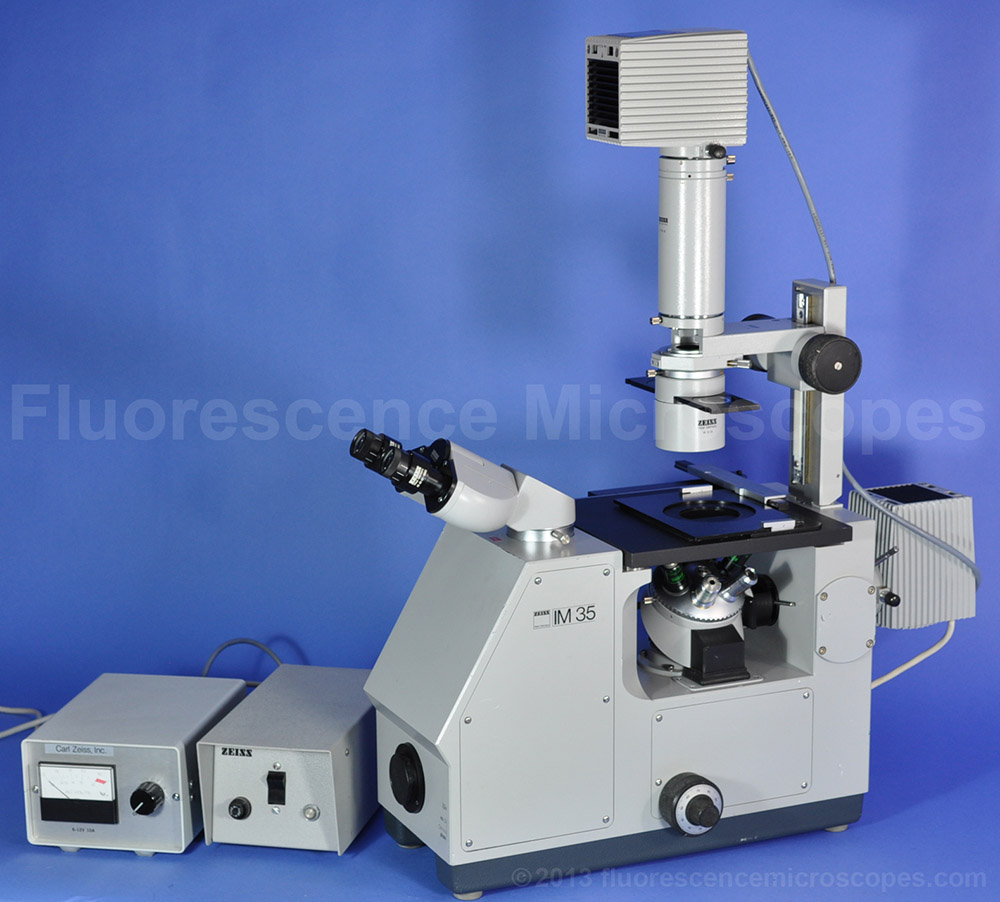

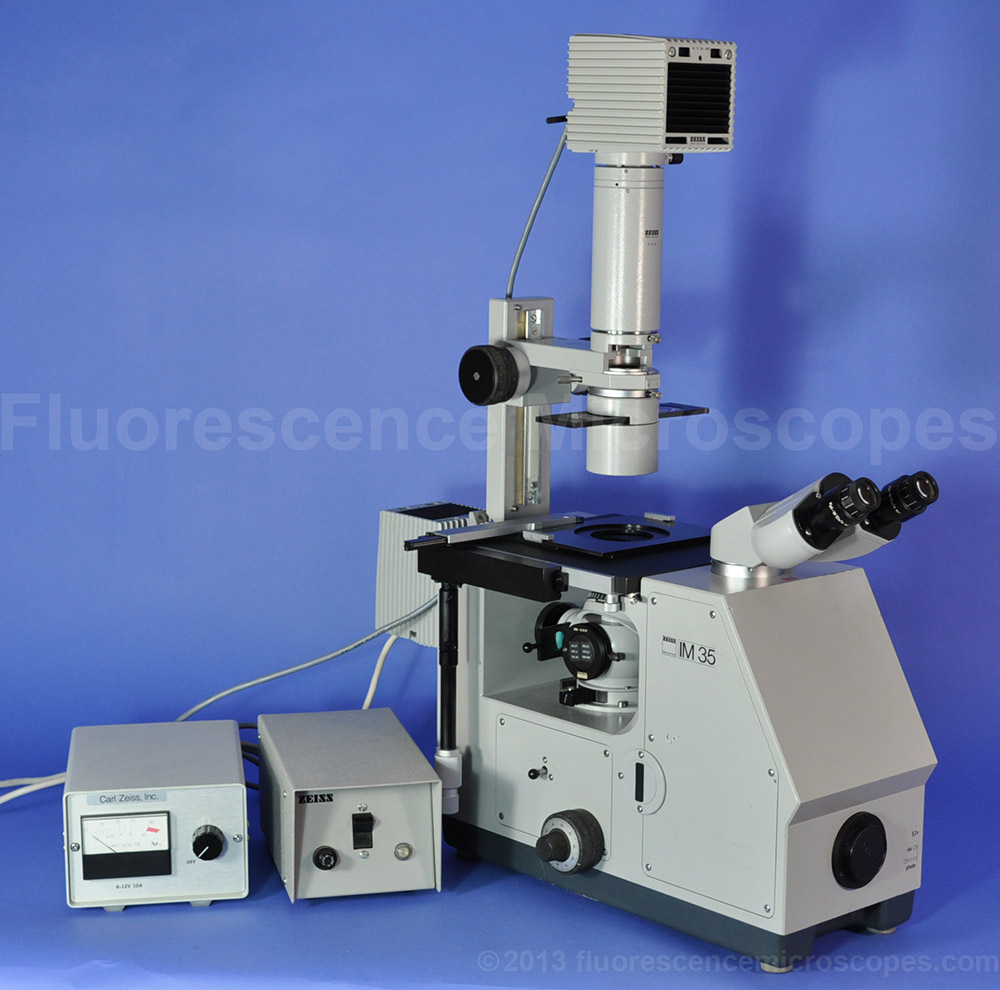

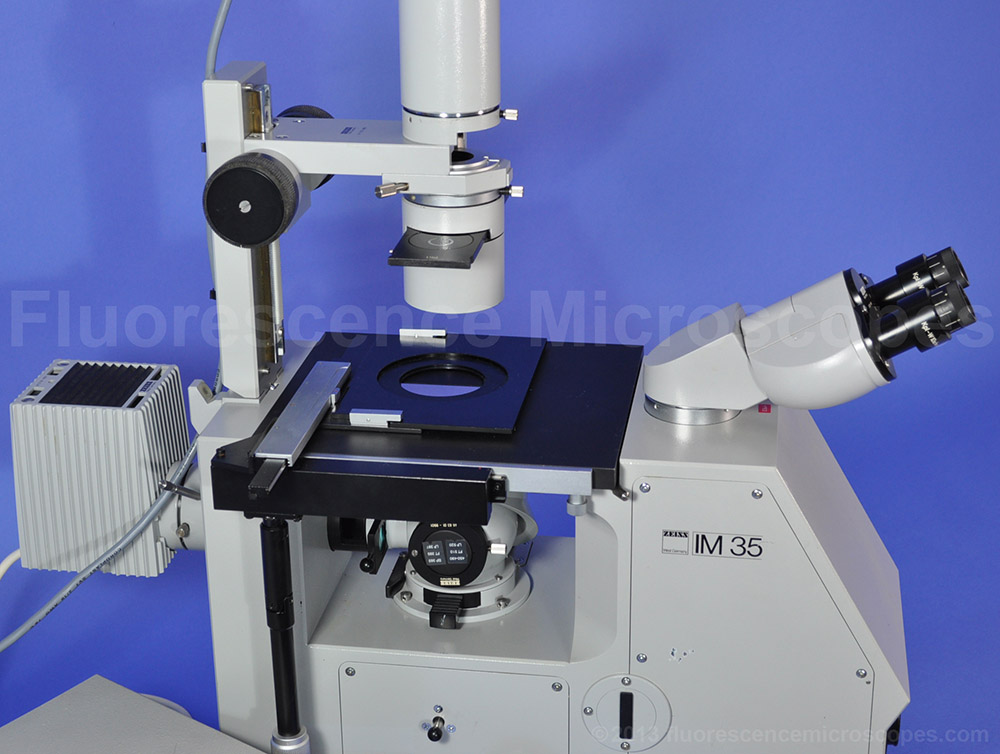

Zeiss IM35
50W Fluorescence
Phase Contrast
Inverted Microscope

USD $3800

MODEL: Zeiss IM35
ITEM CODE: 524
Shipping Cost: To be determined

Objectives:

  • 2.5x: Plan F2.5/0.08, 160/-. Part#460105.
  • 10x – Phase Objective: F 10x/0.25, 160/-, Ph1. Part#460406.
  • 20x – Phase Objective: F-LD 20x/0.25, 160/2, Ph1. Part#460606.
  • 32x – Phase Objective: F-LD 32x/0.4, 160/1, Ph1. Part#460703. Spring Loaded.

Fluorescent Microscopy System:

  • HBO 50W System.

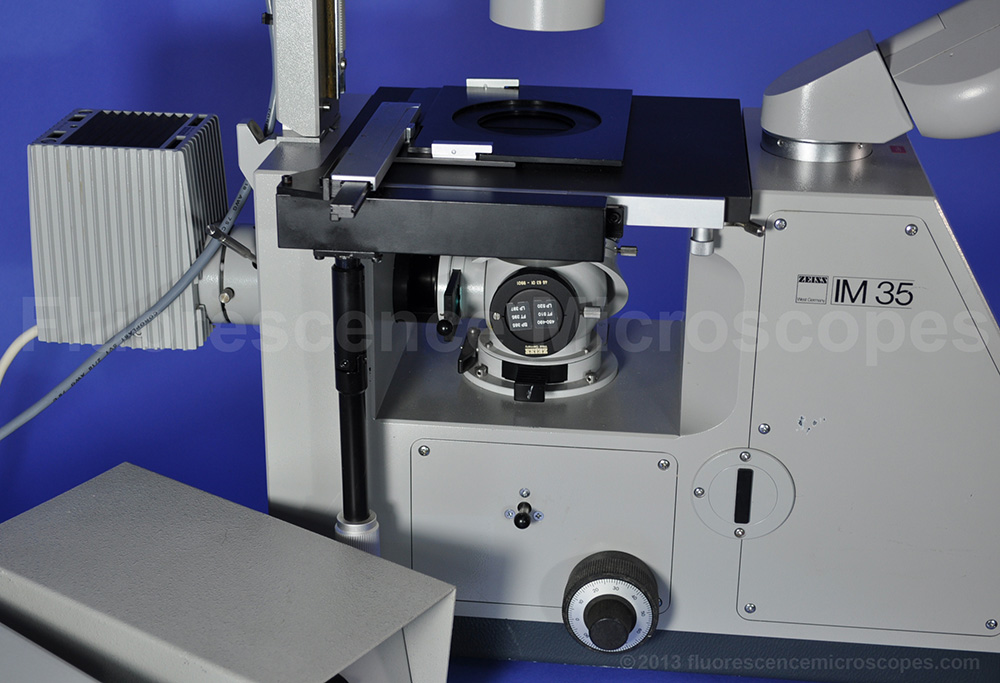

  • External Mounted HBO Lamp Housing.
  • Includes 50W Mercury Bulb installed in lamp housing.

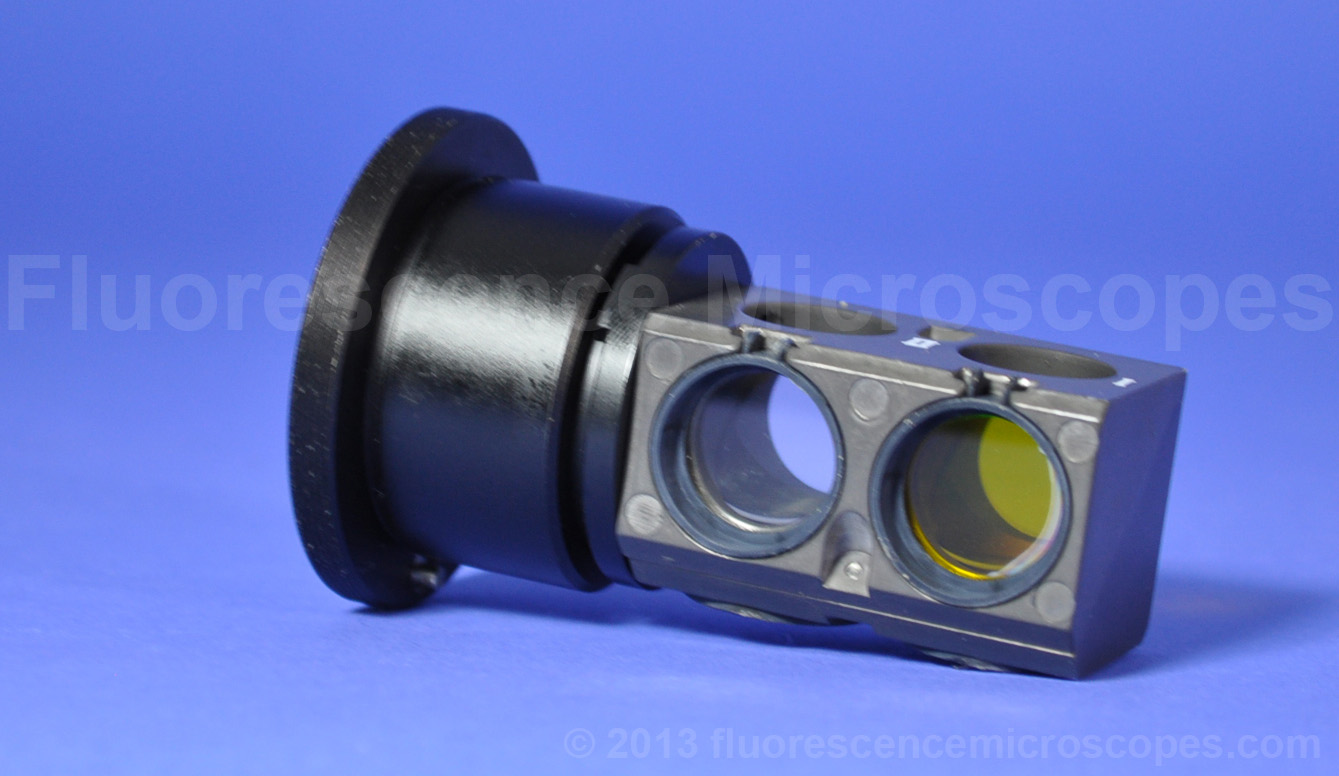

Dichroic Filter Cubes:
Includes a tray with two filter cube sets. Both filter cubes have filter sets that look in excellent condition. Normally used filters are burned by the mercury light.

  • Cube#1: FITC. Excitation Spectra: 450-490nm. Dichroic Mirror: FT 510nm. Emission Spectra: Long Pass LP 520.
  • Cube#2: UV. Exciting Spectra: Band Pass 365nm. Dichroic Mirror: FT 395nm. Emission Spectra: Long Pass LP 397.

Phase Contrast Microscopy System:

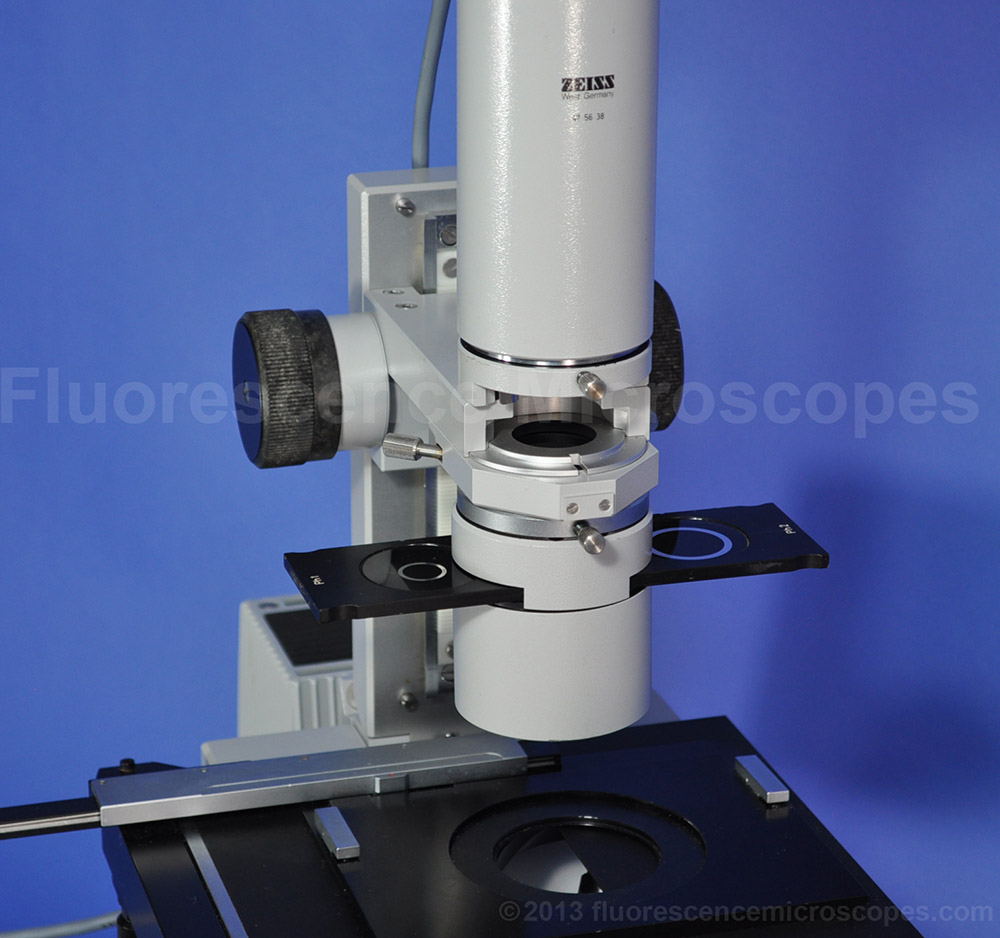

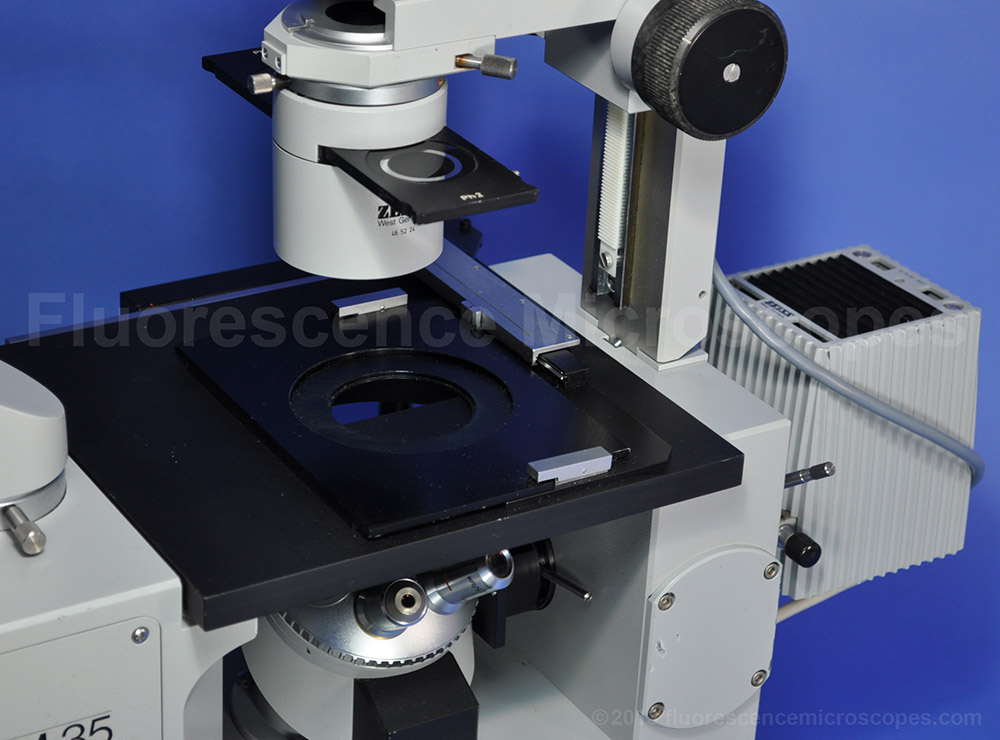

Condenser with settings for brightfield, Ph1 annulus and Ph2 annulus.

General Specifications:

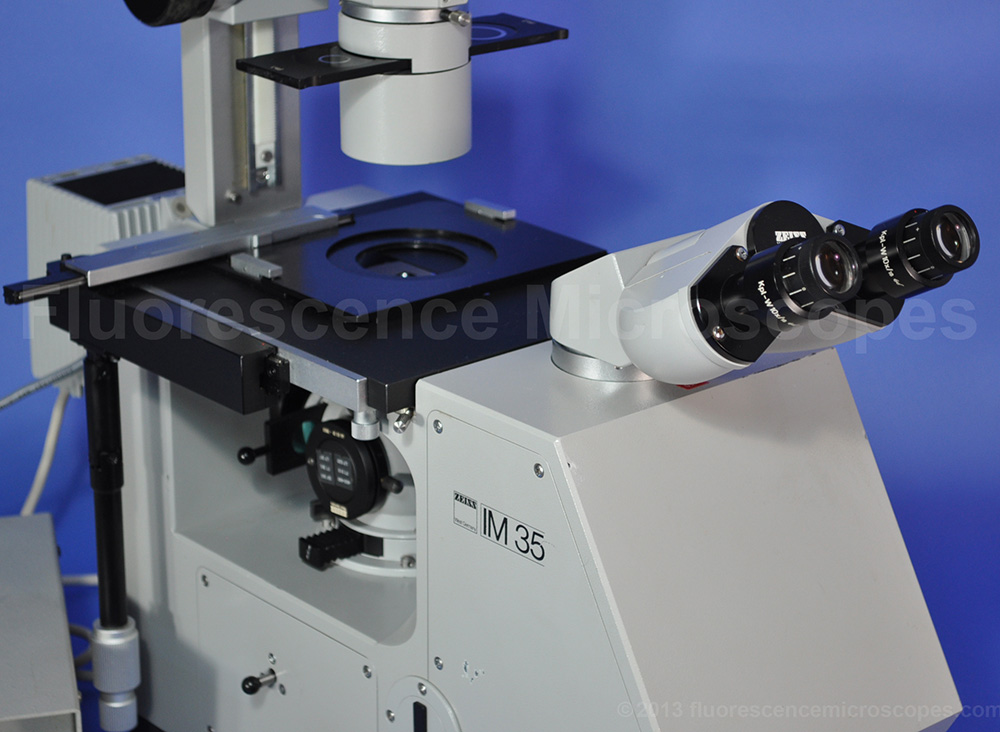

  • Binocular Viewing Head.
  • Eyepiece Pair: KPL-W10x/18 High Eyepoint
  • Sextuple (6-place) Objective Nosepiece.
  • Made in West Germany.

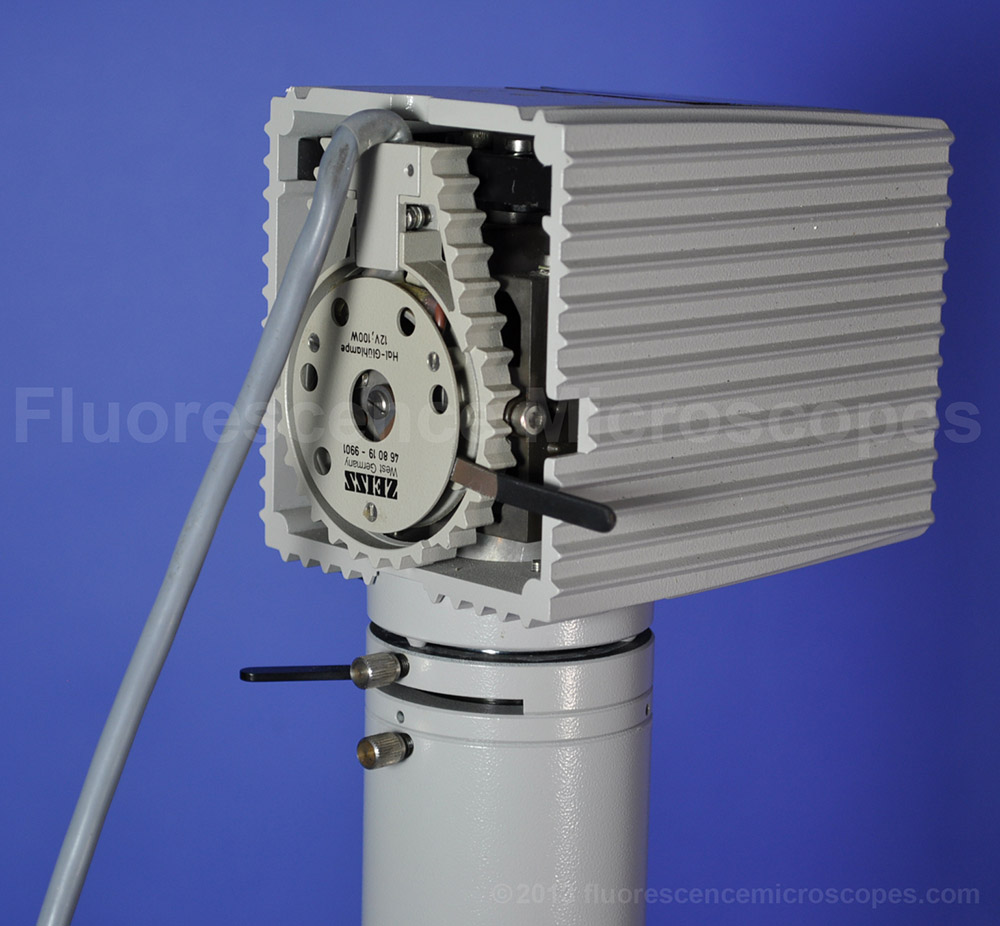

Transmitted Illumination (brightfield and phase contrast):

  • 12V-60W Incandescent.
  • Power Supply: 6-12V Zeiss

Fluorescent Illumination:

  • Zeiss 50W power supply.
  • 120VAC. Rated 50W.
  • Model 1100.

Condition:

This is a used microscope and sold in as-is condition.

User Manuals and Instructions:
Zeiss Inverted Microscope IM Operating
