ITEM CODE: SKU-077

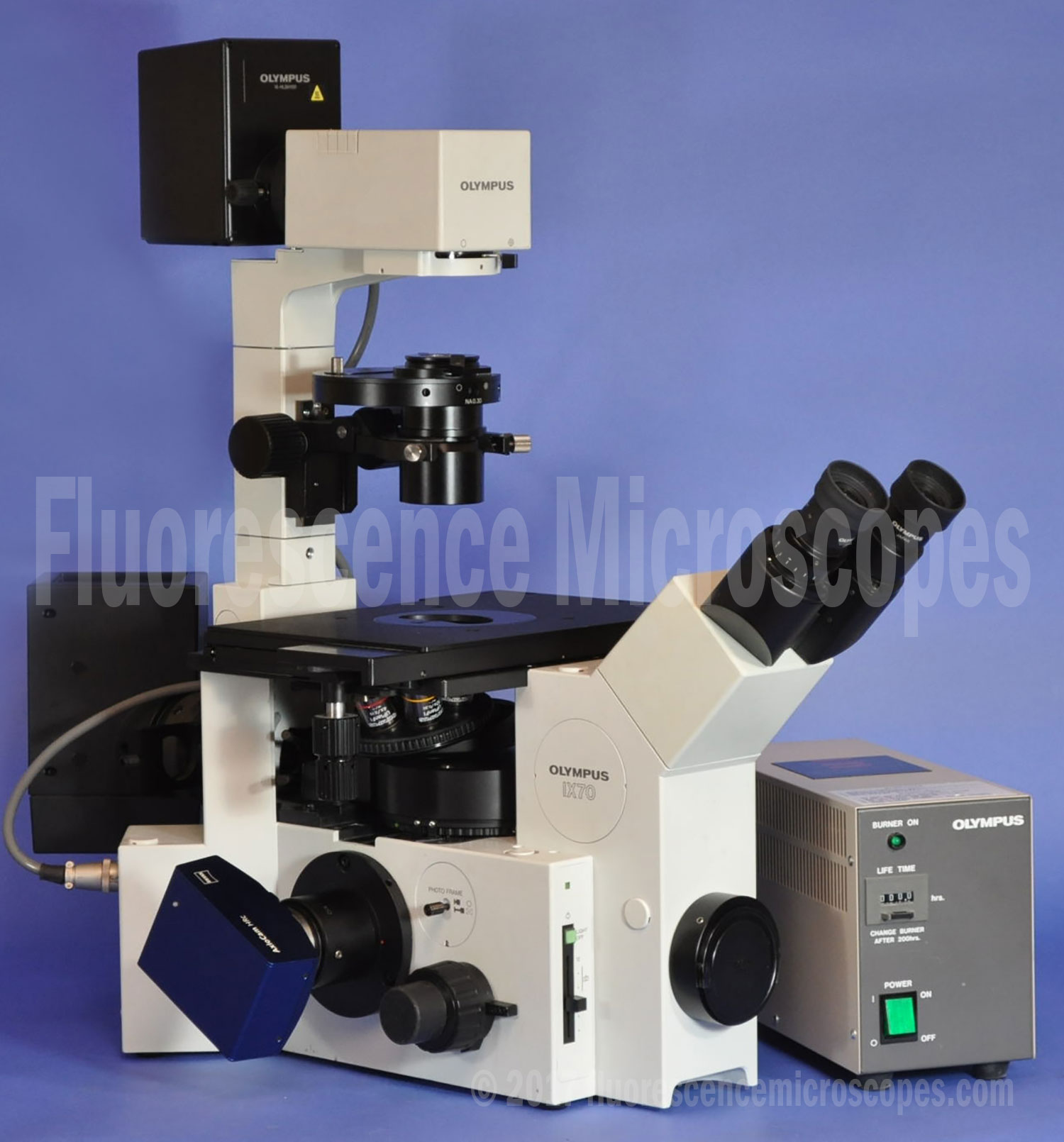

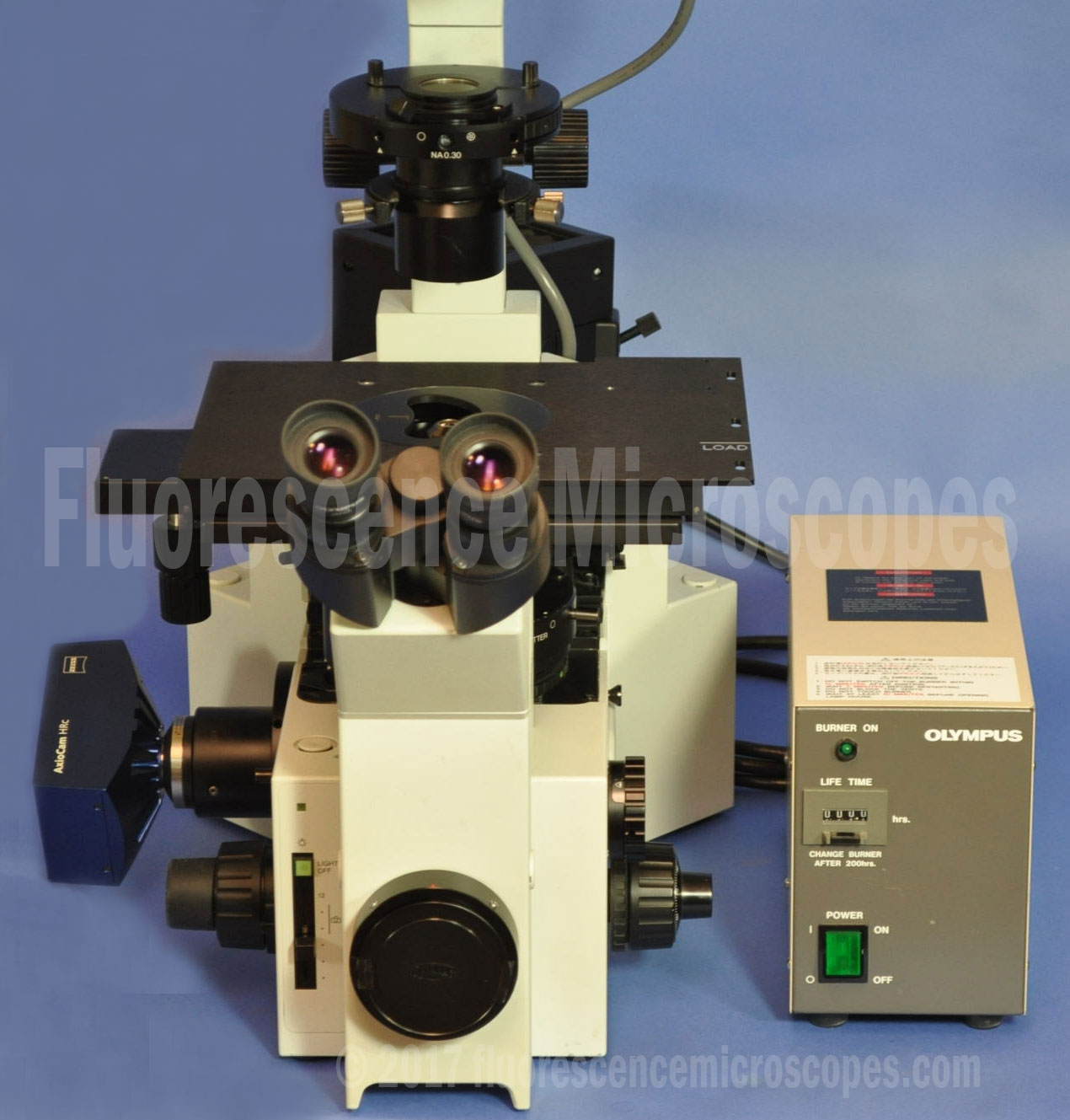

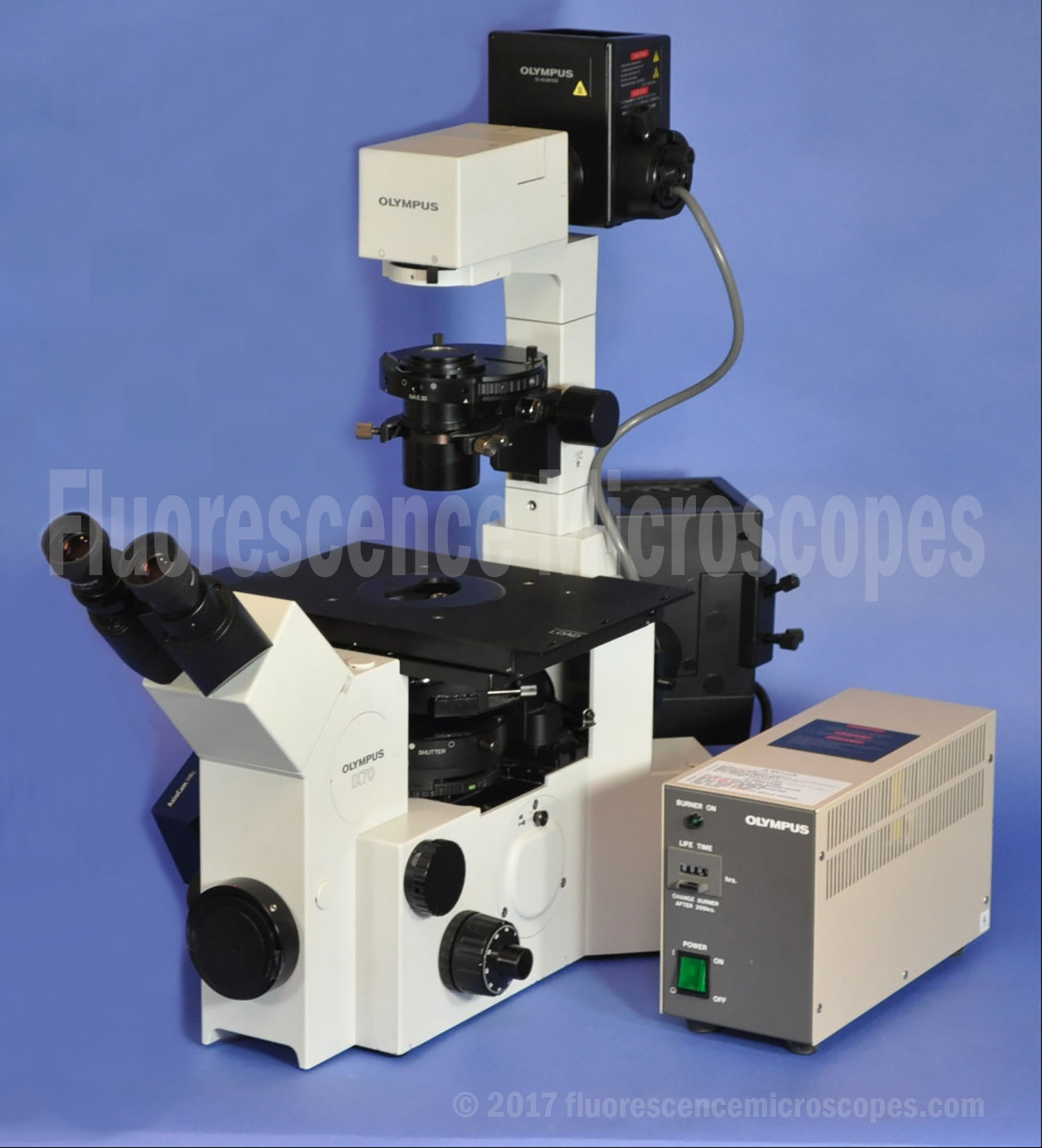

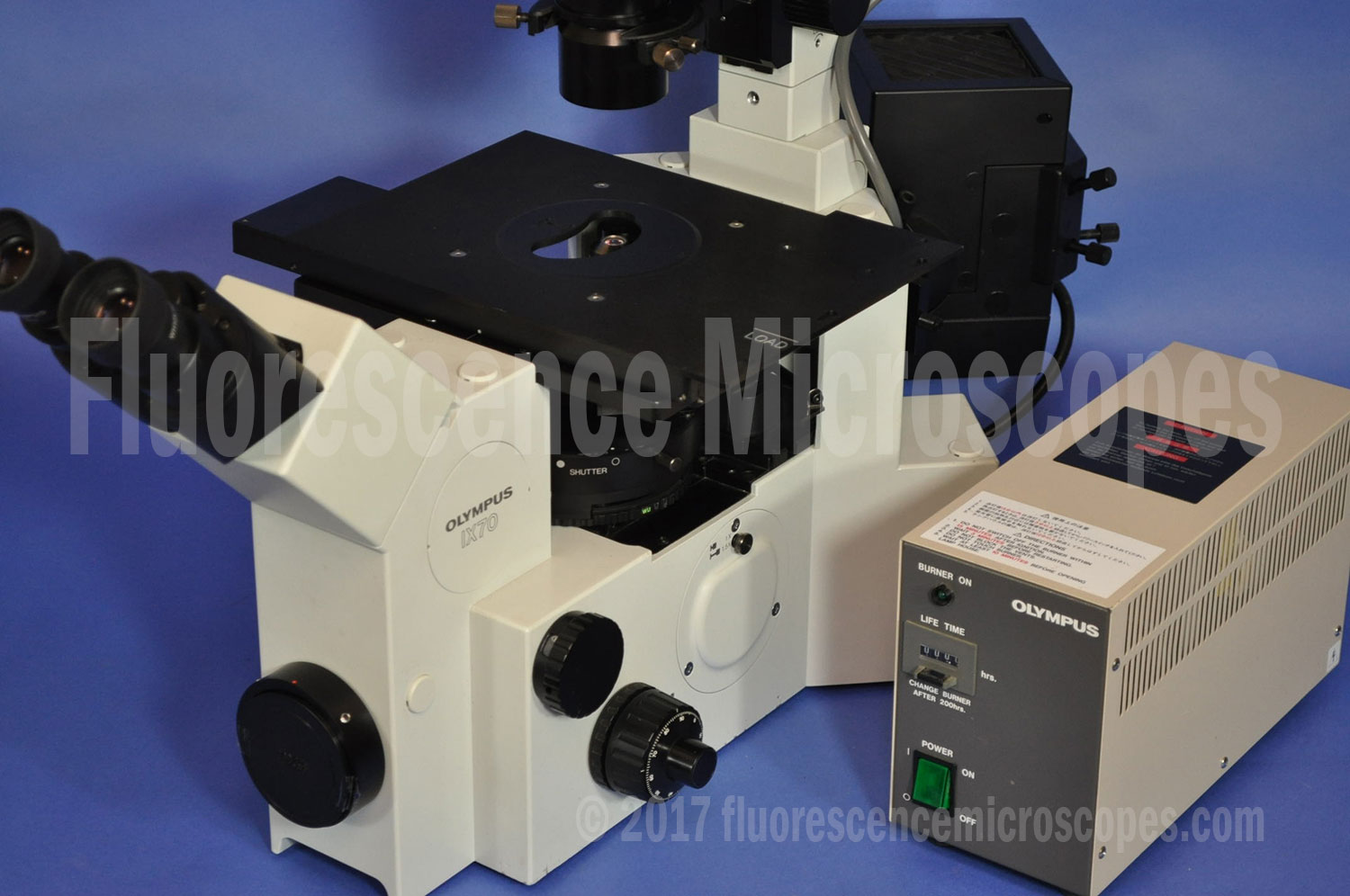

Model: Olympus IX70
Shipping Cost: Free USA.
SOLD
Main Features:
- Frame Marking: Model IX70-S8F2
- Magnification Changer built into frame: 1x/1.5x.
- Six position nosepiece to hold objective lenses.
- U-BI90. Binocular Viewing Tube.
- Eyepieces: WH10X/22 High Eyepoint with ability to use eyeglasses when viewing.
- Rubber cupping eyeguards with ability to block out extraneous illumination for better fluorescence viewing.
- XY Mechanical stage for moving specimen vessel. This is not the cheaper version that only moves a bracket that slides over the top of a fixed stage. The whole top surface of the stage moves with the specimen or vessel holder. Right hand controls.
- Zero drift system installed to keep the X and Y movement position stationary when not touching the movement rod.
Fluorescence Illumination:
- 4-Position Fluorescence Reflector Turret. IX-RFAC.
- Fluorescence Lamp Housing: 100W HBO Mercury. Utilizes an included HBO 100W Mercury bulb.
- IX-RFA. Reflected Light Vertical Illuminator.
- Rear Shutter Slider.

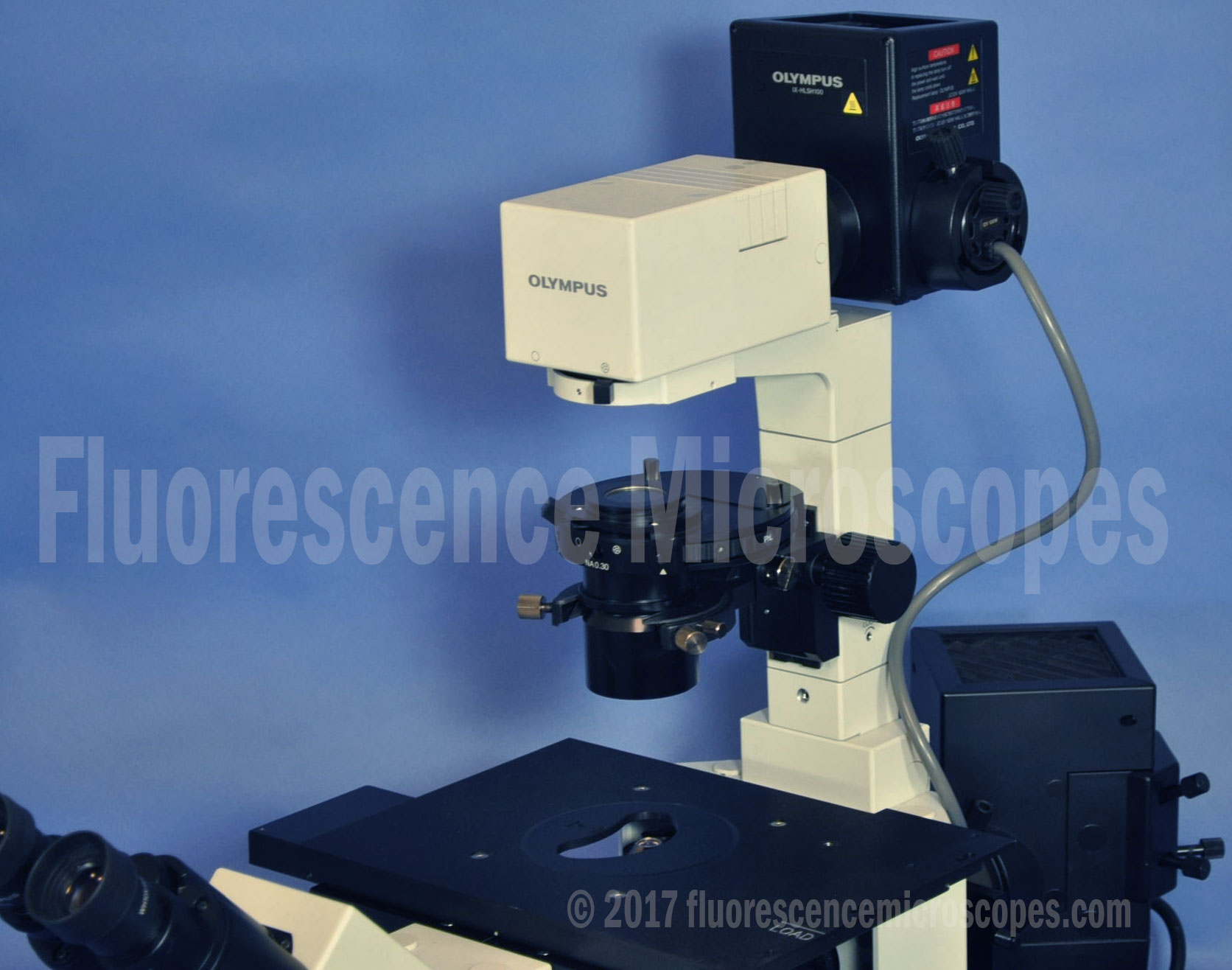

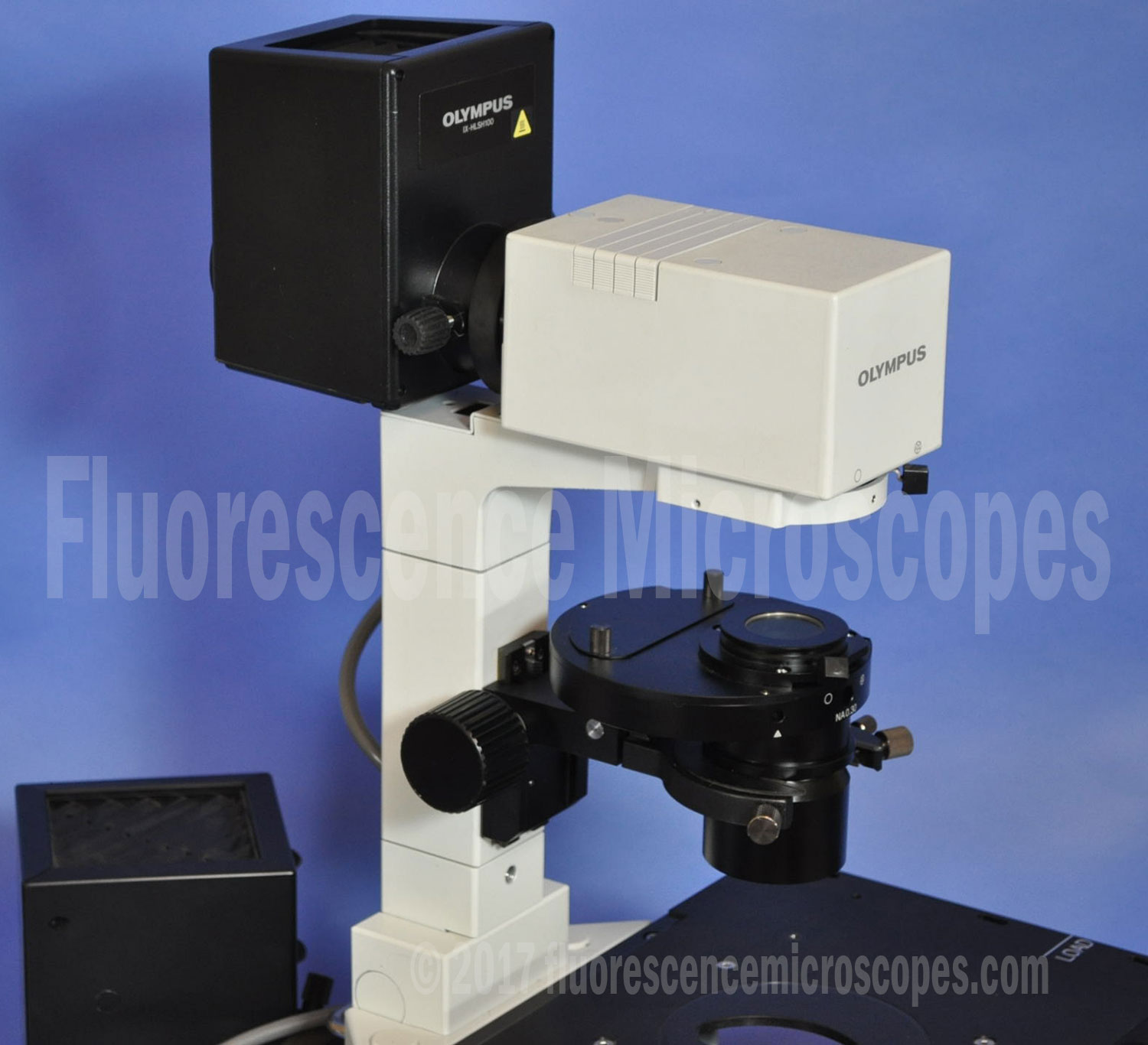

Transmitted Illumination:
- 100W Halogen Transmitted Illumination Pillar. IX-ILL100H.
- Halogen Lamp Housing: 12V-100W.
- Turret style condenser, N.A. 0.30.
- Working distance for condenser 73mm. With adjustable aperature iris diaphragm.
- Transmitted Light Power Supply built into frame.
- IF 550 Interference Green filter for use with phase contrast.
- Frosted diffuser filter.
- Obtained Koehler illumination with complete optical alignment.
Other Specs:
- Includes an original 3 mm Olympus screwdriver plus a pair of original Olympus 1.5 mm phase centering screwdrivers.
- Included all needed power cords.
Voltage:
- The frame is Autovolt. 100-120 / 220-240 VAC. 50/60 Hz.
- The HBO power supply is 110-120V only. If you need 220 V, we can provide but it will be additional cost.
Objective Lenses:
- UPlanFl 4x/0.13, Infinity/-.
- UPlanFl 10x/0.30, infinity/-.
- LCPlanFl, 20x/0.40, infinity/. Ph1. Phase Contrast. CAP-P1.1 +/-0.5.
- LUCPlanFl N 40x/0.60, infinity/. Ph2. Phase Contrast. Correction collar 0 – 2mm.
Dichroic Fluorescence Filter Cubes: (contact us for different filters):
- Two Filter Sets Included:
- FITC. U-MWB. Wide band blue. This gave excellent quality imaging. The fluorescence shined a bright green in the eyepieces.
- TRITC. U-MWG. Wide band green. This gave excellent quality imaging. The fluorescence shined a bright red in the eyepieces
- Rotary turret can hold up to four cubes.
- Includes two light blockers for the empty spaces. This is important to protect your eyes against harmful UV light.

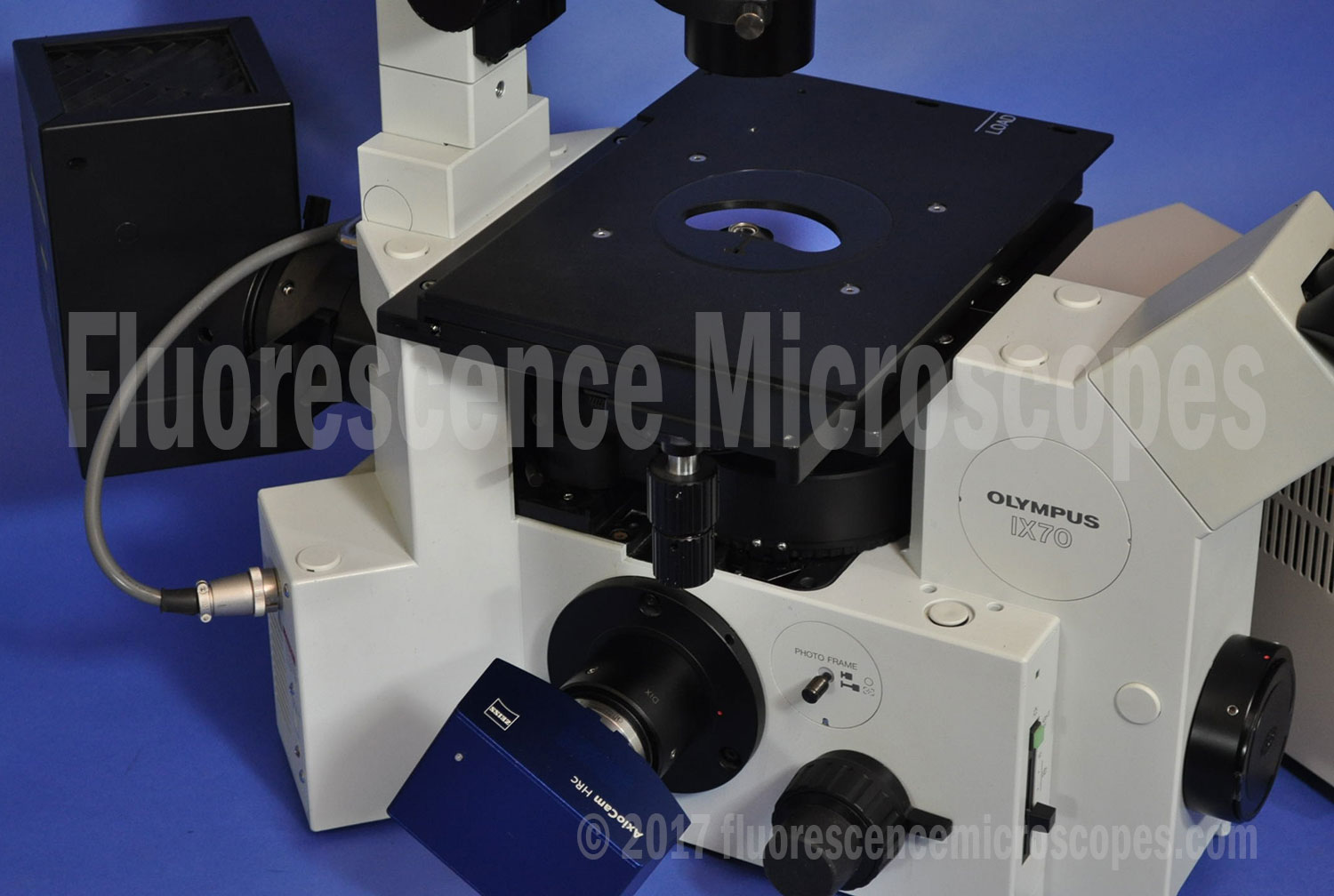

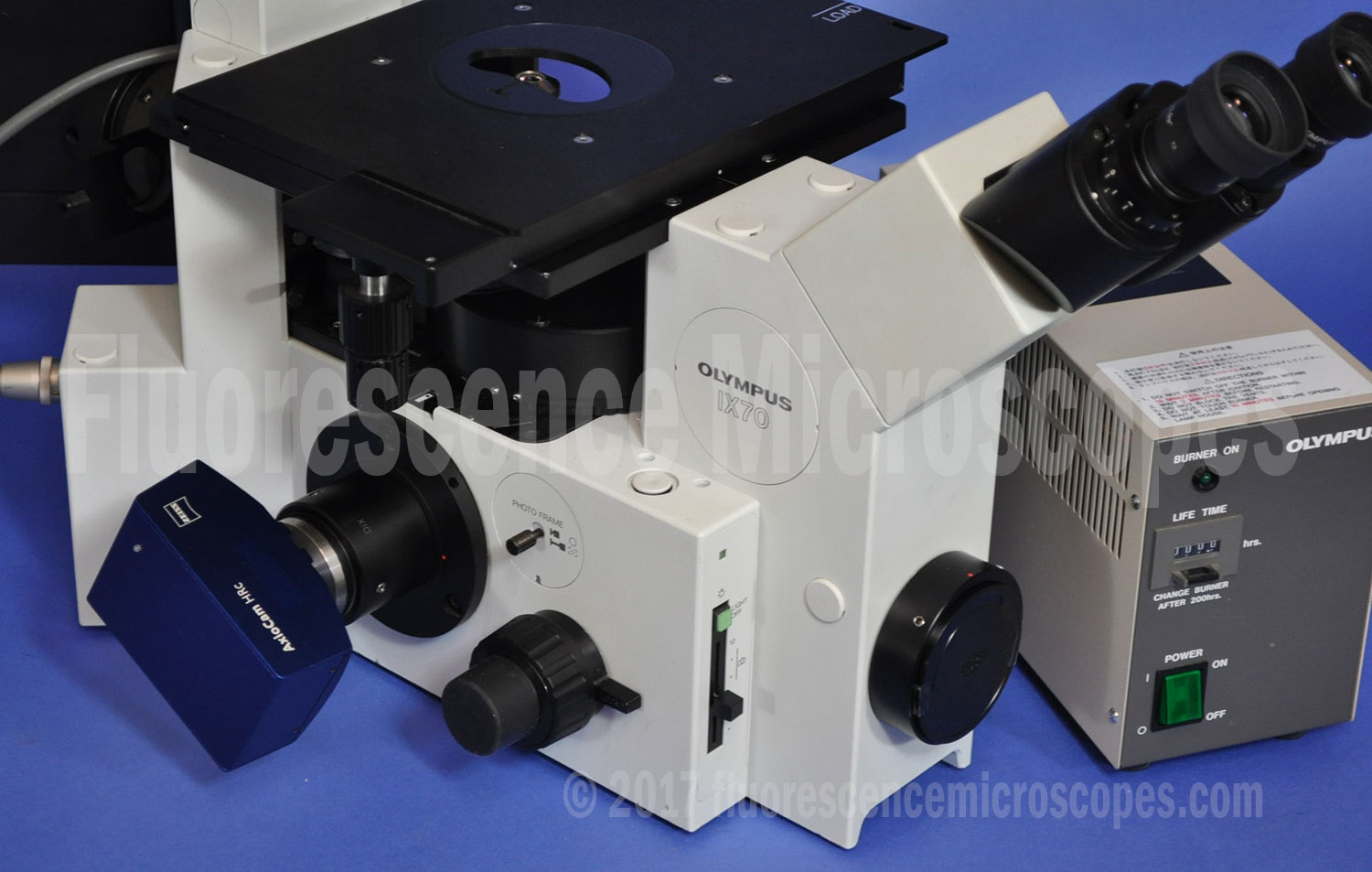

Camera Ports:
- Two camera ports.
- Side photo port.
- SLR camera port on front of frame.
- Selector switch gives three different settings. 100 percent to the eyepieces, split between the eyepieces and the side Port, split between the eyepieces and the front SLR port.

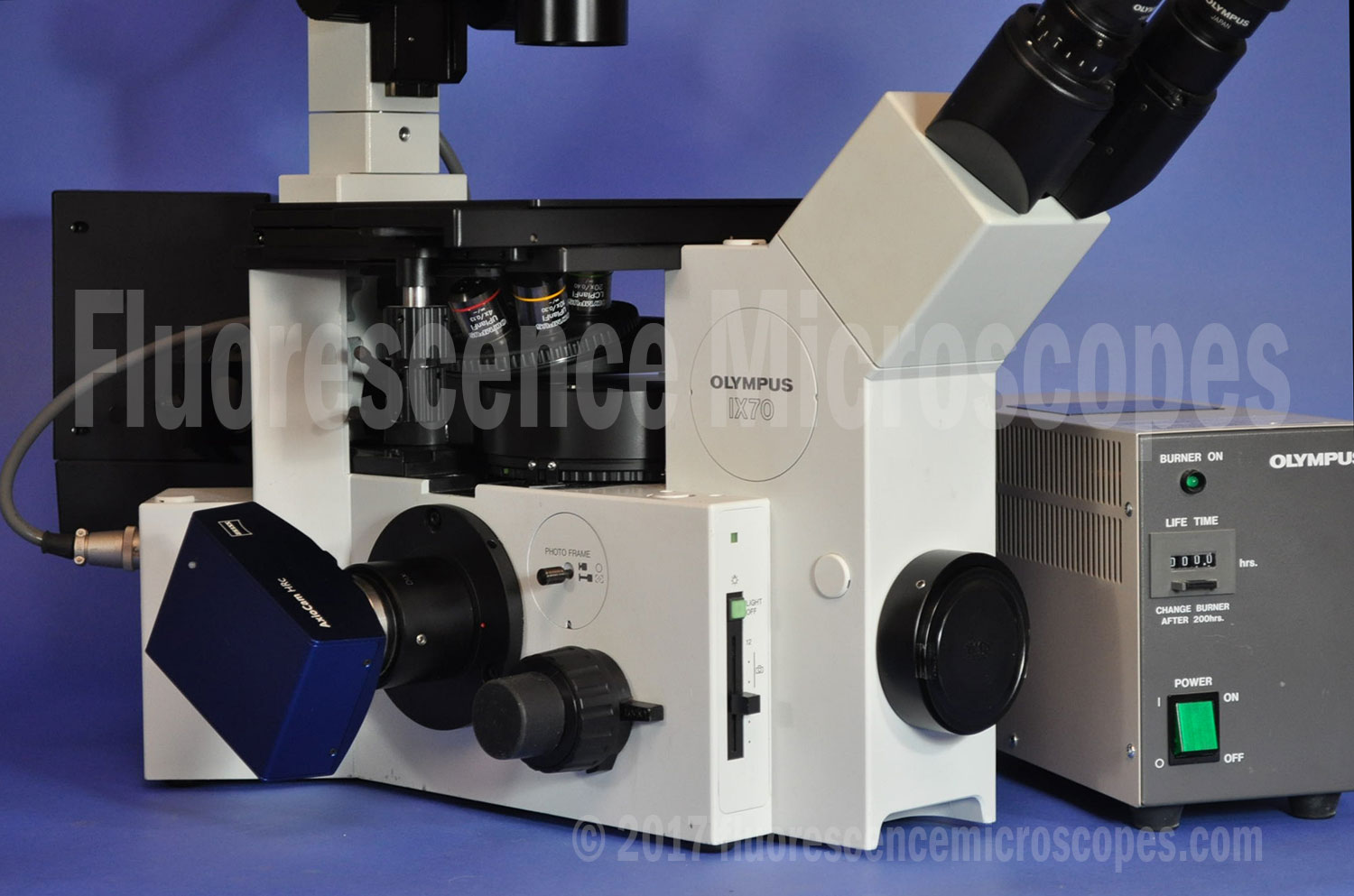

- Camera and camera adapter not included. The camera is only shown in the photographs to demonstrate how one can be connected to this frame.
Comments:
- This microscope is in great condition.
Quality:
- This is a high quality Olympus (Made in Japan) optical instrument.
- We also sell Chinese made fluorescence microscopes but the quality is substantially lower.
Optional Accessories:
- We have a wide variety of optional scientific cameras, both monochrome and color, with and without Peltier cooling.
- Brand new Chroma hard coated fluorescence filters with lifetime warranty may be added. Cost is USD $450/set for the dichroic filter (emission filter, dichroic mirror, barrier filter). There is additional cost for the blank filter cube.
Testing Results:
- This microscope was fully tested.
- We tested this unit with our brand new Chroma GFP/FITC filter cube (not included), and the resulting imaging was great.
- We tested it with the three included cubes and image was poor or not present. It may be that the filter cubes did not match the spectrum of our prepared slide. But it’s likely the filters need changing.
DESCRIPTION:
- We have a wide variety of optional scientific cameras, both monochrome and color, with and without Peltier cooling.
- Optional DIC configuration.
- Other objectives and Filters can be configured.
- Brand new replacement 100W HBO Mercury Bulbs and Halogen bulbs are available.
- Brand new Chroma hard coated filters with lifetime warranty may be added. Cost is USD $450/set for the dichroic filter (emission filter, dichroic mirror, barrier filter). This assumes we use one of the included cubes and take out the filters in it.
