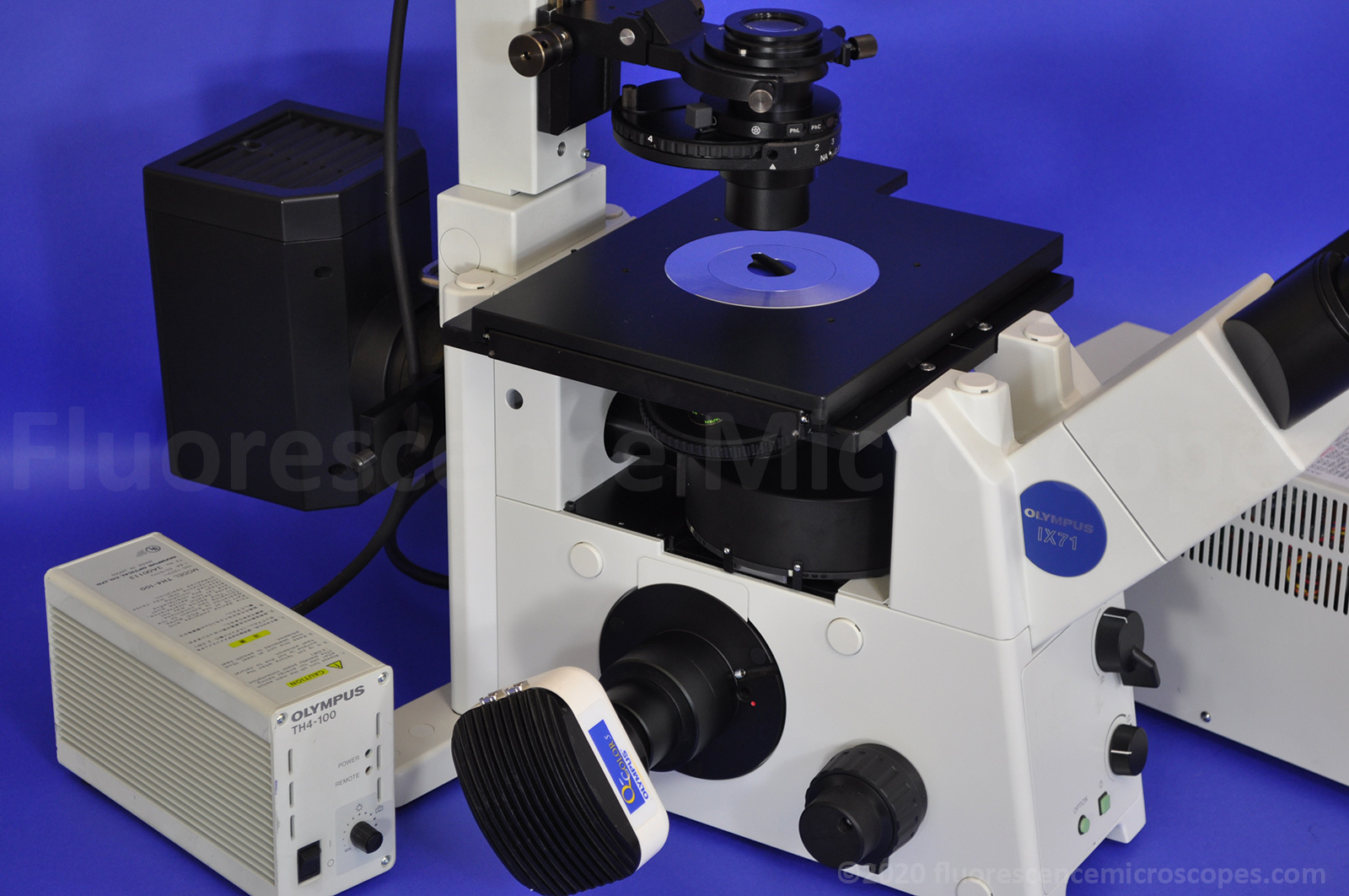

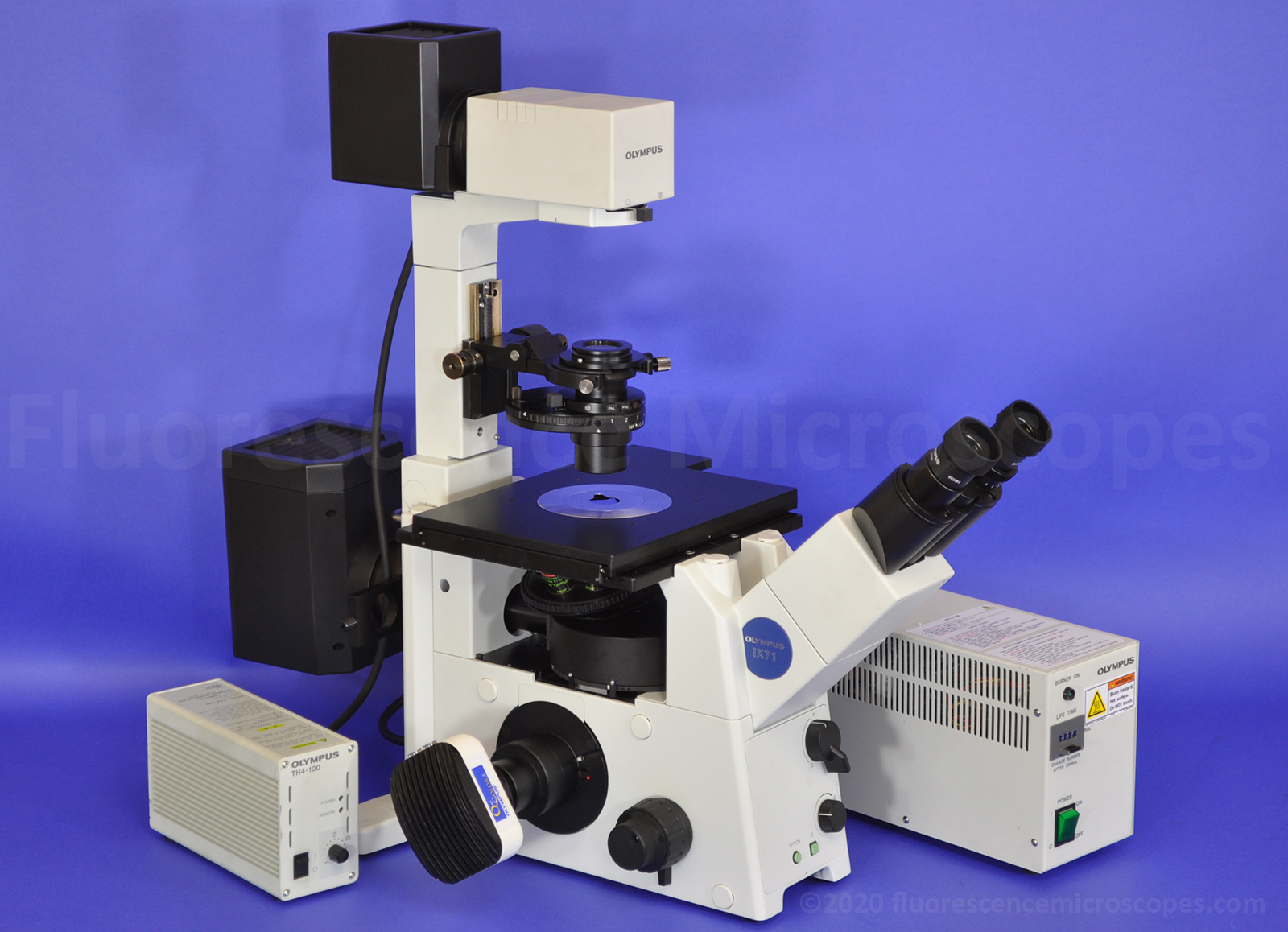

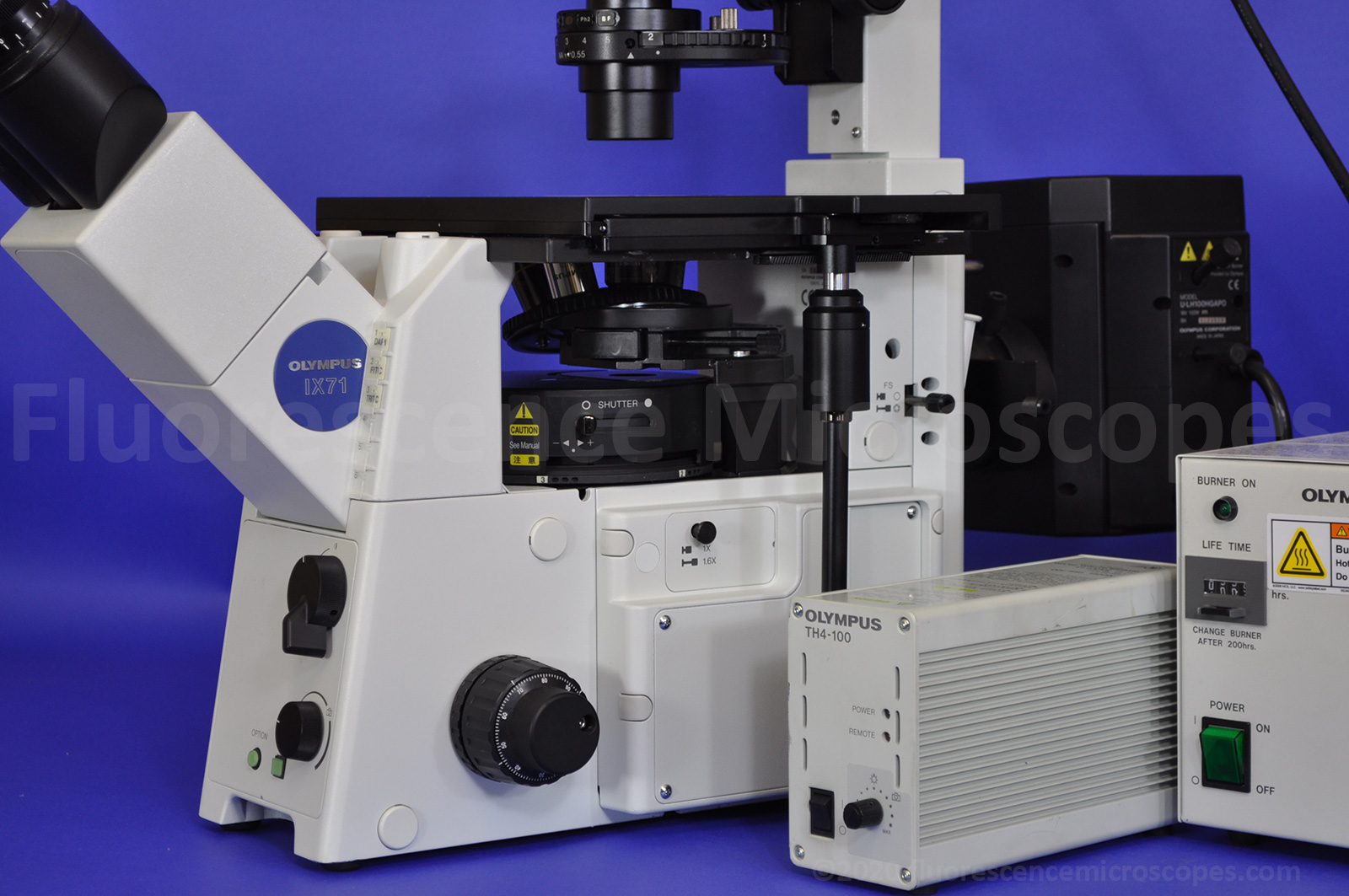

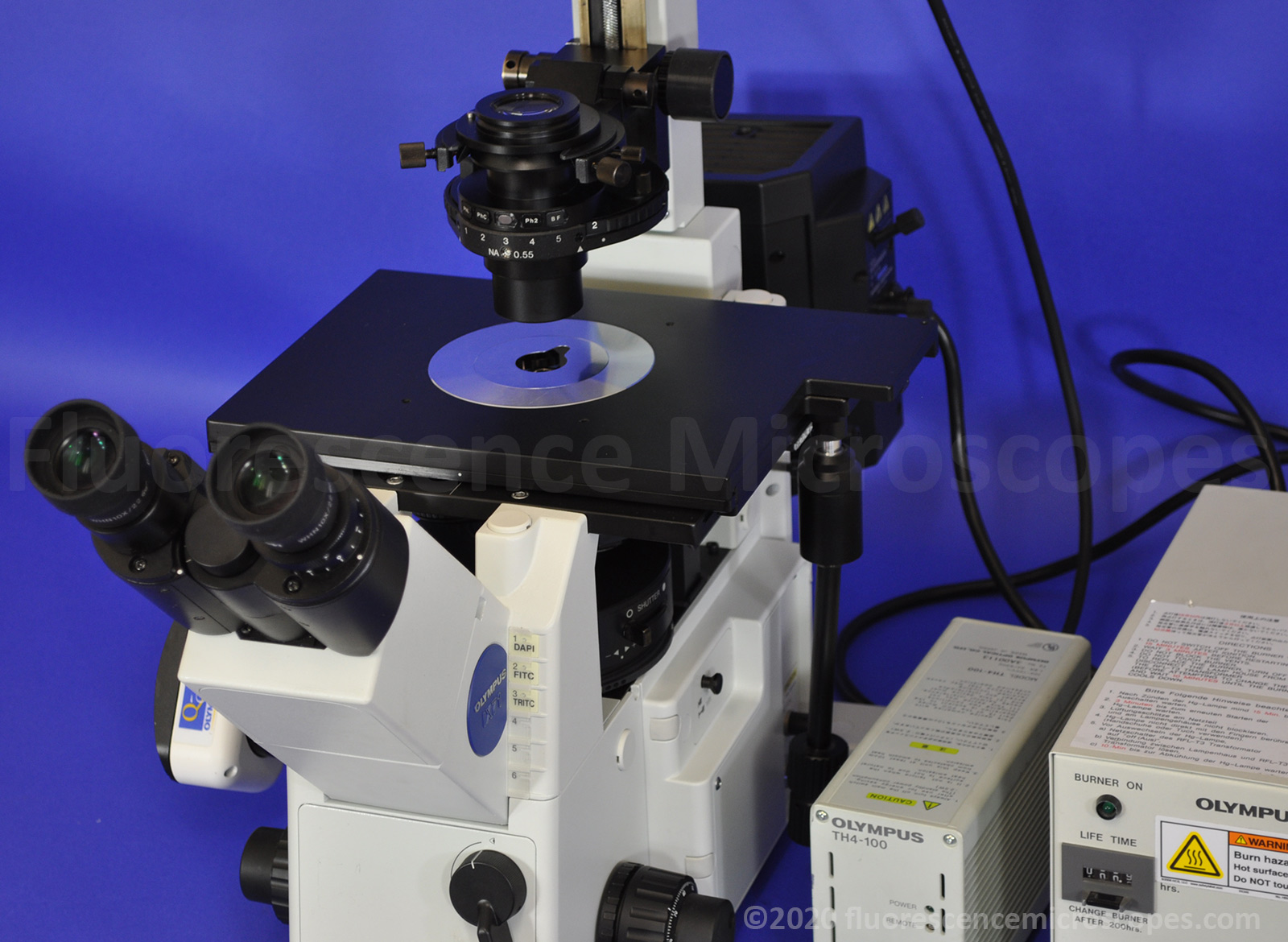

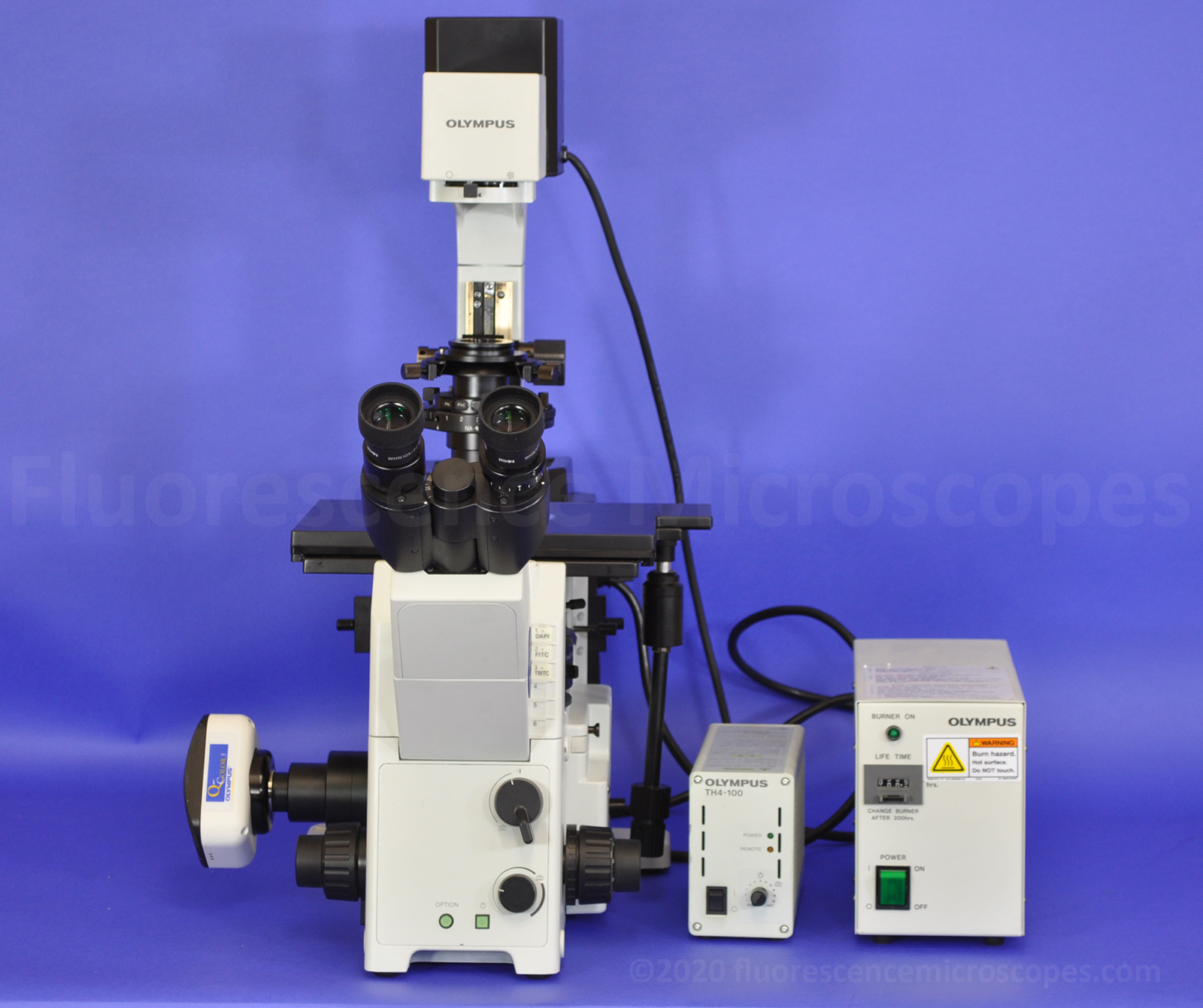

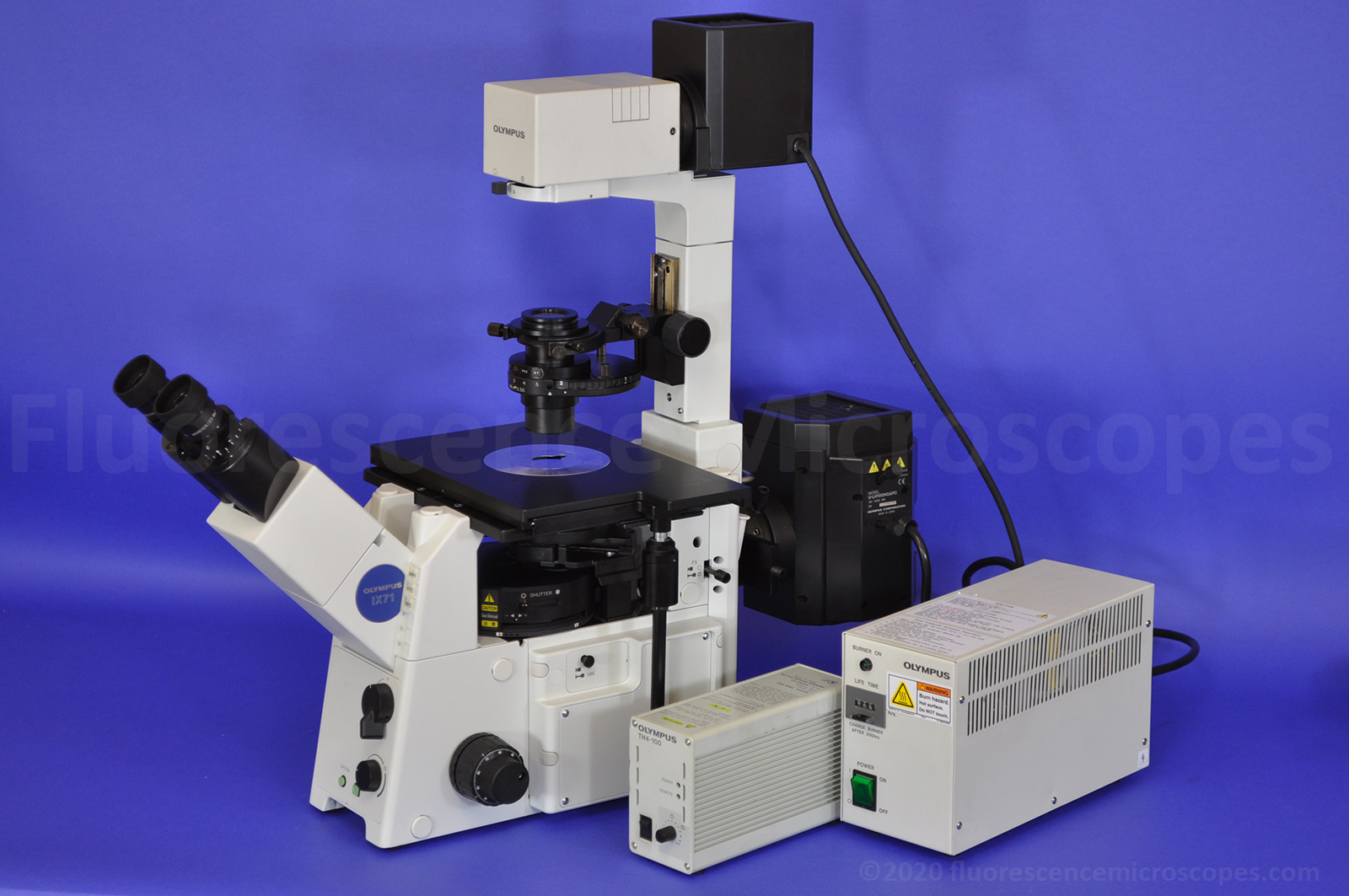

Olympus IX71 Inverted Fluorescence Phase Contrast Microscope

USD $8,900

ITEM CODE: SKU-137
Model: Olympus IX71
Shipping Cost: Free USA Shipping.

Olympus IX71 Inverted Fluorescence Phase Contrast MicroscopeOlympus IX71 Inverted Fluorescence Phase Contrast MicroscopeOlympus IX71 Inverted Fluorescence Phase Contrast MicroscopeOlympus IX71 Inverted Fluorescence Phase Contrast MicroscopeOlympus IX71 Inverted Fluorescence Phase Contrast MicroscopeOlympus IX71 Inverted Fluorescence Phase Contrast MicroscopeOlympus IX71 Inverted Fluorescence Phase Contrast MicroscopeOlympus IX71 Inverted Fluorescence Phase Contrast MicroscopeOlympus IX71 Inverted Fluorescence Phase Contrast MicroscopeOlympus IX71 Inverted Fluorescence Phase Contrast Microscope

Main Features:

  • Frame Marking:  Model  IX71S8F-3
  • 6-Position Fluorescence Reflector Turret.

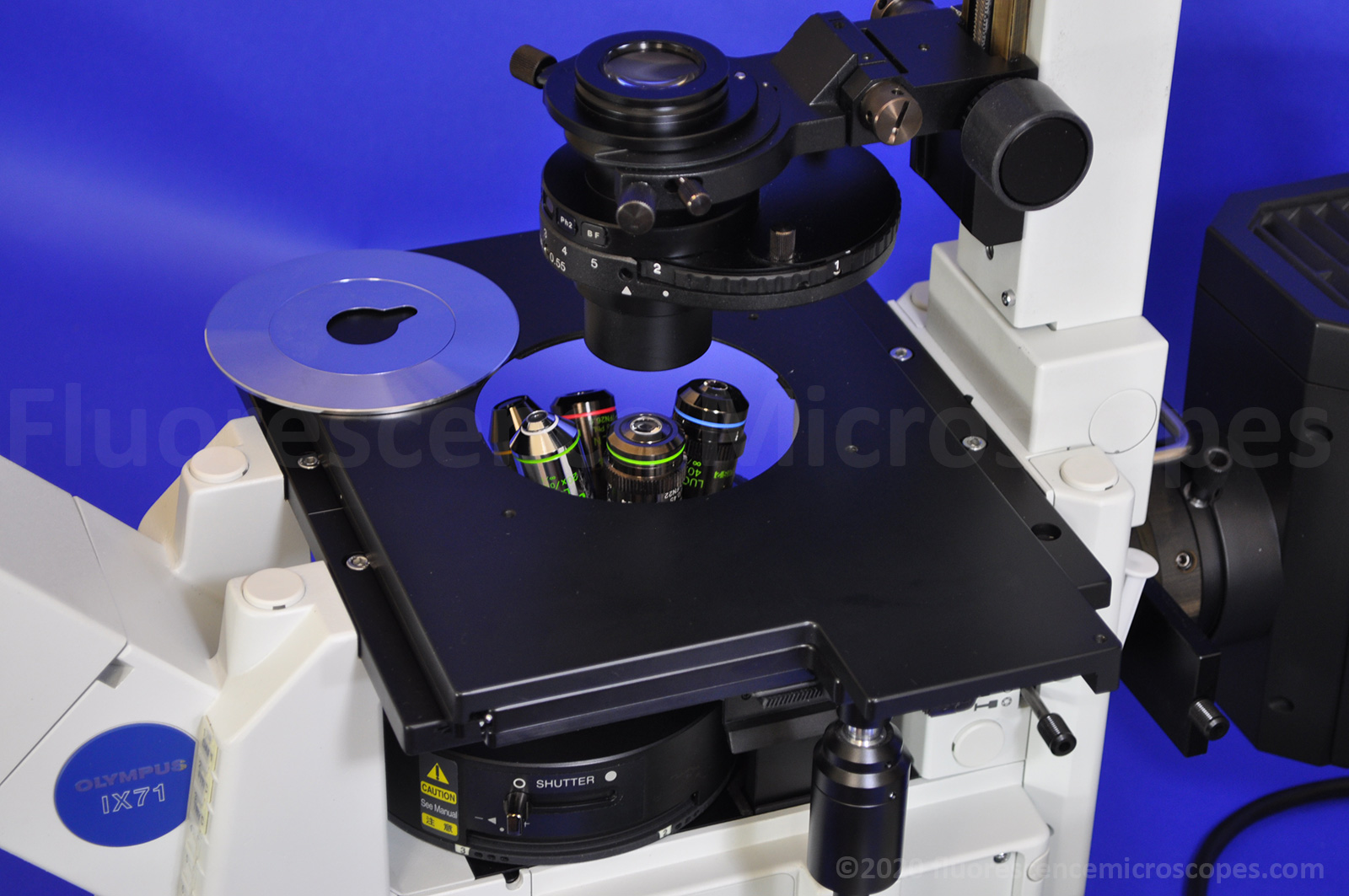

  • 6-Position Objective Nosepiece.
  • Eyepieces:  WHN10X/22 High Eyepoint with ability to use eyeglasses when viewing.
  • Rubber cupping eyeguards with ability to block out extraneous illumination for better fluorescence viewing. We are including a brand-new pair.
  • Side photo port. Allows 100% light to eyepieces or 20% light to eyepieces and 80% to side port.
  • Magnification Changer built into frame:  1x/1.6x.

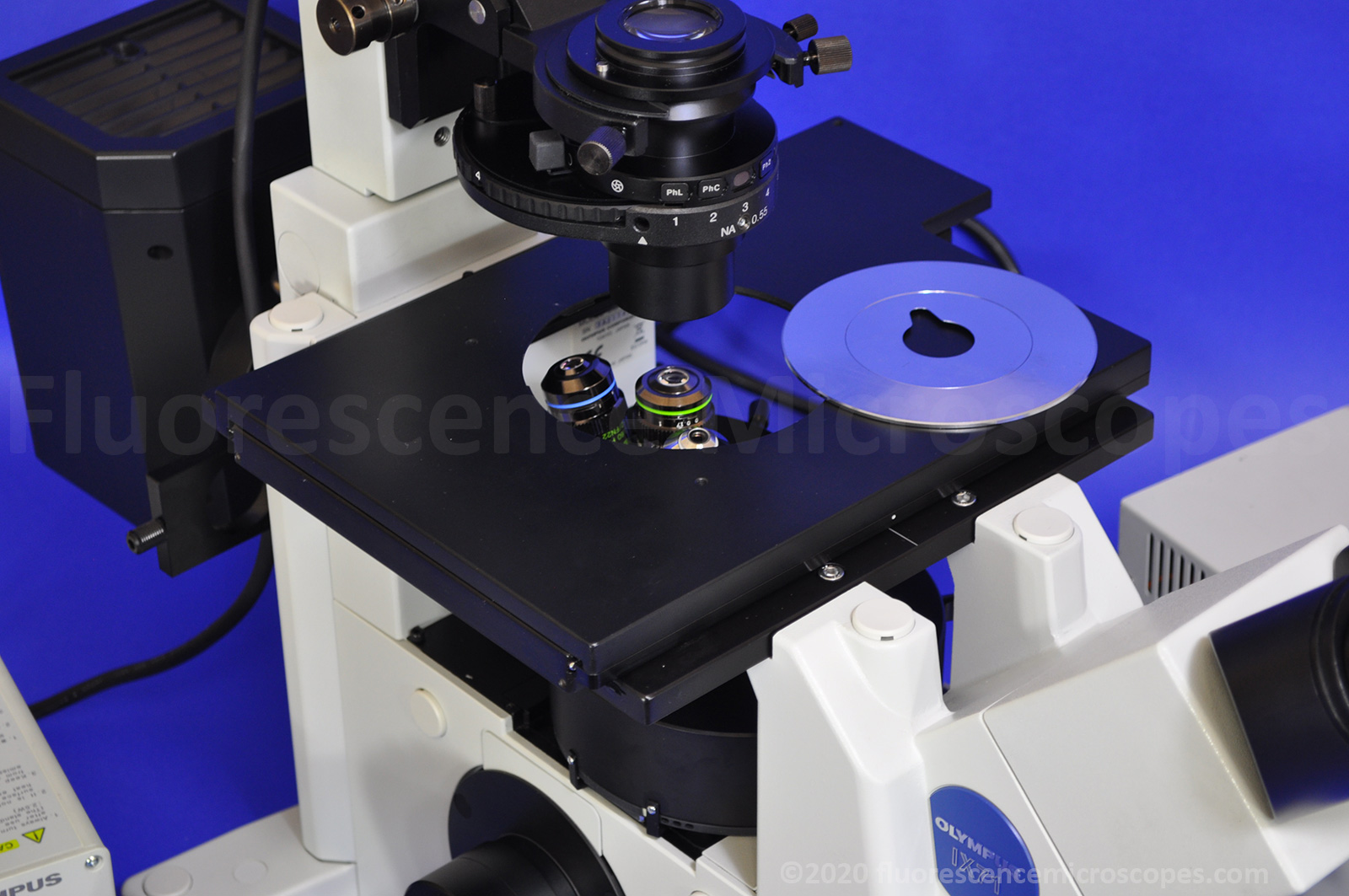

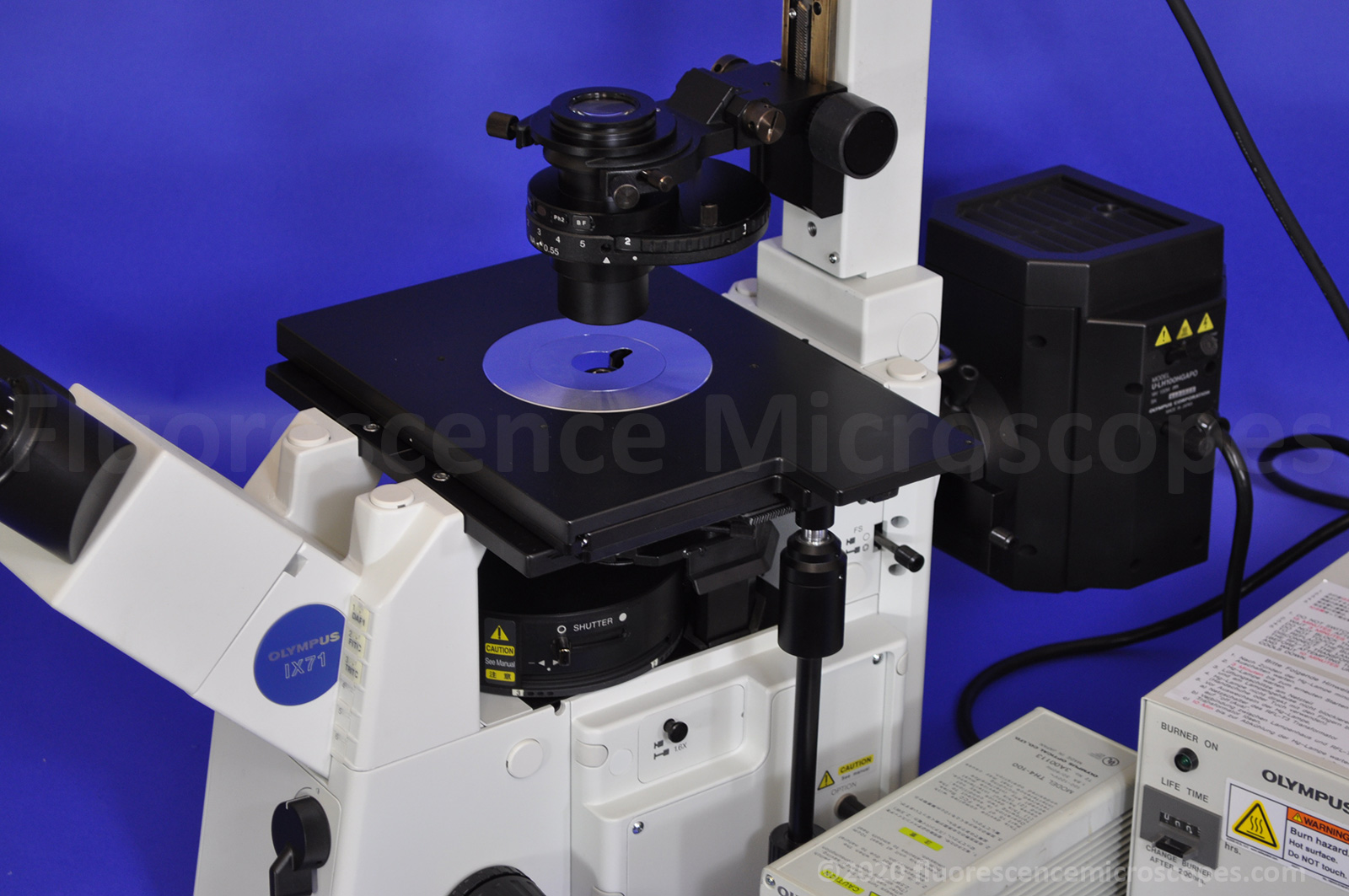

  • Full mechanical XY movement stage. Right hand. This is not the cheap version that has a slider over a fixed platform.
  • Original Olympus 3mm hex screwdriver with 1.5mm hex screws for centering phase rings in condenser.
  • Included all needed power cords.
  • DOES NOT INCLUDE CAMERA. Camera is shown in images to demonstrate how one can be connected.
  • Fluorescence Illumination:
  • HBO 100 fluorescence lamp housing and power supply. This is 110 V only. We can provide 220 V, but at additional cost..
  • Reflected Light Vertical Illuminator.  Olympus brochure says this is 20% brighter than the IX70 version.

Transmitted Illumination:

  • 100W Halogen Transmitted Illumination Pillar. Ability to tilt back 30 degrees.
  • Turret style rotary condenser N.A. 0.55, with settings:   PhL, PhC, Ph2, BF.
  • Transmitted Light Power Supply: TH4-100. This is 110 V only. We can provide 220 V, but at additional cost..
  • Transmitted Light Filters:  LBD-IF light balancing daylight interference filter and frosted filter.
  • Halogen Lamp Housing:  12V-100W.

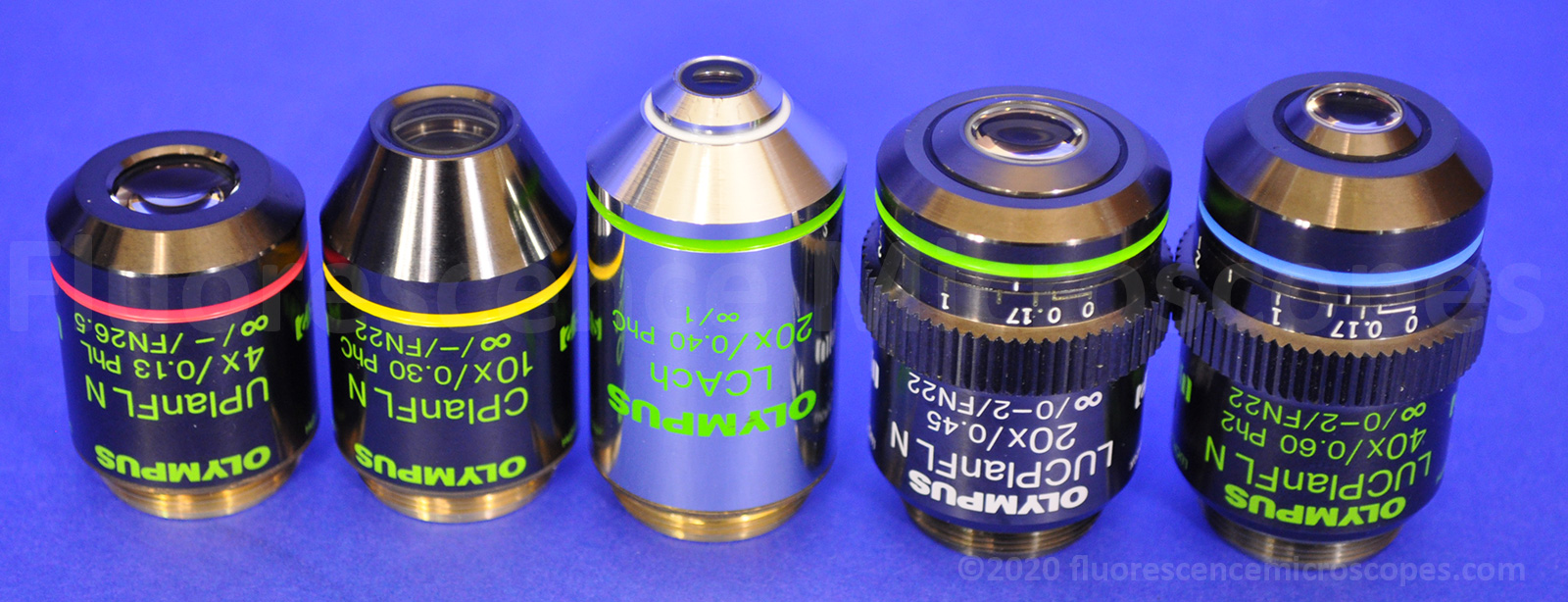

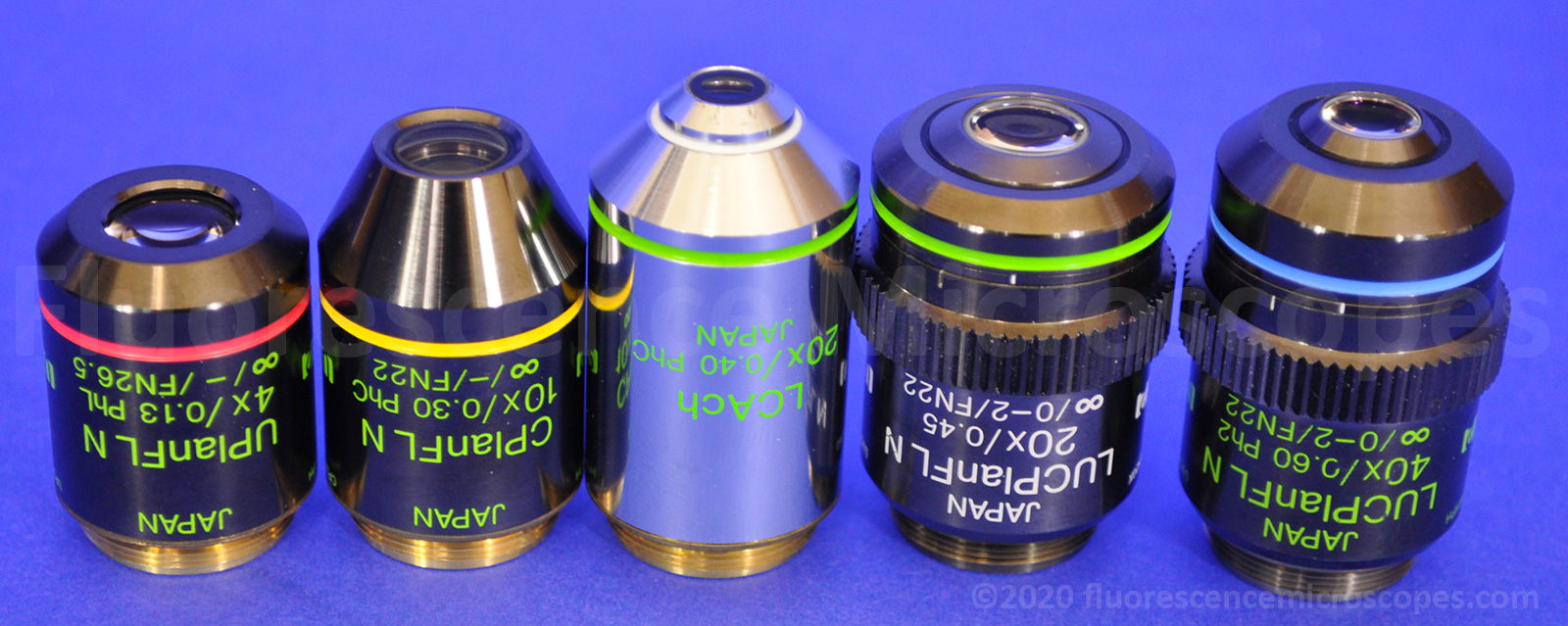

Fluorite Objective Lenses:

  • 4x – UPlanFl N 4x/0.13, PhL, Infinity/-. FN26.5. UIS2. Phase.
  • 10x – CPlanFl N 10x/0.30, PhC, Infinity/-. FN22. UIS2. Phase.
  • 20x – LCAch 20x/0.40, PhC, Infinity/1. Phase. Rated for 1 mm thick petri dish.
  • 20x – LUCPlanFl N 20x/0.45, Infinity/0-2.  FN22.  Correction Collar to adjust from zero to 2mm thickness of petri dish or flask bottom. (Not phase).
  • 40x – LUCPlanFl N 40x/0.60, Ph2, Infinity/0-2.  FN22.  Correction Collar to adjust from zero to 2mm thickness of petri dish or flask bottom. Phase.
  • Note that you have phase contrast on all these objective magnifications: 4x, 10x, 20x, 40x. Most units are not configured with phase on everything so this is a bonus.
  • You also have two different 20x objectives. The best objectives for fluorescence are going to be the non-phase. So we have included both a regular phase and a non-phase fluorite objective 20x.
  • Both the 20x and 40x Fluorite objectives have correction collars for adjusting to the varying bottom vessel thicknesses.

Three Dichroic Fluorescence Filter Cubes:

  • DAPI, FITC, TRITC.
  • All three filters were tested with fluorescence and provided excellent quality imaging.

User Manual and Instructions:

Click this link:  Olympus IX71 Inverted Microscope Brochure

Click this link: Olympus IX71 Inverted Microscope Manual
