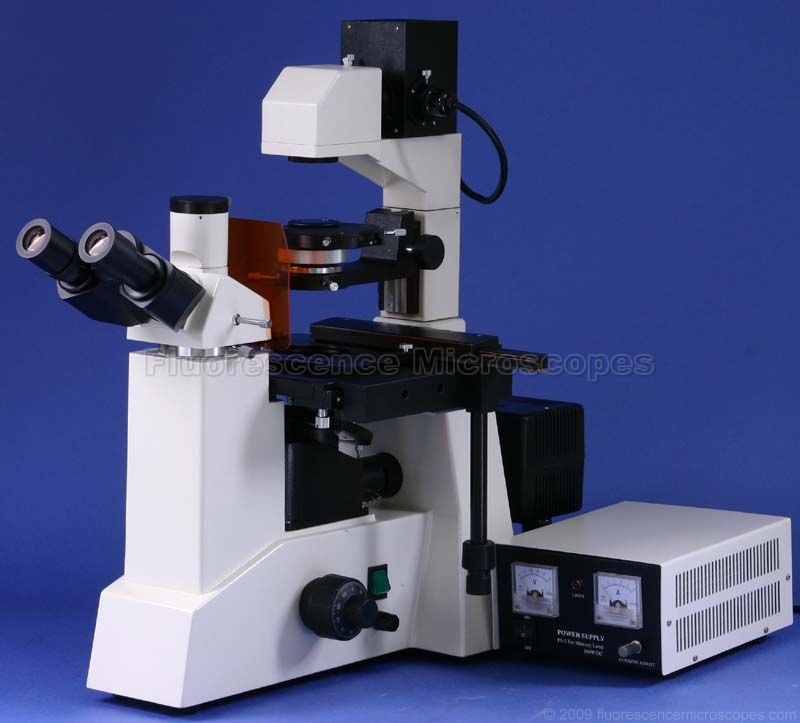

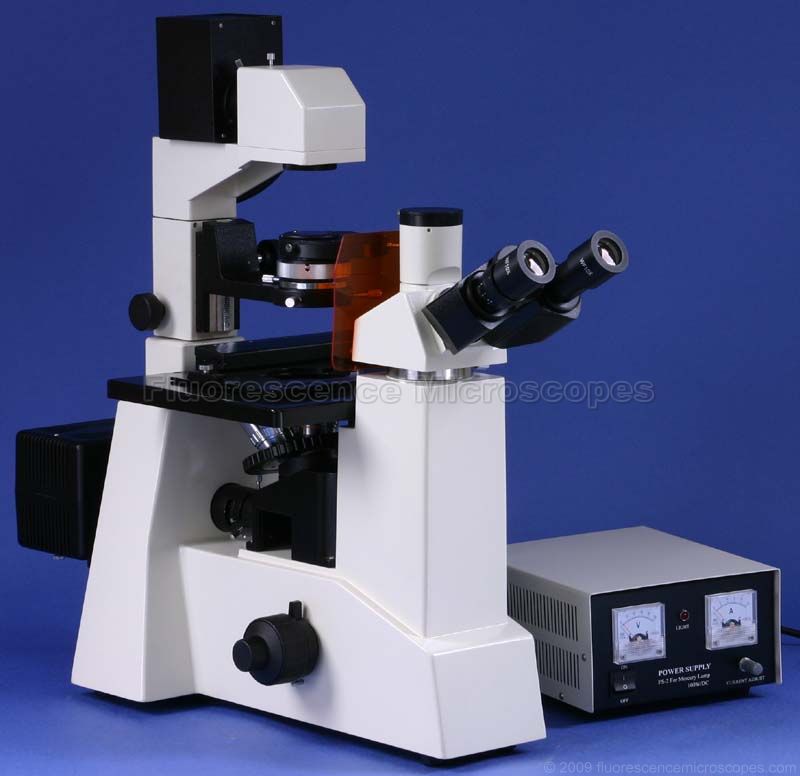

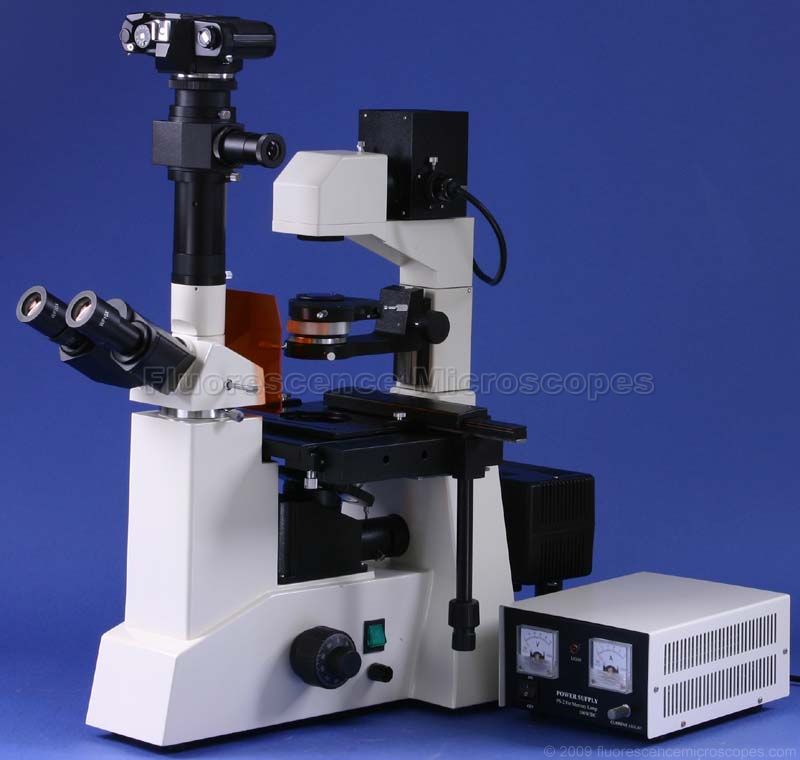

Epi-Fluorescence Inverted
Incident Light Excitation
Tissue Culture Microscope
High Pressure Mercury Arc Lamp
Phase Contrast + 3Mp Camera

SALE PRICE: $3,500.00

Original Price: USD $5,869.98

Model: fl0046000m

Shipping/Handling/Insurance: $ 94.98

  • Uses Incident Light Excitation to provide a Clear and High Contrast Epi-Fluorescence Image.
  • Ideal for Study of Tissue Cultures, Advanced Biomedical Research, Research in Biology, Cytology, Oncology, Haemotology, Genetics, Immunology, Environmental Protection, and Microchemistry.
  • Great for Viewing Live Biological Tissue Cultures in Petri Dishes!
  • Inverted Design allows for Viewing from the Bottom of the Dish. Perfect for Examining Liquid Deposits!
  • Includes Phase Contrast Kit for Observing Translucent Low Contrast Specimens!
  • Also Capable of Transmitted Light, Bright-Field Microscopy
  • Compare to Similar Units costing $20,000 with Name Brands!
  • Excellent Bright and Clear Images through High Quality Optics.

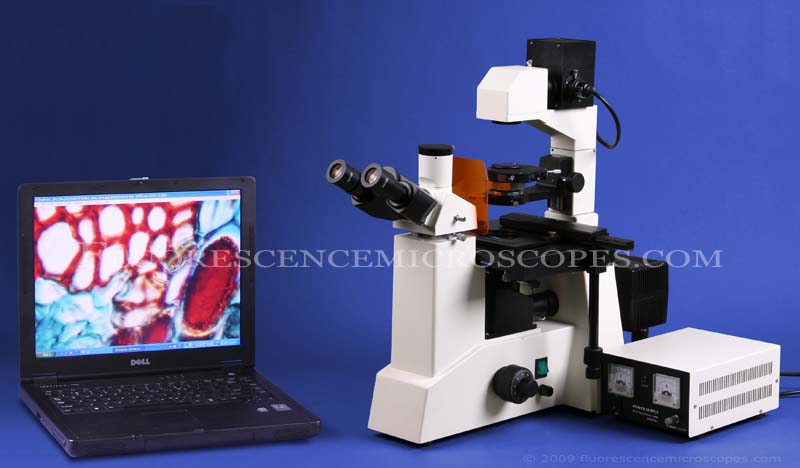

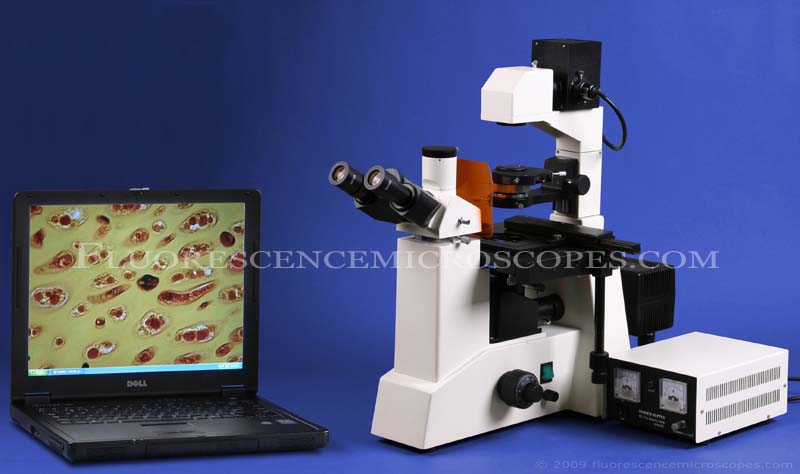

Camera Equipment Included

  • High Resolution 3.1 MegaPixel Digital Camera System.
  • Complete Digital Microscopy Solution Included.
  • Capture high resolution digital microscope images, 2048×1536 pixels.
  • View and record full motion live video microscope images. Frame size options for video mode: 2048X1536 (up to 11 FPS, depending on PC), 1024 X 768, 640 X 480, 512 X 384.
  • Computer connected digital microscope camera connects via USB2.0. Includes USB cable and MS Windows software.
  • Color DSP built into camera provides sharp quality color images. Image sensor size is half inch.
  • Includes measuring capability with the software.

Carrying Case

  • BONUS: Includes a Carrying Case with Precut Foam for safe transportation of your precision instrument

Eyepieces and Magnification

  • Three Fluorescence (and Brightfield Transmitted Light) Magnifications: 100x, 250x, and 400x.
  • Three Brightfield Long Working Distance PLAN DIN Objectives: 10x (0.25 NA, 8.1mm Working Distance), 25x (0.40 NA, 4.8mm W.D.), 40x (0.60 NA, 3.3mm W.D.).
  • Three Phase Contrast (Non-Fluorescence) Magnifications: 100x, 250x, and 400x.
  • Three Phase Contrast Long Working Distance PLAN DIN Objectives: 10x (0.25 NA, 8.1mm W.D.), 25x (0.4 NA, 4.8mm W.D.), and 40x (0.60 NA, 3.3mm W.D.).
  • Objectives Designed for Cover Glass Thickness 1.2mm (bottom of glass dish).
  • Eyepiece Set Included: Wide Field 10x.

Illumination

  • Fluorescence Light Source: Super High Pressure Mercury Lamp (100W DC). Mounted to the Rear and Enclosed in a Sturdy Metal Housing.

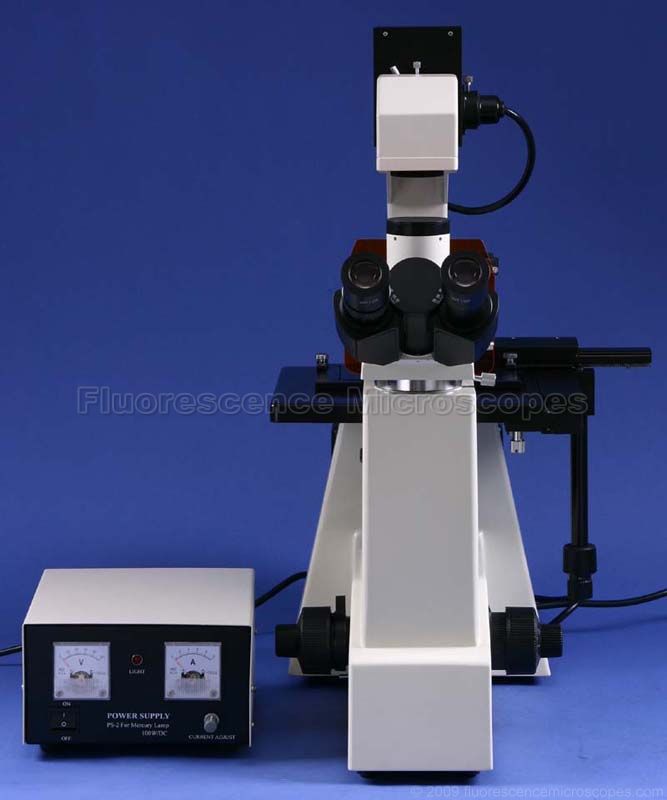

  • External Power Supply for Mercury Lamp: 100W DC with Current Adjustment Knob and Volt / Amp Analog Gauges.
  • The Arc of the Mercury Lamp is Easily Centered by using Two Lamp Positioning Knobs on the Lamp Housing.
  • Epi-Fluorescence Illumination System: Blue, Green, Violet, and UV Excitation Fluorescence Filter Cubes.
  • BLUE Fluorescence Excitation Dichroic Filter Cube: Excitation Spectrum 420 – 485nm, Emission Filter 515nm.
  • GREEN Fluorescence Excitation Dichroic Filter Cube: Excitation Spectrum 460 – 550nm, Emission Filter 590nm.
  • VIOLET (V) (Purple) Fluorescence Excitation Dichroic Filter Cube: Excitation Spectrum 395 – 415nm; Emission Filter 455 nm.
  • ULTRA-VIOLET (UV) Fluorescence Excitation Dichroic Filter Cube: Excitation Spectrum 330 – 400nm; Emission Filter 425 nm.
  • Other Fluorescence Filter Spectrums can be Special Ordered. Contact us for Details and Costs.
  • BrightField: Above Stage Transmitted Light Source: Variable Intensity 6V/30W Halogen Illumination.
  • BrightField: Focusable Field Diaphragm Under Top Frame to allow for Better Control and more Efficient Use of Light Source.

Microscope Head Details

  • 30 Degree Inclined Trinocular Head.
  • Adjusts to the Distance Between your Eyes: 53 to 75mm InterPupillary Distance.
  • Diopter Adjustment to Correct for Your Specific Vision Needs.
  • Anti-Fungus Coatings.

Condenser – Iris – Filters

  • Brightfield – Phase Contrast Illumination System Consisting of the Following:

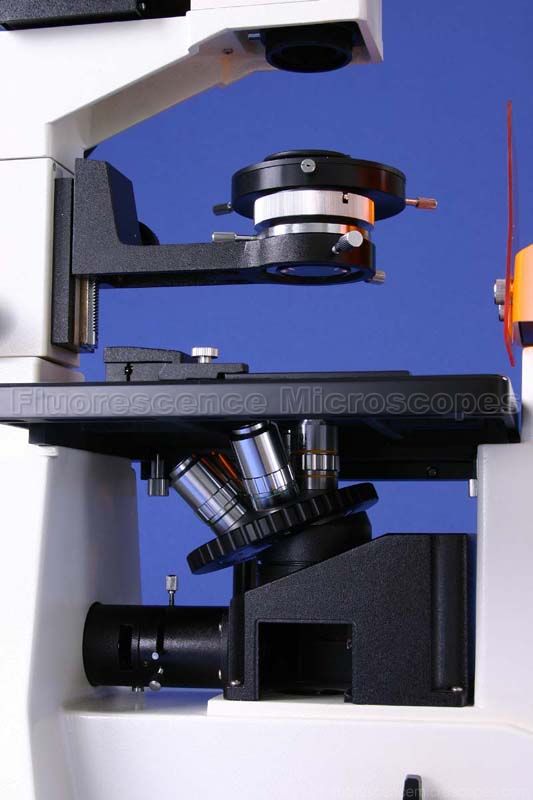

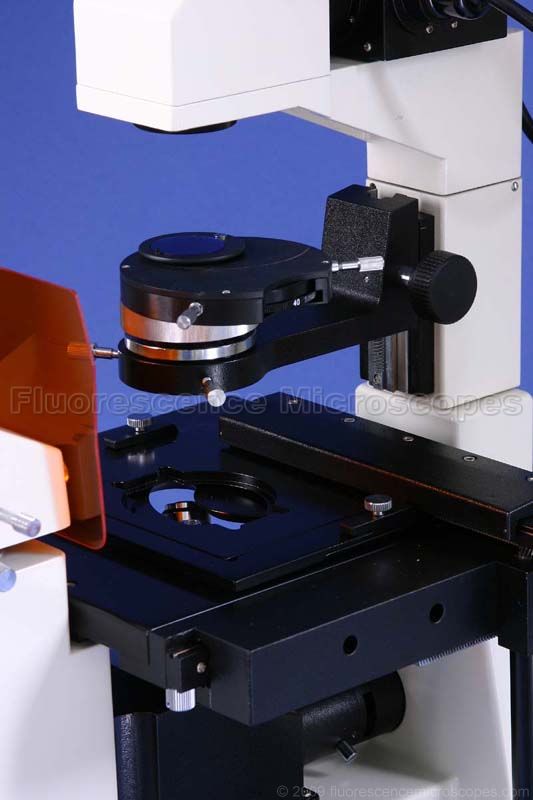

  • Above-Stage Long Working Distance (50mm) Condenser, with Iris Diaphragm and Swing-Out Filter Holder.
  • Phase Annulus Rings for 10x, 25x, and 40x Built Into Phase Condenser Turret. Also has Setting for Brightfield.
  • Ring Centering Knobs for Precise Alignment of Phase Rings for Optimal Phase Contrast Performance.
  • Condenser (Above Stage) Centering Knobs for Precise Positioning of Condenser Over Objective.
  • Three Brightfield Filters Included: Blue, Green, and Frosted White.
  • Rack and Pinion Steel Gears with Knob to Easily Move Condenser Up and Down Relative to Stage.
  • Fluorescence Illumination System Consisting of the Following:
  • Fluorescence Light Iris Diaphragm with Condenser Centering Adjustment Knobs.
  • Frosted White Filter Selection Bar. Ability to Insert Frosted White Filter in the Light Path from the Mercury Lamp Source.

Stage Specifications

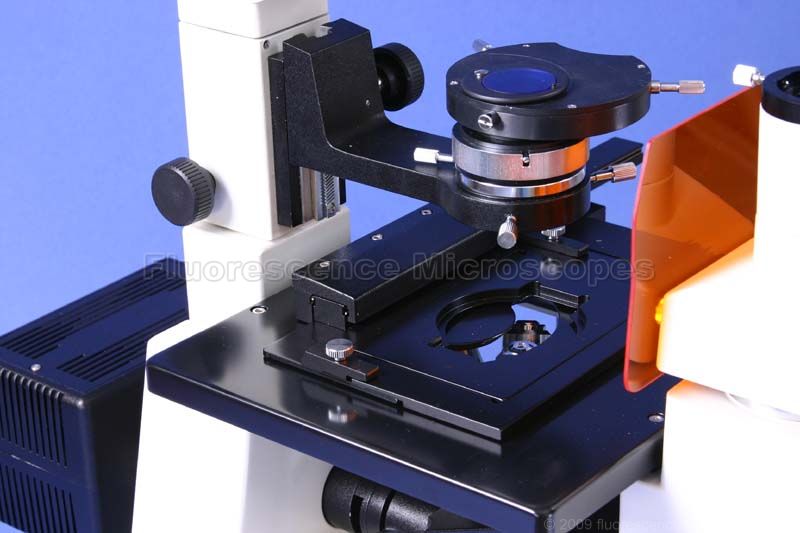

  • Large Mechanical X-Y Movable Stage: Size 255 x 225mm.
  • Low Position Coaxial X-Y Specimen Holder Movement Knobs – Range of Movement: 115mm (X-Direction) x 82mm (Y-Direction).
  • Capability for Easy Removable of Specimen Holder Plate and Holder Mechanism.
  • Includes Three Types of Specimen Holder Plates for Various Applications.

Focusing

  • Coaxial Fine and Coarse Focusing Knobs on Both Sides of Microscope.
  • For Optimal Performance when Focusing, the Objectives move Up/Down Instead of the Stage.
  • Fine Adjustment Division: 0.002mm.
  • Adjustable Lock Ring Stop to Limit Coarse Range to Protect Objectives and Specimens.
  • Tension Adjustable Coarse Focusing.

Frame – Base – Size – Weight

  • Total Overall Height of Microscope: 580mm.

Included Items

  • Orange stray light protection eye guard on front of microscope.
  • Includes: Two Extra Mercury Bulbs (3 total included, for fluorescence observation).
  • Includes: Instruction Manual, Dust Cover, Two Extra 6V/30W Bulbs (for brightfield), and Extra Fuse.
  • Includes spare blank dichroic filter cube. This is useful if a customized wavelength filter cube set is needed.

Other Specifications

  • Manufactured under ISO: 9001 Standards.
  • 110 VAC Power Requirement (Contact us about 220V availability).
  • High Quality Solid Construction!
  • Precision Made Glass Optics!
  • Brand New, Never Used!

Manufacturer’s Warranty

  • Warranty is 1 year on all microscope equipment.
  • The microscope warranty covers problems arising from normal usage.
  • We will repair or replace your defective microscopy equipment as needed during the warranty period.
