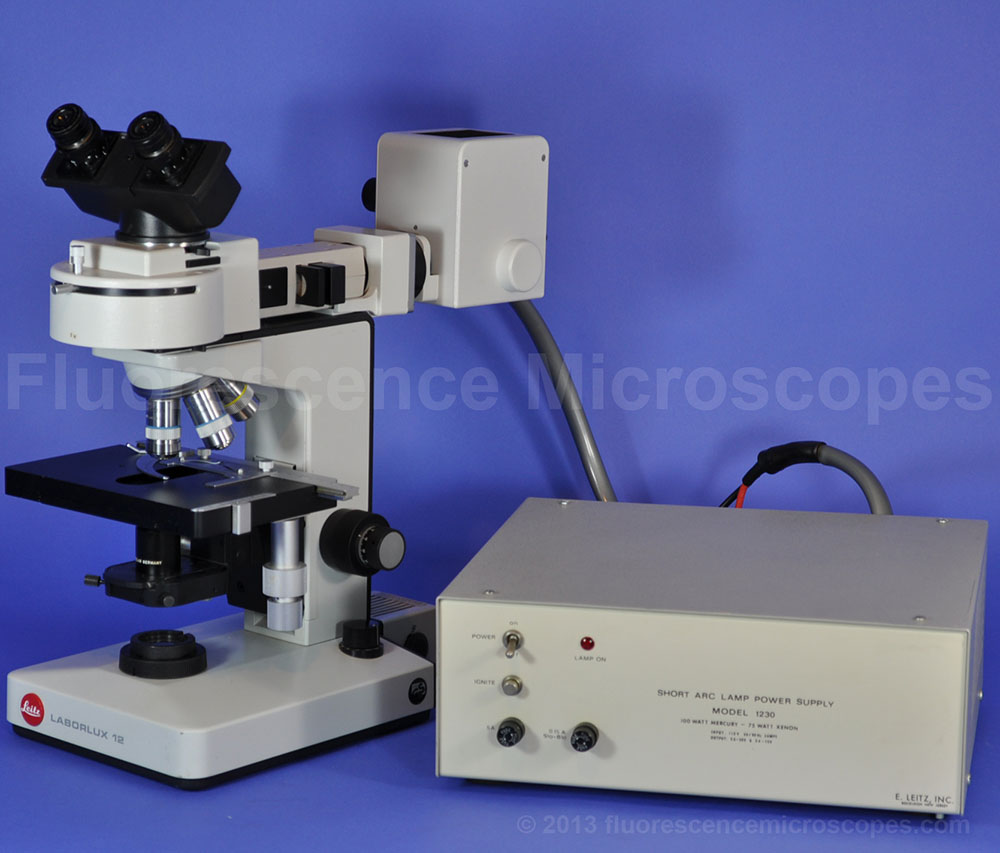

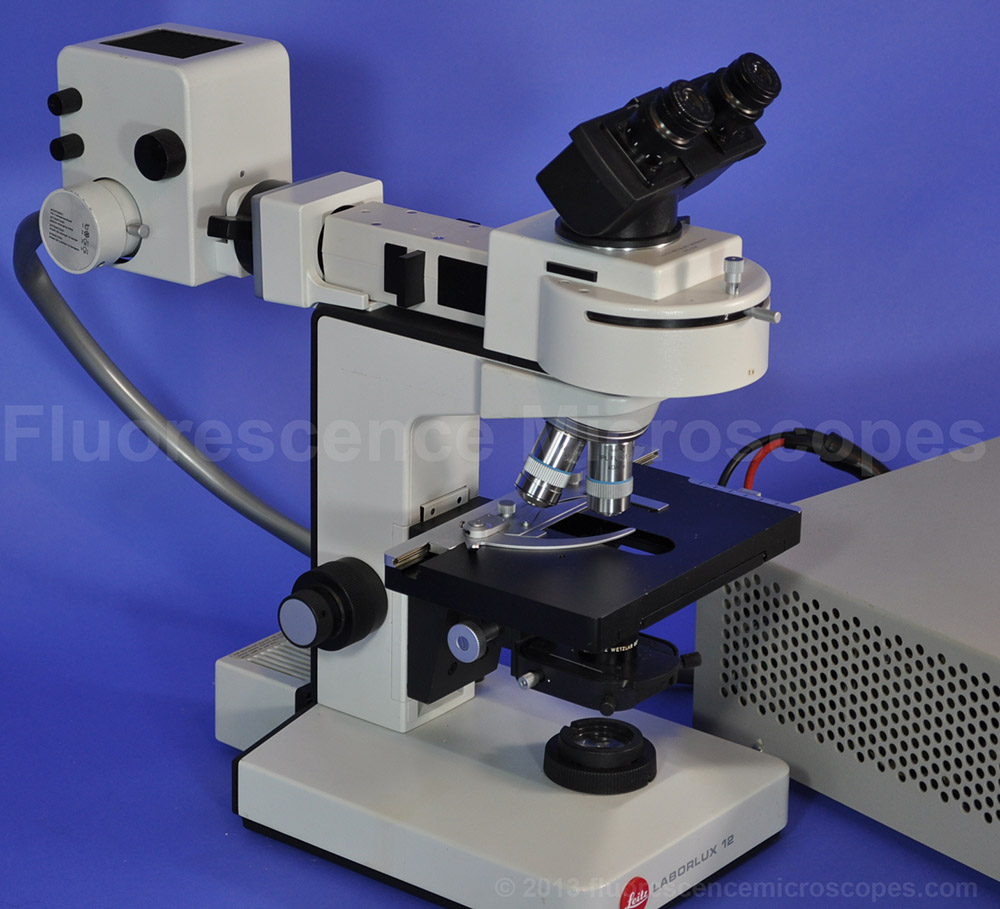

Leitz LaborLux 12
Fluorescence Microscope

Special Features:

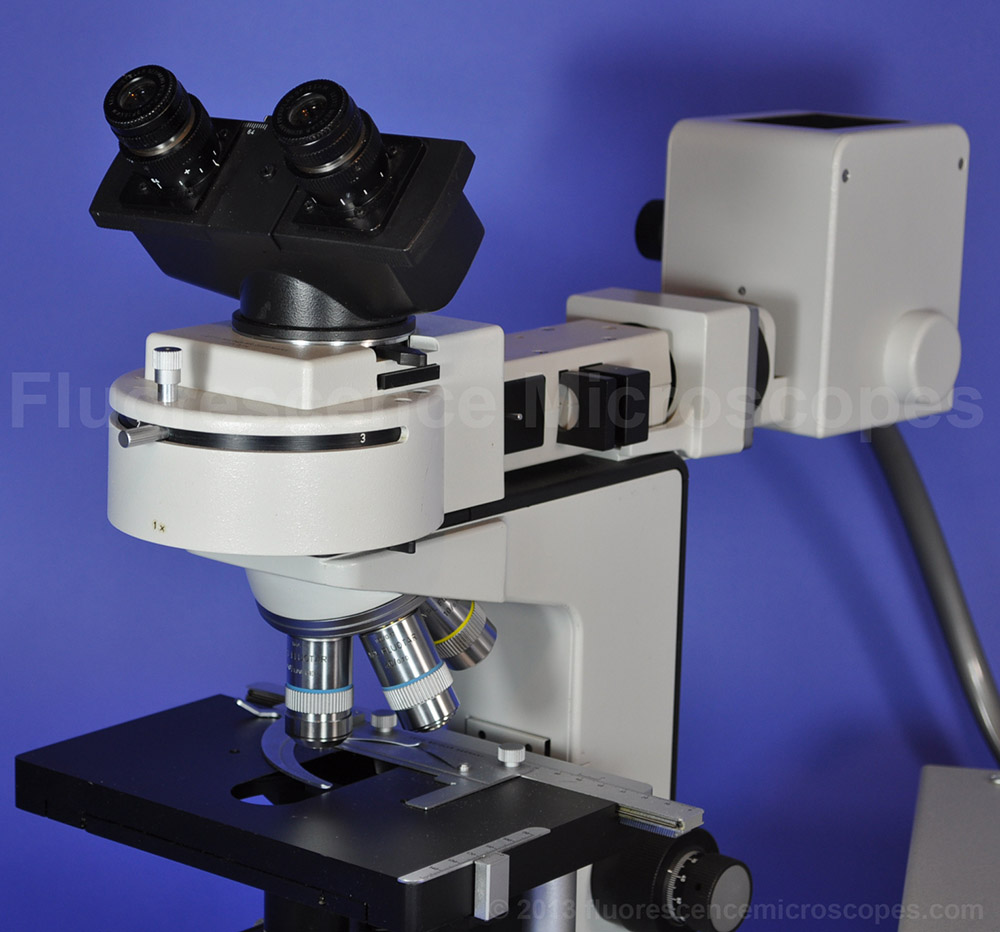

• Five-Place Nosepiece (rotation is normal and smooth with good clean stops).
• Low Position XY Stage Movement is functionally normal. Right hand movement.
• Halogen Transmitted Light Source. 6V-20W. Located in rear mounted external housing.
• Koehler Illumination Field Diaphragm.

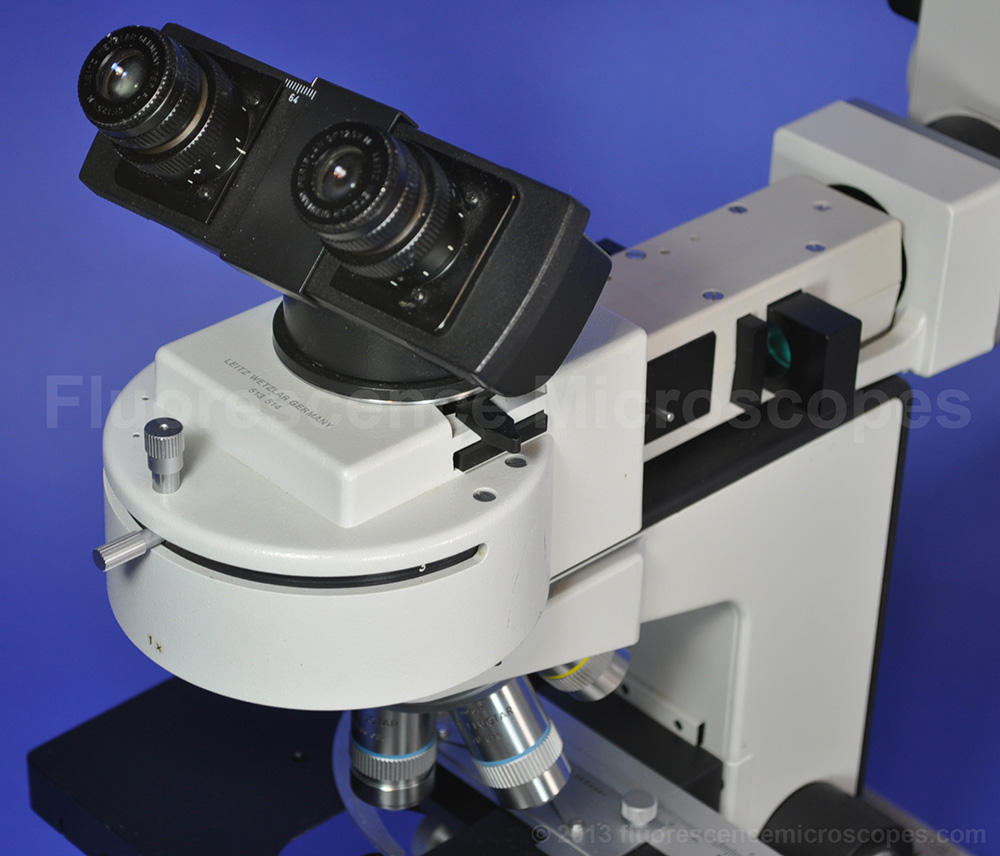

• Binocular Head.
• Eyepiece Pair: PeriPlan GF 12.5X M.
• Diopter adjustment on each eyetube.

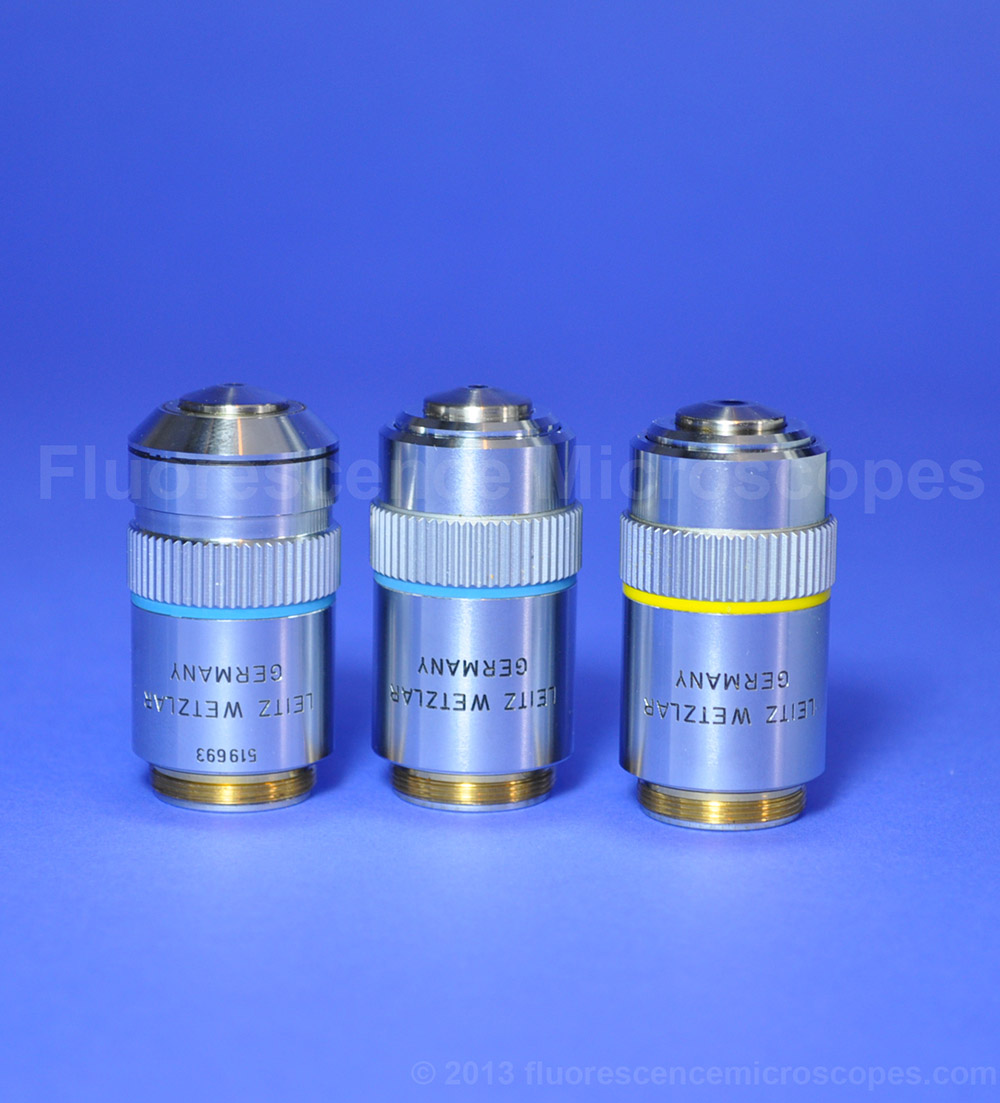

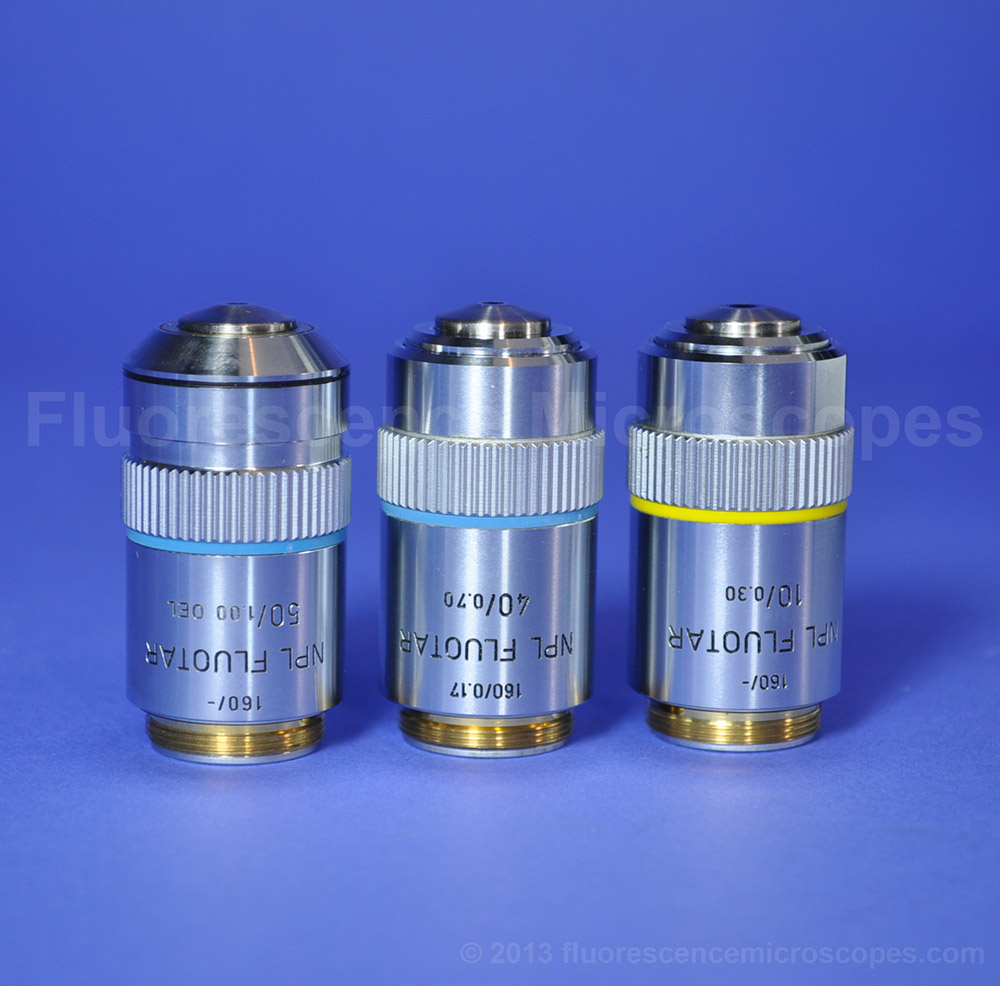

Objectives (all marked Leitz Wetzlar Germany):

• NPL Fluortar 10x/0.30, 160/-.
• NPL Fluortar 40x/0.70, 160/0.17.
• NPL Fluortar 50x/1.00 Oil, 160/-. Model 519693.
• Capable of these magnifications: 10×12.5=125x, 40×12.5=500x, 50×12.5=625x.

Fluorescence Microscopy:

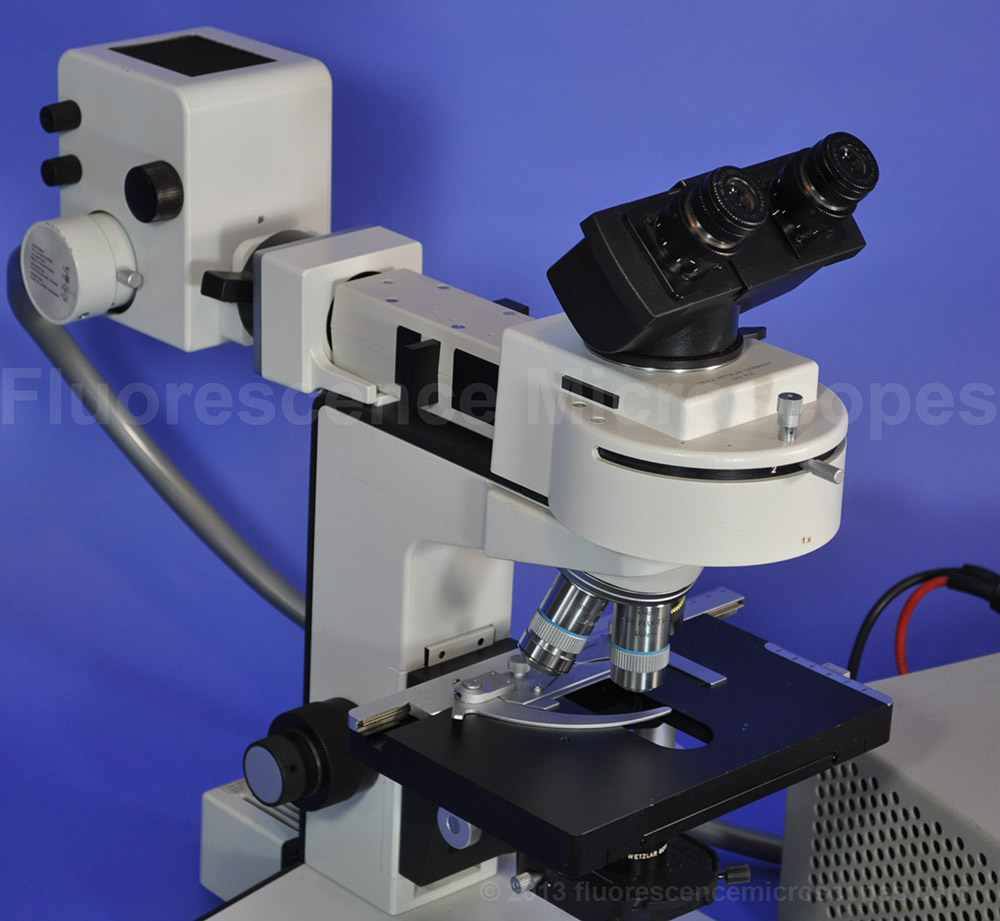

Filter cube holder model #513514.

• Includes Block “I2” Cube for fluorescence. Model 513604.
• Excitating Range: Blue (FITC).
• Excitation Filter: Band Pass 450-490 nm.
• Dichroic Beam Splitting Mirror: RKP 510 nm.
• Barrier (emission) Filter: Long Pass 515 nm.

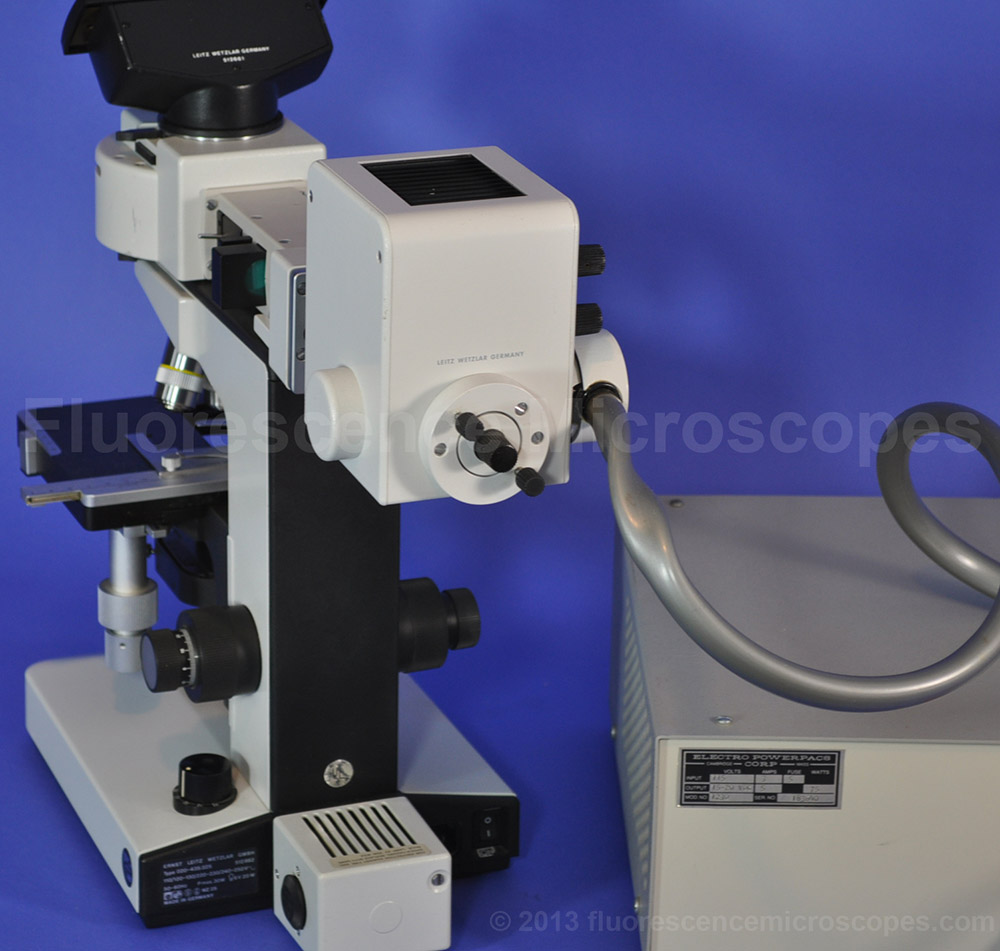

Includes 100W Mercury lamp housing. Includes the Mercury Lamp Bulb (100W).

Short Arc Lamp Power Supply. Model 1230.
100W Mercury / 75W Xenon.

General Notes:

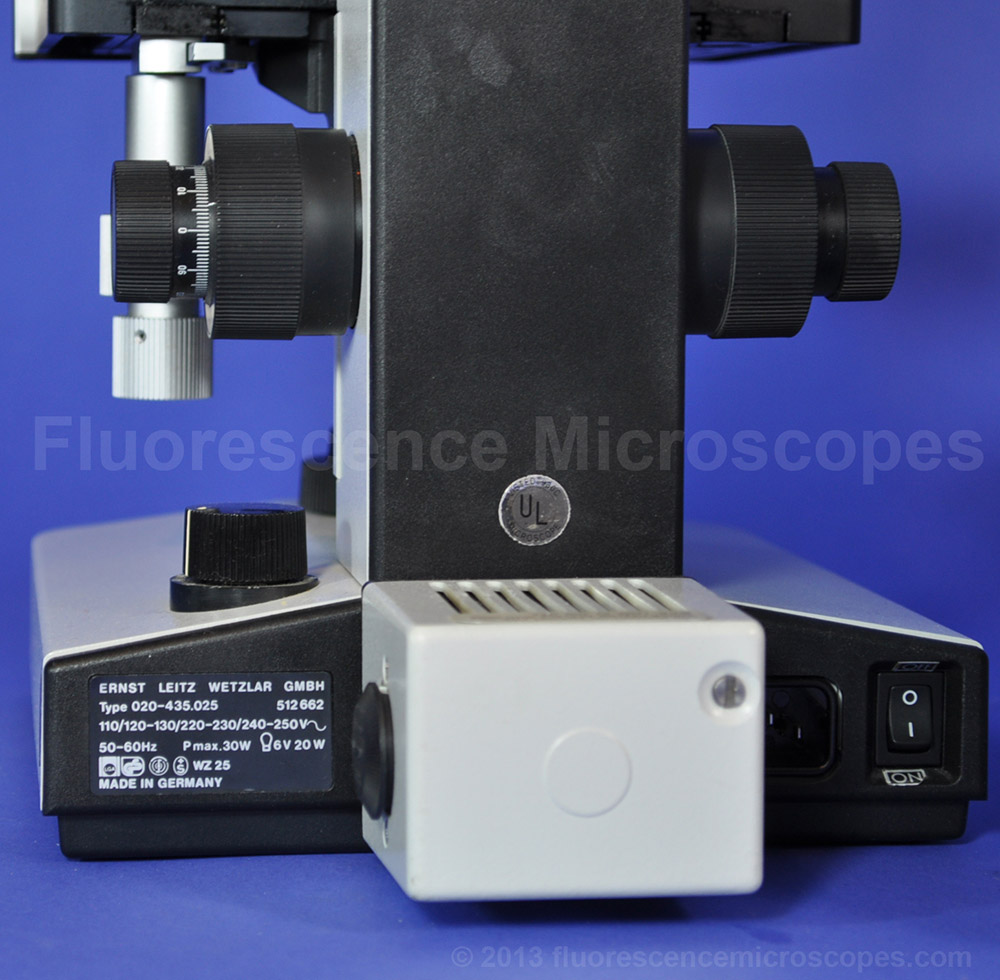

• Frame is marked: Ernst Leitz Wetzlar GMBH. Type 020-435.025. 512662.
• Made in Germany.
• Voltage: 110V/120-130V / 220-230V / 240-250V.
• The fine and coarse focusing was tested and performed excellently.
• Includes Original Instruction Booklet.
• Power Cord. This is supplied but not shown in the images.

Condition:

This is a used microscope and sold in as-is condition.
The fluorescence system was powered up and tested. It performed fine.

Warning:

UV light and Mercury Bulbs are Dangerous! YOU MUST Read BEFORE purchasing! Click this link.
Safe With UV Light
