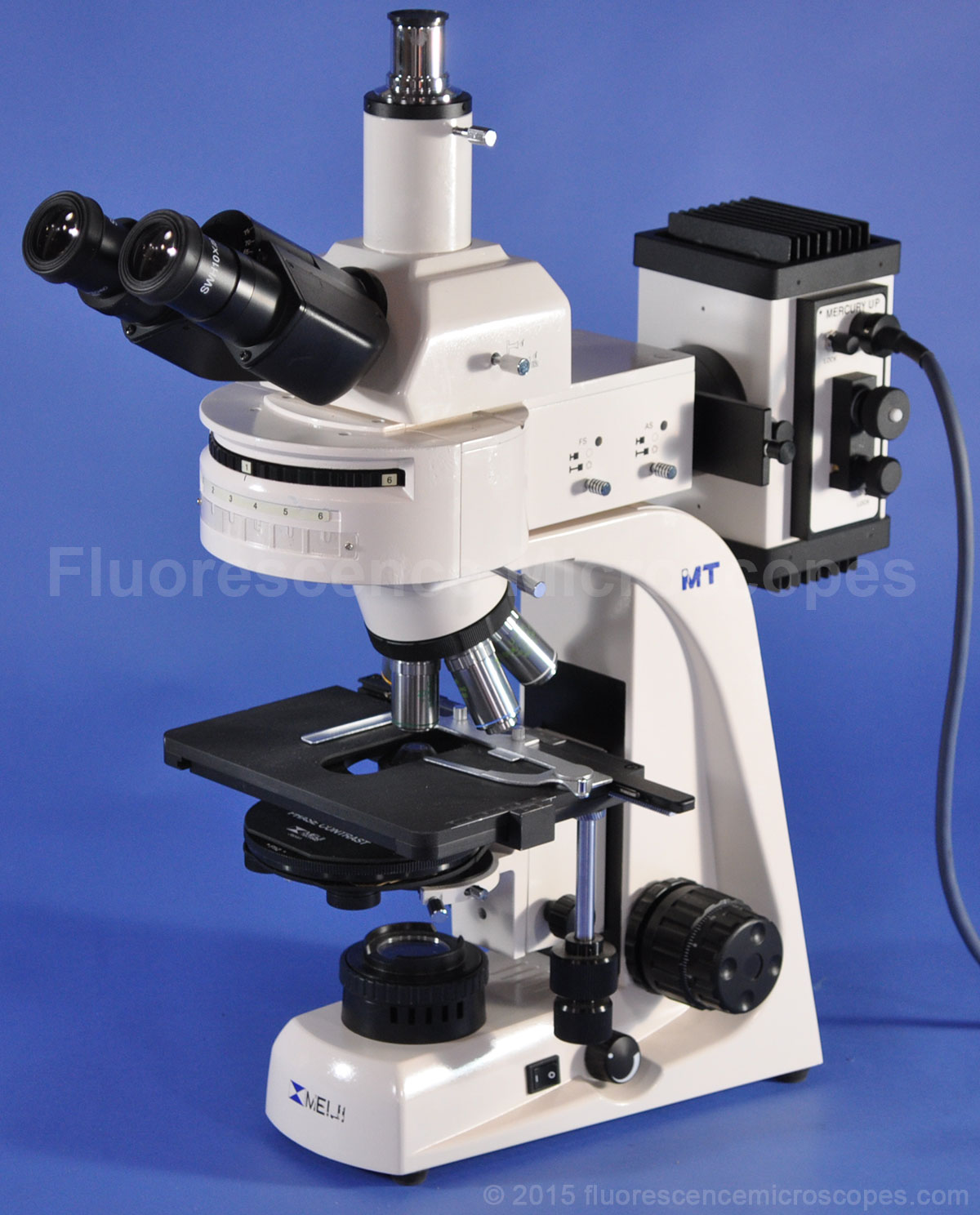

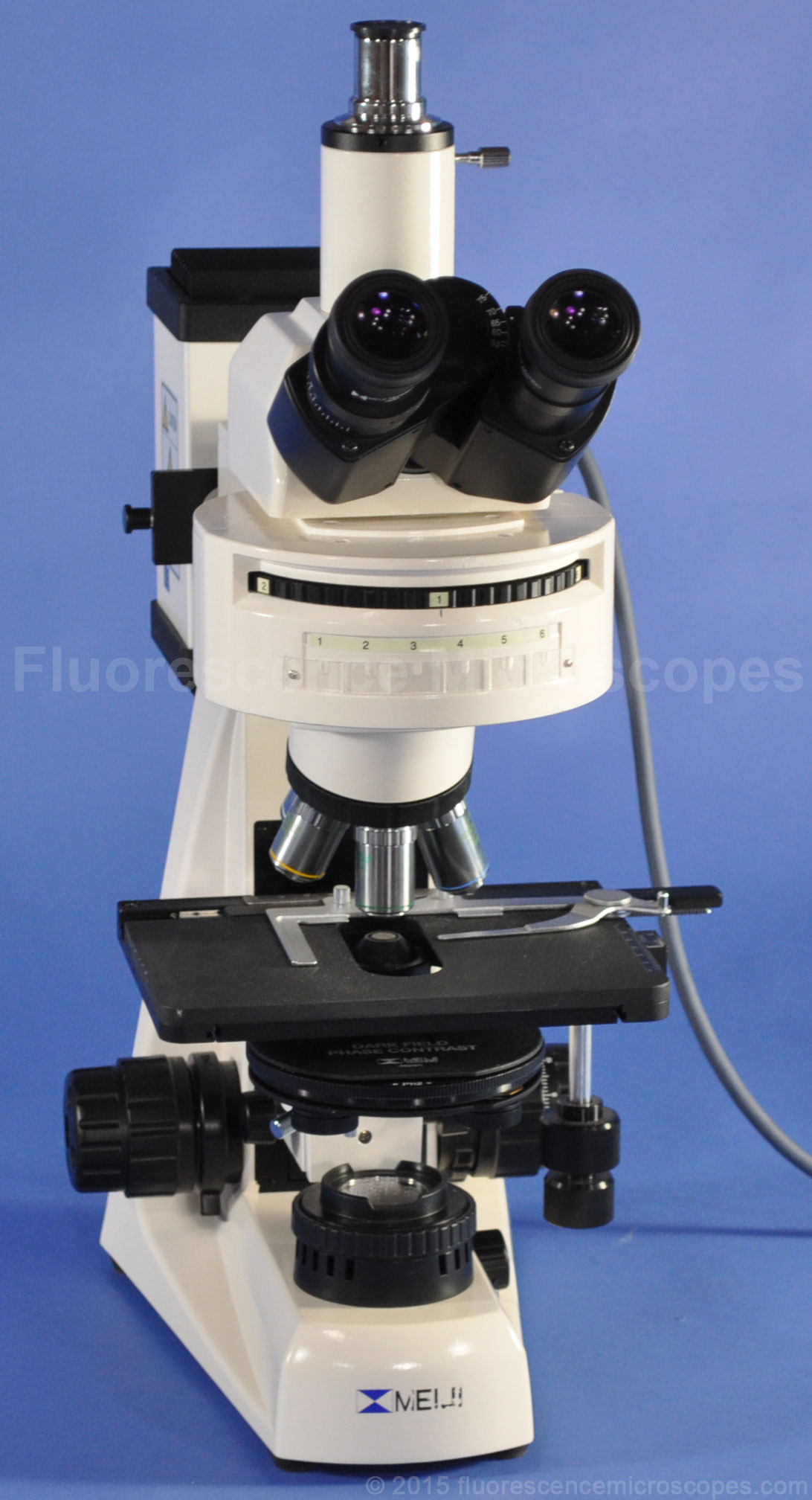

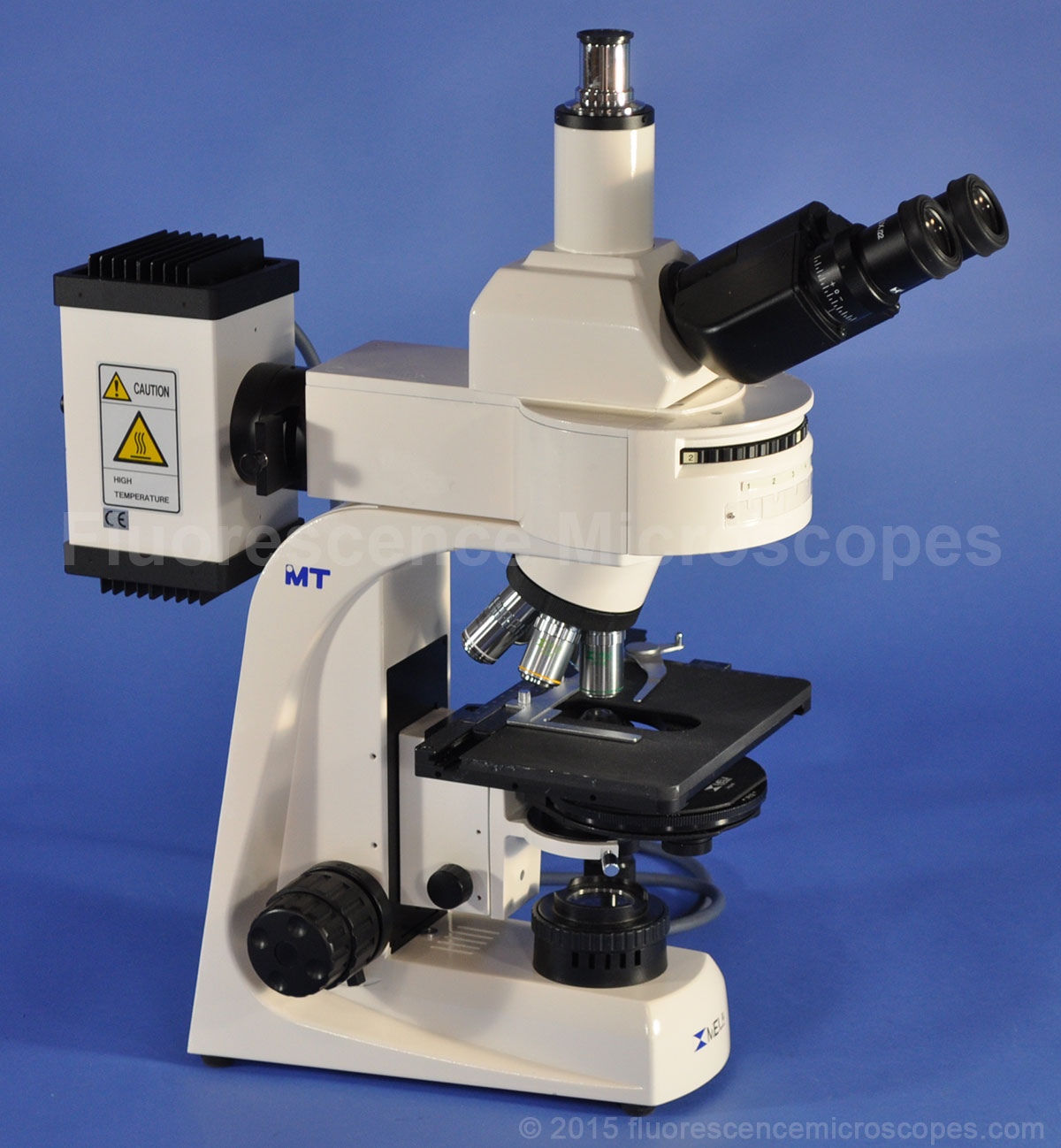

Meiji Model MT6200
Upright Fluorescence Microscope

Online prices for this model range about $13,000 to $15,000 new. We can’t find any used or refurbished.
With our low price for this reconditioned unit, you can buy a new mercury power supply (around $1100), new bulb (around $100) and still have a huge savings. We can supply brand new Chroma filter sets, better than what Meiji initially installed, for as low as $425/filter. These are hard coated and lifetime Chroma guaranteed filters!

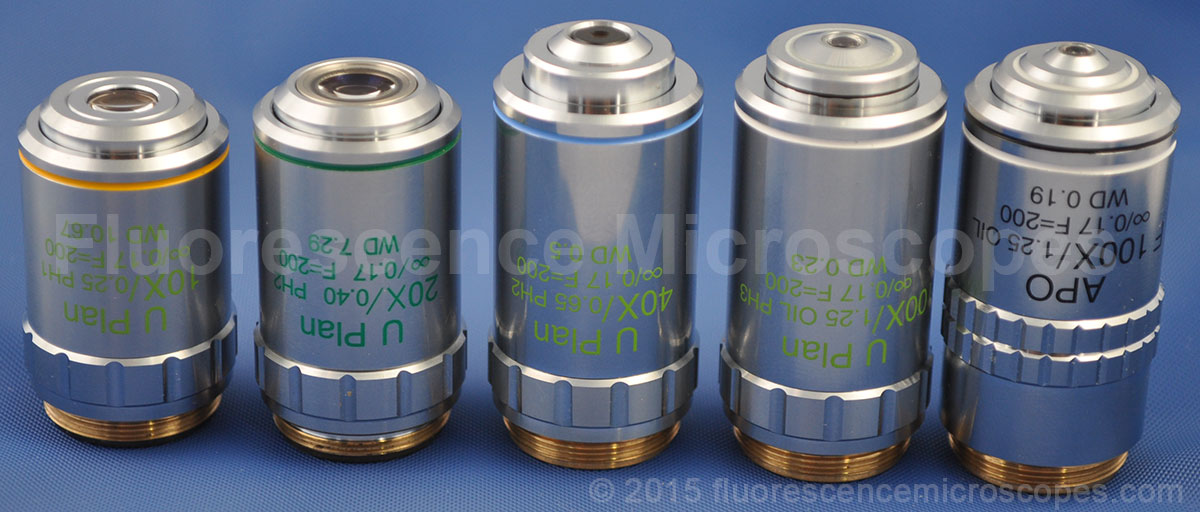

Objective Lenses:

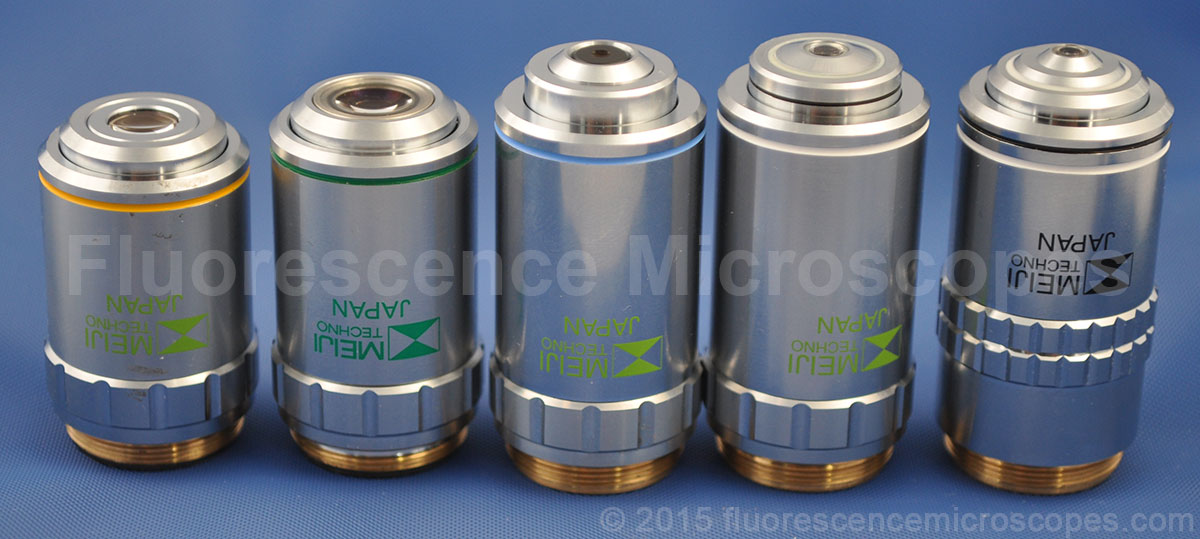

• All lenses marked Meiji, Japan.
• UPlan 10X/0.25, infinity/0.17mm. F=200. WD 10.67mm. PH1. Phase.
• UPlan 20x/0.40, infinity/0.17mm. F=200. WD 7.29MM. PH2. Phase.
• UPlan 40x/0.65, infinity/0.17mm. F=200. WD 0.5MM. PH2. Phase.
• UPlan 100x/1.25, infinity/0.17mm, F=200. WD 0.23mm. Oil Immersion.PH3. Phase.
• APO F 100x/1.25, infinity/0.17mm, F=200. WD 0.19MM. Oil Immersion. (not phase).

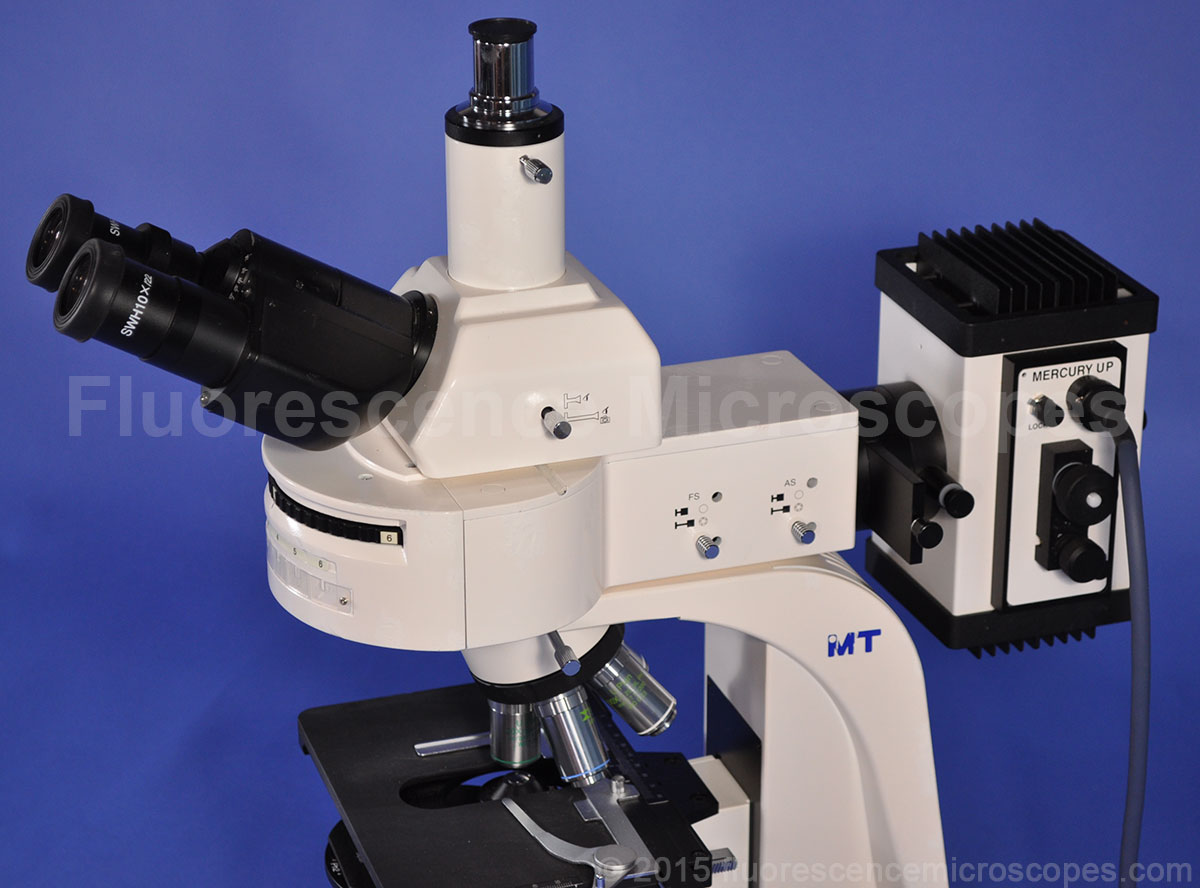

Trinocular Viewing Head:

• Includes trinocular Photography Port.
• Includes 23mm standard phototube adapter.
• Attach a camera easily to this port.

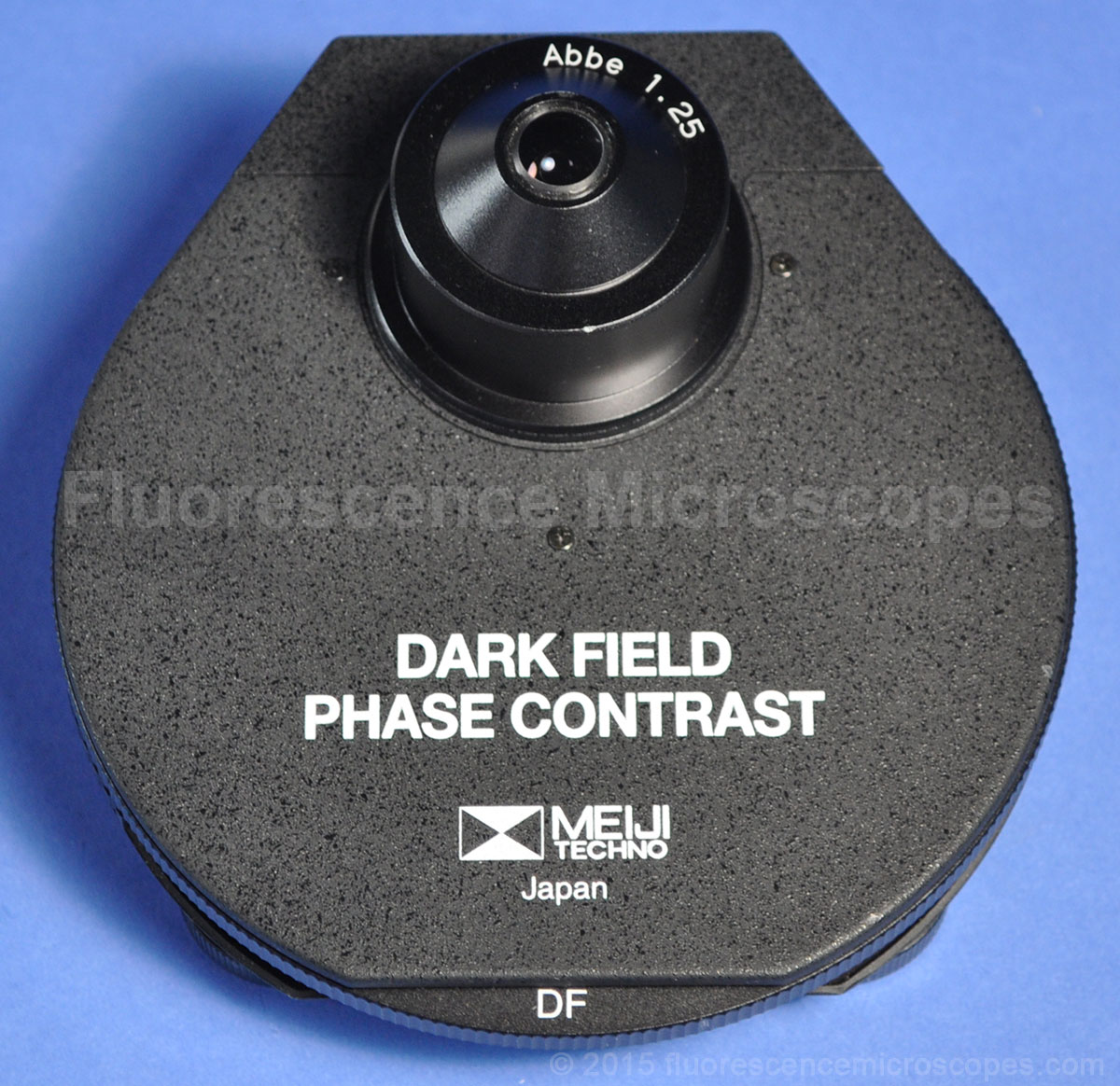

Phase Contrast Microscopy:

• Includes phase contrast condenser.
• Objectives are phase.
• Condenser has phase annulus for these settings: PH1, PH2, PH3.
• Rotary turret style condenser also has settings for darkfield, brightfield, and closed position.
• Numerical aperature of condenser: 1.25 N.A.

Mercury Illumination System:

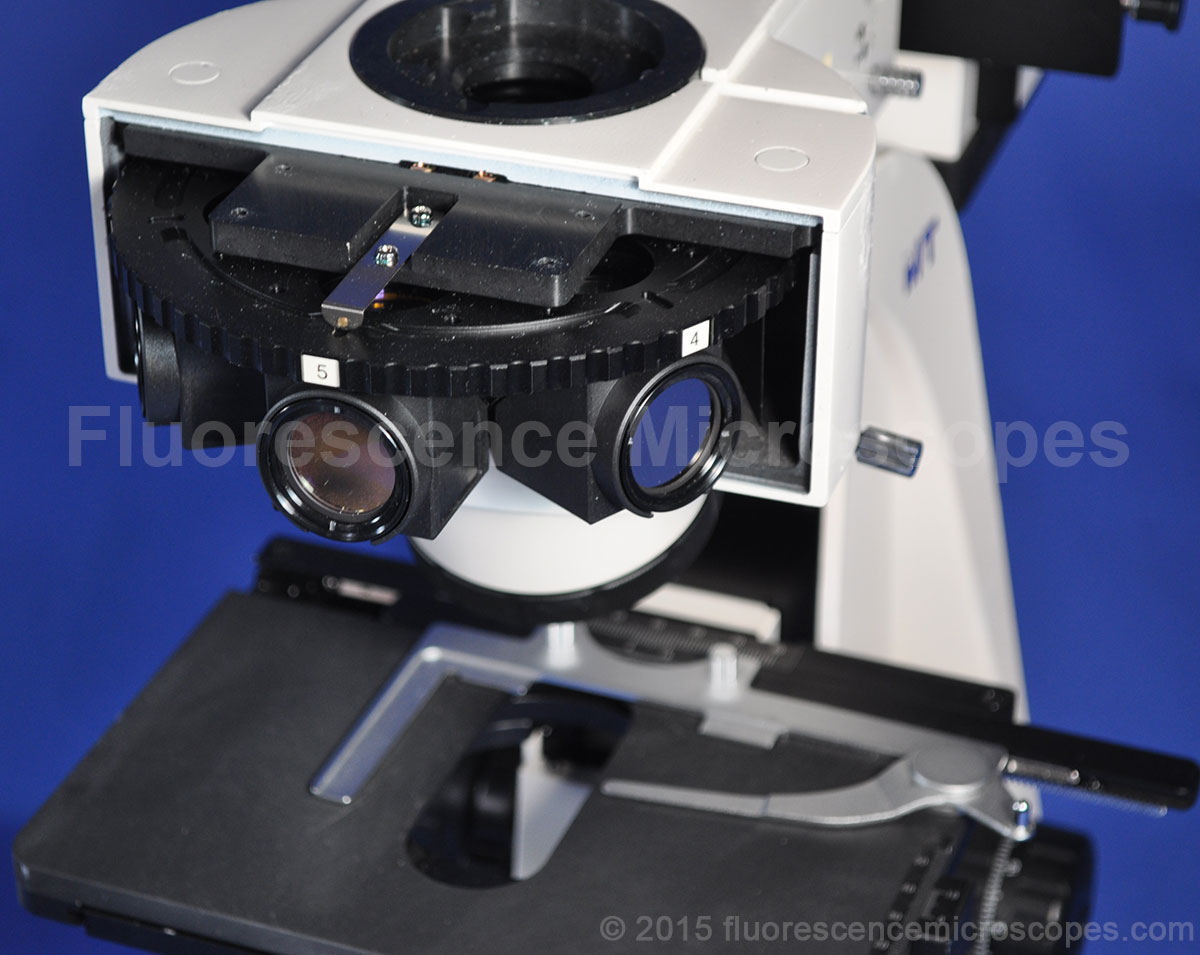

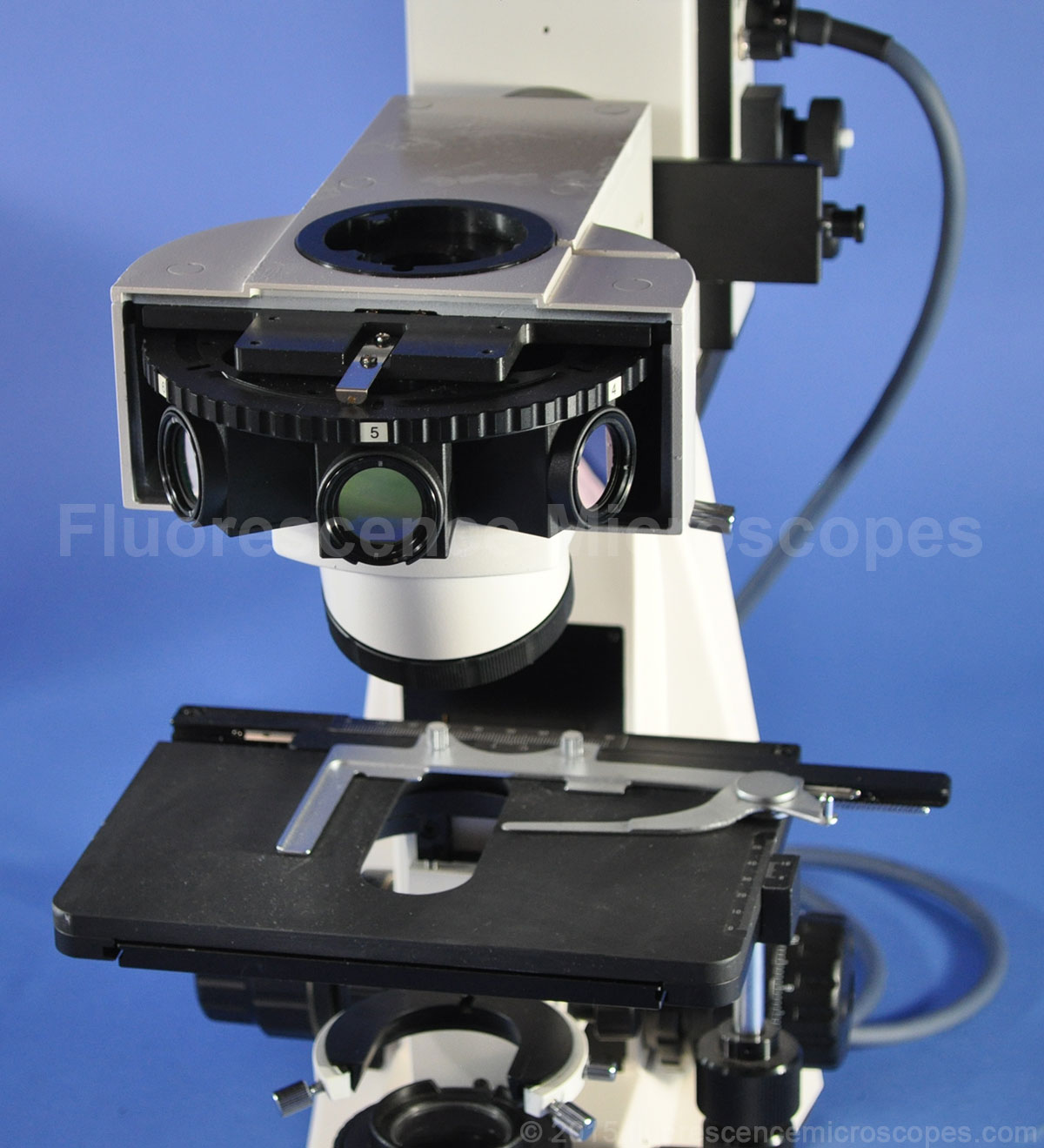

• Six filter cube reflector turret. Maximum of six cubes. Includes three cubes.
• Three filter cubes with filters. Condition of filters appears used.
• We can provide customized filter sets as per customer’s requirements. We are a dealer for Chroma. Let us know if you want to add some new fluorescent dichroic filter sets.

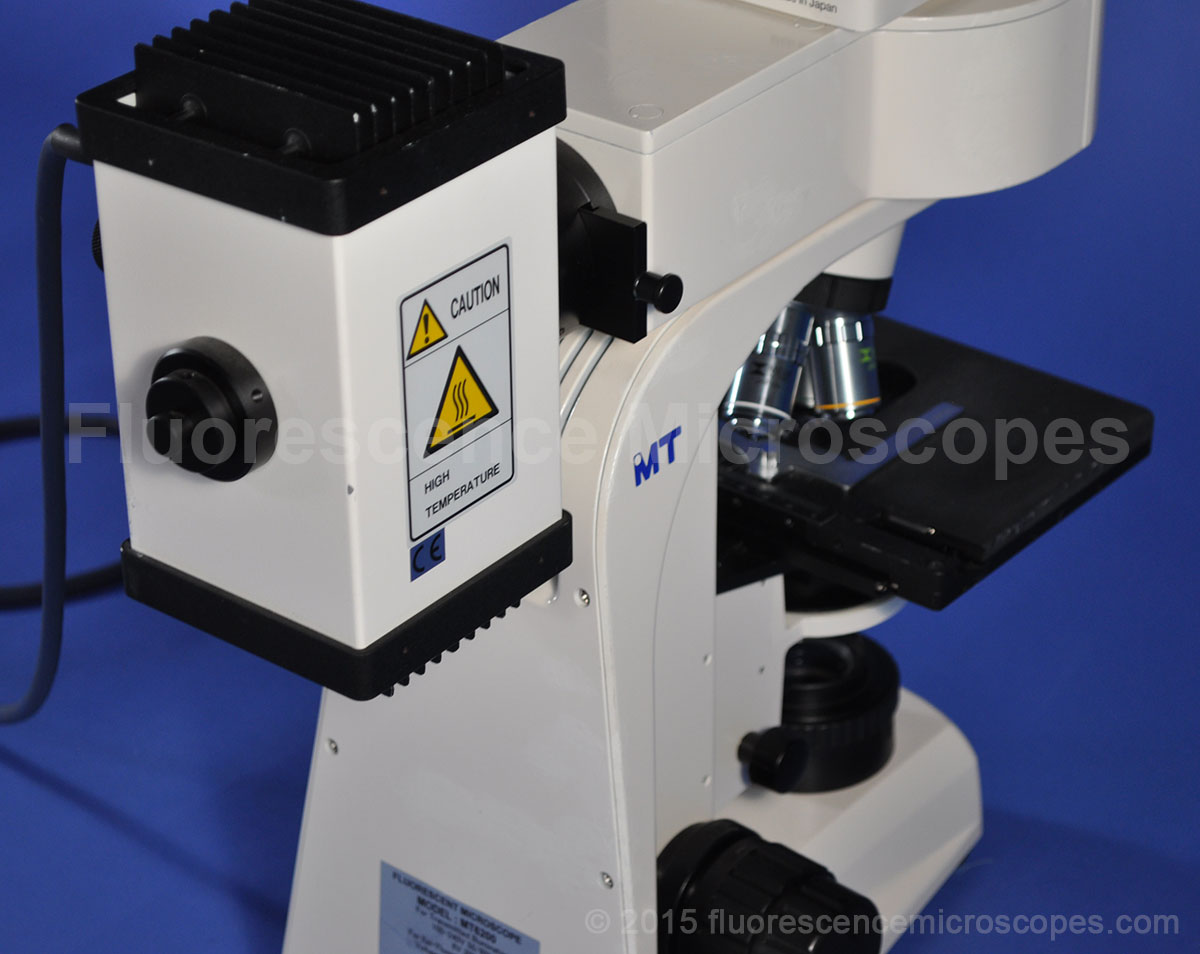

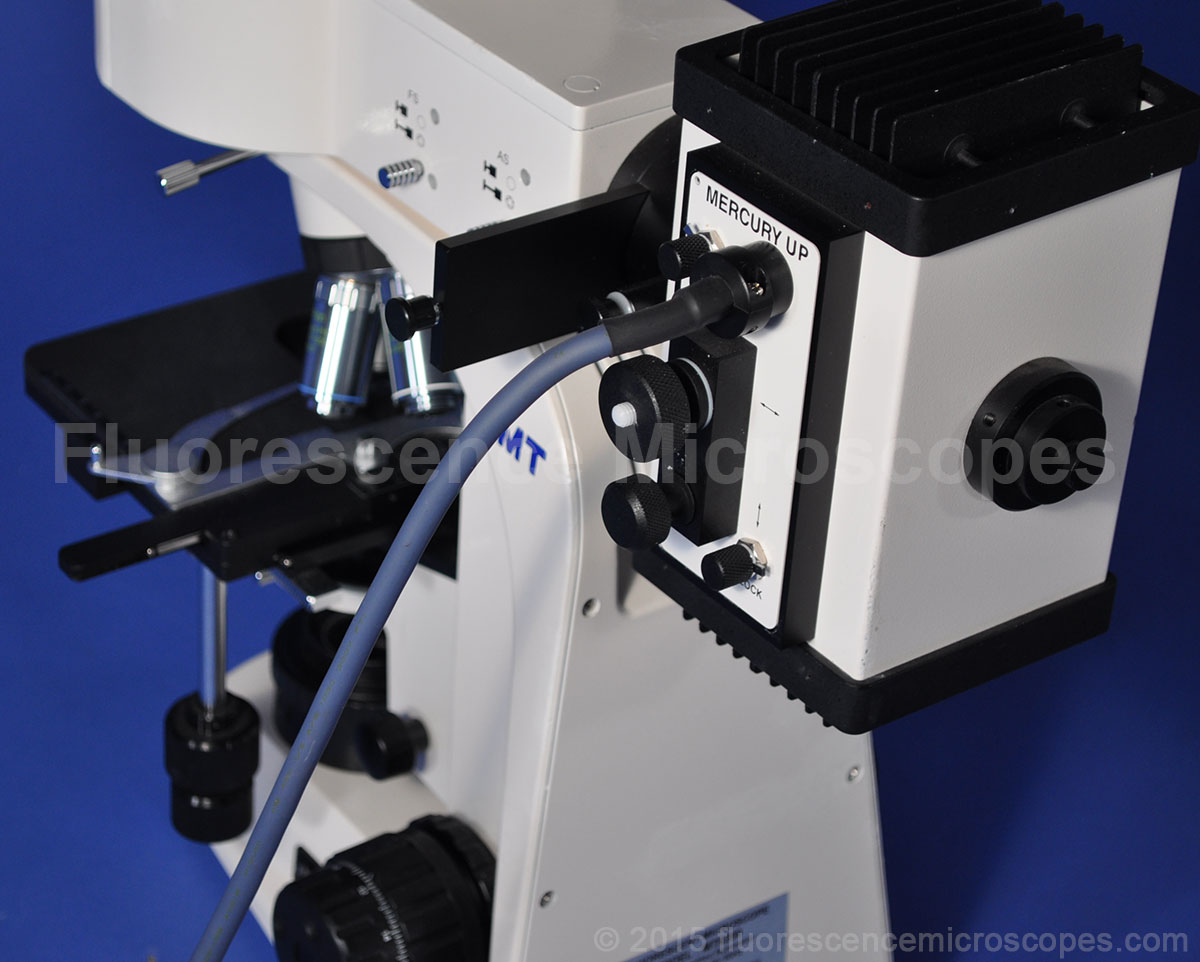

• Mercury Lamp Housing.
• Does not include mercury bulb.
• Missing: Fluorescent Power Supply.
• This is probably the correct power supply that needs to be purchased separately: Meiji Techno Model FL-PWJ Power Supply.
• This is sold by others for around USD 1100 new.

Here is the link to the manual for it:
Meiji Model FL-PWJ Power Supply for Fluorescence.pdf
General Notes and Specs:

• Five place quintuple nosepiece. Holds maximum of five objective lenses.

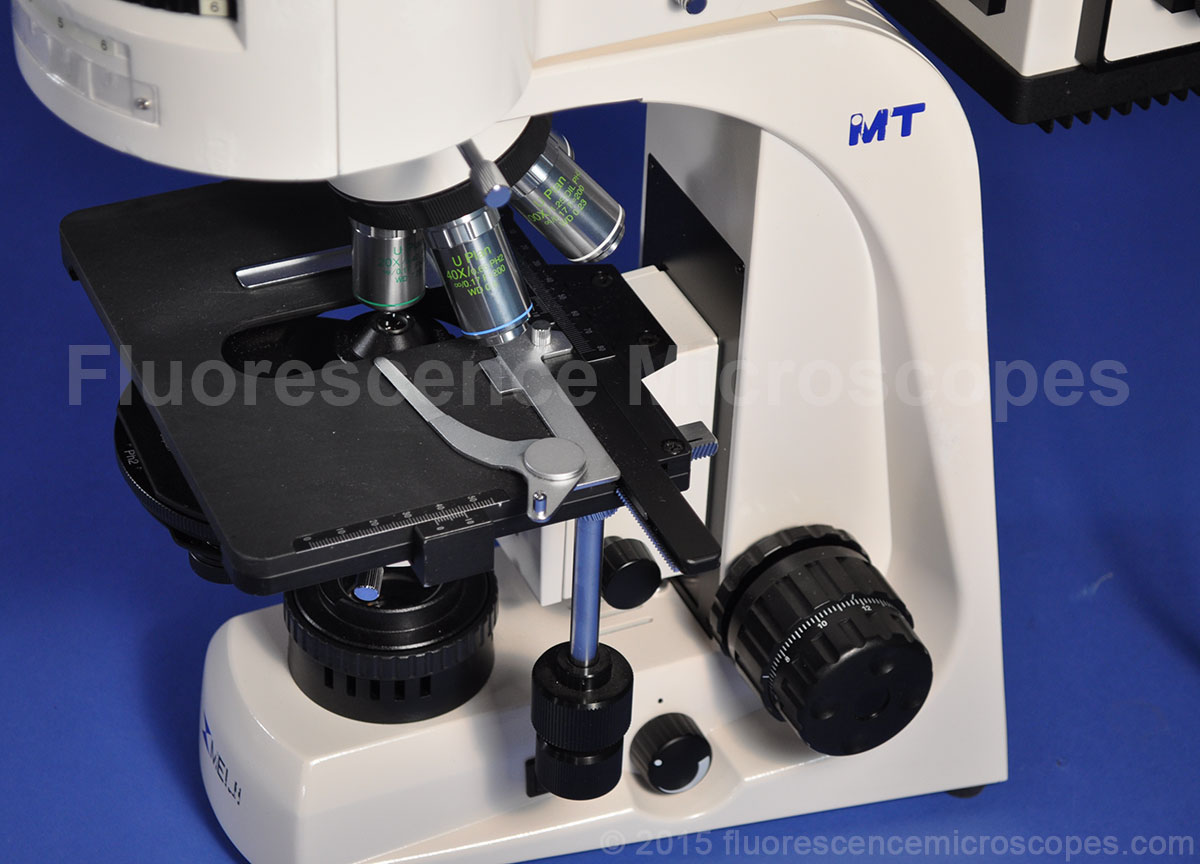

• Mechanical stage with right hand low position XY movement.
• Eyepiece Pair: SWH10X/22
• Vertical Illuminator for Incident Reflected Fluorescence.

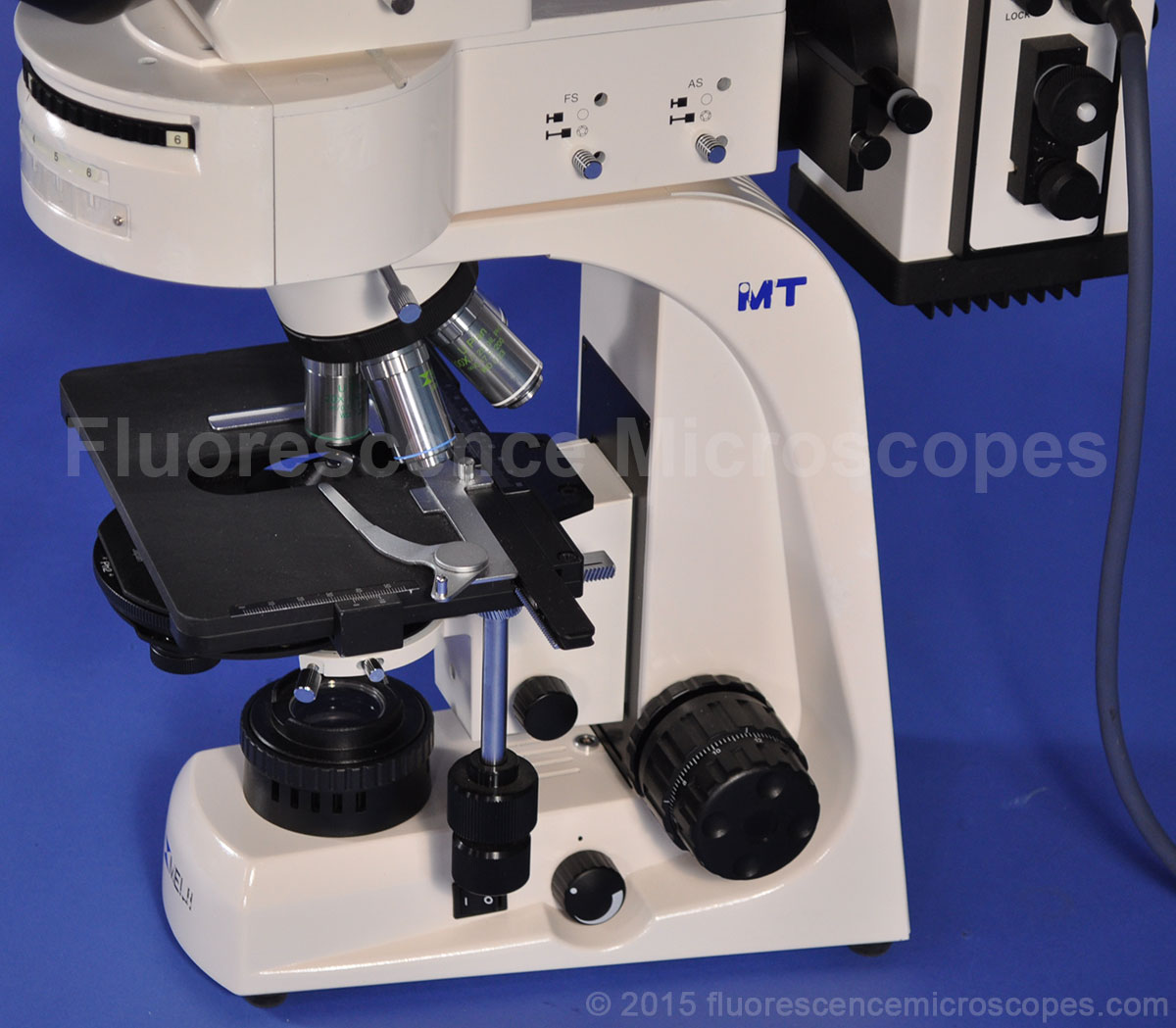

  Field stop and aperature stop.
• Frame of unit has had some paint touchups.

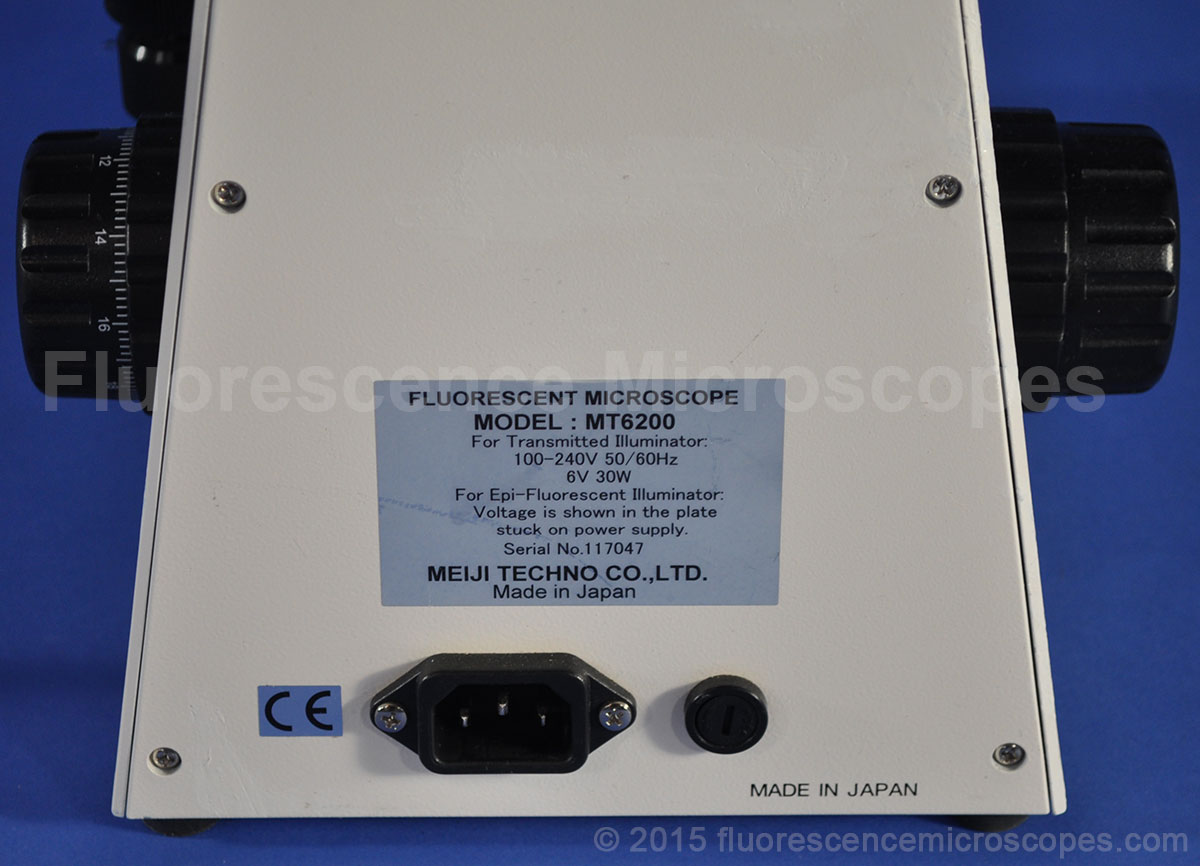

Frame Markings:

• CE certification.
• Meiji Techno Co., LTD.
• Made in Japan
• 100-240V, 50/60 Hz.
• Transmitted Illuminator: 6V-30W
