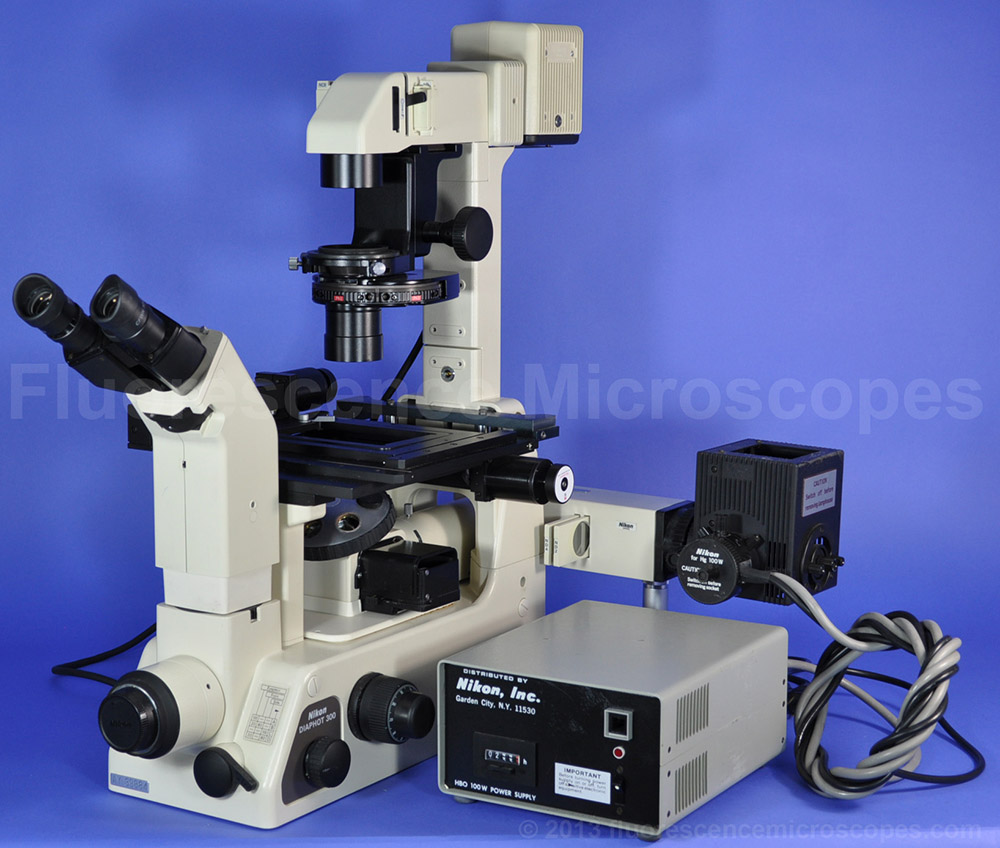

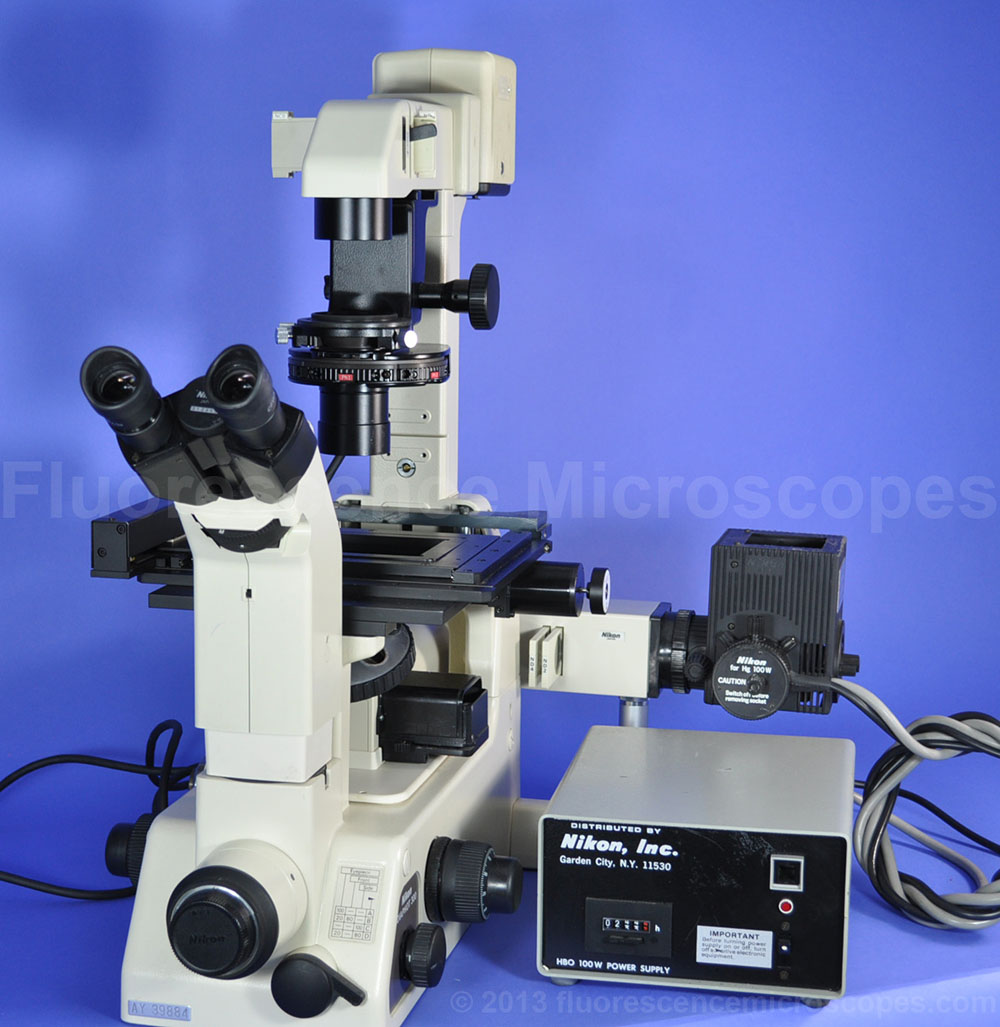

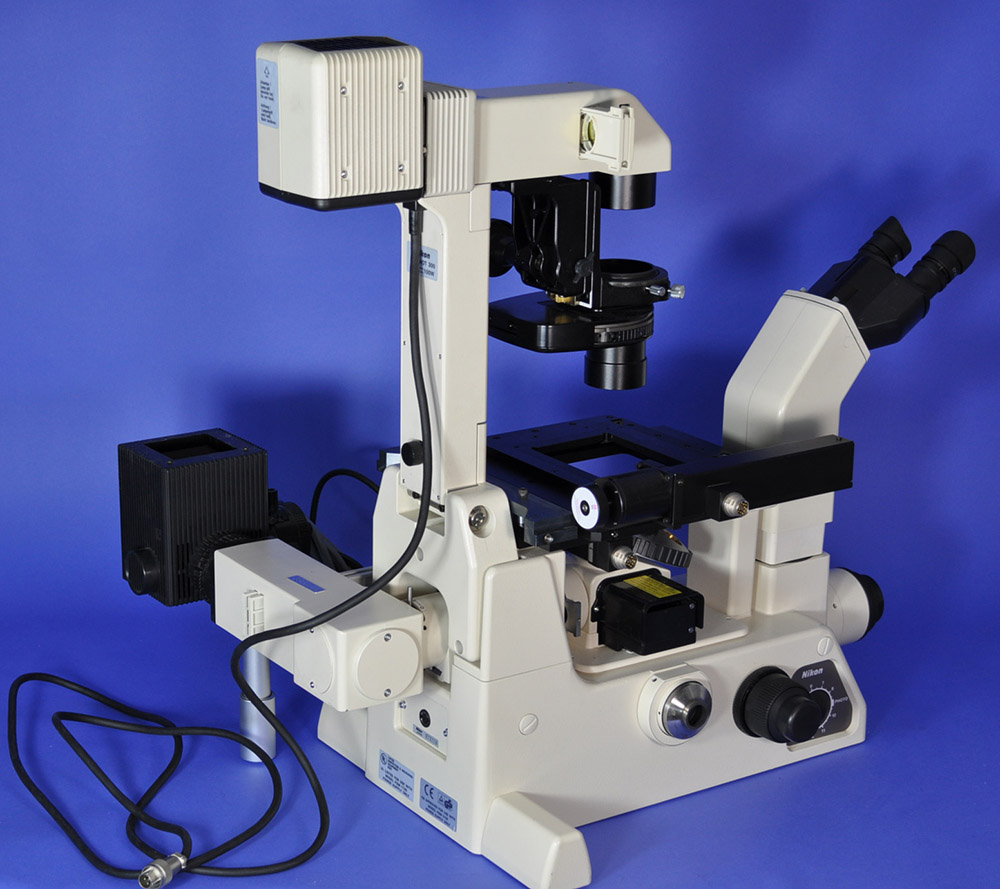

Nikon Diaphot 300
Phase Contrast
Inverted Microscope

USD $2800


MODEL: Nikon Diaphot
Shipping Cost: To be determined

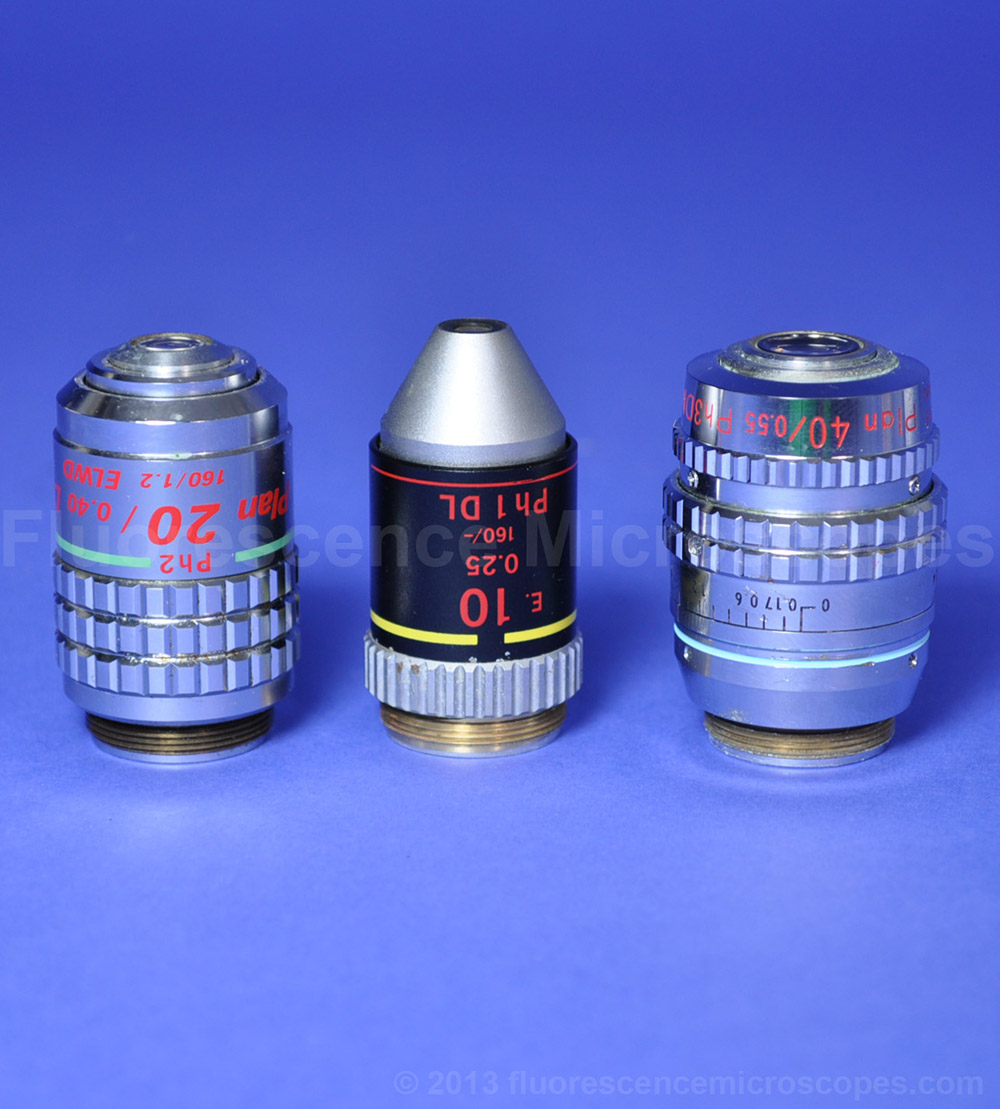

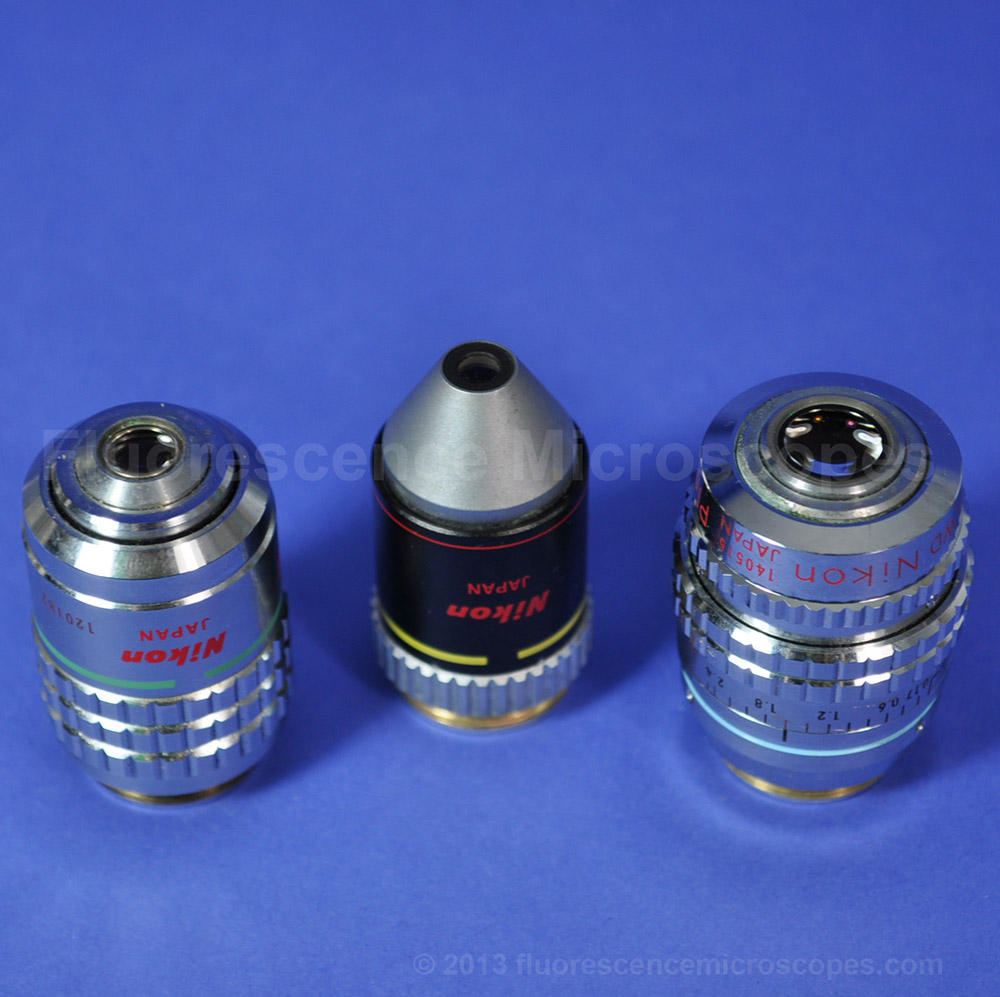

Nikon Objective Lenses:

  • E10x/0.25; 160/-; Ph1. DL.
  • Plan 20x/0.40; 160/1.2; Ph2. DM. ELWD.
  • Plan 40x/0.55; 160/0-2.5; Ph3. DM. ELWD. Correction Collar for thickness of petri dish. Nikon #140515.

Total magnifications: 100x, 200x, 400x.

Special Features:

  • Six-Place Nosepiece (rotation is normal and smooth with good clean stops).
  • XY Stage Movement: Has motorized stage but with no controller. Knobs can be operated manually by simply turning them to move the X and Y directions.
  • Halogen Transmitted Light Source. 12V-100W. Power for lamp is supplied from a separate transformer that is NOT included.
  • Eyepiece Pair: CFWN 10X/22mm.
  • Diopter on each eyetube for maximum adjustment.
  • Iris Diaphragm in transmitted light path.
  • Three filter slots with one having NCB filter installed.

Phase Contrast Microscopy:

  • Nikon Phase Contrast Condenser Turret. ELWD 0.3.
  • Phase Settings: Ph1, Ph2, Ph3, and two empty spaces (for brightfield).
  • All phase annuli are present and functional.

Fluorescence Microscopy:

Includes 100W Mercury lamp housing. Includes the Mercury Lamp (100W).

Nikon HBO 100W External Power Supply (for the mercury lamp) – Model 78591.

Includes filter in mercury light path: ND2 and ND4.

General Notes:
Made in Japan.
The fine and coarse focusing was tested and performed satisfactorily.

This is a used microscope and sold in as-is condition.

UV light and Mercury Bulbs are Dangerous! YOU MUST Read BEFORE purchasing! Click this link.
Safe With UV Light
