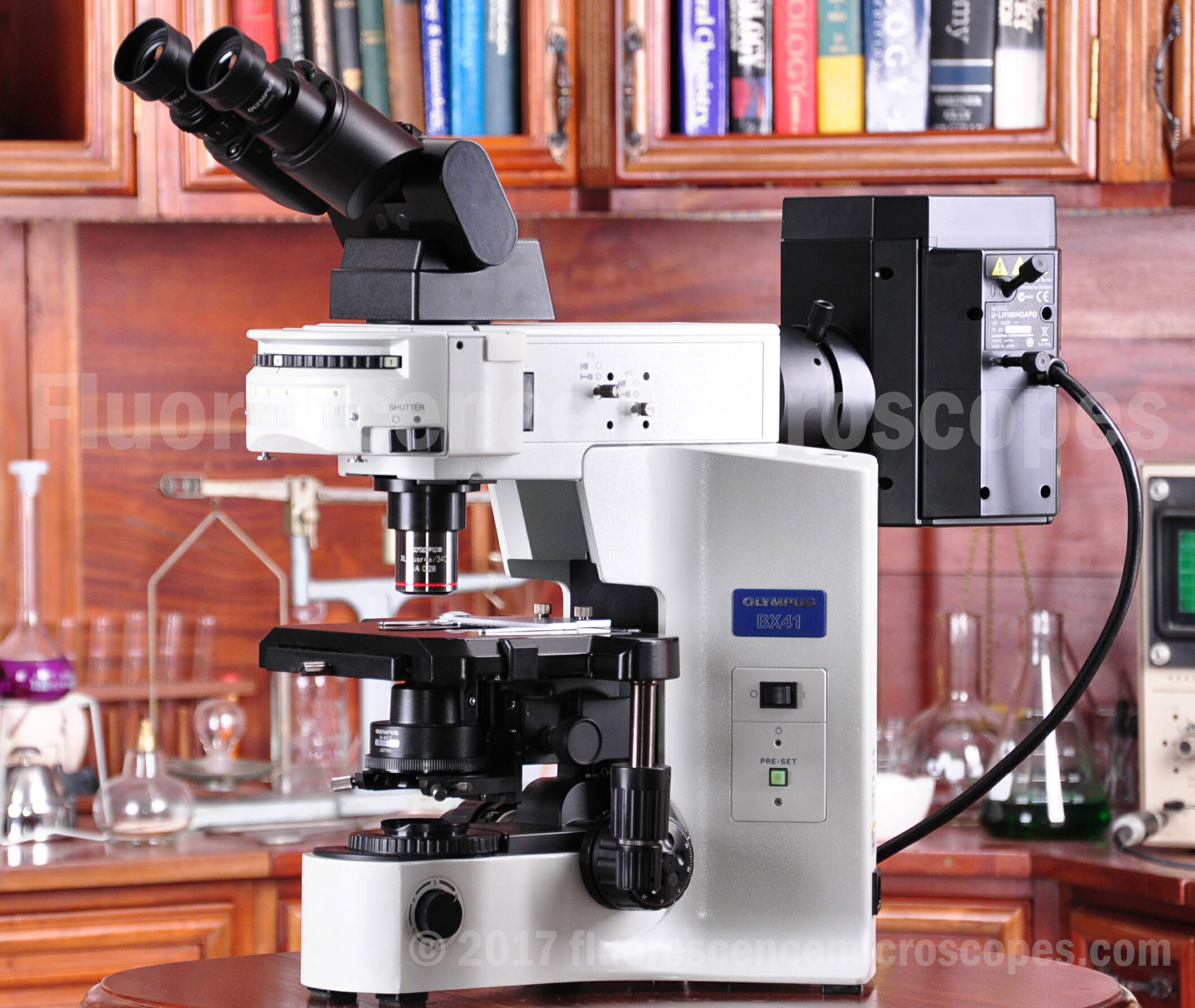

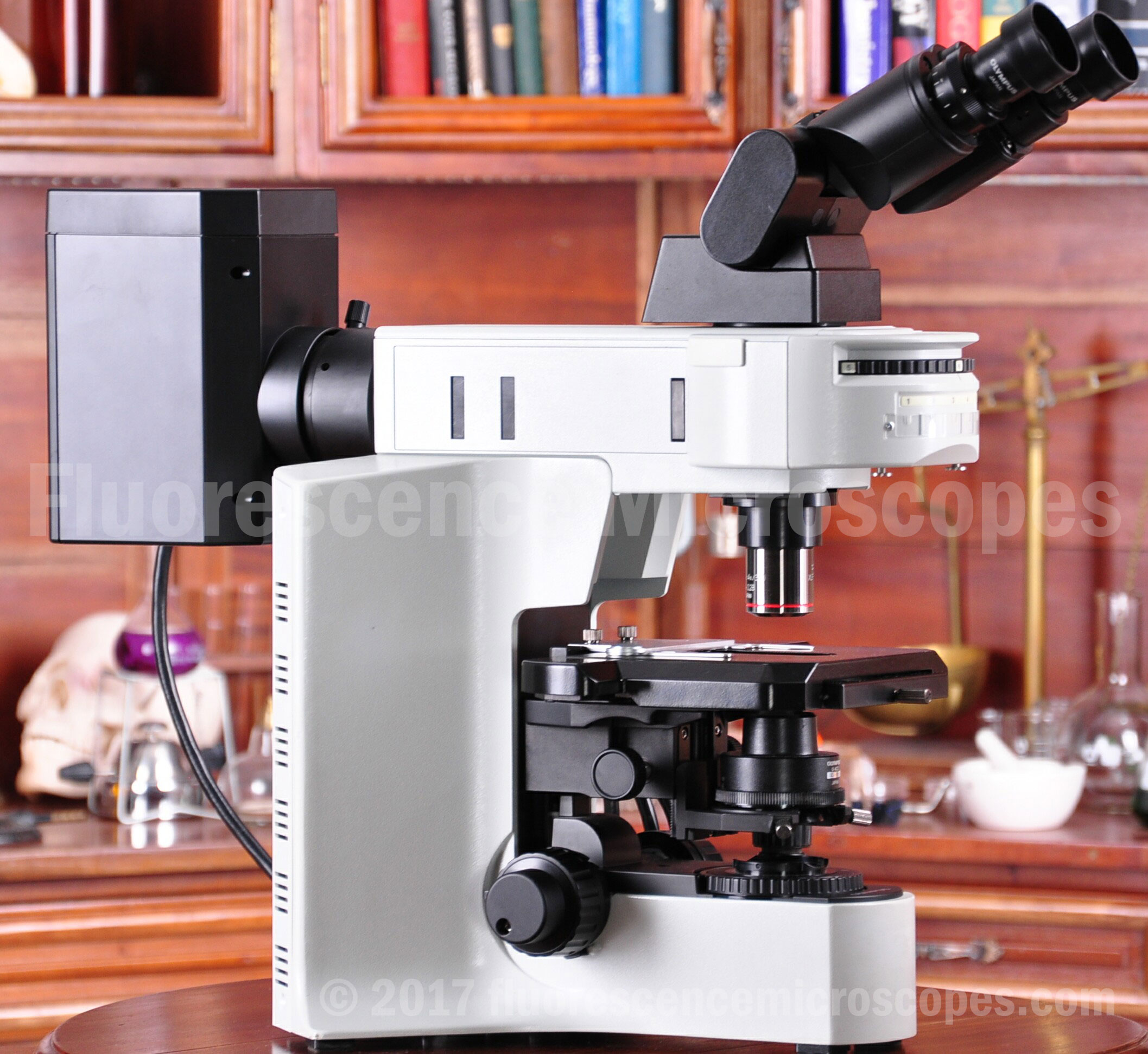

Olympus Model BX41 Macro
Macro Objective XL Fluor 4x / 340
Low Magnification Observation Long Working Distance
High Numerical Aperture Excellent Transmission 330nm – 700nm.
HBO 100W APO color corrected lens Upright Fluorescence Microscope

USD $13,000

Shipping Cost: Free Worldwide Shipping

Main Features:

  • Frame Marking: Model BX41TF.
  • Macro Optics for excellent transmission of fluorescence microscopy.
  • Ability to view with low magnification.
  • Long working distance for maximum flexibility.
  • Optimized for GFP observation, zebrafish studies, and in vivo experiments.
  • Suitable for measuring membrane potential at the tissue level.

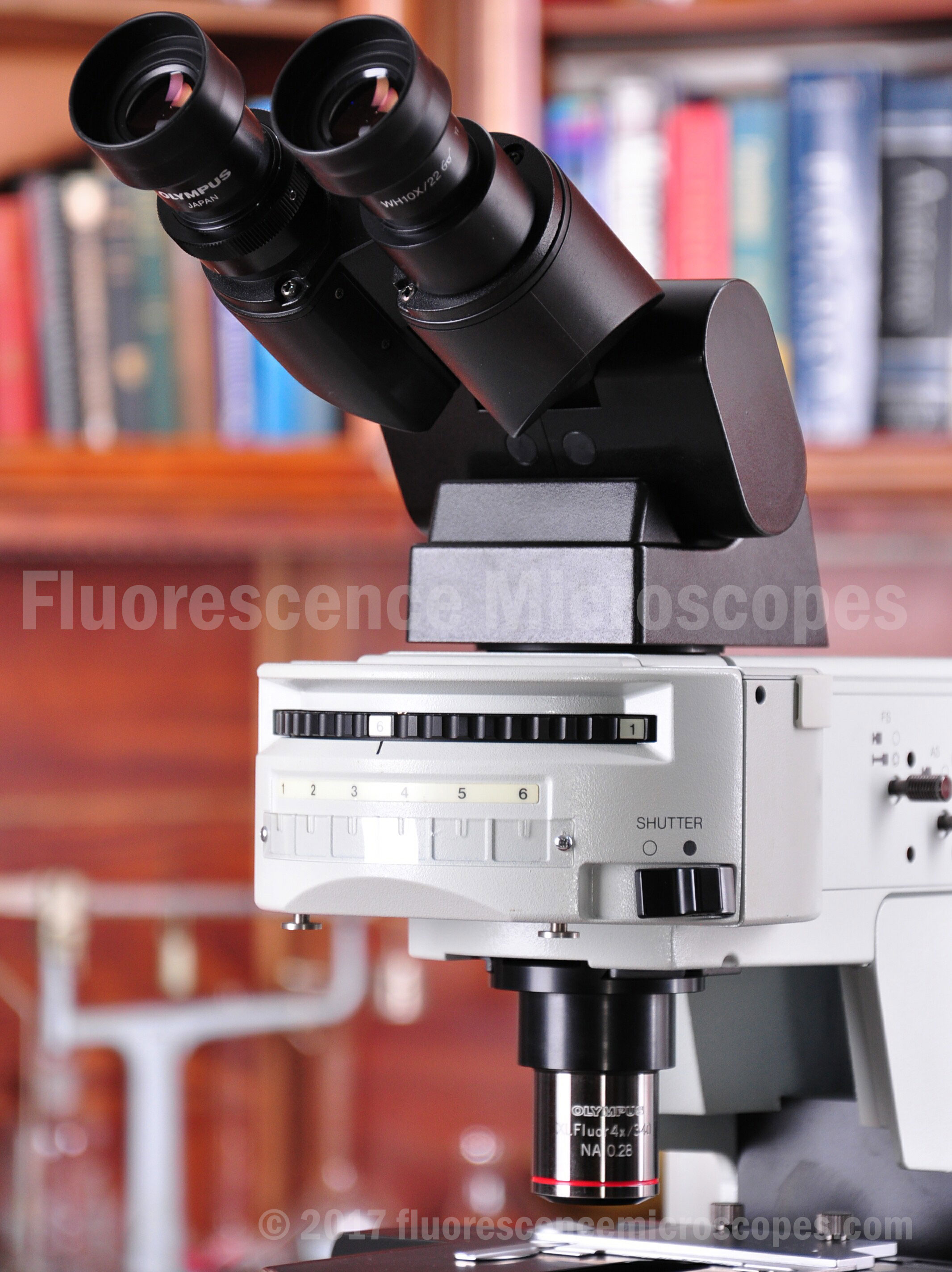

  • Ergonomic Head with Inclining capability.
  • Eyepieces: WH10X/22 High Eyepoint with ability to use eyeglasses when viewing.
  • Rubber cupping eyeguards with ability to block out extraneous illumination for better fluorescence viewing.
  • UV Shield for blocking extraneous UV light.
  • Original Olympus 3mm hex screwdriver.
  • U-AC2 Abbe Condenser. N.A. 1.1.
  • Included all needed power cords.
  • DOES NOT INCLUDE CAMERA OR LAPTOP. Camera is shown in images to demonstrate that one can be connected.

Fluorescence Vertical Illuminator

  • Field Stop and Aperature Stop.
  • Openings for optional filters such as Neutral Density.
  • 6-Place Rotary Cube Turret system.
  • APO lens in rear mounted 100W HBO lamp housing (U-LH100HGAPO). Includes Mercury bulb.

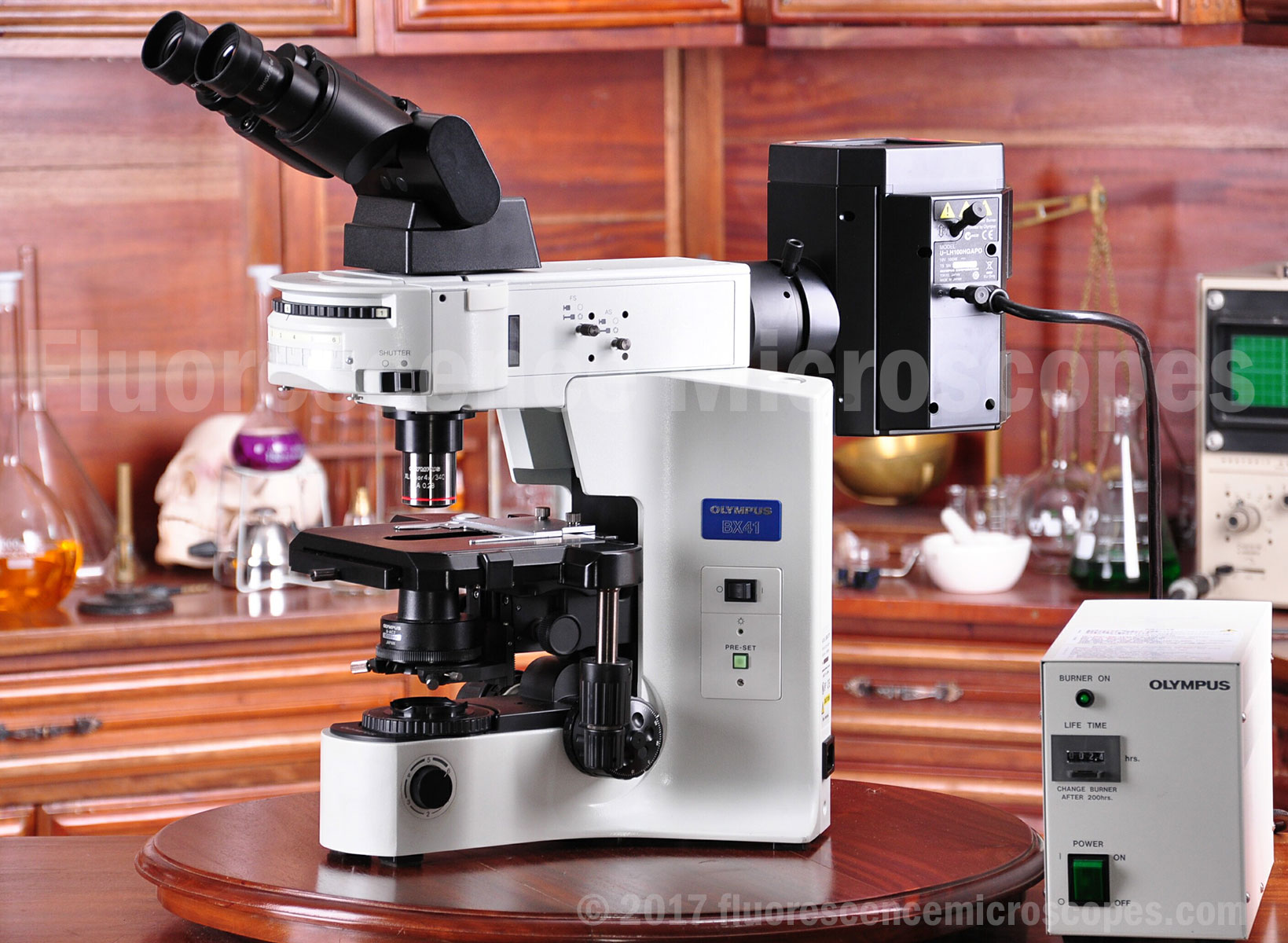

  • External power supply for Mercury Vapor Short Arc Illuminator.

Transmitted Light

  • 30W Halogen Rear Mounted Lamp Housing.
  • Light Intensity Preset Button.
  • Includes LBD-IF Light balancing daylight interference filter for color correction of the halogen bulb.

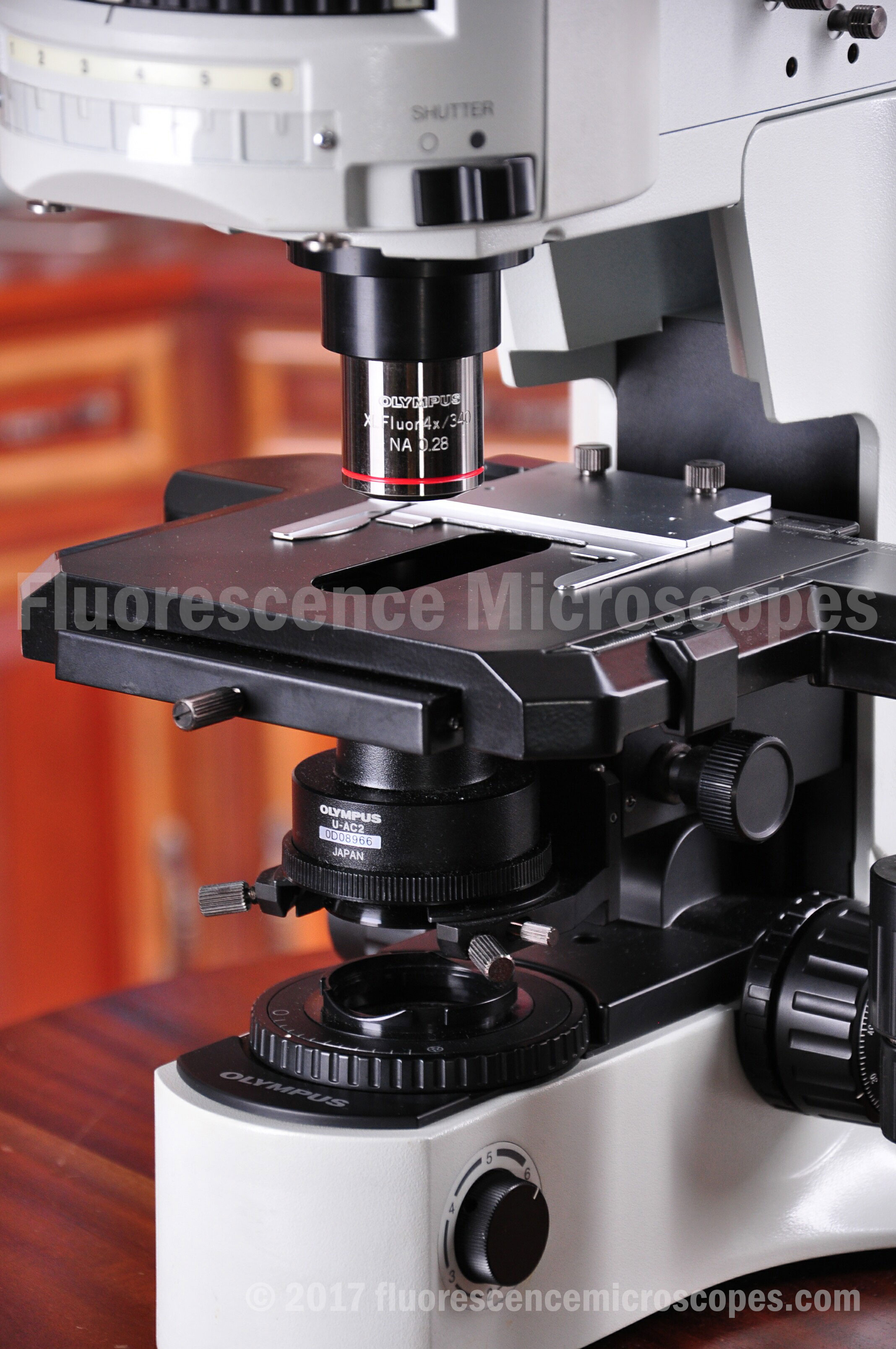

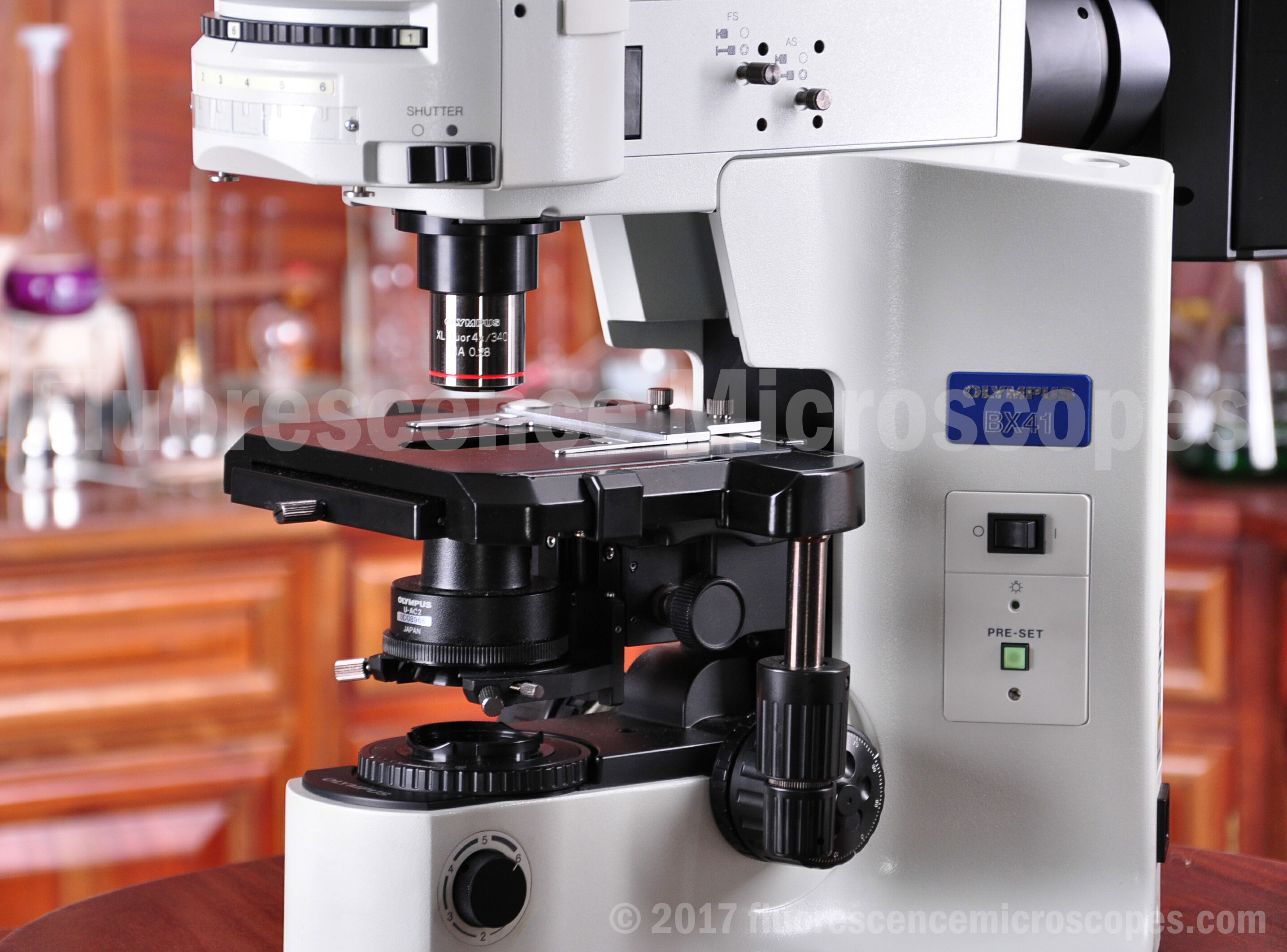

Macro Objective Lens

  • Olympus Part#1-UB950.
  • XLFluor 4x / 340 nm.
  • 4x Macro Objective.
  • High Numerical Aperature N.A. 0.28. Great for maximum illumination of fluorescing specimen.
  • Long Working Distance 29.5mm.
  • A water immersion cap can be attached to this objective so disturbances caused by water ripples are eliminated. Cap is called XL-CAP.
  • Olympus Price New for this objective: USD $5,073.00.

Fluorescence Filter Cubes

  • Two Complete Dichroic Filter Cube Sets:
  • DAPI (by Chroma, very slight wear);

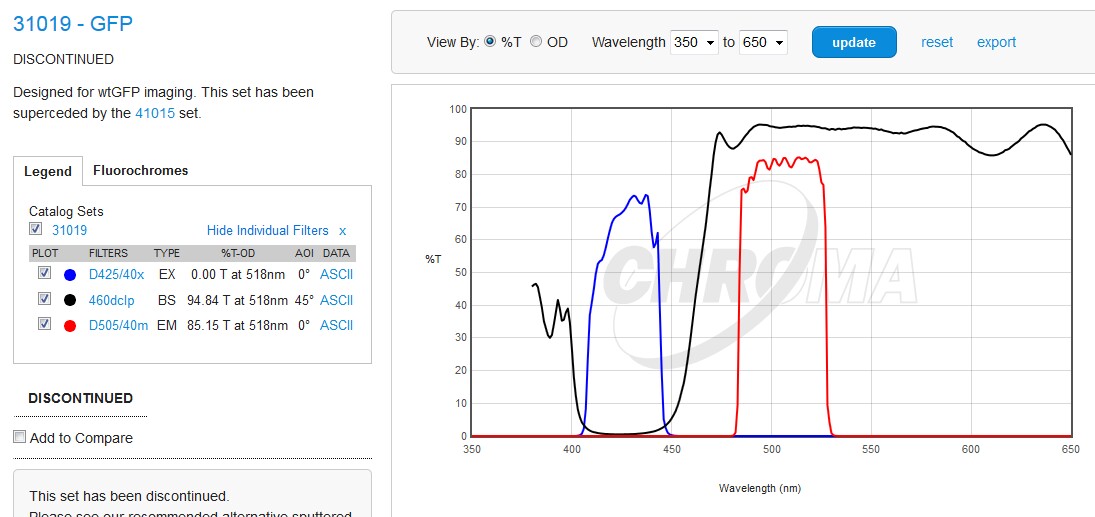

  • GFP / AQUA (by Chroma, designed for wtGFP imaging, U-N31019, ex. 425/40 bp, bs 460 lp, em. 505/40 bp, moderate wear);

Link to factory specs:



  • This microscope is in great condition.


  • This is a high quality Olympus (Made in Japan) optical instrument. We also sell Chinese made fluorescence microscopes but the quality is substantially lower. We highly discourage buying the Chinese microscopes due to the problems that incur after the sale.

Testing Results:

This microscope was fully tested. Results are as follows:
All functions were found to be in proper working order.

  • Brightfield – Koehler illumination was set properly, with all adjustments and centering being properly achieved.
  • Incident Reflected Fluorescence – HBO Bulb was properly centered obtaining bright, clear, and uniform illumination distribution across the complete field of view.

Fluorescing Achieved –

  • The GFP / AQUA filter cube did not give a very good image using our test slide. This filter set is a lower excitation wavelength than a normal GFP, so could be that our test slide wasn’t optimally stained for it. We tested the 4x lens and were able to see an image. We replaced this included lens with some other lenses (not included) to do more detailed testing and found it gave and okay image (this is expected with a normal lens) on 10x, good image on 40x.
  • The DAPI filter cube was tested and was fine on the included 4x. When viewing with other (non included) objectives, it gave really good images.
  • A cube with new FITC filter set (not included) was tested. It gave a good image on the included 4x. Other (not included) objectives were tested and it gave an excellent image on 10x and 40x.

Optional Items:

  1. We have a wide variety of optional scientific cameras, both monochrome and color, with and without Peltier cooling.
  2. We have available, brand new replacement 100W HBO Mercury Bulbs and Halogen bulbs.
  3. Optional Neutral Density Filter Sliders: U-25ND25, U-25ND6.
  4. Brand new Chroma hard coated filter cubes with lifetime warranty may be added. Cost is USD $750/set for the dichroic filter (emission filter, dichroic mirror, barrier filter) and included blank cube.
  5. Optional Photography Port with c-mount adapter for camera attachment.

User Manual and Instructions:

One Year Parts and Labor Warranty:
We warrant this Microscope to be free from defects due to normal usage in normal operating conditions for a period of one year. Camera equipment (if included) is given a three month warranty. Objective lenses are excluded from warranty.
Additional warranty on microscope may be purchased if desired.

We will repair or replace equipment at no charge, during the one year warranty period. Both parts and labor are included. Buyer is responsible for shipping costs BOTH ways, paying for shipping cost to our designated repair facility and shipping cost back to buyer. Bulbs are considered user replaceable items and not covered.

Warranty Excludes Objective Lenses:
Our warranty excludes the objective lenses. There are several reasons for this. First of all, if the objective is good, it will continue good performance unless there is some user or environmental abuse. Abuse can be from oil getting on a non-oil immersion lens, contact with a solution that degrades the cement around the glass, contact with other chemicals that may stain, etch or pit the glass, scratching the lens by incorrect cleaning methods such as cloths not of lens cleaning quality, damaging the lens by scraping it on slides or metal slide holders on the stage, dropping on a hard surface, subjecting the objective to extreme humidity causing internal mold or mildew, etc.
In addition, objectives can’t feasibly be repaired. If an objective is damaged so that the optical quality is significantly diminished, it is suggested to throw it away. One solution is to send it back to the factory and incur a repair fee equal to about half the price of a new replacement. That is usually cost prohibitive. We professionally clean the front and back lens, and the outside barrel of the objective. But we do not open them up. That should only be done by the factory under strict conditions and with optical laser alignment. Generally, when someone other than the factory messes with a lens, the performance may still be acceptable, but likely will be noticeably lower quality when compared side by side with a new lens. So since defective objectives are generally thrown away, and replaced with another one, there is no need to warranty them. The user can easily find a matching objective and replace it on their own.

Objective Lenses – Condition:
All objectives have been professionally cleaned.
All are guaranteed to be free from optical defects. If any defect is found, it will be clearly noted in the ad.
Our inspection of the objective lenses includes checking for the following:
lens cracking, pitting, lens cement not intact, internal oil damage or oil seepage, glass fogging, glass hazing, stains on optical glass, mold or mildew stains, and delamination (separation of internal lenses).

Condition of Equipment:
This reconditioned microscope is complete and in excellent working order and has been completely checked out and serviced.

Technical Sales and Support:
Most offerings of used microscopes are by simple flippers of equipment who have obtained defective and rejected microscopes from labs discarding the equipment. They resell exactly what they got, as they got it, and without any technical knowledge of it. You can rest assured when purchasing from us that we are professional dealers who are well trained to service and provide technical support of the microscopy equipment. We test, repair and refurbish all equipment to excellent working conditions. We are well trained and able to give you technical advice including pre-sale and post-sale support.

Microscope Training – Setup Support – Software Assistance:
Concerned about how to set up and operate this equipment? Need training? Need help with software for the camera? We can help. Contact us for more details.

Free Application Evaluation and Recommendation:
We strongly encourage all potential buyers to first contact us with regards to their specific application. In most situations, we need to customize certain features of the microscope in order to best fit the end user’s technical requirements. We want to ensure you have the correct and optimal configuration for your application.

Fluorescence Filter Sets – Customized:
We are dealers of both Chroma and Omega brands (Made in USA) of dichroic filters. Please contact us regarding the specific fluorophores you are using so we can be sure the filter sets provided are a proper match. Incorrect matching will give you poor quality or no visible fluorescing.

Free Worldwide Shipping:
Equipment may ship from Outside USA. We provide free worldwide shipping. The method of shipping may vary, depending on destination country, but may be via commercial air cargo. Not all countries will have door to door service. Contact us for further details so we can discuss shipping arrangements.

Customs Duty and Tax:
Any and all customs brokerage, customs entry, VAT and duty/tax are the responsibility of the buyer. Buyers in USA can contact us in advance to see if there are any entry fees.

Voltage Requirement:
Our equipment may show 110V and/or 220V external power supplies. Some power supplies are not Volt selectable. Depending on your country of final destination, and the Voltage supply, we may need to change the power supply shown in the ad to one that matches your power requirements. Contact us first with your Voltage requirement so we can be certain we have the required power supply if it needs to be changed from what is shown in the ad.

Payment Method Accepted:
We generally accept purchase orders from government, educational, and industrial facilities in some countries. For some preapproved orders, we accept credit cards. We also accept bank wire (telegraphic) transfers. Contact us for details. We properly screen all buyers to protect against fraudulent transactions. We reserve the right to deny transactions deemed to be potentially fraudulent.

Financing Available for Select Customers:
If you are unable to afford the full purchase price, please contact us about financing details. Our financial partner offers 90 Days “Same as Cash” and deferred payments up to 6 Months.

We have rental plans available for some companies and universities. Contact us for details.

Money Back Guarantee:
We guarantee you will be satisfied with your purchase. If in the unlikely event you are not satisfied and want to return your item, please contact us within 14 days of receiving it. We will then arrange to get you details about how to return it. We have no restocking fees but the actual cost we paid for shipping will be deducted from refund amount. We give free shipping, but for returned items, this cost will be charged to buyer.
