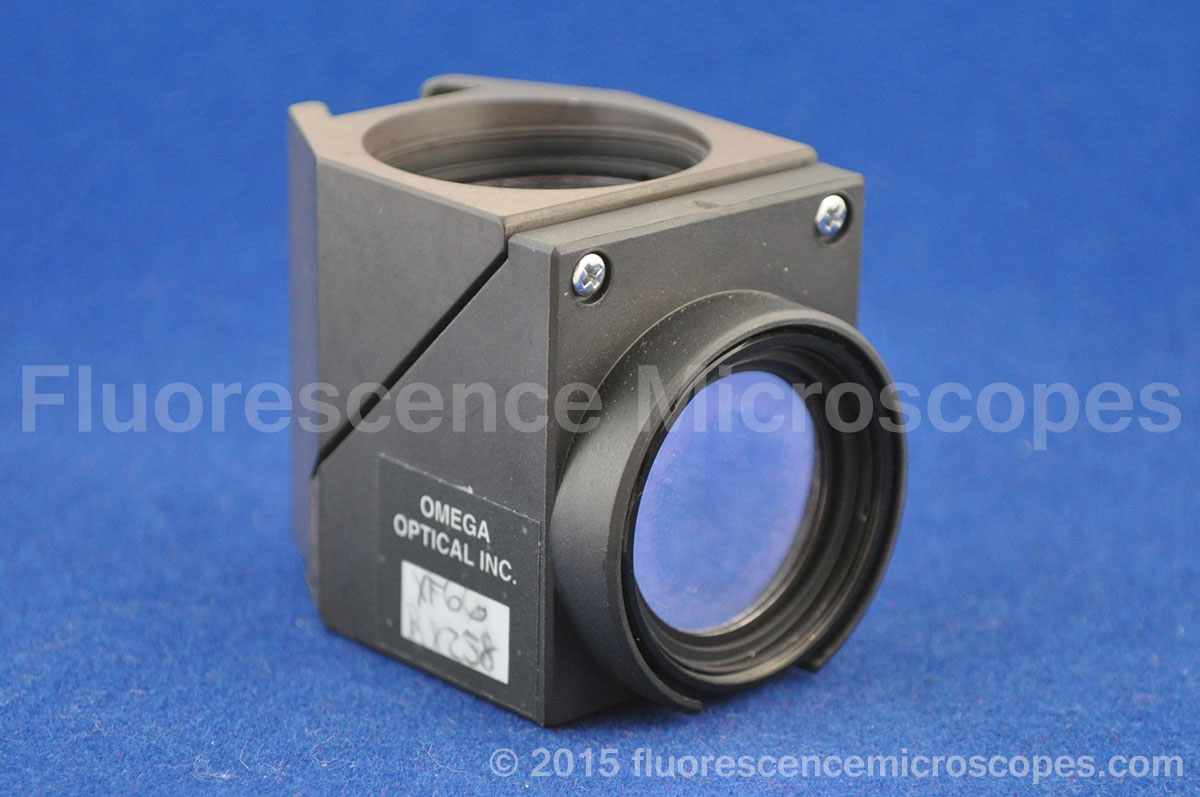

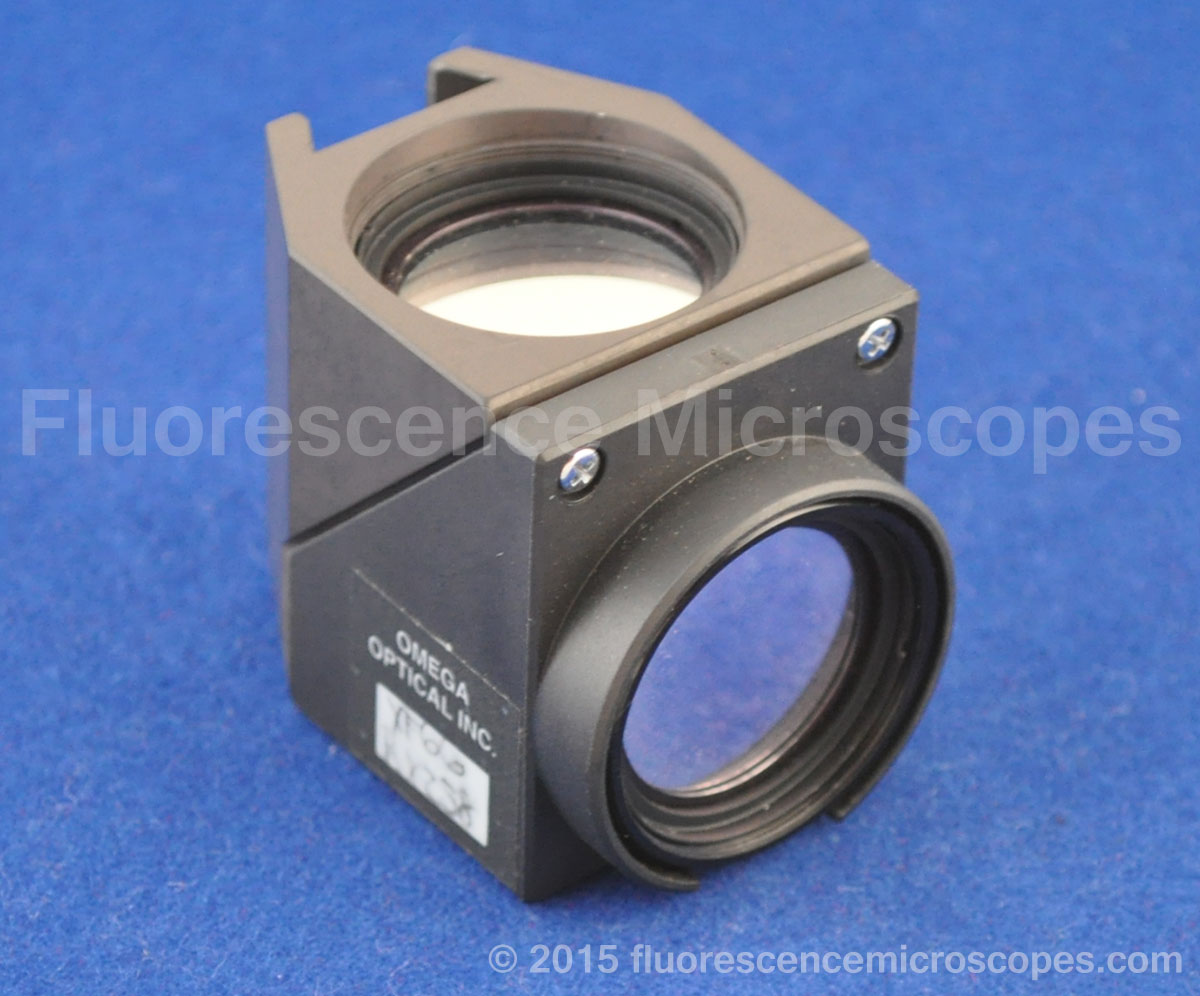

Omega XF66 Triple Bandpass
Fluorescence Filter Cube
for Olympus BX Microscope

USD $480.00

SOLD

ITEM CODE: C101
Shipping Cost: To be determined

Description:

  • Omega XF66 Triple Bandpass Fluorescence Filter Cube for Olympus BX Microscope.
  • Excitation: 385-485-560 TBEX (XF1057)
  • Emission: 460-520-602 TBEM (XF3063)
  • Dichroic Mirror: 385-485-560 TBDR (XF2050)

Other:

  • Lists for $900 (filters only) on OmegaFilters website. Add the value of the cube.
  • For real-time imaging with a CCD camera or color film of DAPI-FITC-TRITC.
  • This set is designed for simultaneous imaging of DAPI, fluorescein, and rhodamine or Cy3. Spectrally similar dyes to these could also be used with this set. This set is optimised for CCD detection and offers extra blocking in the infrared range for that reason. Has additional numbers: “RV258” or “RX258”

Compatibility: Cube is the narrow style for the 6-position turret on the Olympus BX2 and IX2 series (ex. BX41/BX51/IX71, etc) and also retrofits the older 4-position turret on the BX and IX series (ex. BX40/BX50/BX60/IX50/IX70, etc). It will not fit the BX3/IX3 series (ex. BX43/BX53/IX73 etc).

Condition:

  • Filters show some signs of usage, but are still in good condition. We guarantee this will work properly.
  • Includes plastic cube holder (not shown).

Factory Website Link: http://www.omegafilters.com/xf66.html
