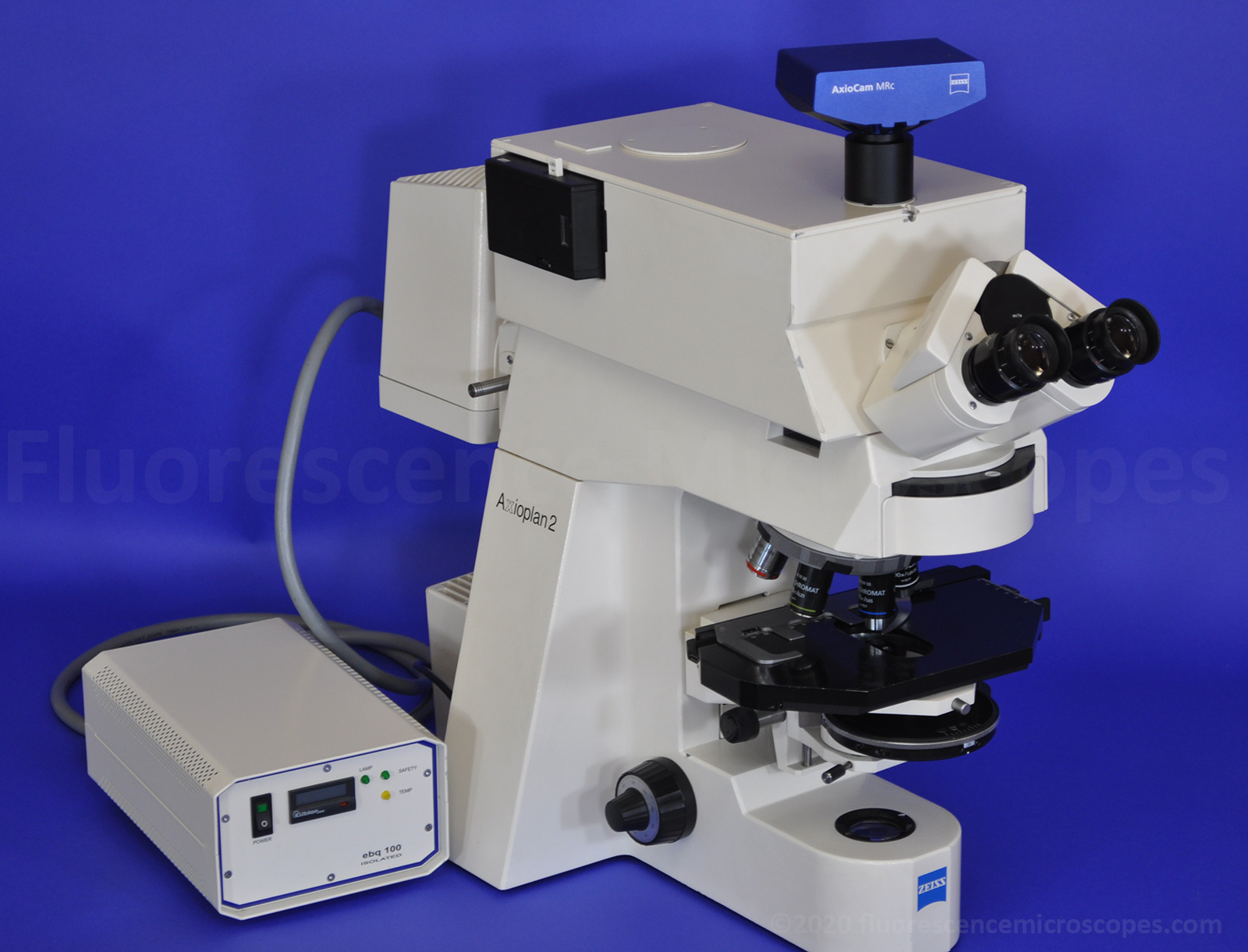

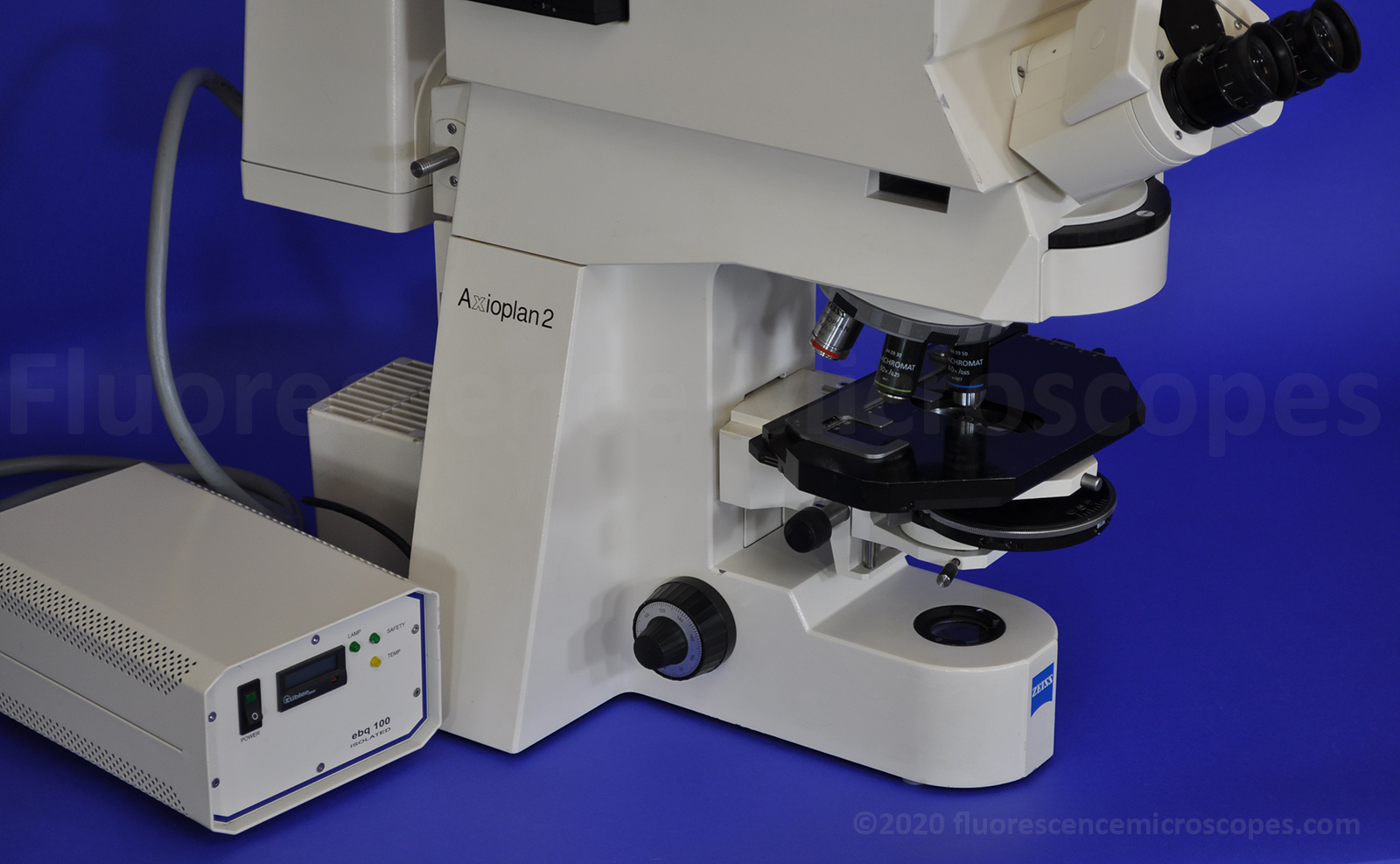

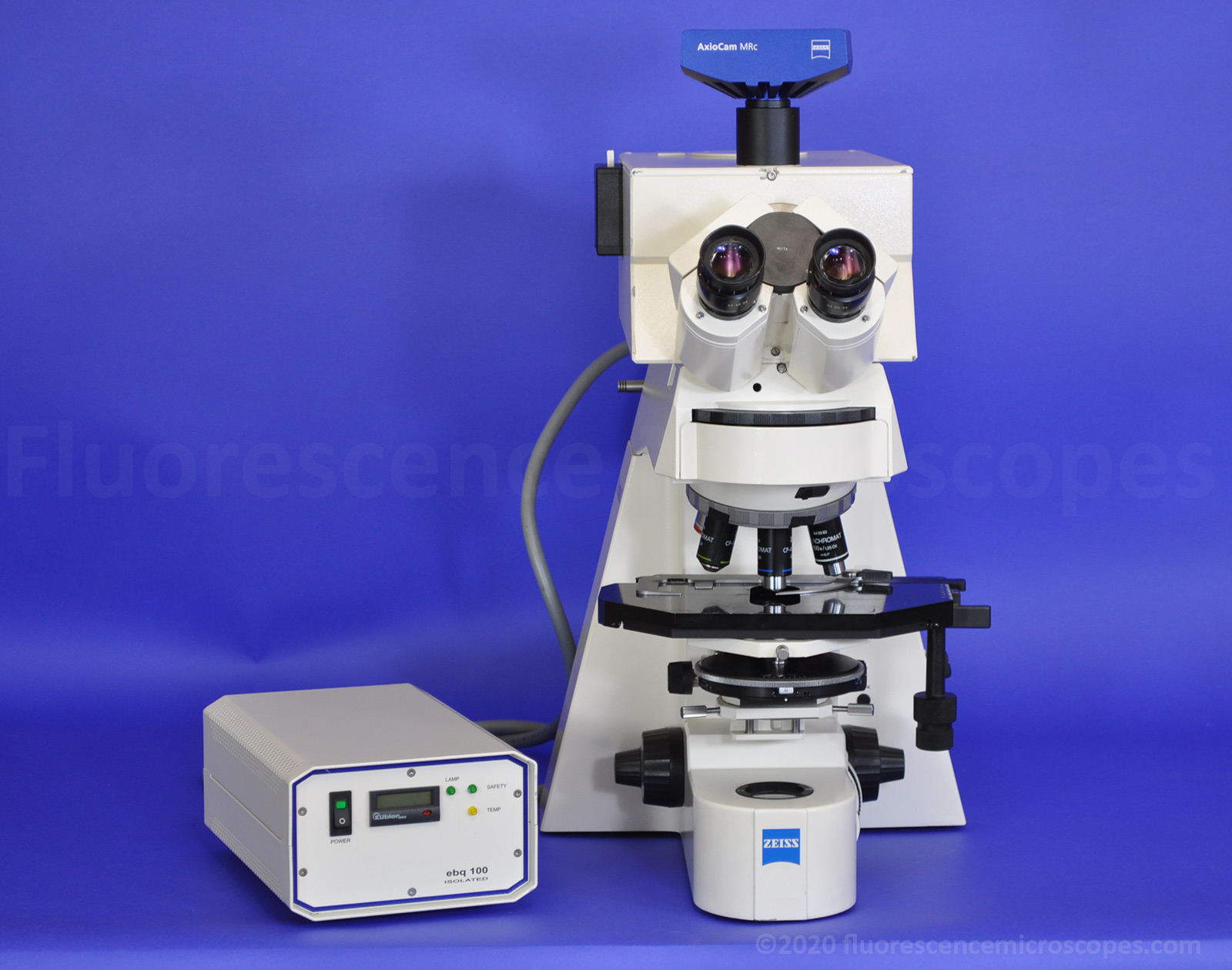

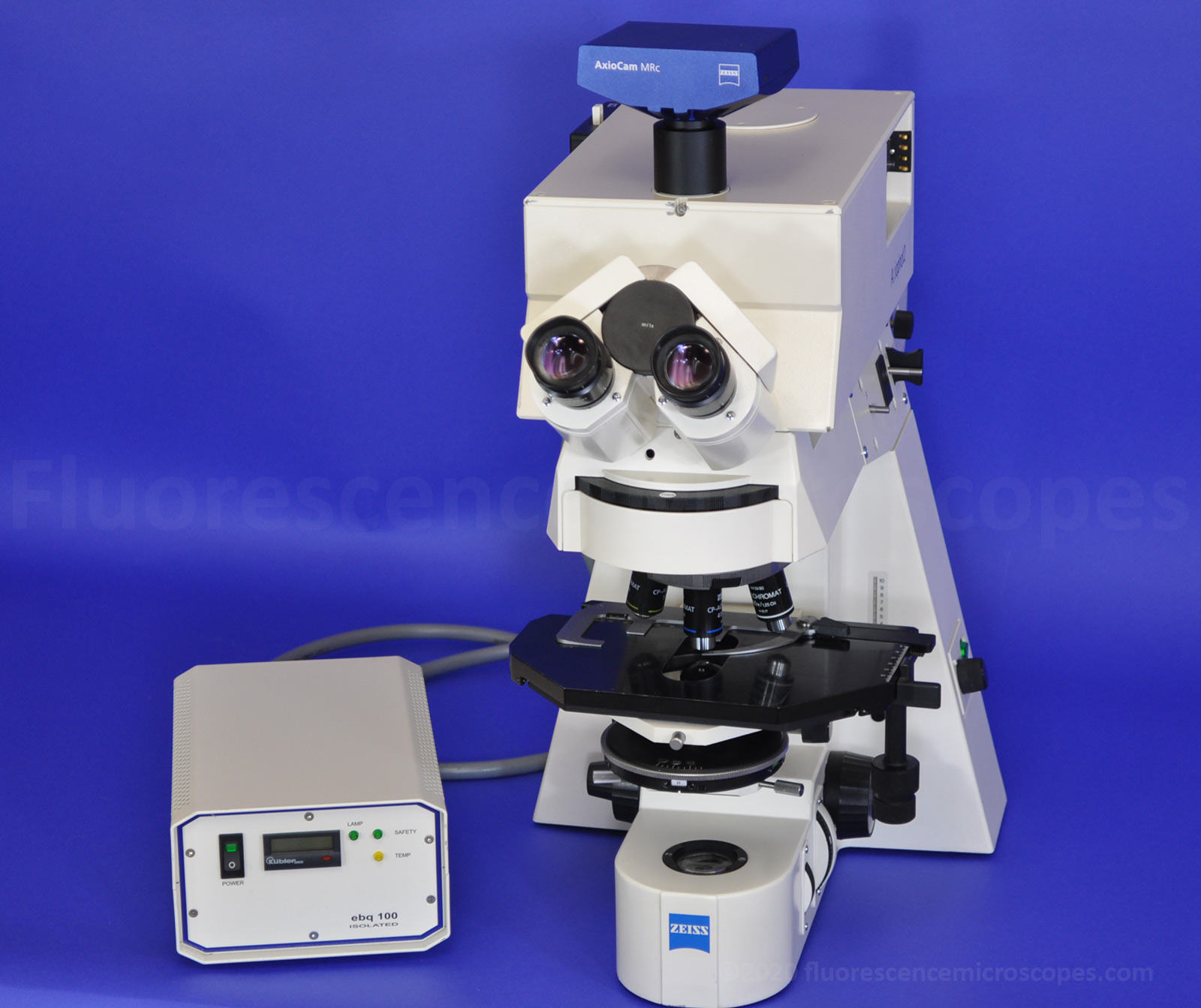

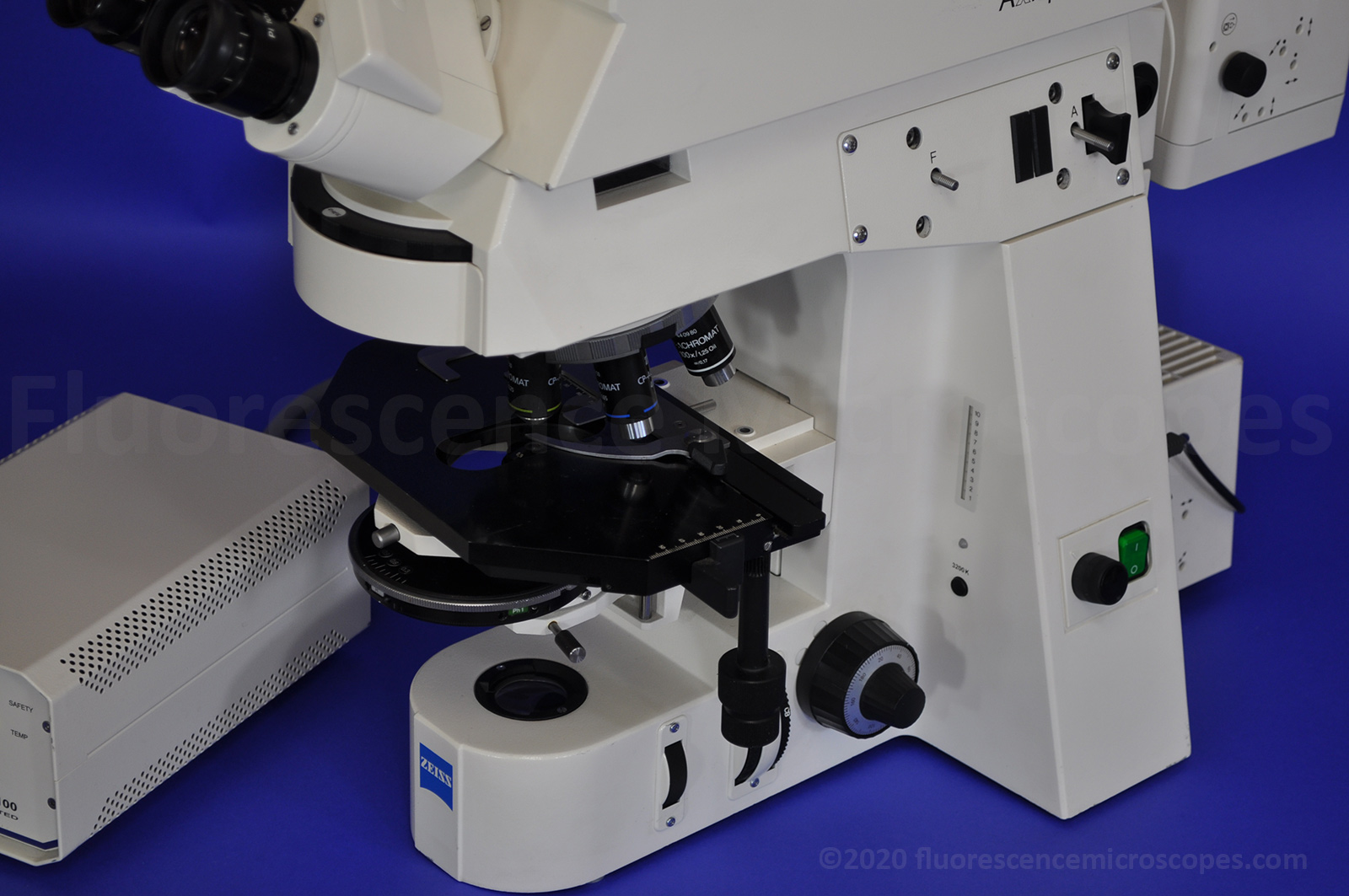

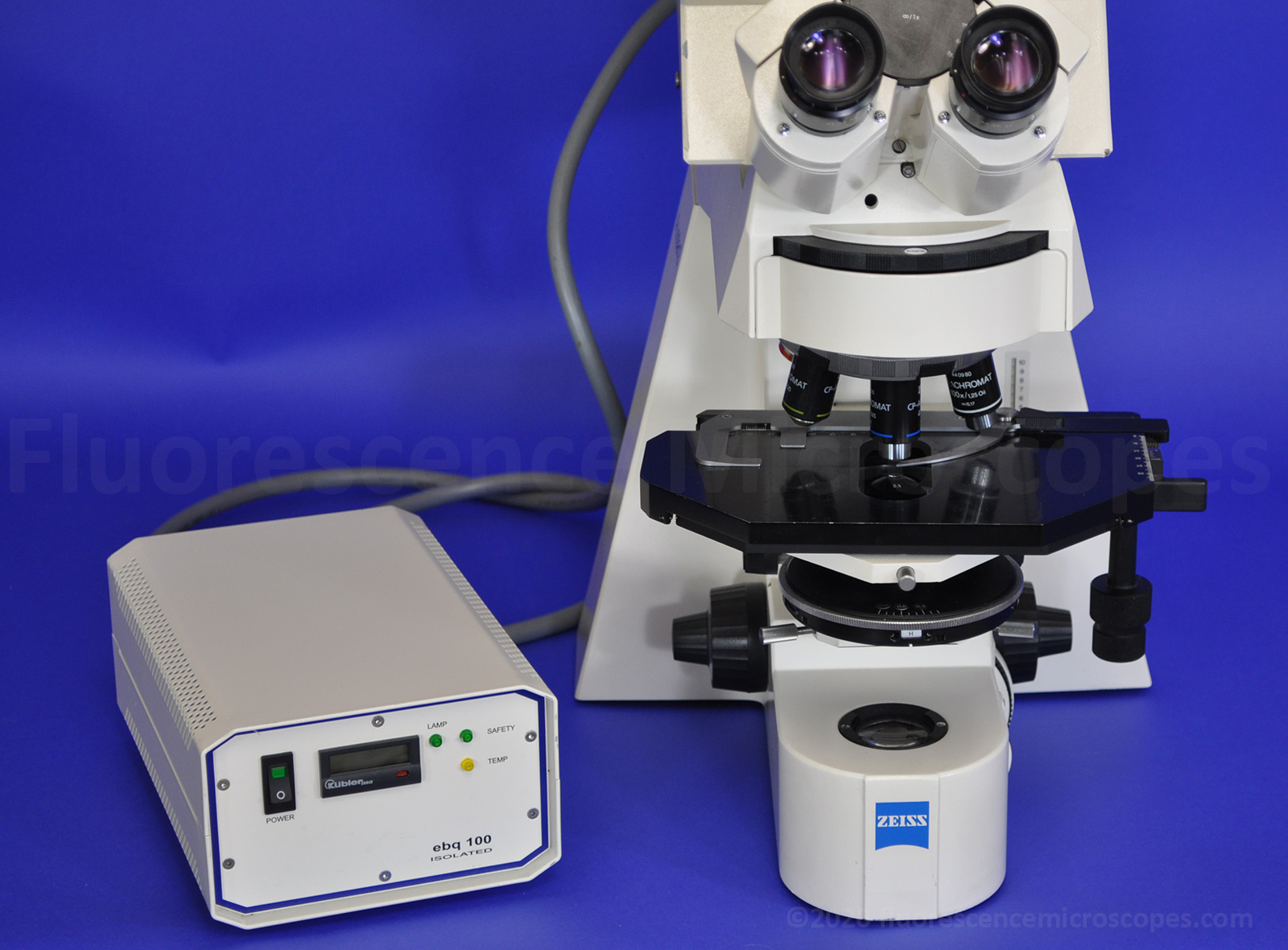

Zeiss AxioPlan-2 Upright
Manual Upright Frame
HBO 100 Illumination
5x 10x 40x 100x-Oil Objectives
Fluorescence Microscope
Fully Tested - Refurbished
One Year Warranty

eiss AxioPlan-2 Upright Manual Fluorescence Microscope

USD $2,500

ITEM CODE: SKU-119
Model: Zeiss AxioPlan-2
Shipping Cost: Free USA Shipping.

eiss AxioPlan-2 Upright Manual Fluorescence Microscopeeiss AxioPlan-2 Upright Manual Fluorescence Microscopeeiss AxioPlan-2 Upright Manual Fluorescence Microscopeeiss AxioPlan-2 Upright Manual Fluorescence Microscopeeiss AxioPlan-2 Upright Manual Fluorescence Microscopeeiss AxioPlan-2 Upright Manual Fluorescence Microscopeeiss AxioPlan-2 Upright Manual Fluorescence Microscopeeiss AxioPlan-2 Upright Manual Fluorescence Microscopeeiss AxioPlan-2 Upright Manual Fluorescence Microscopeeiss AxioPlan-2 Upright Manual Fluorescence Microscope

General Specifications:

  • Manual Frame.  Nothing is motorized.  So there is less that can go wrong.
  • High power 100W halogen illumination.
  • Koehler illumination was tested and works properly.
  • Condenser has Ph1 Phase Contrast annulus.  0.9 N.A. Flip-top lens for use with the low power scanning 5x objective.
  • 3200 K button. This quickly sets the light intensity.
  • Includes IR cut-off heat reflecting filter to protect internal lenses from the extreme heat.
  • Eyepieces: 10 X/25. Wide field of view

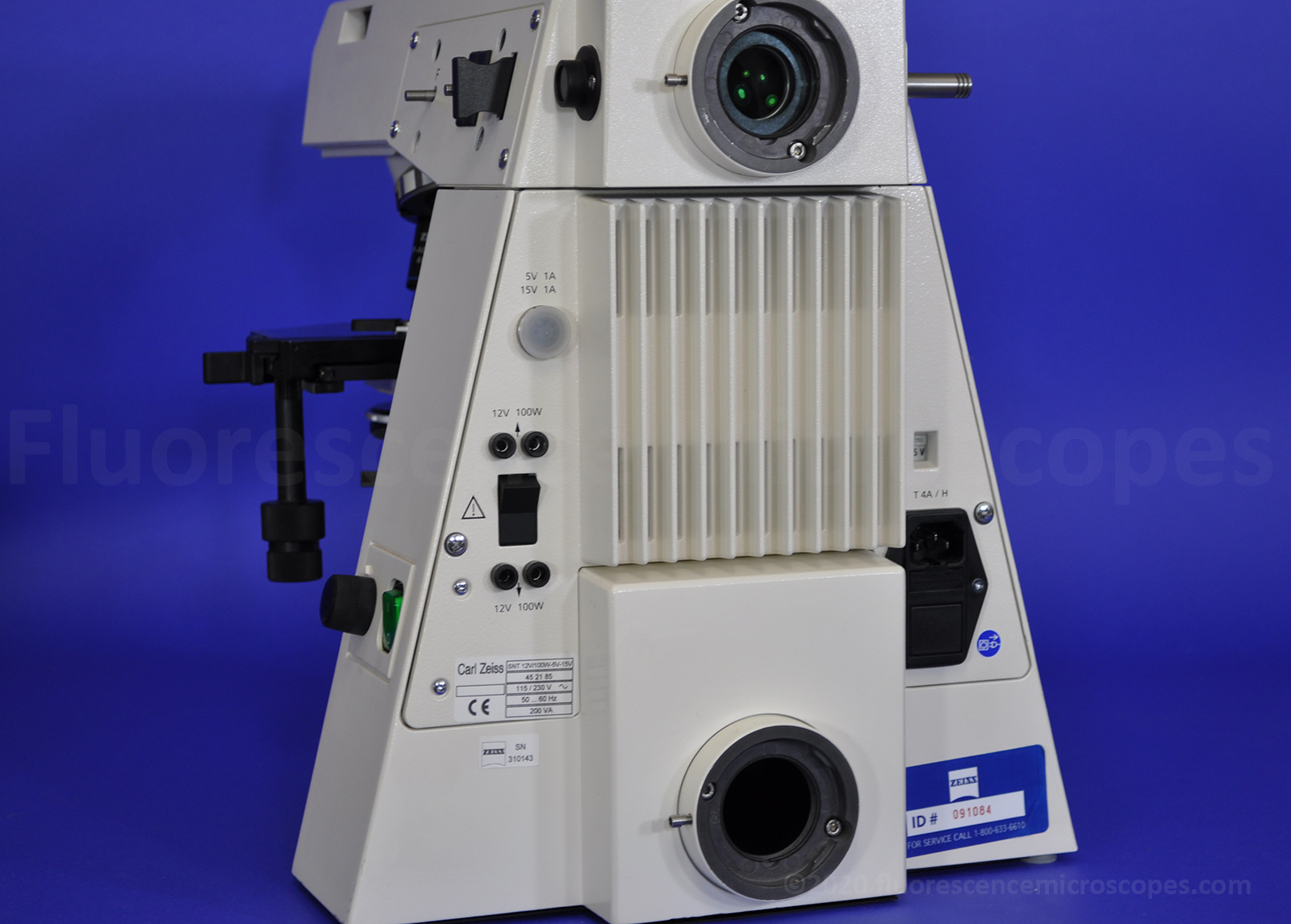

  • Selectable voltage. 120 VAC / 240 V AC.
  • XY right-hand mechanical stage with slide movement fingers.
  • Top camera port.
  • Does not include a camera or c-mount. That is only shown to demonstrate how one can be connected.

Fluorescence Microscopy:

  • We completely tested the fluorescence system. Everything performed properly.
  • Field Aperture and Field Diaphragm on incident illumination path.
  • IR cut off filter to protect internal lenses from overheating.
  • Arc Adjustment Aid – Useful for centering bulb.

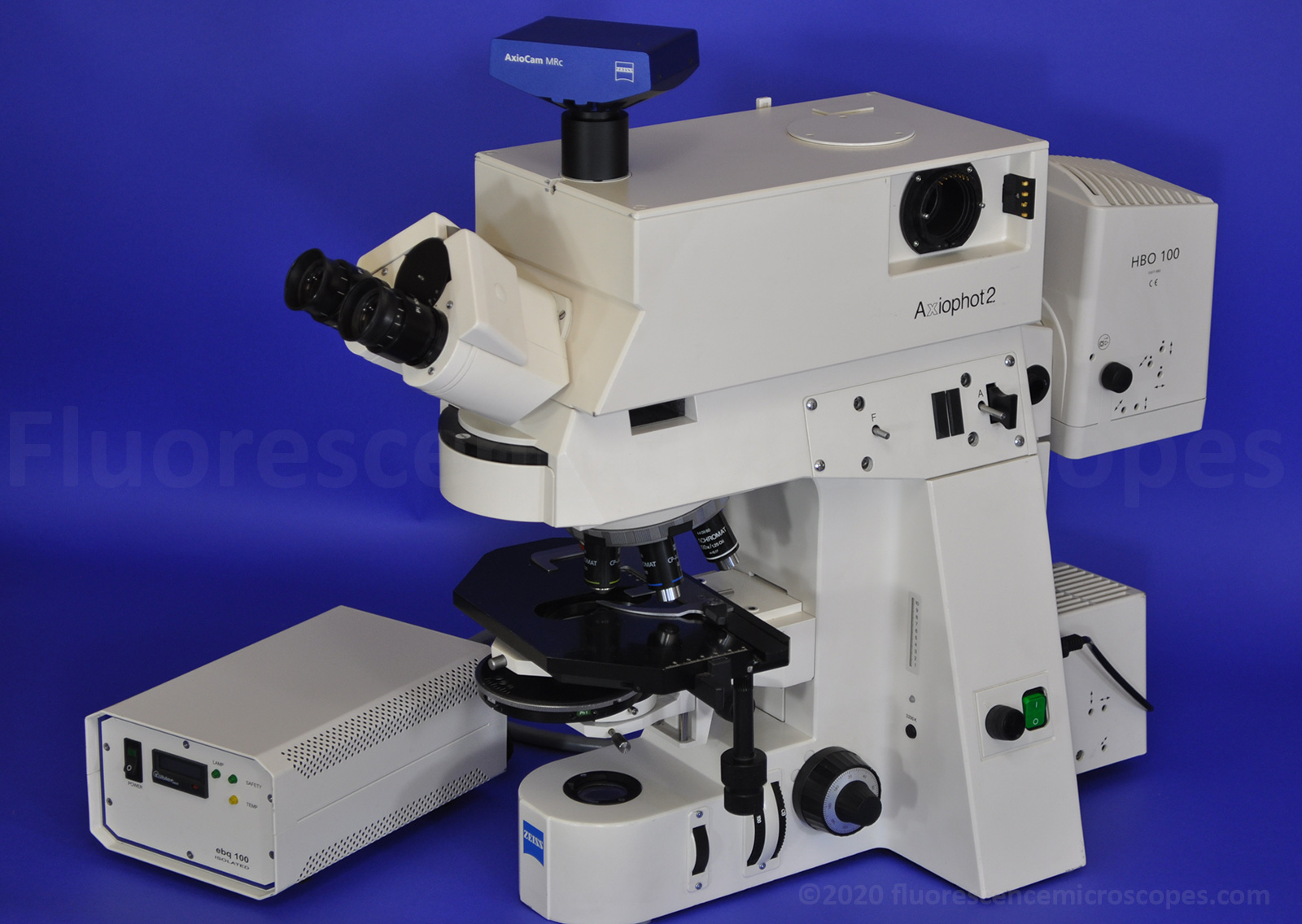

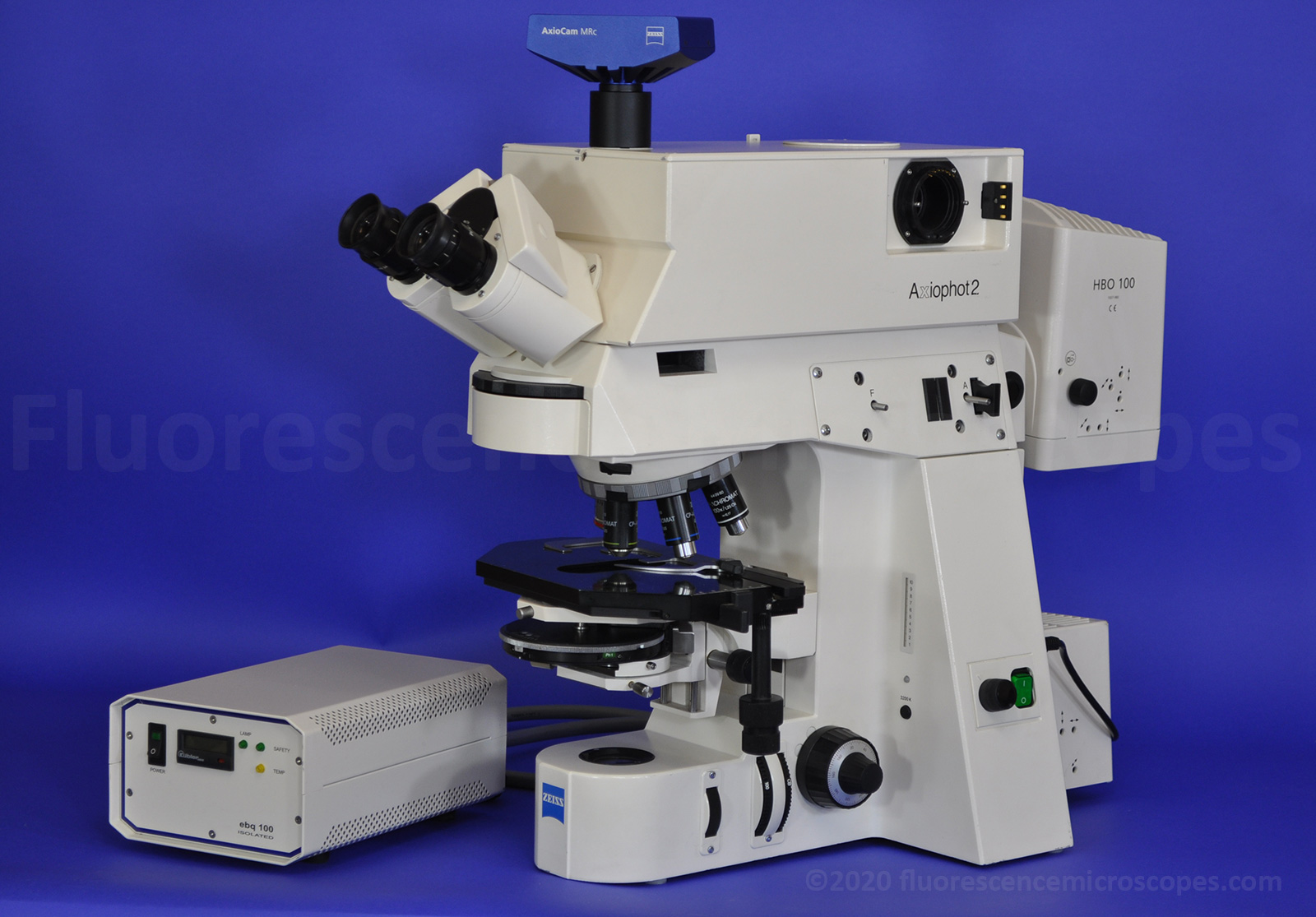

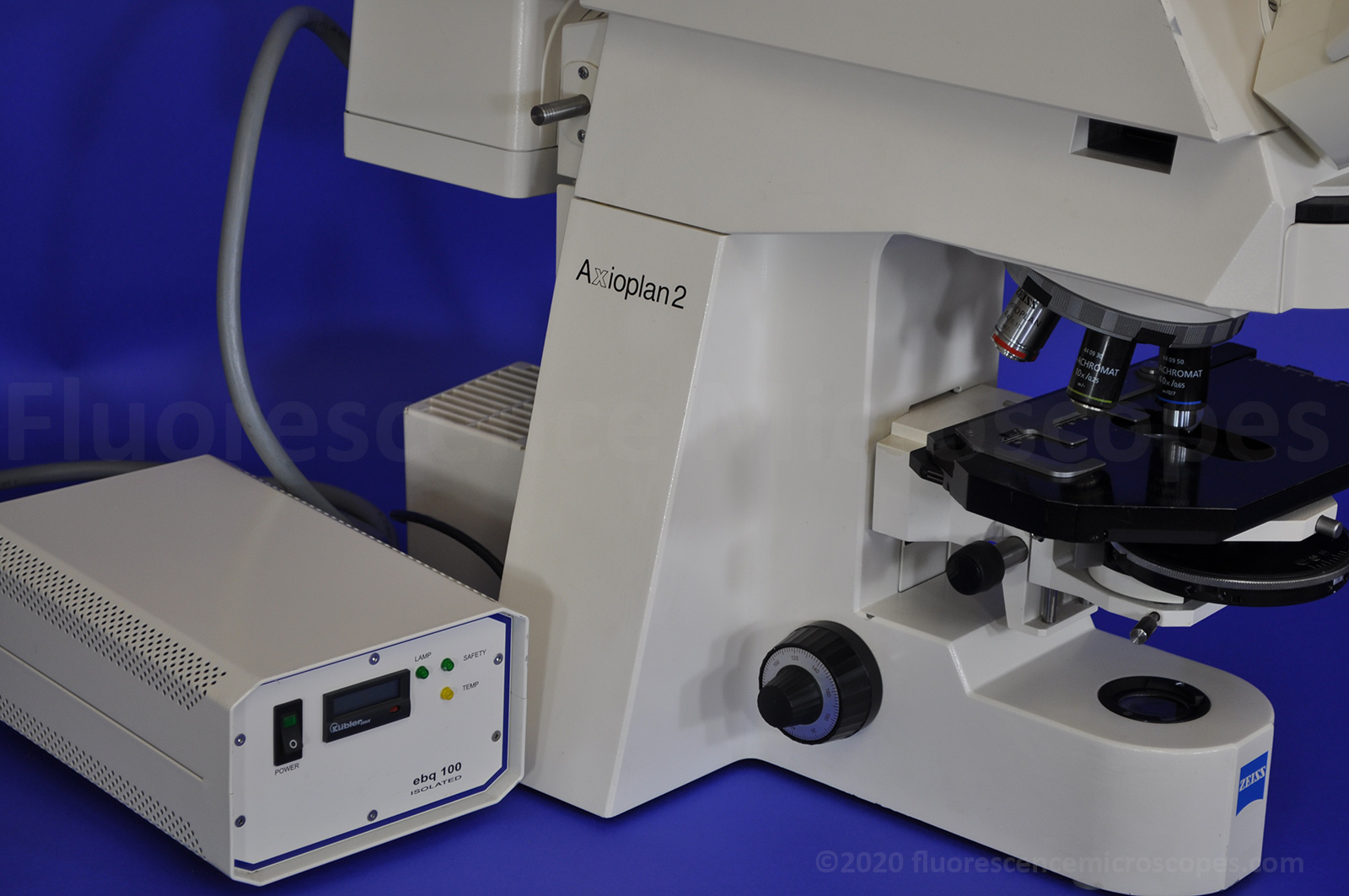

  • HBO 100 Fluorescent Illuminator.
  • Dichroic Filter Cube:  Includes FITC dichroic filter cube.  All other spaces are empty.

Objectives Lenses:

  • 6-Place DIC objective nosepiece with RMS thread.

Includes these objectives:

  • CP-Achromat 5x/0.12  ∞/- Objective.
  • CP-Achromat 10x/0.25 Infinity Objective.
  • CP-Achromat 40X/0.65 ∞/0.17 Objective.
  • CP-Achromat 100x / 1.25.  Infinity /0.17 Oil Objective.

Comments:

  • This microscope is in great condition.
  • Includes all the tools for proper assembly and disassembly.
  • This is a high quality Zeiss (Made in Germany) optical instrument.
  • We have a wide variety of optional scientific cameras, both monochrome and color, with and without Peltier cooling.
  • Upon purchase, we will email links to the user manuals / instructions.
