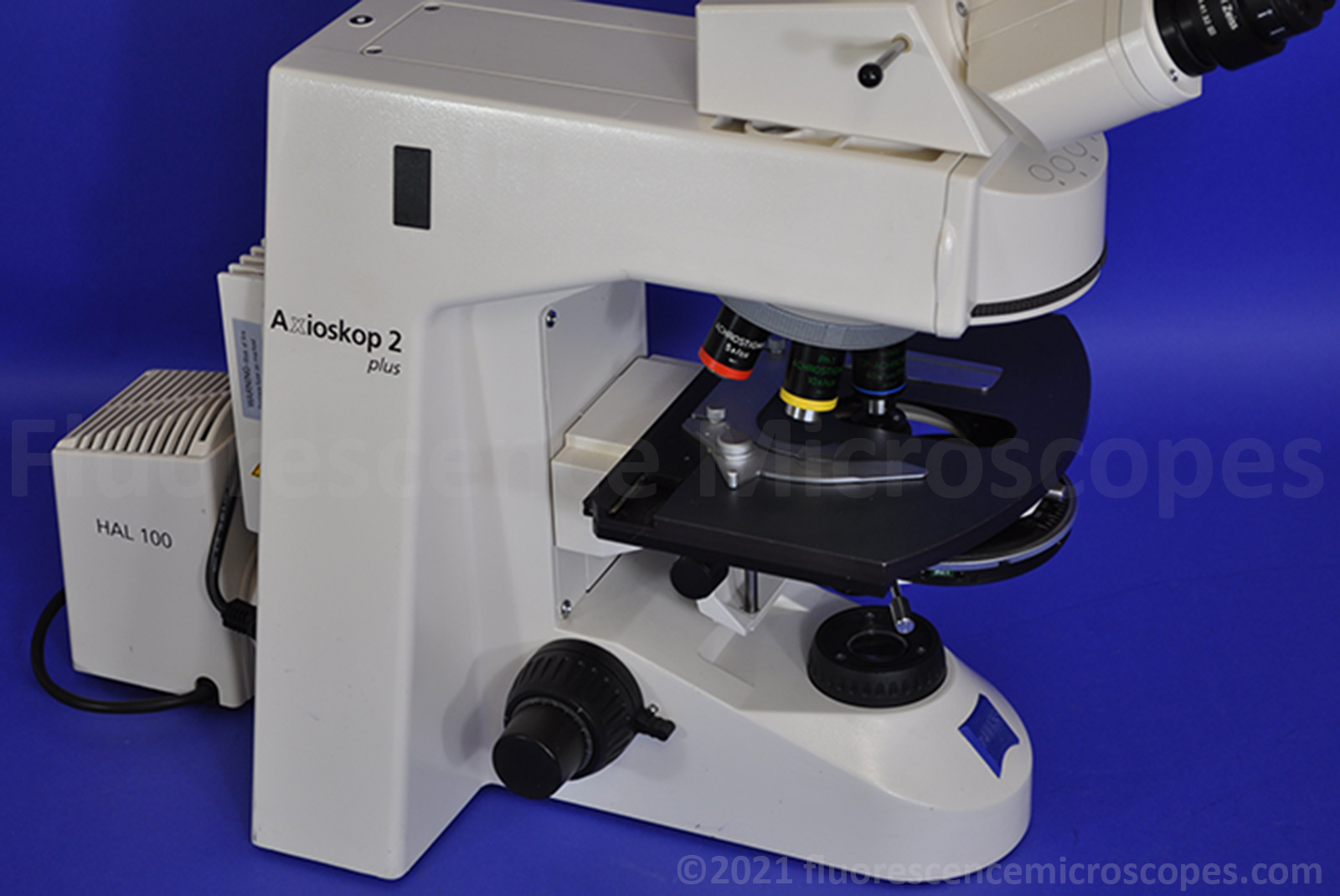

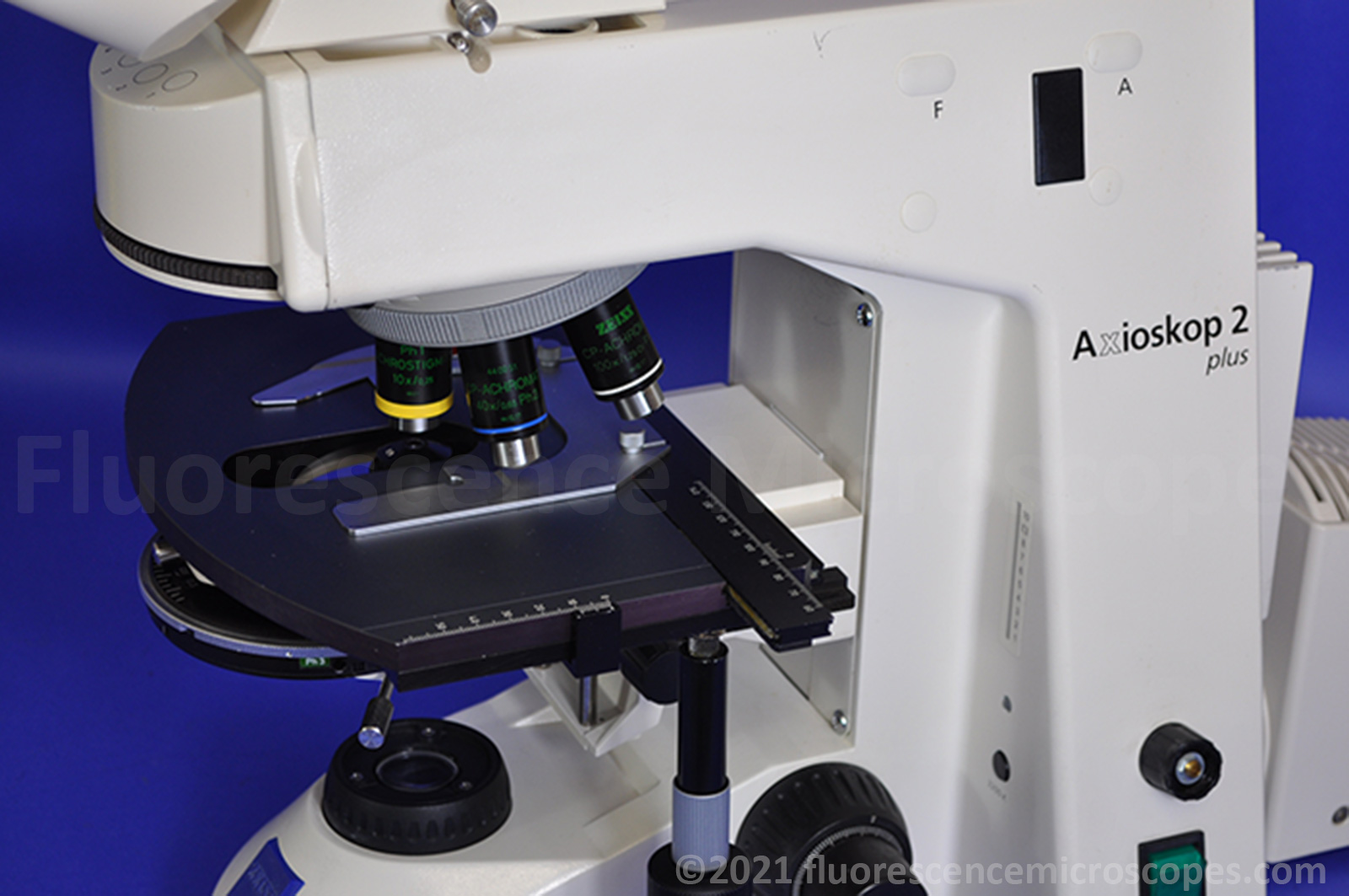

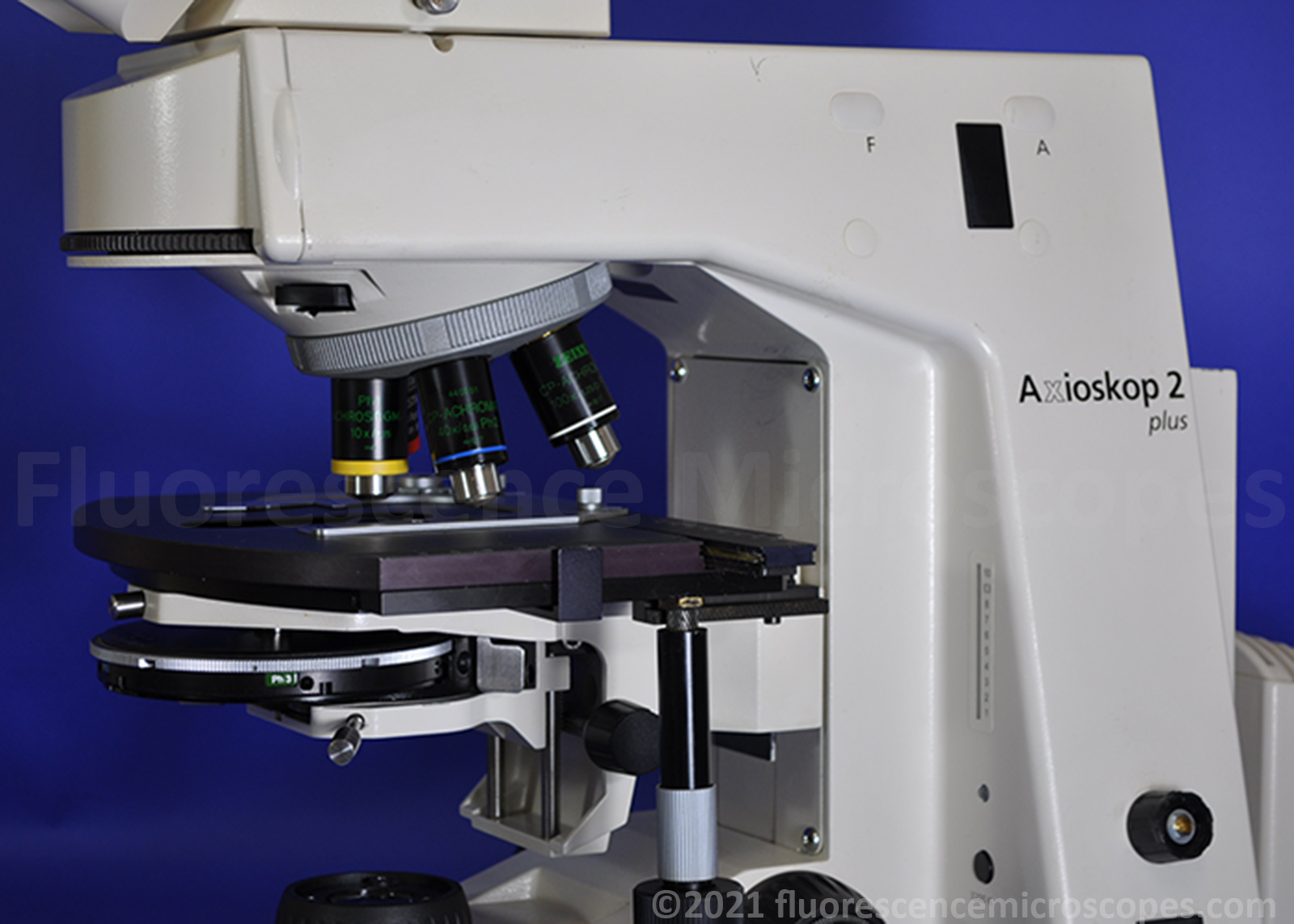

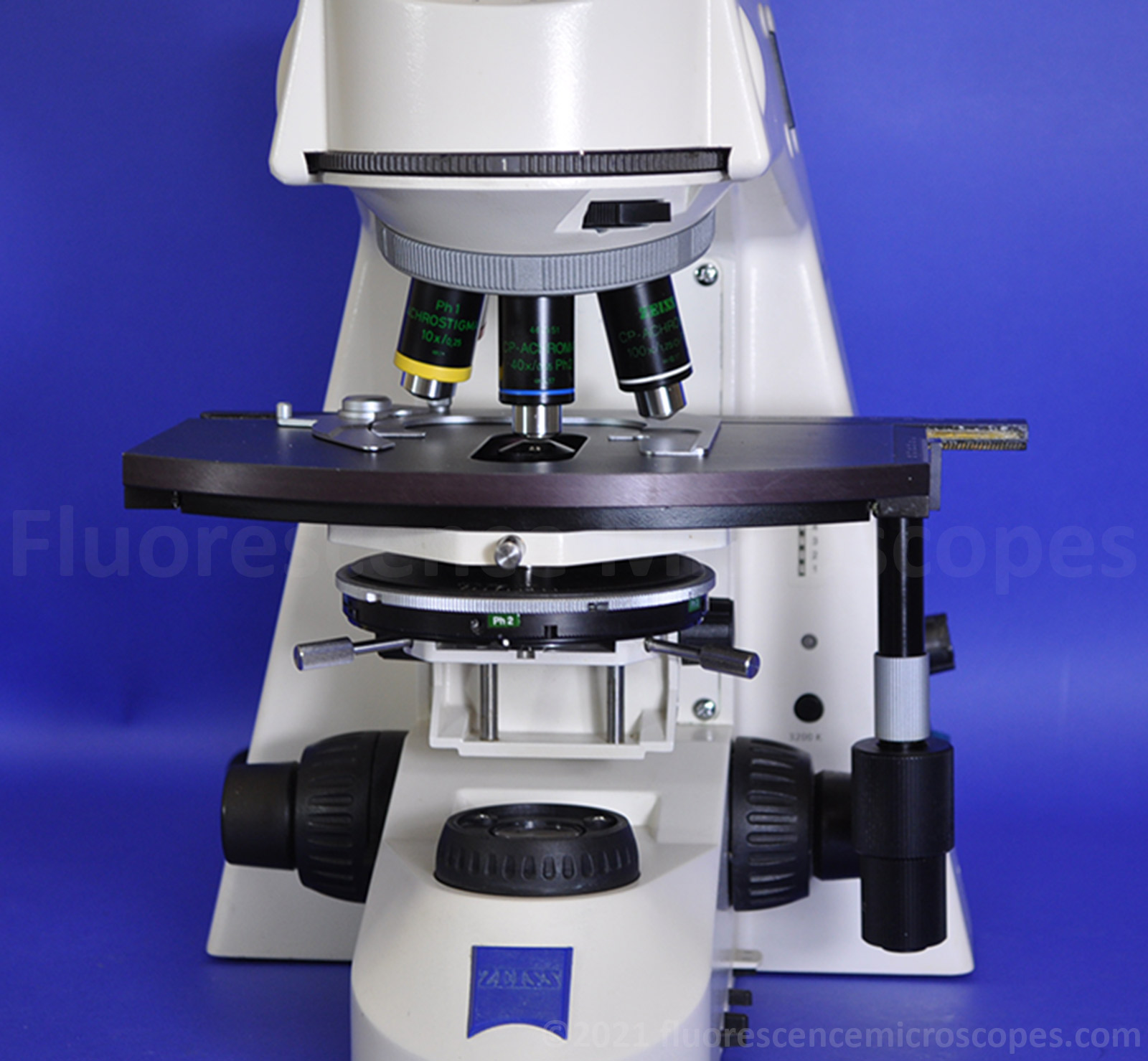

Zeiss Axioskop-2 Plus Upright Manual Phase Contrast Darkfield Microscope




USD $2,900

ITEM CODE: SKU-168
Shipping Cost: Free USA Shipping.
Model: Zeiss Axioskop-2 Plus
Manual Operation
Phase Contrast Microscopy
PH: 10x, 40x, 100x
Darkfield Capability
Top Photo Port
Upright Microscope

Zeiss Axioskop-2 Plus Upright Manual Phase Contrast Darkfield Microscope Zeiss Axioskop-2 Plus Upright Manual Phase Contrast Darkfield Microscope Zeiss Axioskop-2 Plus Upright Manual Phase Contrast Darkfield Microscope Zeiss Axioskop-2 Plus Upright Manual Phase Contrast Darkfield Microscope Zeiss Axioskop-2 Plus Upright Manual Phase Contrast Darkfield Microscope Zeiss Axioskop-2 Plus Upright Manual Phase Contrast Darkfield Microscope Zeiss Axioskop-2 Plus Upright Manual Phase Contrast Darkfield Microscope Zeiss Axioskop-2 Plus Upright Manual Phase Contrast Darkfield Microscope Zeiss Axioskop-2 Plus Upright Manual Phase Contrast Darkfield Microscope Zeiss Axioskop-2 Plus Upright Manual Phase Contrast Darkfield Microscope Zeiss Axioskop-2 Plus Upright Manual Phase Contrast Darkfield Microscope Zeiss Axioskop-2 Plus Upright Manual Phase Contrast Darkfield Microscope

Product Overview:

Phase Contrast Microscopy: 10x 40x 100x
Darkfield Microscopy
Trinocular Photo Port
100W Halogen
Professionally cleaned and serviced


Main Features:

Manual frame. No complicated buttons and less things to fail
Phase Contrast Microscopy
Darkfield Microscopy
Phase Configuration on: 10x, 40x, 100x
Trinocular port at the top for photography
Focus travel lock stop – Helps to prevent broken slides when properly set
Automatic Voltage: Autosensing for USA or European voltage supply
Professionally cleaned and serviced


Trinocular Head – Photography Capable:

Top photography port
Ability to take 100% of light to the binoculars or split to the binoculars and camera port
Ability to shut out extraneous light from the eyepieces that may enter the camera optics
Eyepieces: Pl 10x/18 pair with diopters on both
DOES NOT INCLUDE CAMERA OR CAMERA C-MOUNT ADAPTER

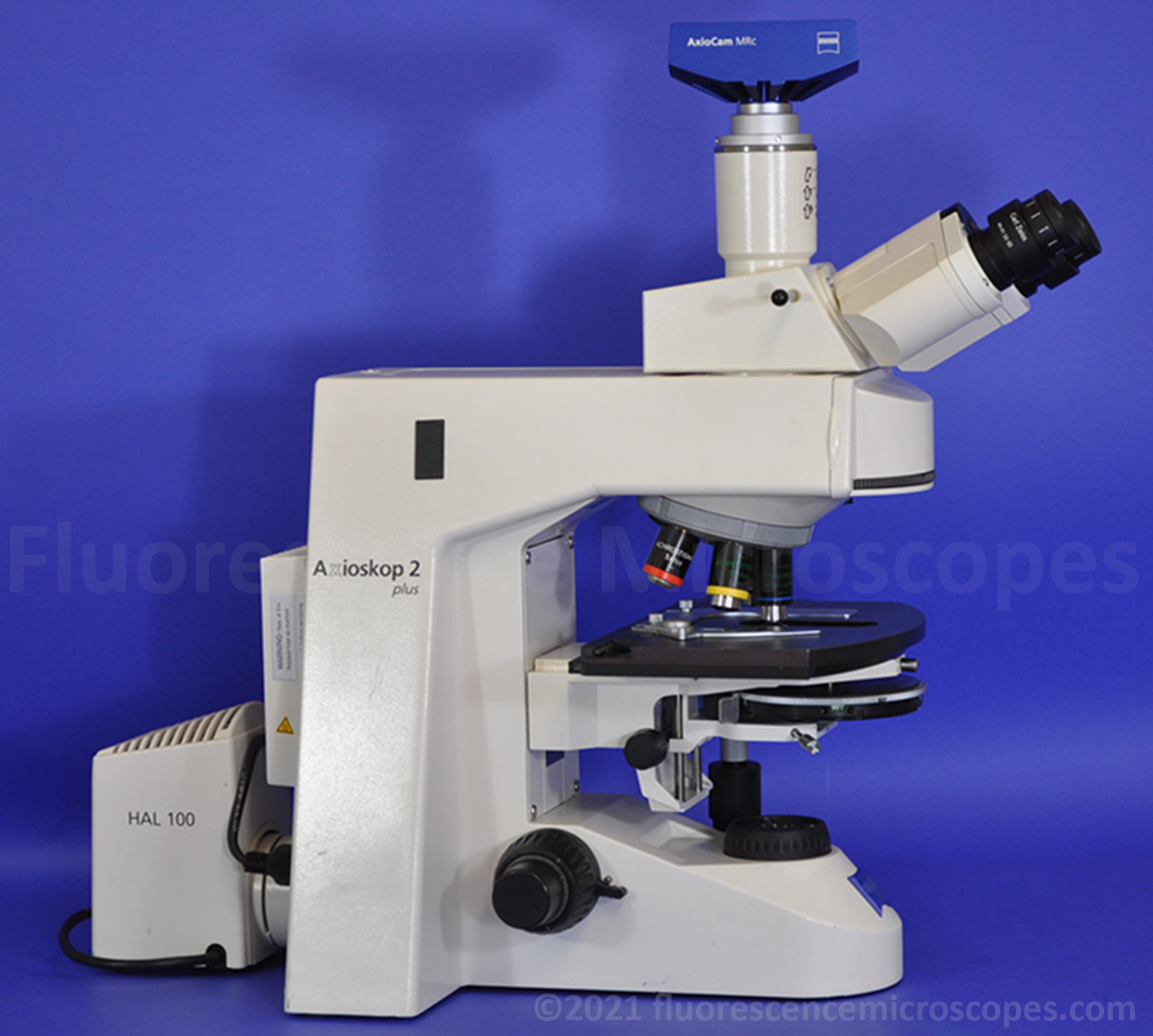

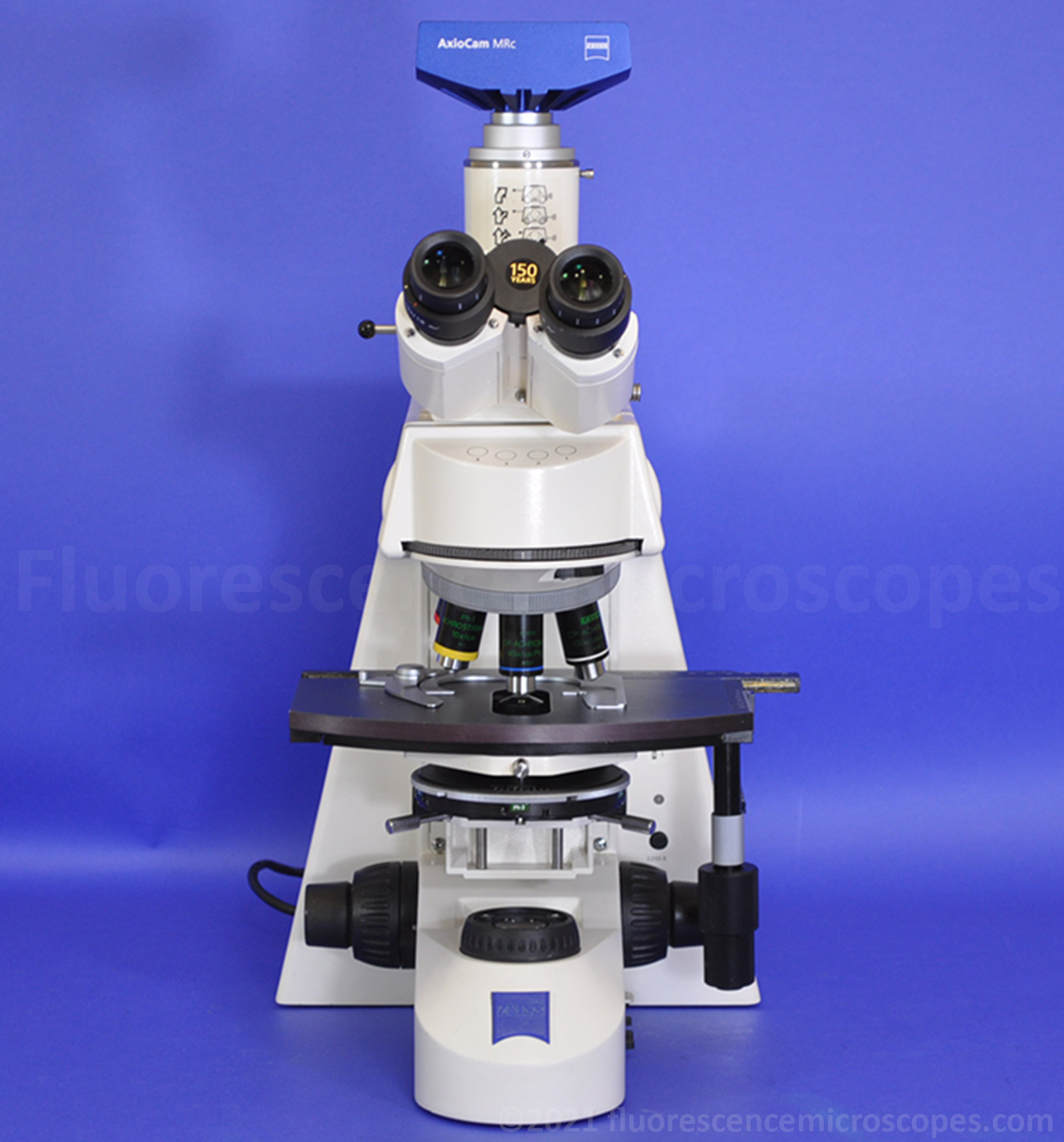

Camera shown in images to demonstrate how one can be connected


Phase Contrast Microscopy:

Phase Contrast Capability. Configured on 10x, 40x, and 100x-oil objectives
Tested phase on all configured objectives and obtained excellent images
Condenser has all three phase annuli: Ph1, Ph2, Ph3
Obtained proper centering of phase annulus rings. Includes the required tools for centering
Includes a phase centering telescope “CT” for optimal phase alignment


Transmitted Illumination:

Halogen Illumination: 12V-100W
Includes two spare bulbs
Rotary Turret style light Condenser: 0.9 N.A.
Darkfield Dry Stop in Condenser for Darkfield Microscopy capability
Flip-out top condenser lens for use with lower power objectives
Filters: Neutral Density ND 1.5, ND 6, ND 25
Koehler Field Iris Diaphragm. Koehler Illumination was properly achieved
IR heatshield (transmitted light path) is properly installed to protect internal optics
Frosted diffuser filter is properly installed
3200K Illumination Setting Button


Objective Lenses:

Six-Place Objective Nosepiece Turret
5x. Achrostigmat 5x / 0.12, ∞/-. (not phase)
10x. Achrostigmat 10x / 0.25, ∞/-. Ph1. Phase Contrast
40x. Achrostigmat 40x / 0.65, ∞/0.17. Ph2. Phase Contrast
100x. Achrostigmat 100x / 1.25, Oil, ∞/0.17. Ph3. Phase Contrast


Comments:

This microscope is in great condition
It also has all the tools included for proper assembly and disassembly
Includes all needed power cords
This is a high quality Zeiss (Made in Germany) optical instrument


Optional Accessories:

We have a wide variety of optional scientific cameras, both monochrome and color, with and without Peltier cooling


Good Value:

When comparing prices, keep in mine the extras that we are providing
We are including a one year warranty, money back guarantee, and free shipping that are value added additions not given by most resellers
We have carefully refurbished this item and completely tested all functionality. Everything is working well and as designed


User Manual and Instructions:

Upon purchase, we will email links to the user manuals / instructions
