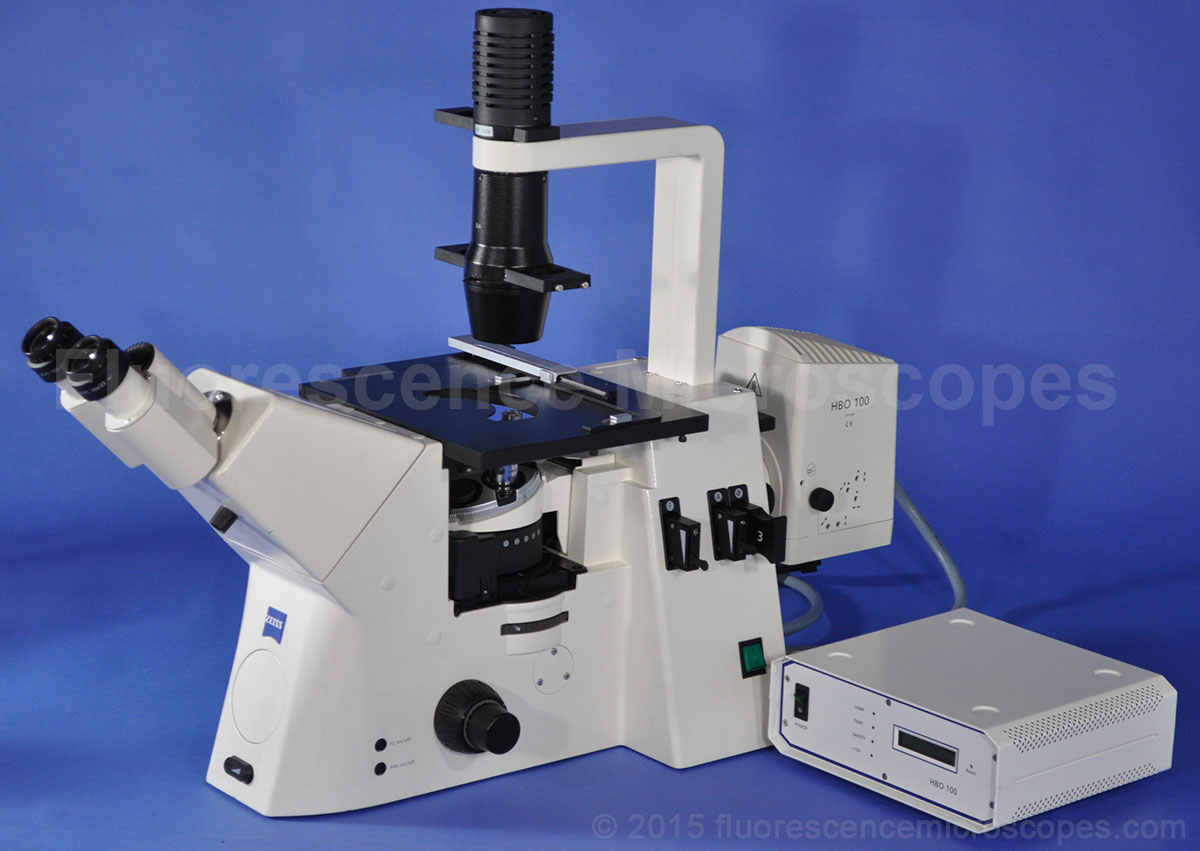

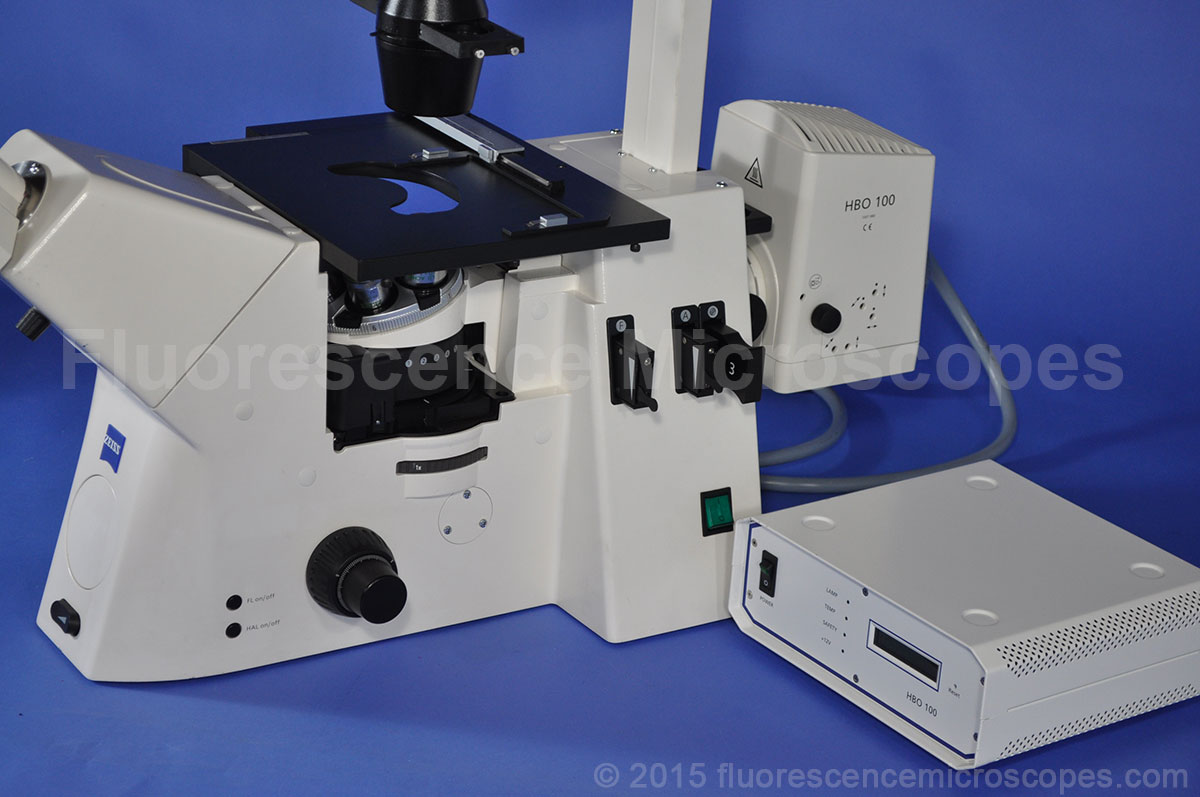

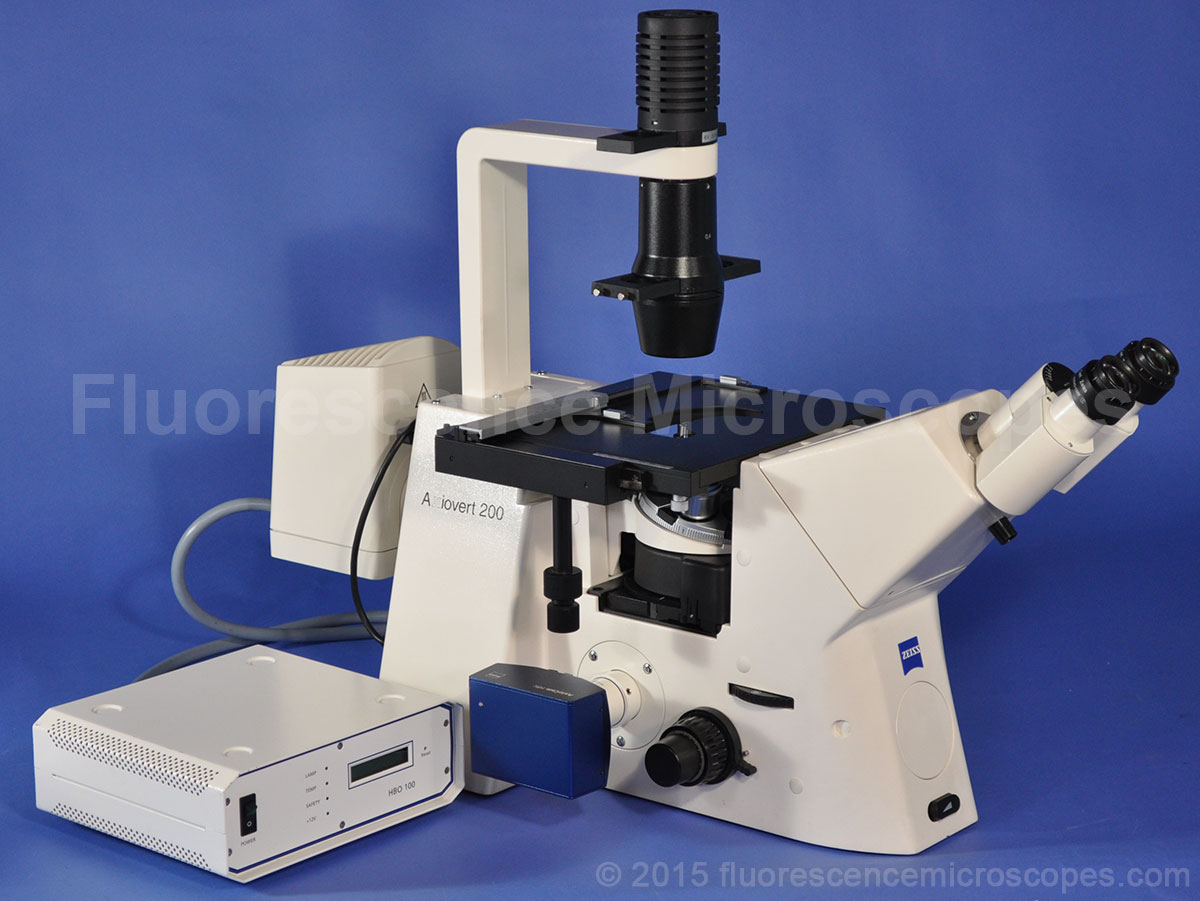

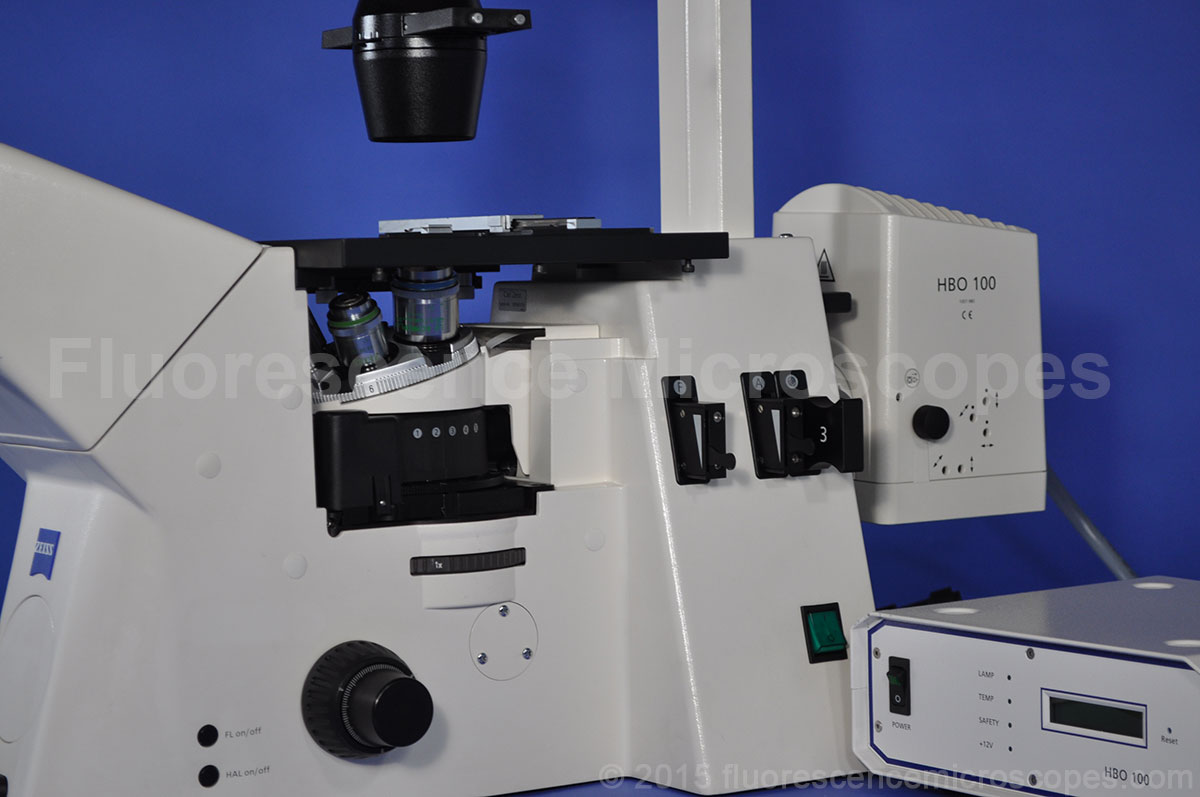

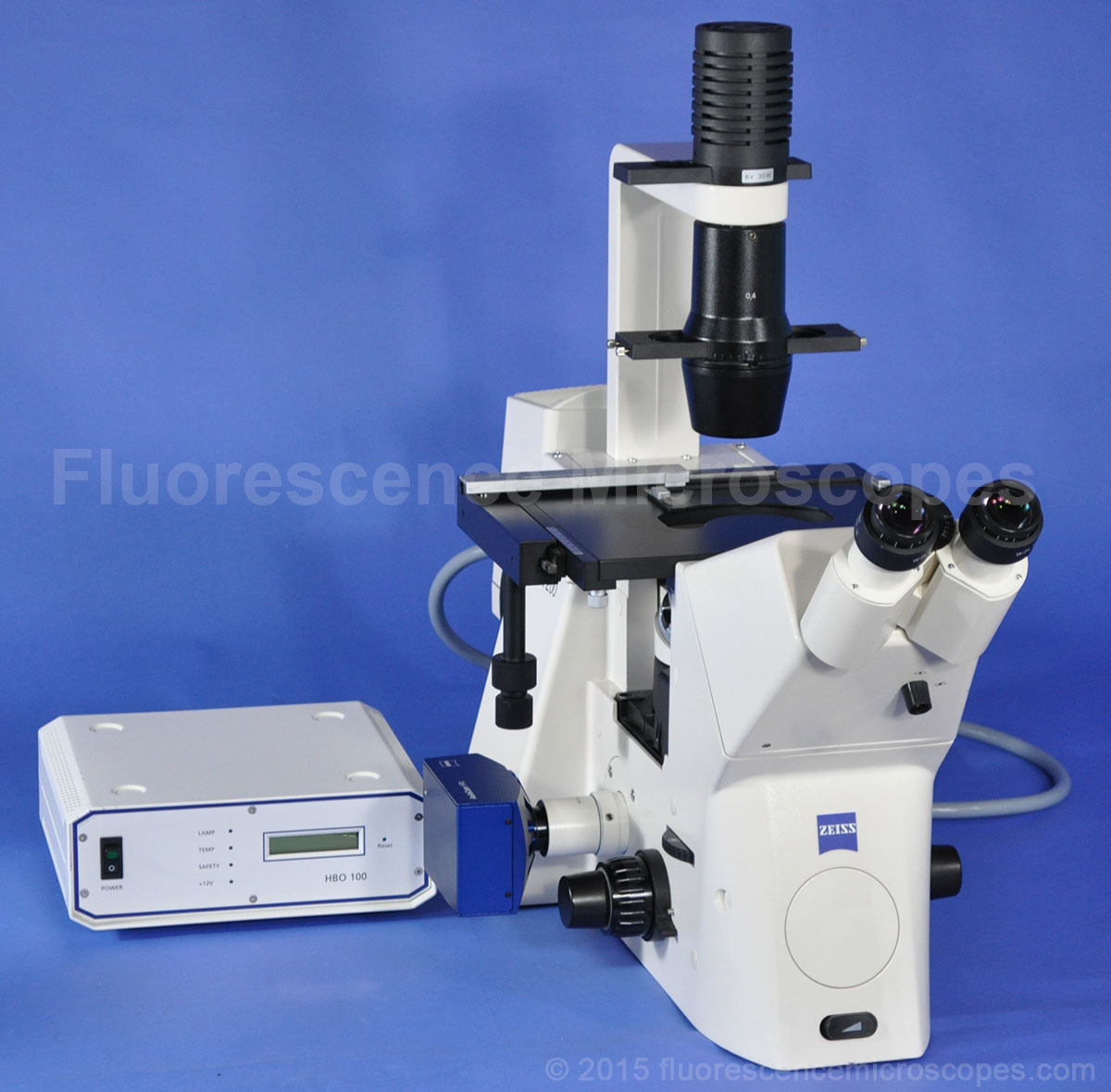

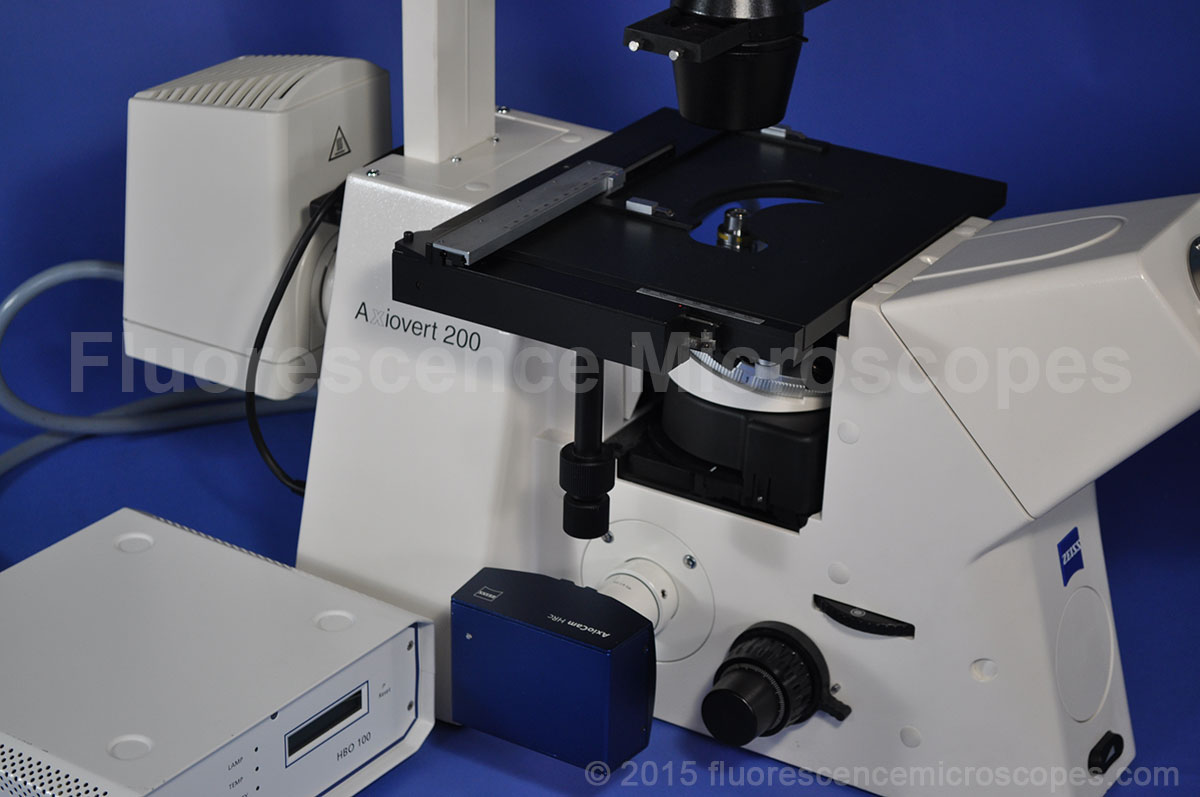

Zeiss Axiovert 200
Inverted Design.
Phase contrast Objectives
Manual Operation
100W HBO Illuminator
Fluorescence Microscope

USD $11,500


MODEL: Zeiss AxioVert 200 Inverted Fluorescence
Shipping Cost: To be determined

Description Overview:

  • Non-motorized frame. Everything is manually operated.
  • Bright 100W HBO Mercury Illumination System.
  • Let us know your custom needs and we can configure this microscope to match your application.

General Specifications:

  • Six place Sextuple Nosepiece.
    Nosepiece made to accept DIC sliders. No DIC sliders included.
  • Eyepiece Set: W-Pl 10x/23mm field of view. Model 455043-0000.
  • C-Mount to attach camera to left side camera port. Model 456105.
  • Transmitted Illumination: 6V-30 Watt Halogen Transmitted Light on Tilt Back Carrier.
  • Phase Contrast Microscopy: Condenser slider with Ph1-0.4, Ph2-0.4, and BF (brightfield, with daylight compensated blue filter) settings.
  • Manual XY Stage Slider. Left Hand low position knobs. Made to hold and move Petri Dishes.
  • Carrying Handle on back of frame for ease of transport.

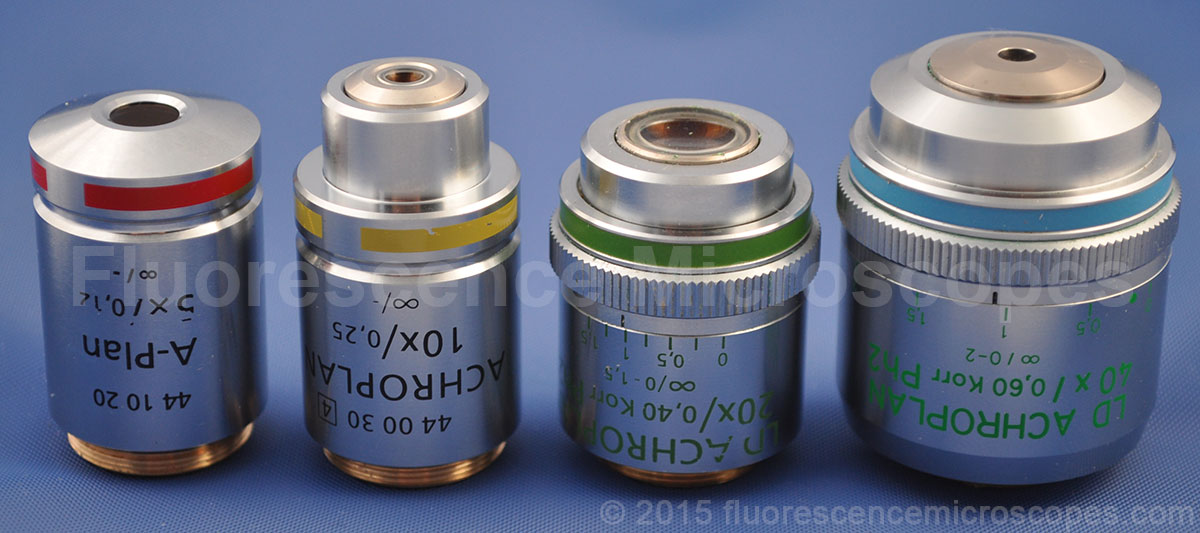

Objective Set:

  • A-Plan 5x/0.12, infinity/-. Part Number 441020.
  • Achroplan 10x/0.25, infinity/-. Part Number 440030.

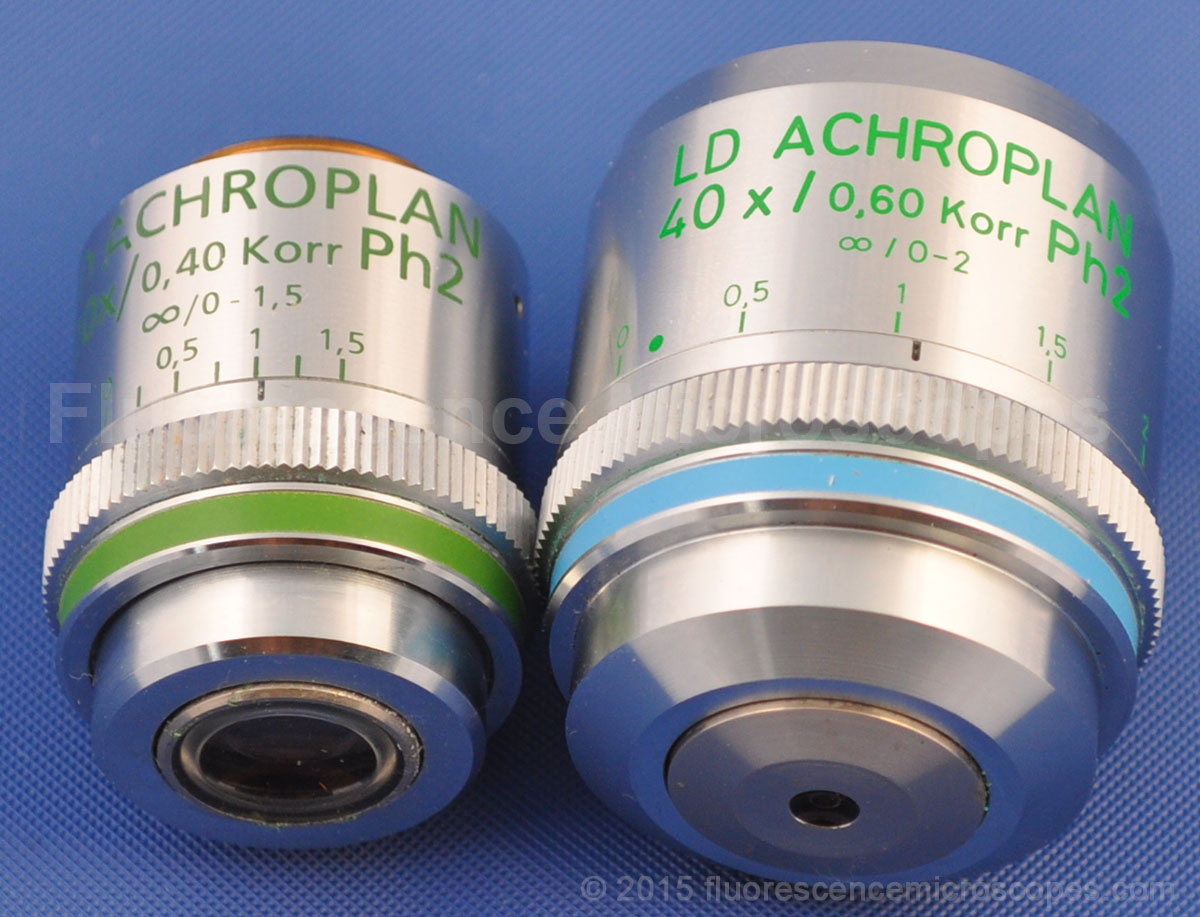

  • LD Achroplan 20x/0.40, infinity/0-1.5. Korr, Ph2. Correction Collar. Phase. Part Number 440845.
  • LD Achroplan 40x/0.60, infinity/0-2. Korr, Ph2. Correction Collar. Phase. Part Number 440865.
  • Two empty capped off spaces for additional objective lenses to be added.

Fluorescence Specifications:

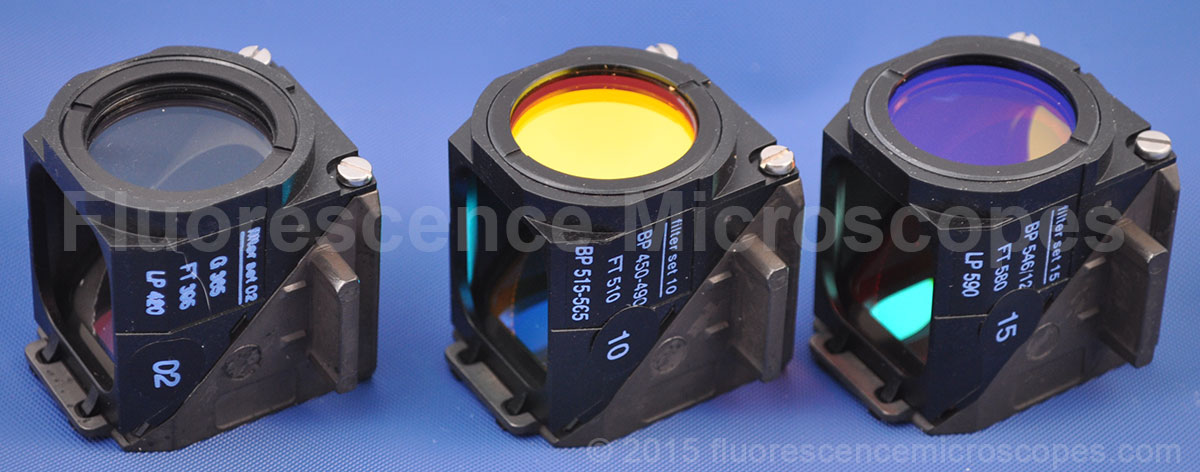

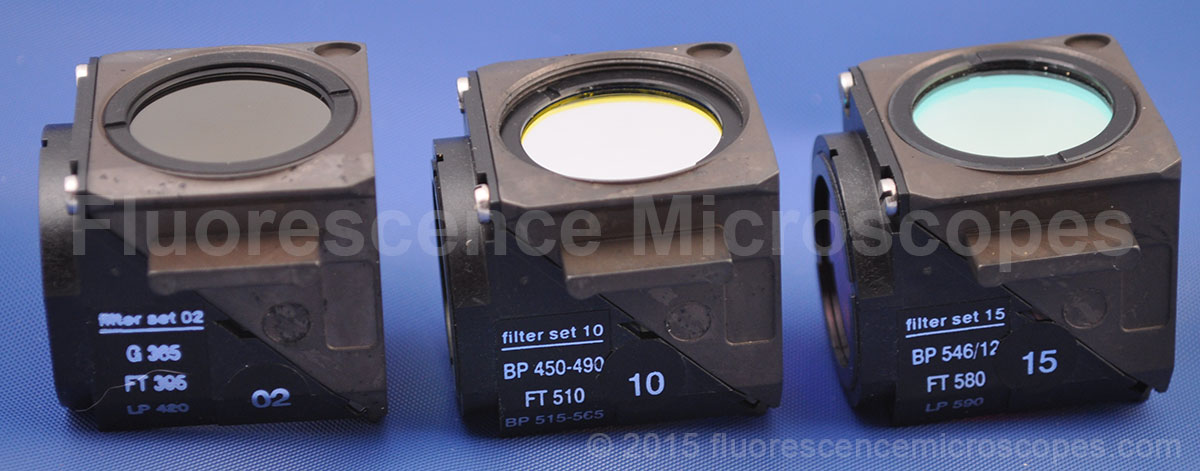

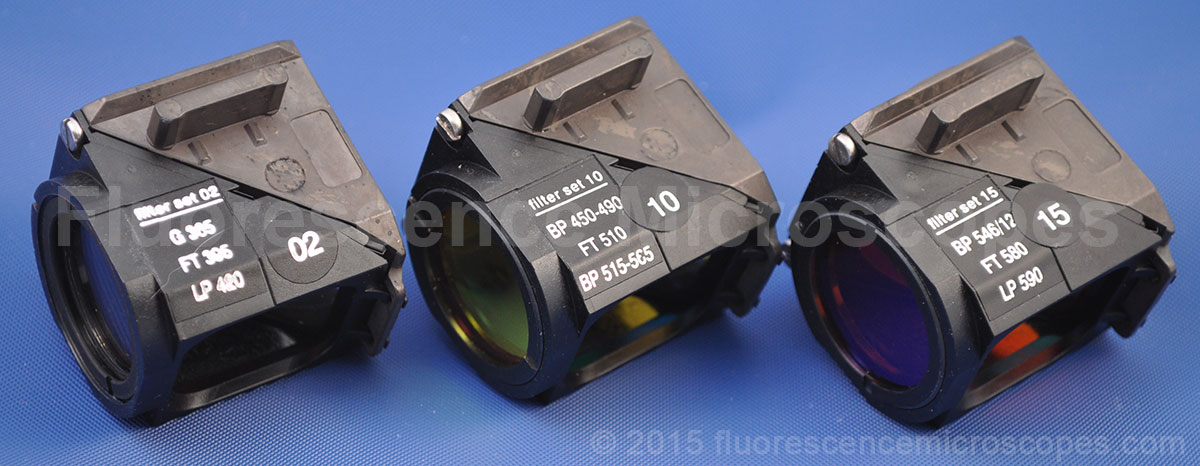

Dichroic Filter Cube Sets:

  • These are used but in excellent shape. All were completely tested and produce good resultant images.


  • Zeiss Filter Set #02.
  • G 365; FT 395; LP 420


  • Zeiss Filter Set #10.
  • BP 450-490; FT 510; BP 515-565.


  • Zeiss Filter Set #15.
  • BP 546/12; FT 580; LP 590

We can provide additional cubes with customized filter sets. We are a dealer of Chroma filters.

Reflector turret with six cube positions.

HBO 100 Watt Mercury Illumination System.
Lamp Housing: Model 1007-980.
Includes a used HBO 100W Mercury bulb.

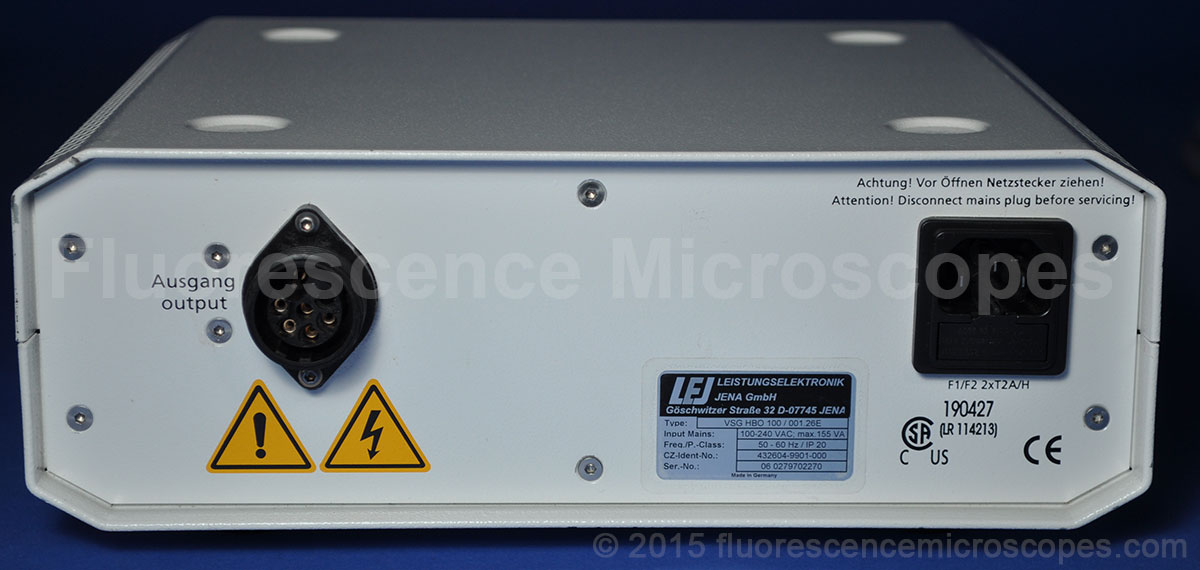

Power Supply: VSG HBO100 / 001.26E. 100-240 VAC. Made in Germany.

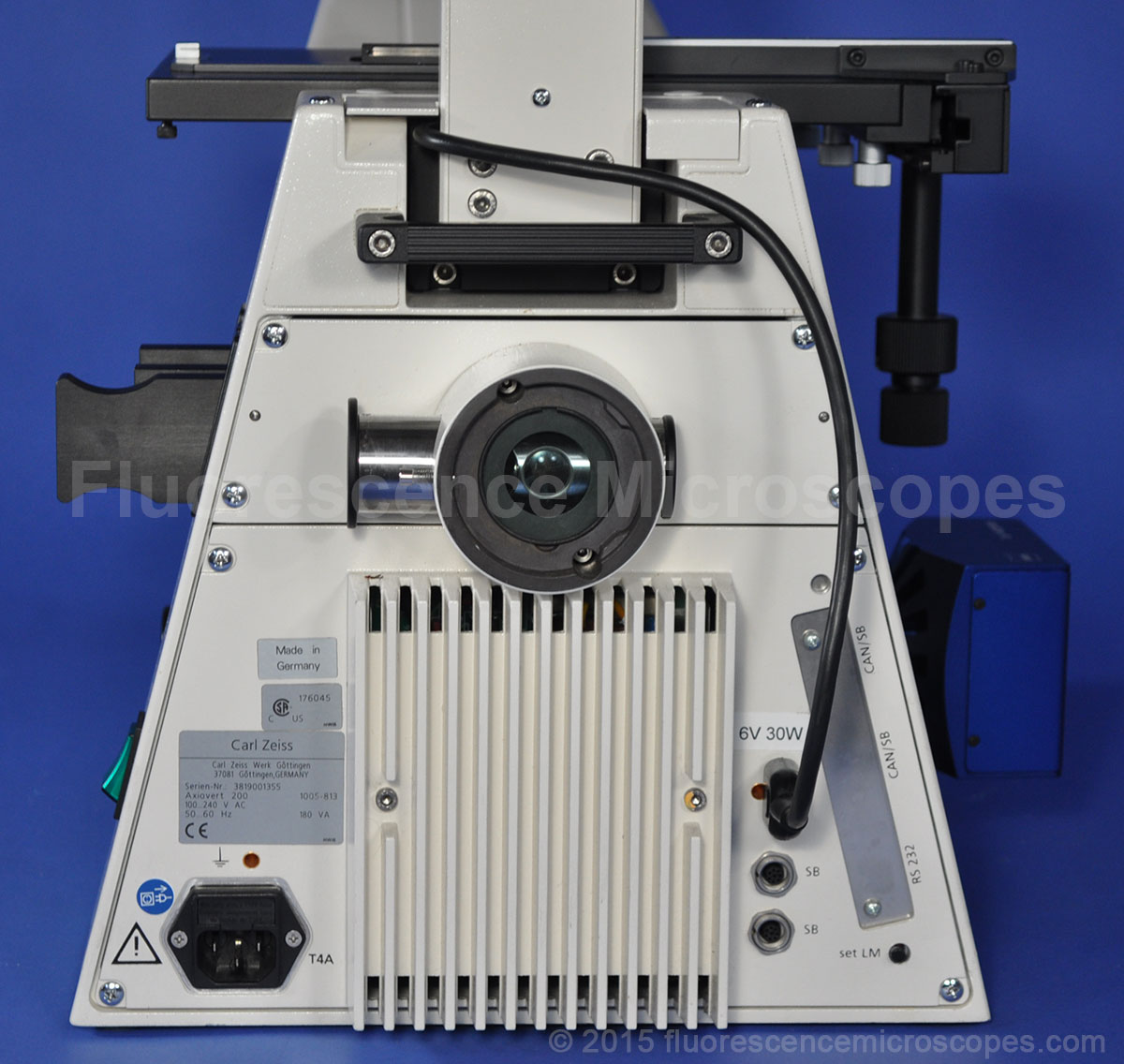

Viewing Aid for centering of Mercury HBO bulb, on back of frame.

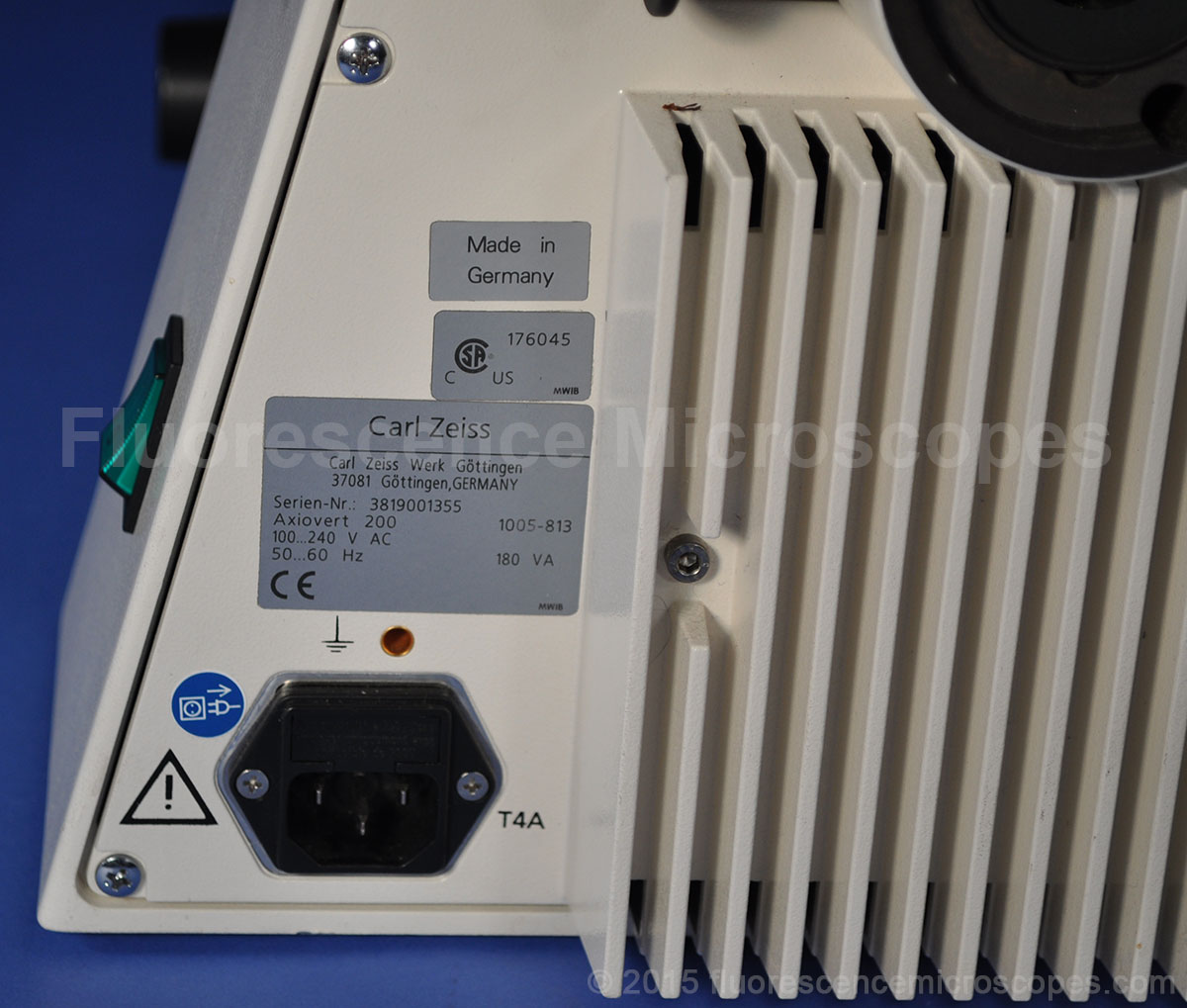

Frame Markings:

  • 100-240 VAC. 50-60Hz.
  • Made in Germany
  • CE Certification.

General Notes:

  • We guarantee the functionality of this microscope. We have fully tested it.
  • We refurbish Zeiss equipment and have extensive background in servicing and obtaining parts.
  • Camera shown in images but sold separately. Camera is not included, but c-mount is included.

User Manual and Instructions:
Click this link: Zeiss Axiovert 200 Brochure.pdf

Click this link: Zeiss Axiovert 200 and 200M Operating Manual.pdf
