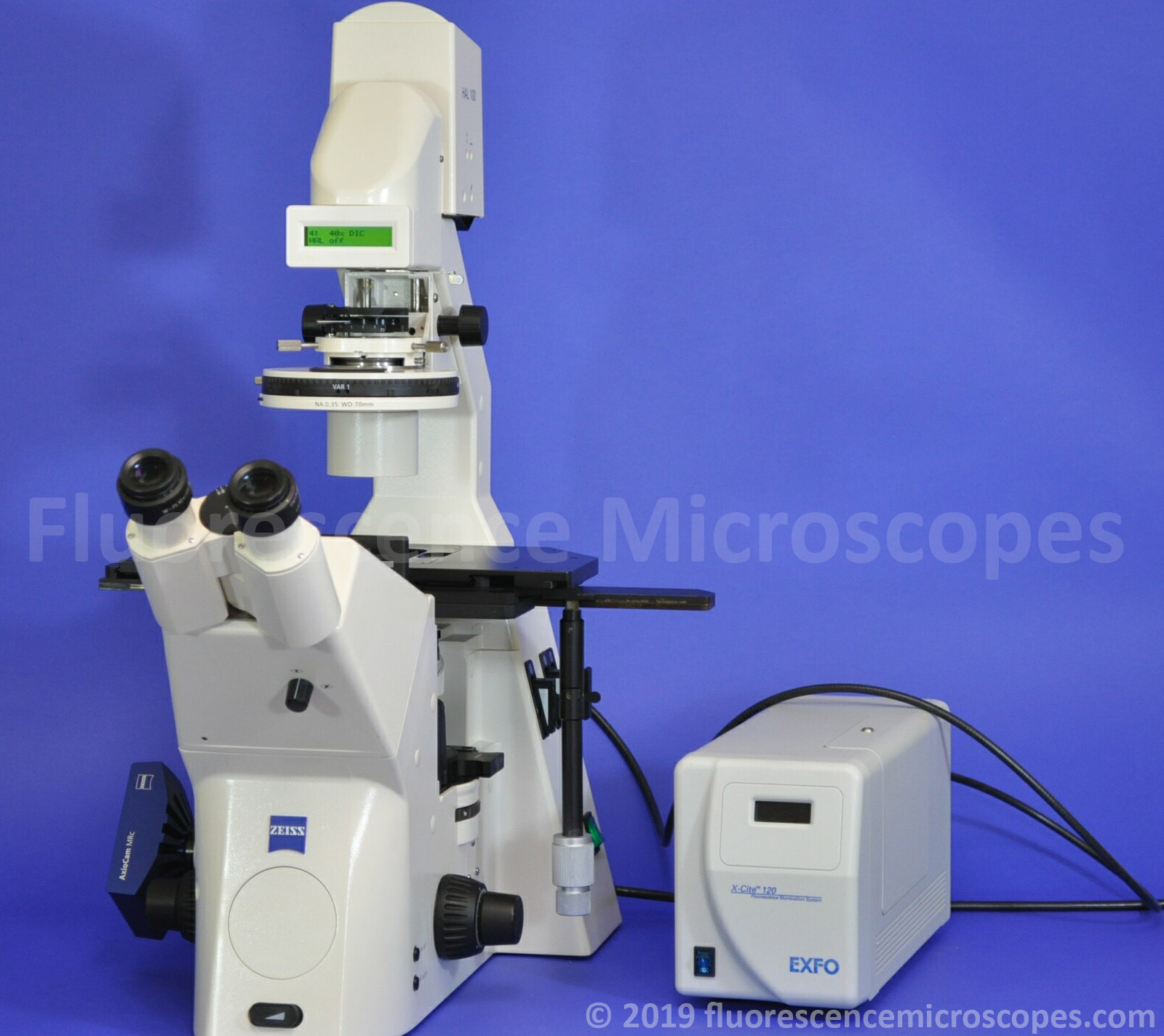

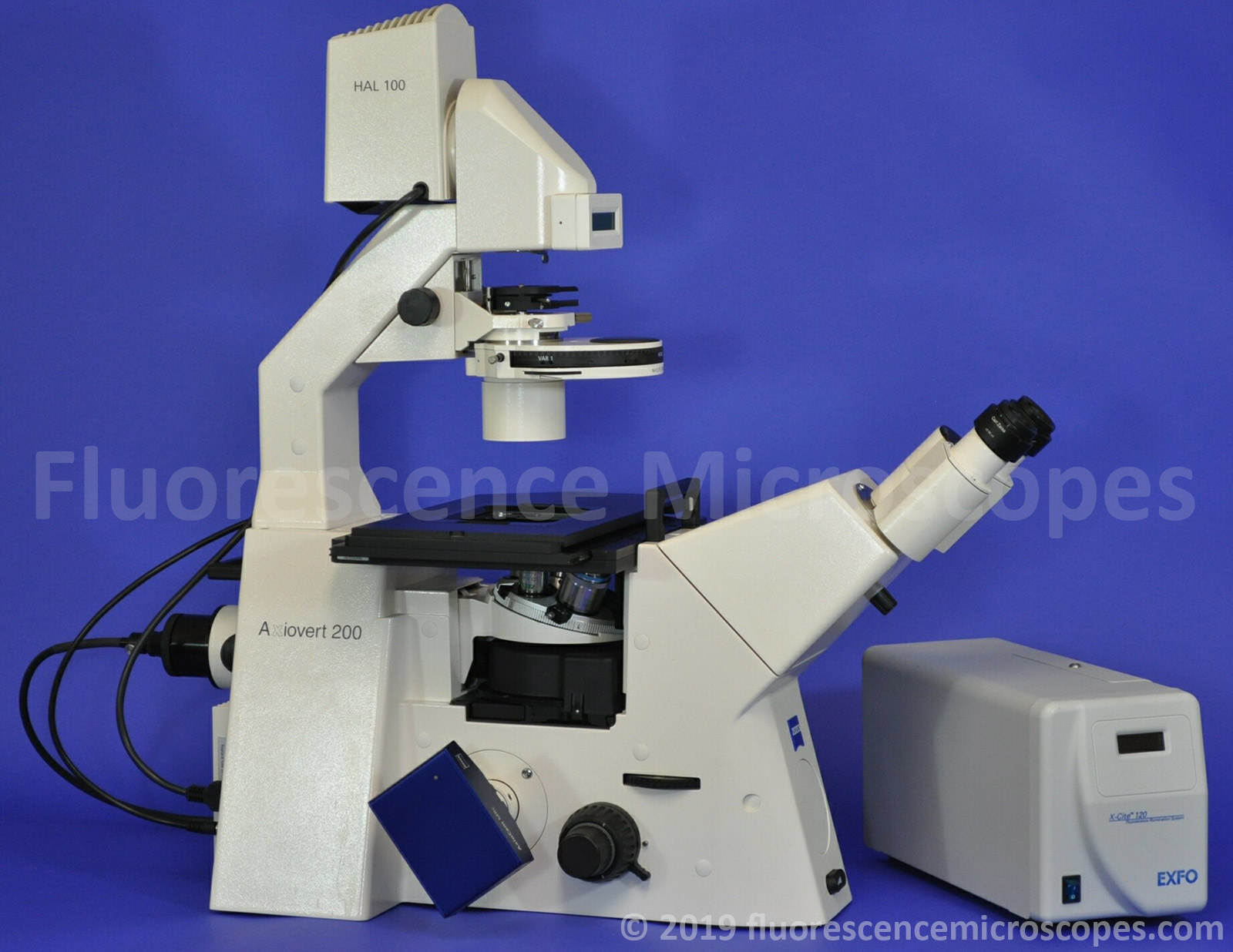

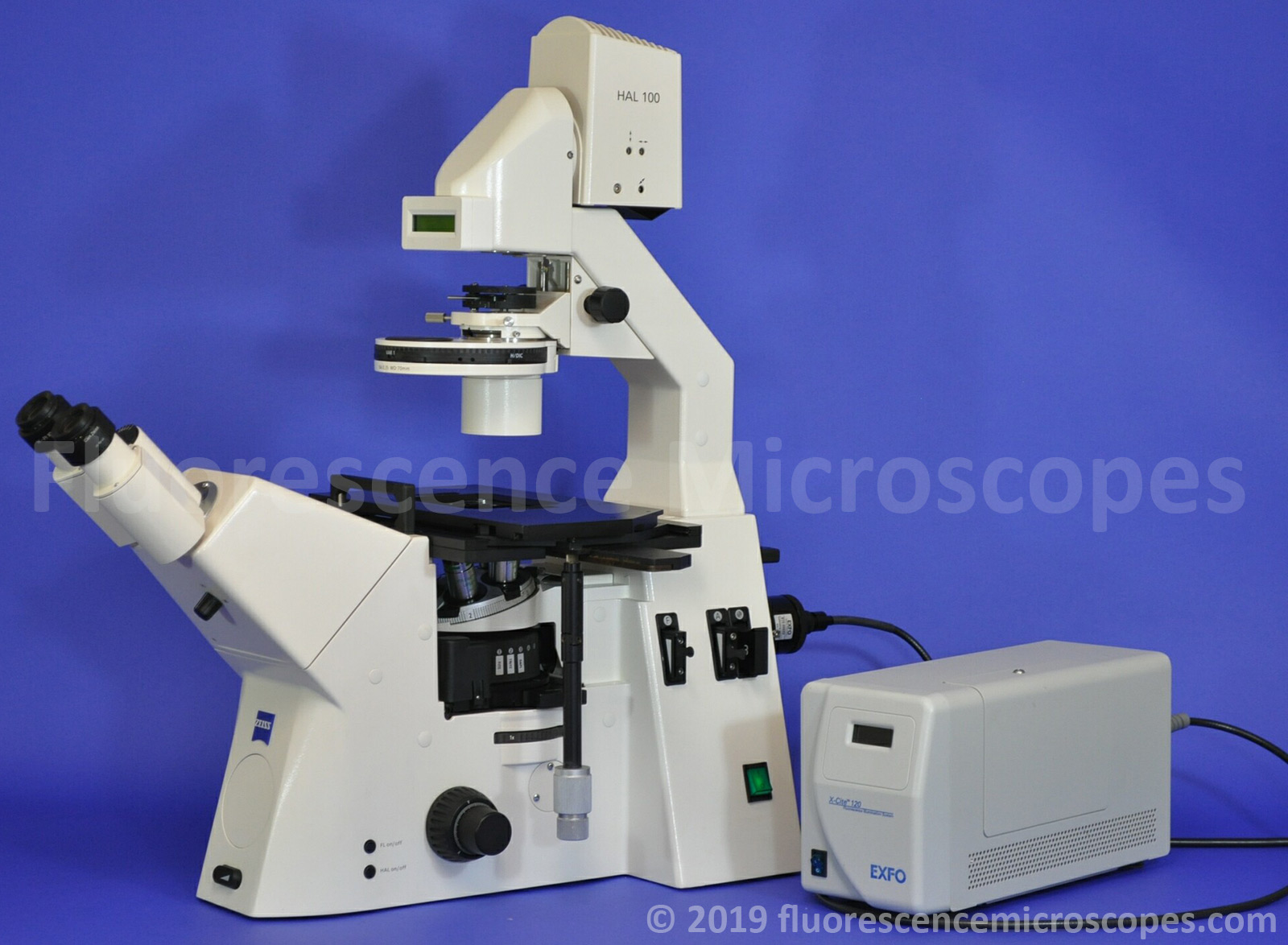

Zeiss AxioVert 200
Inverted Fluorescence
Phase Contrast DIC Varel Relief Microscope

USD $14,000

ITEM CODE: SKU-110
Model: Axiovert 200
Shipping Cost: Free USA Shipping.



Main Features:

  • Loaded configuration. This unit has been set up with some of the best options.
  • Specifically configured for specimen vessels with a typical 1 mm thickness. The 40x objective has a correction collar for other thicknesses.  Not configured for high power magnification.
  • Configuration has excellent capability to image using normal size and larger specimen vessels. It can handle large vertical size specimen vessels. The complete optical system is for long working distance.
  • Depending on your application, this system may or may not be the best for you. It is recommended that you contact us first, telling us specifically what you are trying to image.



DIC – Differential Interference Contrast Microscopy:

  • The 40x objective has been configured for DIC.
  • It can be beneficial to acquire DIC images simultaneously with fluorescence images since it can provide useful morphological information.



VAREL – Variable Relief Contrast Microscopy:

  • This is another excellent way of examining live cells in culture vessels.
  • It includes three illumination modes: unilateral darkfield, VAREL (variable relief) contrast, and inclined brightfield.  This microscopy technique has many advantages such as being able to examine specimens in culture vessels with a curved bottom. It also makes it possible to contrast cells near the edges of the holes in microtiter plates.  The method is an excellent way to image low contrast specimens in ways not seen with normal phase contrast or DIC.



Phase Contrast Microscopy:

  • All objectives are phase contrast.
  • Condenser has the following phase contrast annuli:  Ph0, Ph1, Ph2.



Fluorescence Microscopy:

  • The reflector turret has spaces for five cubes.
  • This has installed: DAPI, FITC, and TRITC dichroic filter cubes. They all produced good fluorescence images.
  • FITC – Zeiss filter Set Number 09. Ex. BP 450-490, FT510, LP515.
  • DAPI – Zeiss filter Set Number 02. Ex. G365, FT 395, Em. LP 420.
  • TRITC – Zeiss filter Set Number 15. Ex. BP 546/12, FT 580, Em. LP 590.
  • Includes two blank blockers for the empty spaces. These are important to protect your eyes from damaging UV light.



Metal Halide Exfo X-Cite 120 Florescent Illuminator:

  • This type of illuminator does not need to have any bulb adjustment.
  • It has a liquid light guide (brand new), a used bulb and a collimator included.
  • Manual Frame: (Not motorized).
  • The manual versions are rare. They are highly sought after because of their ease of usage and significantly less maintenance issues. On a motorized system, everything is controlled electronically and has to be programmed. These are prone to failure.



Objective Lenses:

  • Six place objective nosepiece.
  • 10x:  A-Plan 10x / 0.25, Infinity/-. Ph1, VAR1. Phase Contrast. Variable Relief Contrast.
  • 20x: LD A-Plan 20x / 0.30, Infinity/1.0. Ph1, VAR1. Phase Contrast. Variable Relief Contrast.
  • 32x: LD A-Plan 32x / 0.40, Infinity/1.0. Ph1, VAR1. Phase Contrast. Variable Relief Contrast.
  • 40x: LD AchroPlan 40x / 0.60, Infinity/0-2. Ph2. Phase Contrast. Correction Collar.
  • Note: The 10x, 20x, and 32x objectives are not for fluorescence.
  • The 40x will work fine in fluorescence but it is not the best. We recommend you email us your specific application and we can make a recommendation for additional objectives.



General Specifications:

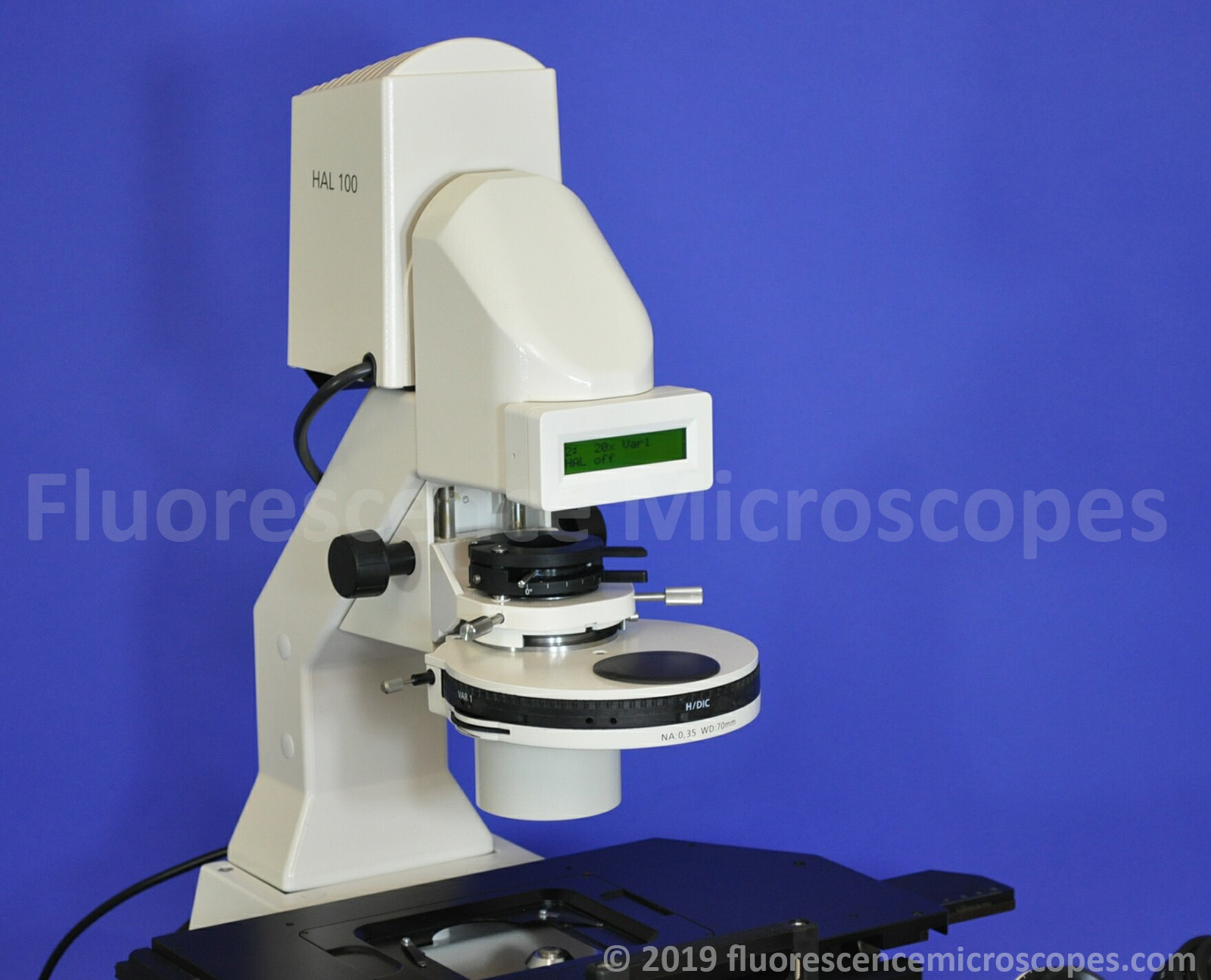

  • High power 100W halogen illumination. Compare this to the simple 30W versions. The 100W is superior for phase, VAREL variable relief contrast, and DIC.

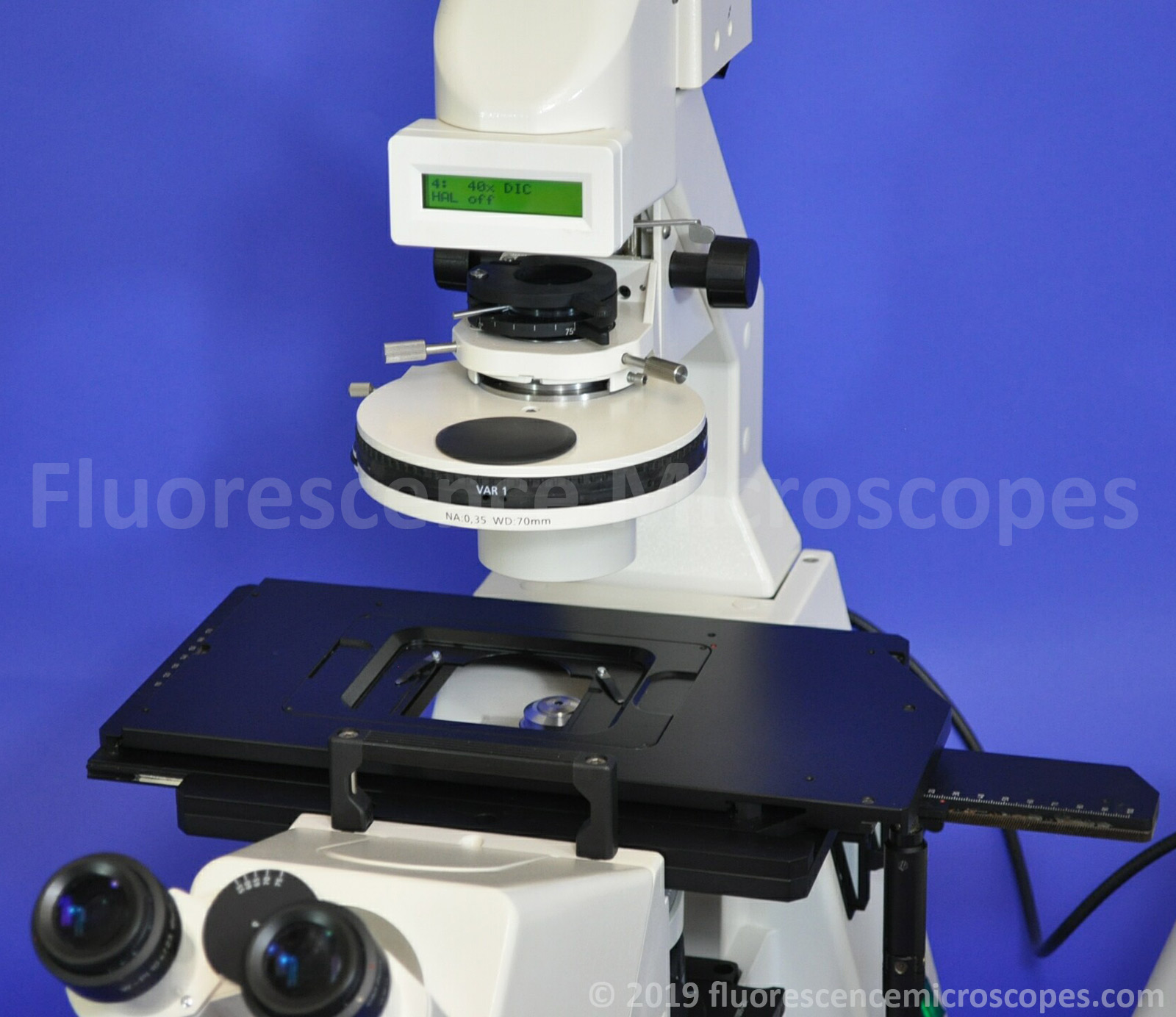

  • LCD display shows the current microscope objective and illumination settings.  We have programmed the light manager system to display which objective is engaged. We have also programmed it so the light intensity is lower for the 10x so you do not hurt your eyes.
  • Left side camera port.  100 percent to eyepieces, 100  percent to camera, or split to eyepieces and camera.
  • Electronic shutter to immediately cut the fluorescence light.  Also includes manual shutter slider.
  • Includes IR cut-off heat reflecting filter to protect internal lenses from the extreme heat.
  • Eyepieces: W-PL 10 X/23
  • Autosensing voltage: 100…240 VAC. 50…60 Hz.
  • Two carrying handles.
  • Travel focus lock stop (manually set).
  • Six – place nosepiece.
  • Field Aperture and Field Diaphragm sliders.
  • Does not include a camera or c-mount. That is only shown to demonstrate how one can be connected.

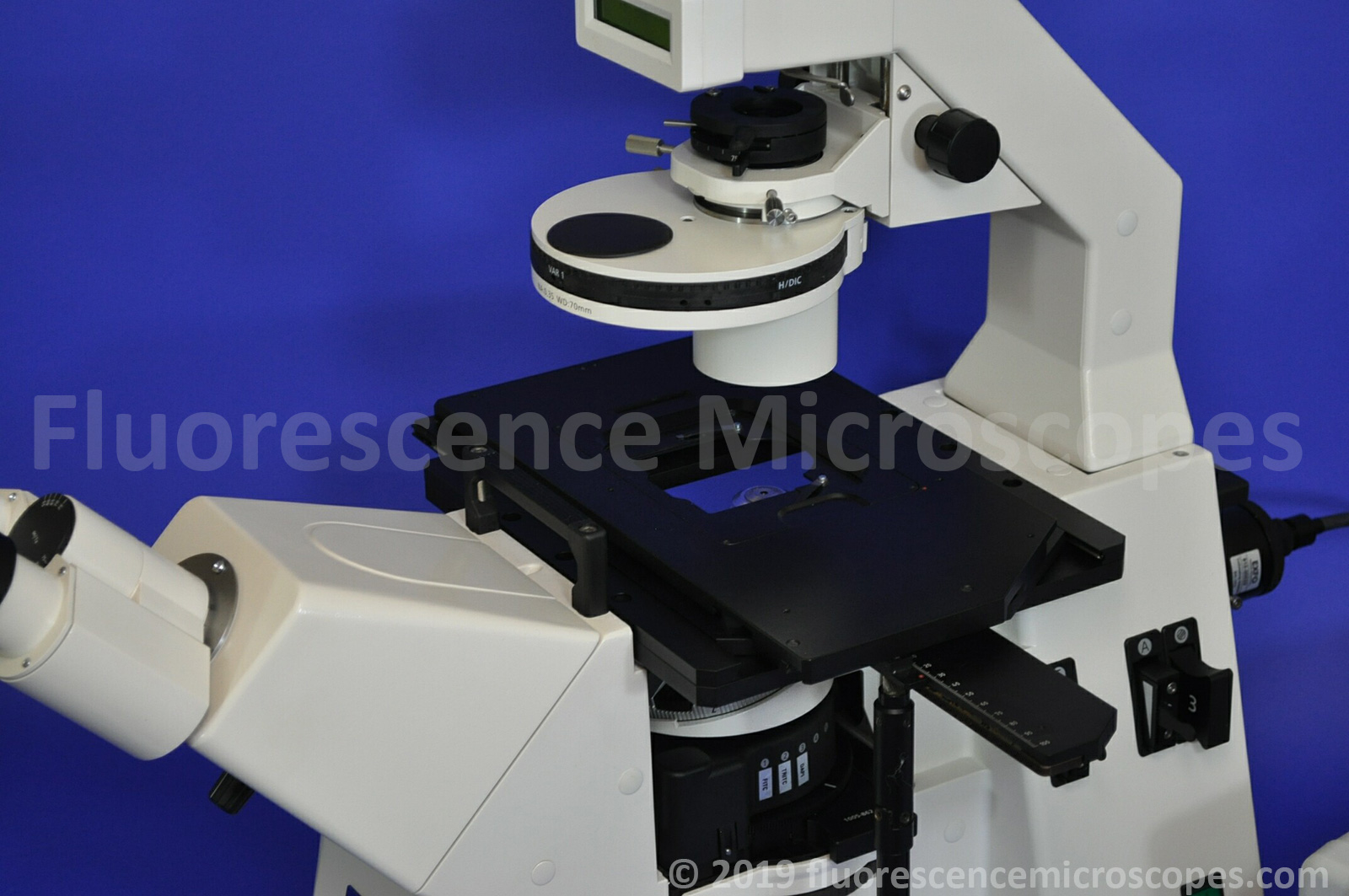

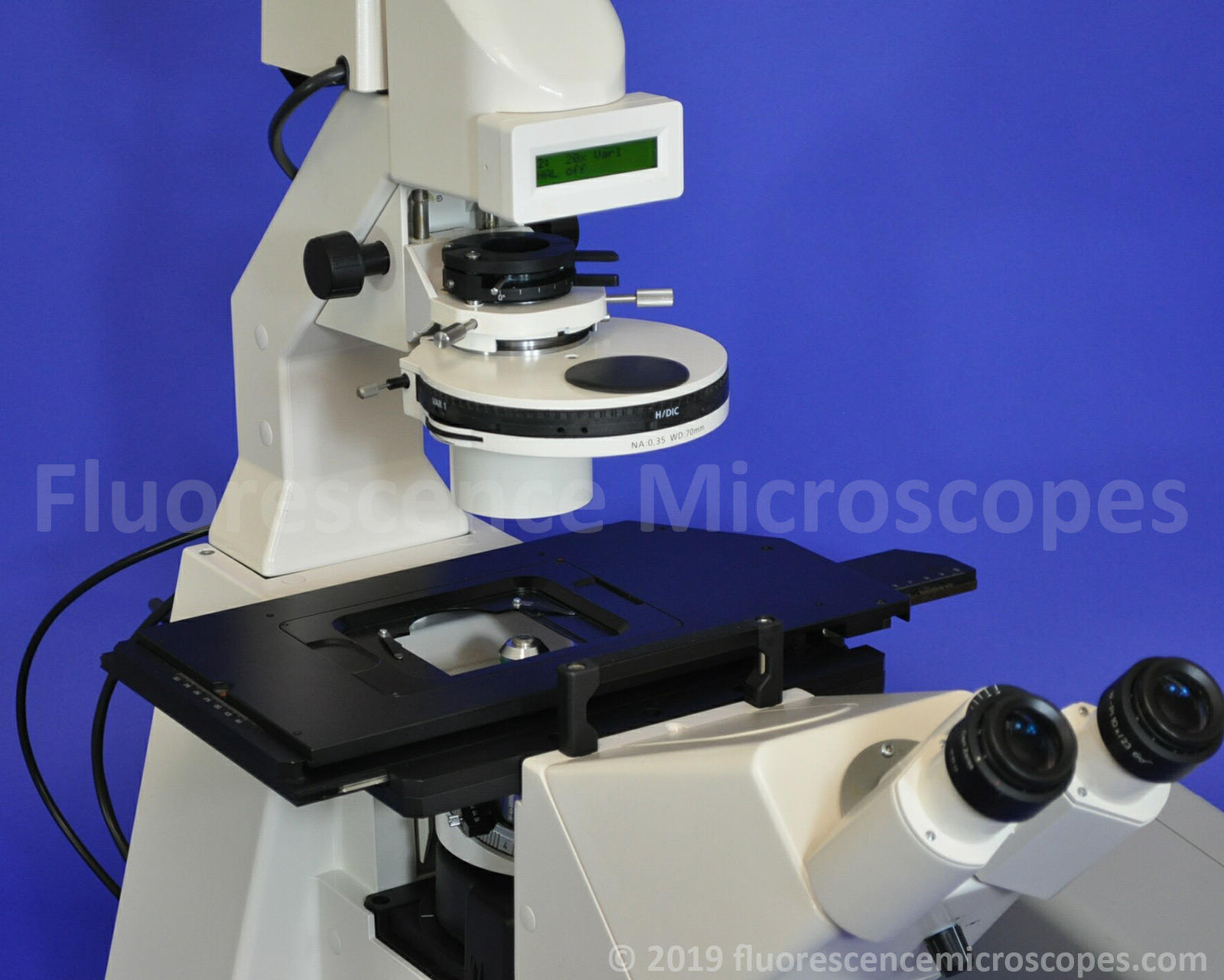

Mechanical XY Stage:

  • This is a premium grade extra wide stage.
  • This whole stage moves.
  • Compare this to simple platform stages that have a sliding part that holds the vessel adapter and slides over the stage.
  • XY controls are located on the right hand side.
  • Installed right hand extra wide mechanical stage.
  • The multi-use stage adapter plate holds glass slides as well as petri dishes and other specimen vessels. It can hold a petri dish that is up to 83 mm diameter.



Buy with Confidence:

  • Note: Unlike others who often describe equipment as being DIC, we actually test our equipment.
  • We obtained high quality differential interference contrast images with our configuration.
  • Oftentimes, mismatched or improperly configured DIC systems may initially appear to be correct until you try to get an actual image showing relief contrast. We were able to obtain textbook quality images. Anything less to us is unacceptable and indicative of improperly functioning equipment.



Comments:

  • This microscope is in great condition.
  • Includes all the tools for proper assembly and disassembly.
  • This is a high quality Olympus (Made in Germany) optical instrument.
  • We have a wide variety of optional scientific cameras, both monochrome and color, with and without Peltier cooling.
  • Upon purchase, we will email links to the user manuals / instructions.
  • When comparing prices, keep in mine the extras that we are providing.
  • We are including a one year warranty, money back guarantee, and free shipping that are value added additions not given by most resellers.
