Zeiss Model AxioVert 200M
Fully Motorized

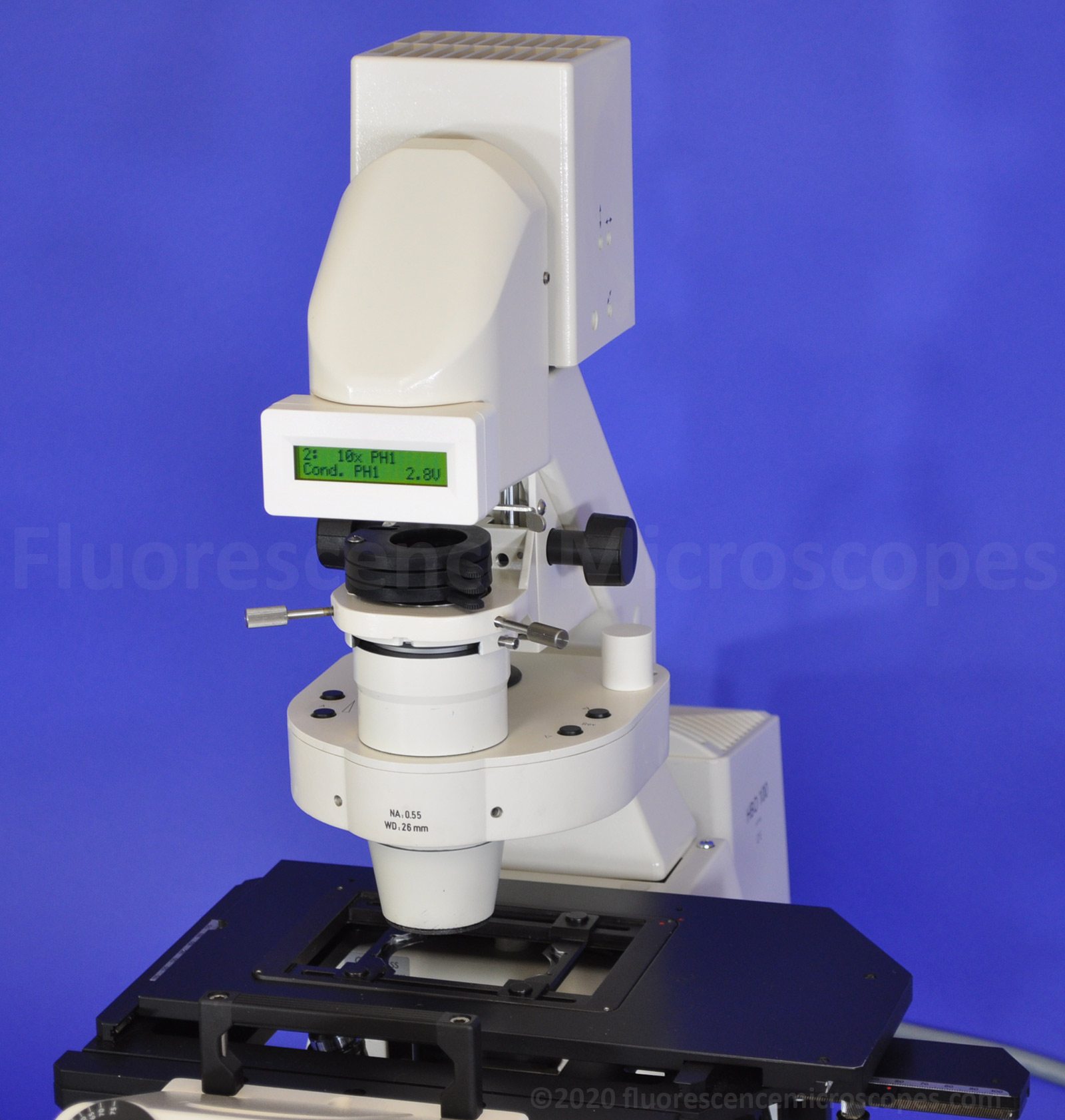

Motorized Condenser
Dual Photo Ports
HBO 100W HBO
Phase Contrast
Inverted Cell Culture
Fluorescence Microscope

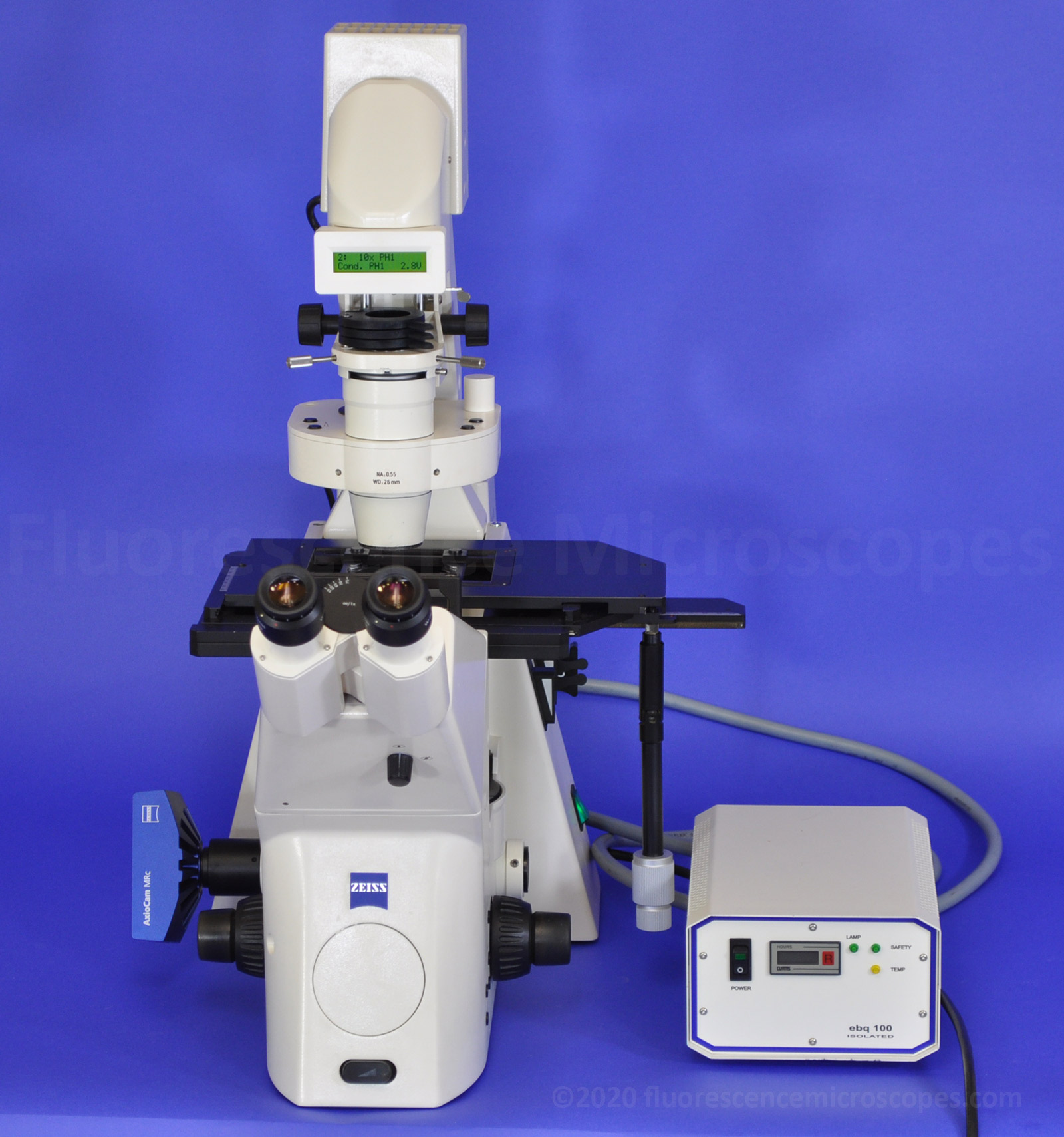

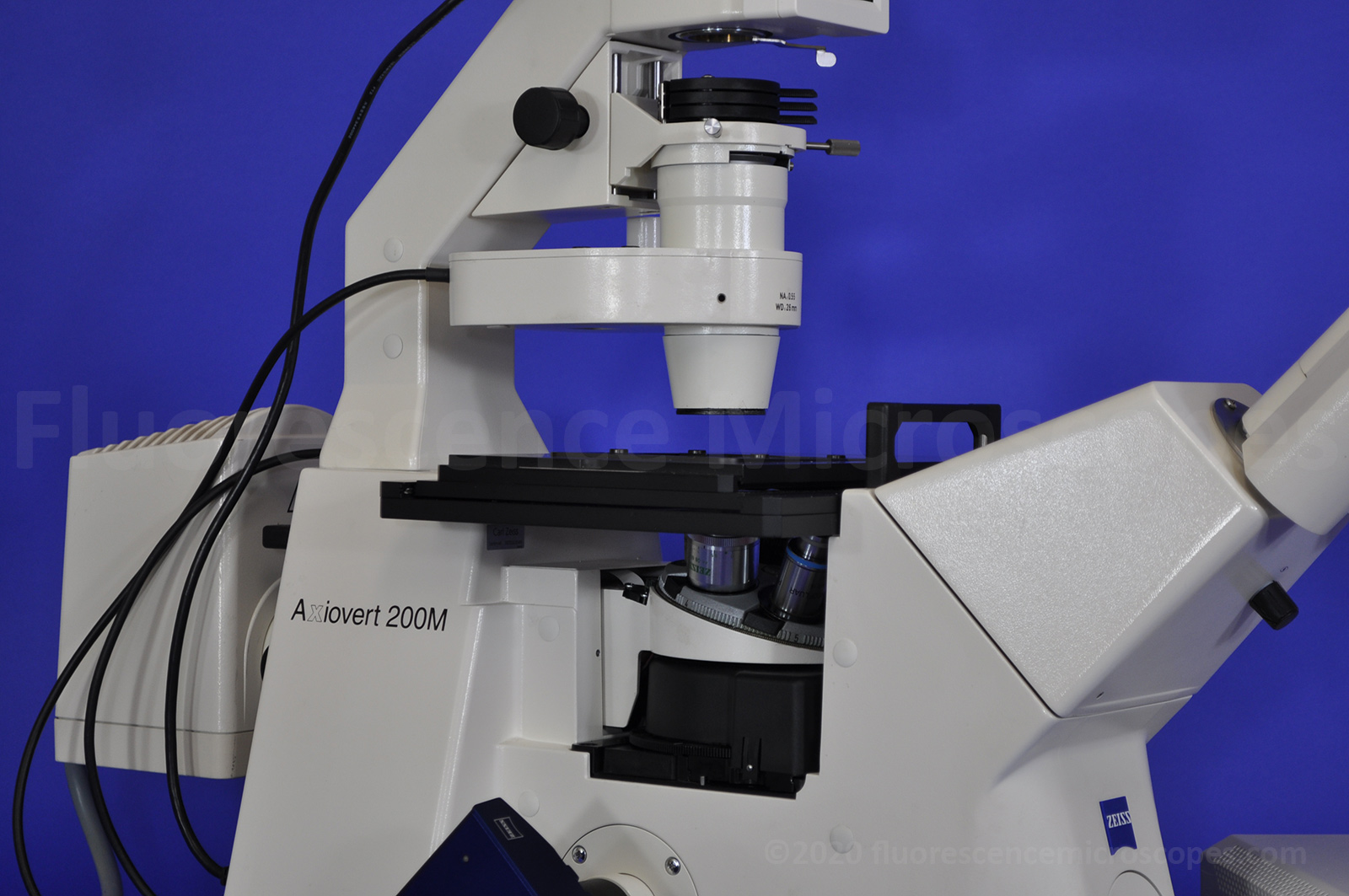

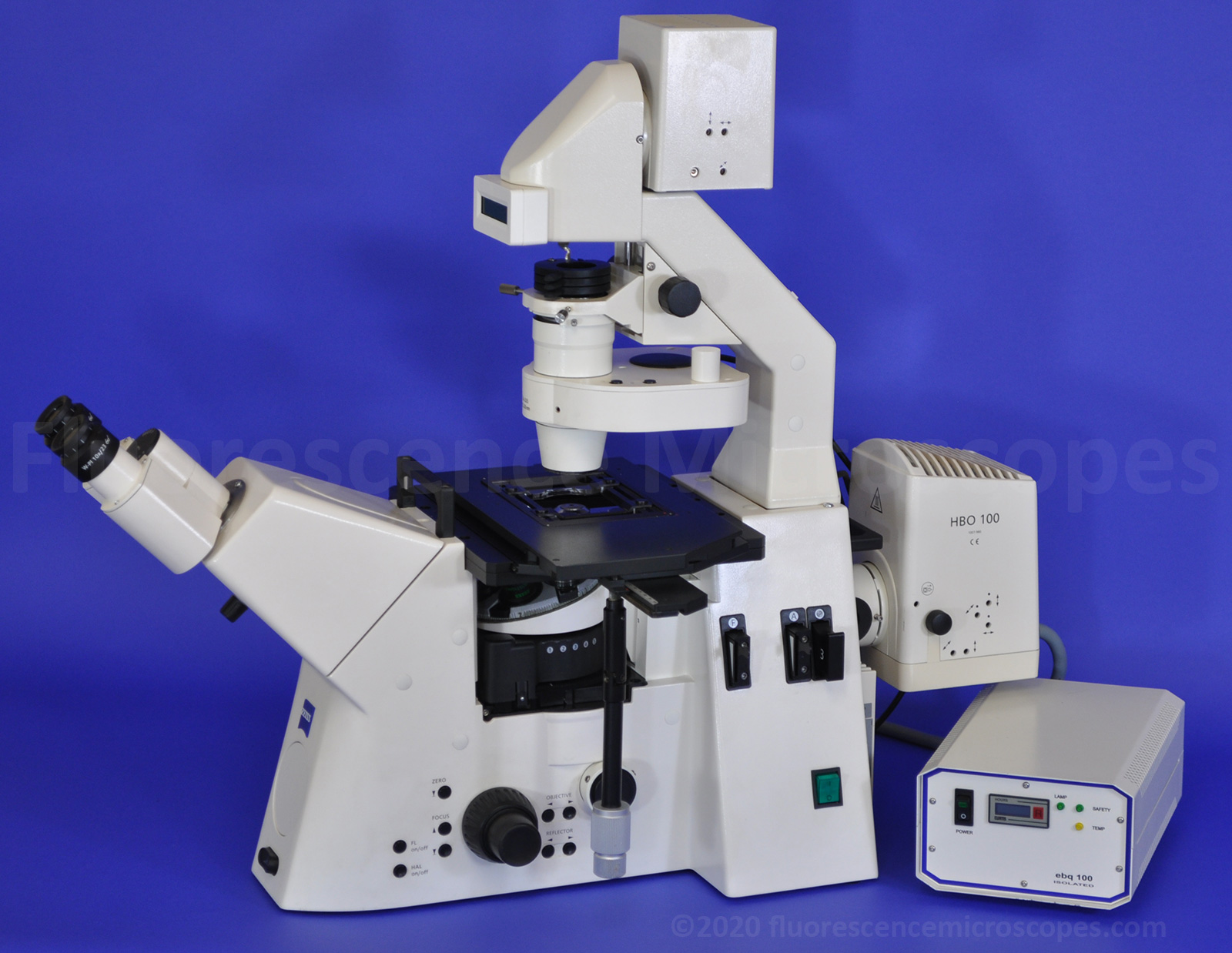

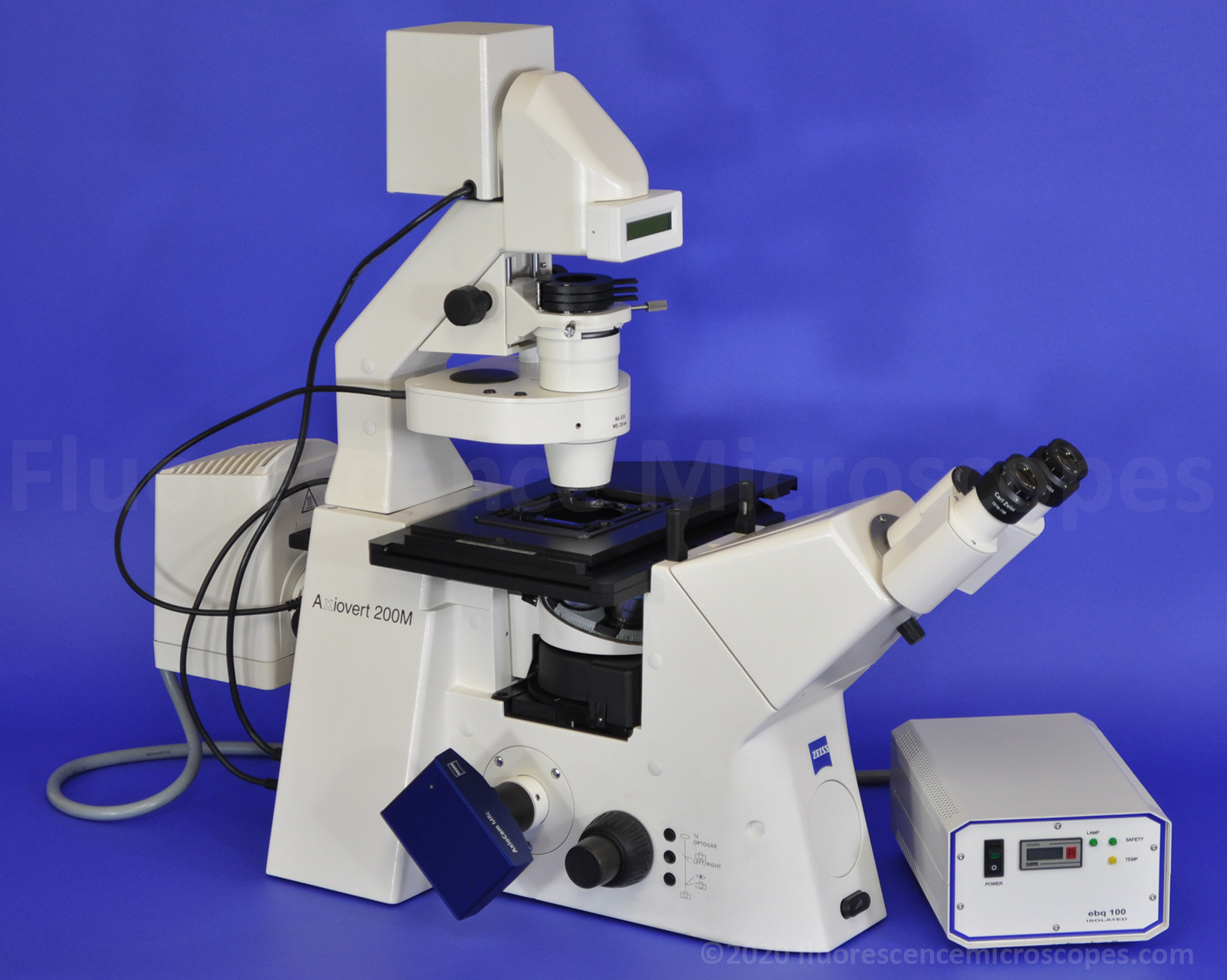

Zeiss AxioVert 200M Inverted Motorized Fluorescence Phase Contrast Microscope

USD $6,000

ITEM CODE: SKU-124
Model: Zeiss AxioVert 200M
Shipping Cost: Free USA Shipping.

Zeiss AxioVert 200M Inverted Motorized Fluorescence Phase Contrast MicroscopeZeiss AxioVert 200M Inverted Motorized Fluorescence Phase Contrast MicroscopeZeiss AxioVert 200M Inverted Motorized Fluorescence Phase Contrast MicroscopeZeiss AxioVert 200M Inverted Motorized Fluorescence Phase Contrast MicroscopeZeiss AxioVert 200M Inverted Motorized Fluorescence Phase Contrast MicroscopeZeiss AxioVert 200M Inverted Motorized Fluorescence Phase Contrast MicroscopeZeiss AxioVert 200M Inverted Motorized Fluorescence Phase Contrast MicroscopeZeiss AxioVert 200M Inverted Motorized Fluorescence Phase Contrast MicroscopeZeiss AxioVert 200M Inverted Motorized Fluorescence Phase Contrast MicroscopeZeiss AxioVert 200M Inverted Motorized Fluorescence Phase Contrast MicroscopeZeiss AxioVert 200M Inverted Motorized Fluorescence Phase Contrast Microscope

Main Features

  • Fully Motorized Functionality including motorized: fine and coarse focusing, reflector turret rotation, objective nosepiece rotation, condenser rotation and condenser iris, and switching camera ports, and internal light shutters.
  • Stand Alone Capability. This equipment does not need a computer connected to it during usage.

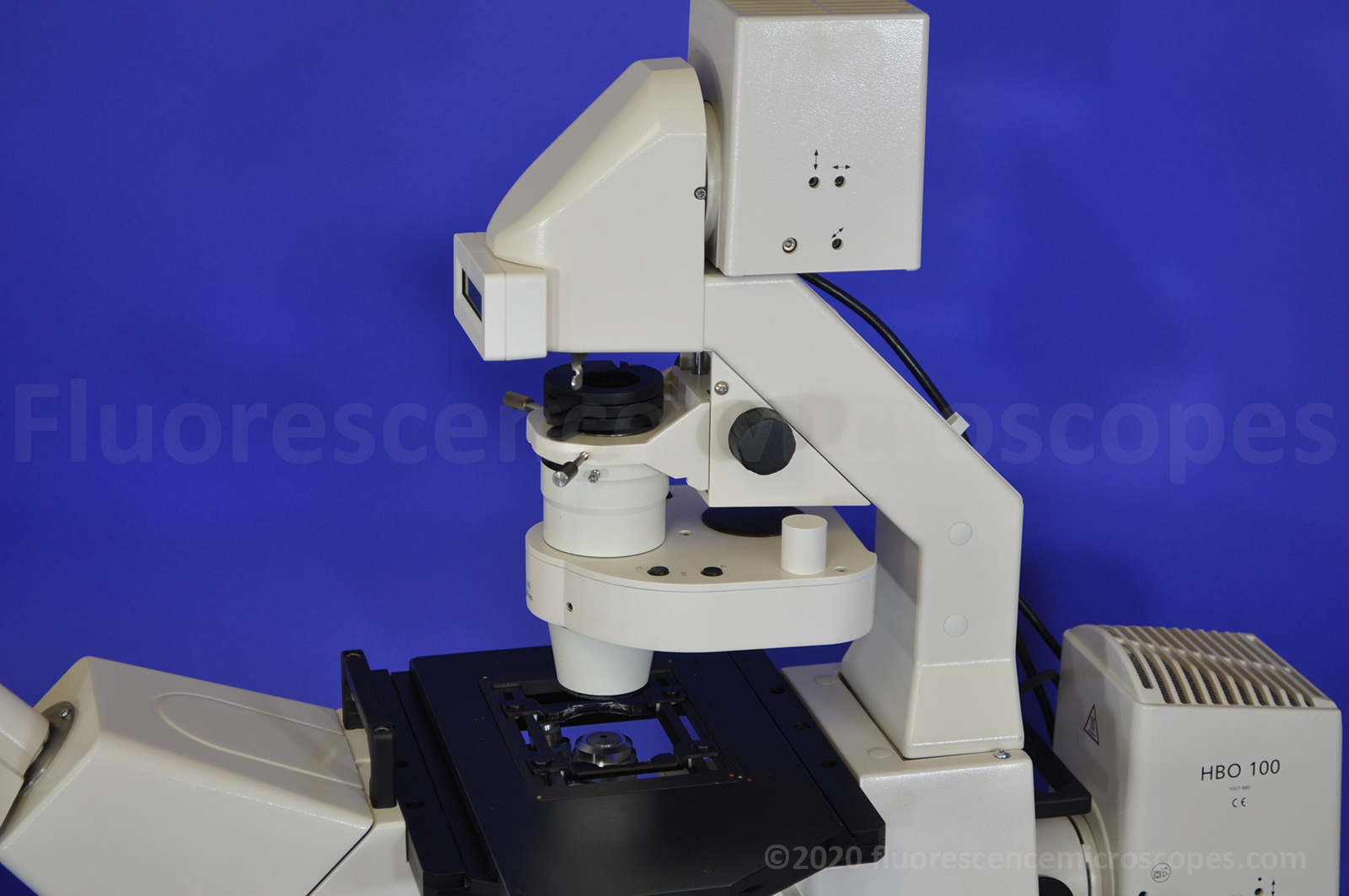

  • Tilt back upper light carrier. Ability to tilt out of the way to access large culture vessels or optional micromanipulation equipment.

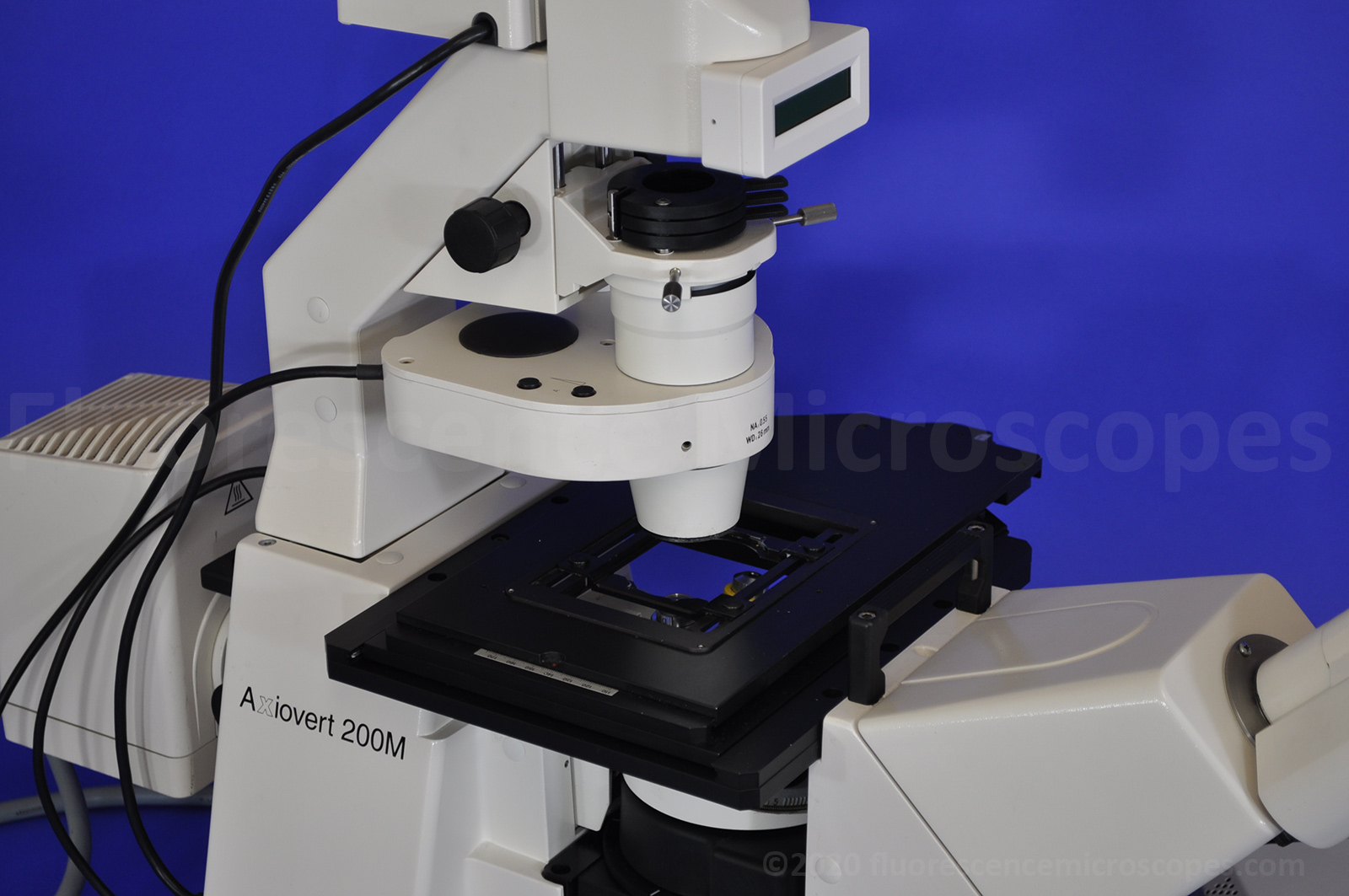

  • Large size fully mechanical stage. This is not the cheap version that has a slider system on a fixed platform stage. This size is extra wide. Right hand controls.
  • Stage has XY slider with a universal vessel mounting plate. The stage plate has the ability to hold a 25x75mm standard glass specimen slide as well as petri dishes of various sizes.
  • Binocular Viewing Head.
    Eyepiece pair is W-Pl 10x/23 with focusing diopters.
    Six Place Objective Nosepiece. With DIC slots in each position.
  • Two lifting handles to make it easier to move this large and heavy duty instrument.
  • Large physical size gives excellent thermal and mechanical stability.
  • Frame has a built-in straight 1x Optovar lens. It does not have any other magnification selections on the Optovar. There is a button on the side for “1x Optovar”.
  • Includes blank slider (in analyzer slot) and DIC blanks for protection against dust.
  • Autovolt. Capable of 120 VAC to 240 VAC.
  • All required power cords included.

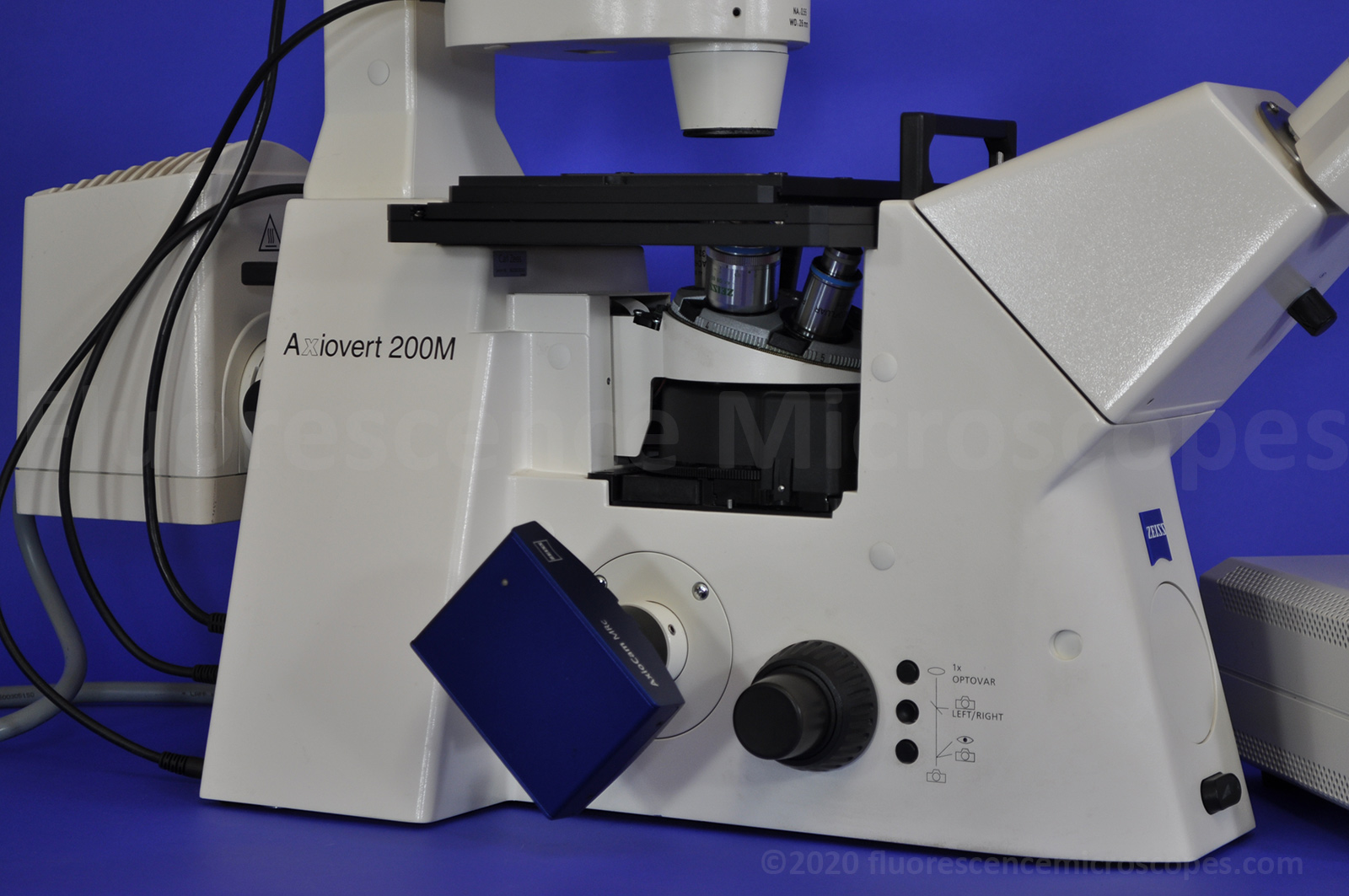

Dual Photography Ports:

  • Left Side and Right Side camera photography ports. Most frames only have a single camera port. This has three settings. (1) 100 percent light to the left port. (2) 80 percent light to right port and 20 percent to eyepieces. (3) 100 percent to eyepieces.
  • Shutter with ability to block light from entering eyepieces when taking photos. This prevents inadvertent ambient light exposure on camera.
  • Does not include camera, but we will include one C-mount camera adapter. Camera is shown in images to demonstrate that one can be connected.

Transmitted Light – Brightfield and Phase Contrast Microscopy:

  • HAL 100 lamp housing. With 100W halogen bulb.
  • Electronic variable light intensity button.

EpiFluorescence Reflected Light System:

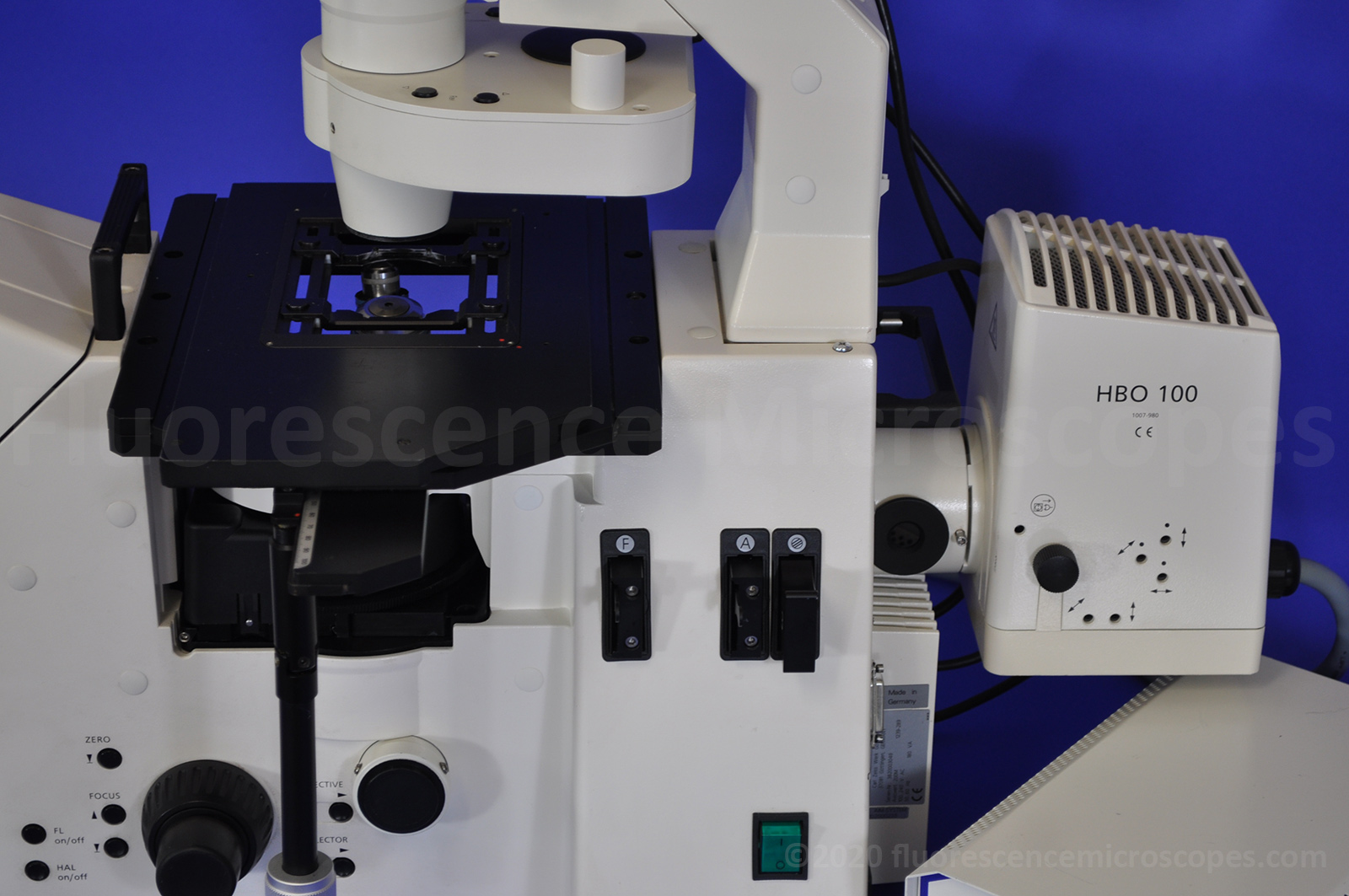

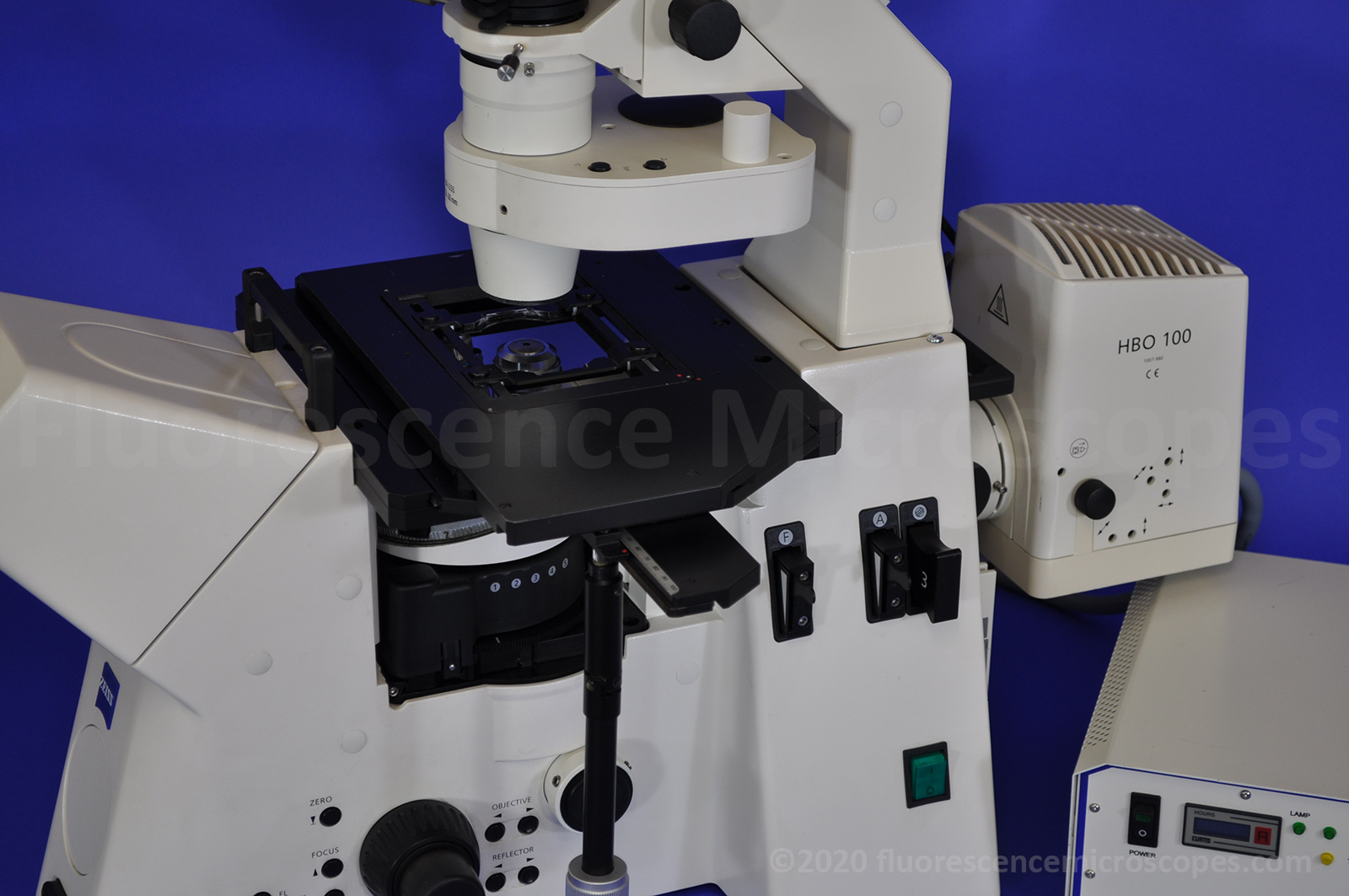

  • HBO 100. Lamp housing and power supply. With 100W Mercury bulb.
  • Five positions for dichroic cubes (reflector modules) in the motorized reflector turret.
  • Filter holder with empty slots for optional filters. Use this as a shutter when pushed all the way to one side.
    The shutter for the fluorescence is done by pushing the rear slider bar all the way in. It is not done any other way, such as with pushbuttons. There is no operational pushbutton shutter.
  • The shutter for the fluorescence is done by pushing in the rear slider bar. It is not done any other way, such as with pushbuttons.
  • Aperature Diaphragm and Field Diaphragm sliders.
  • Mercury Arc adjusting/centering aid included. This makes it easy to center the rear lamp housing.

Objectives:

  • Six place DIC nosepiece. M20 thread size.

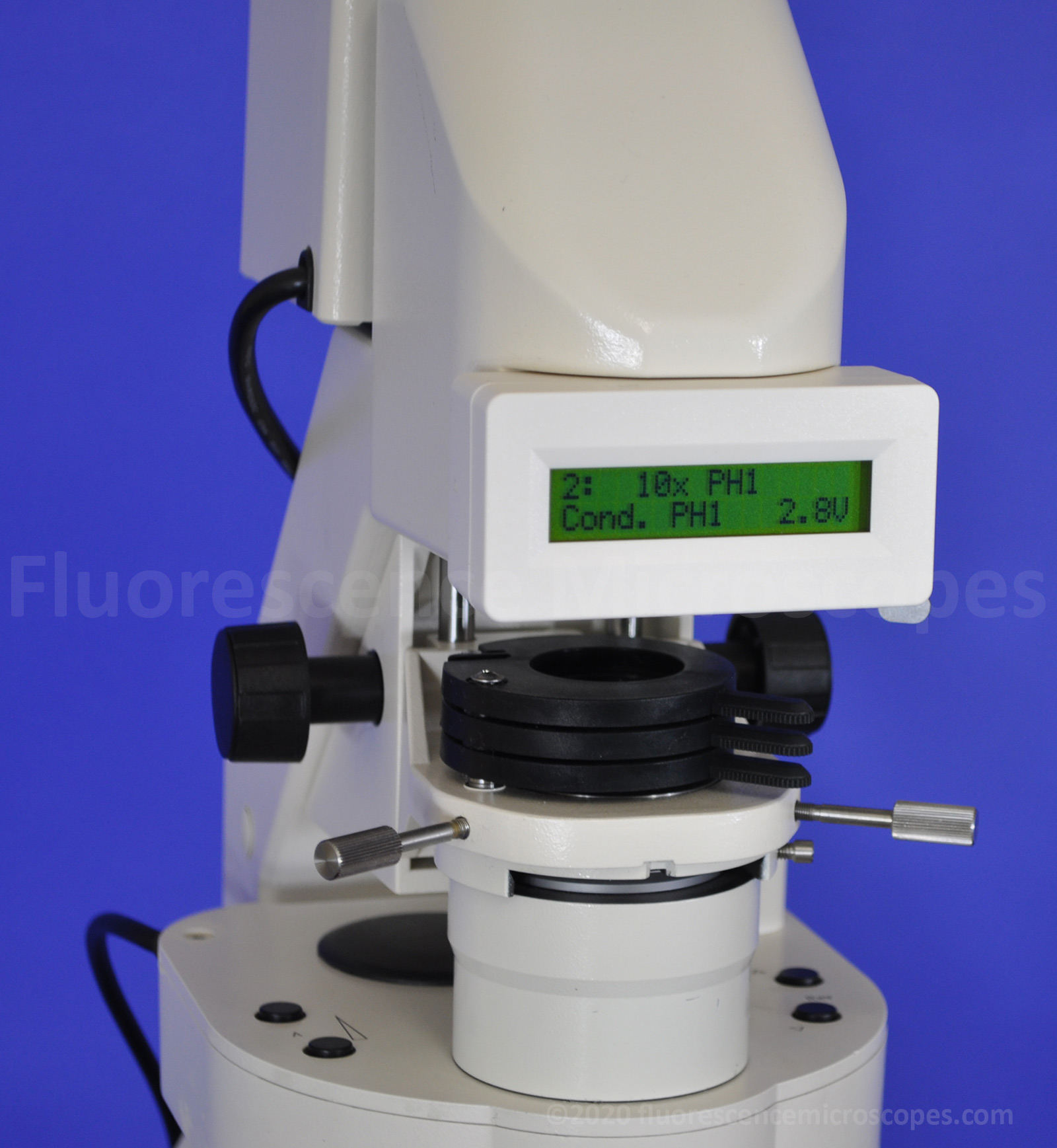

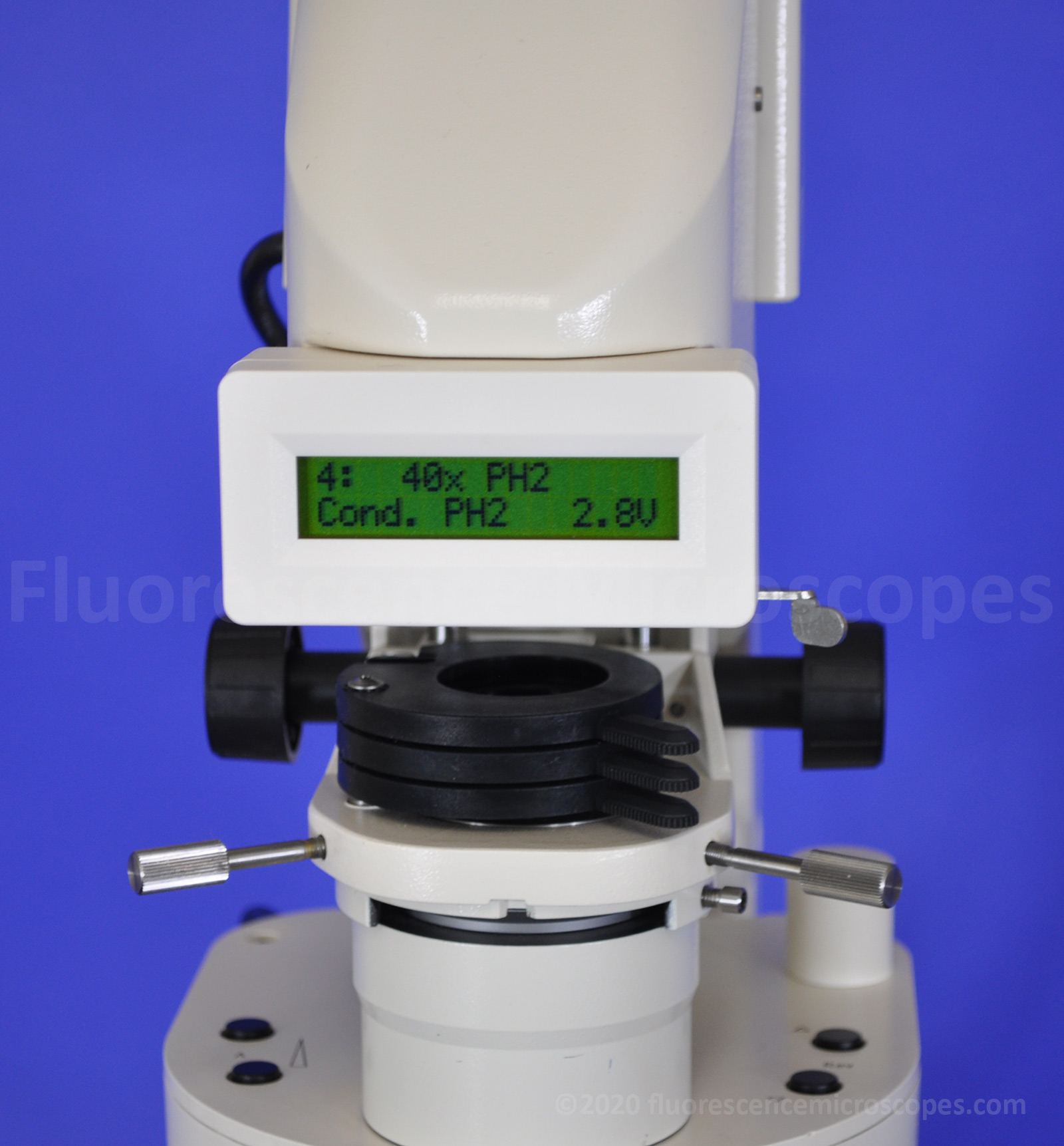

  • The objectives are programmed into the light manager system and display on the LCD screen.
  • 10x: Achrostigmat 10x/0.25, Infinity/-.  Ph1. Phase Contrast.
  • 32x: LD AchroPlan 32x / 0.40, infinity / 1.5. This is rated for a cell culture vessel with 1.5 mm thickness. Long working distance.
  • This objective is not for fluorescence and did not provide any reasonable fluorescence image.
  • 40x: LD AchroPlan 40x / 0.60 Korr.  Ph2. Infinity/0-2. Correction collar with adjustment for 0 to 2mm thick cell culture vessel bottom.  Phase Contrast. Long working distance.
  • I got an okay image with both the FITC and TRITC, but it was not that good.
  • 40x: Plan Neofluar 40x / 0.75, Infinity / 0.17.  Rated for coverslip thickness 0.17 mm. Rated for fluorescence. We used this objective for testing.
  • I got a great image on both FITC and TRITC.

Filters – Dichroic Cubes:

Two Filters Included:

FITC / GFP: Provided a blue light to the slide and green light in the eyepieces.

Cube is marked: 41017 EN GFP C89645. It has no visible wear and provided excellent quality images.

TRITC: provided a green light to the slide and red light in the eyepieces

The filters had some visible wear. They provided excellent quality images.

Research Grade Applications:

This industry-standard optical instrument is used for observing intracellular processes in living cell cultures, motility and growth, cell to cell interaction, and drug detection.

With optional hardware equipment and software, it can also do micromanipulation and microinjection, IVF in-vitro fertilization, patch-clamp technique, toxicity examinations, time lapse examinations, and ion measurements.  It can also be useful for z-sectioning, Fura (Ca measurement), deconvolution, GFP, and single molecule detection. This is a high grade research model and is capable of being adapted to all of the above, given the right optional equipment.

Testing Results:

  • This microscope was fully tested.  Results are as follows:
  • All functions were found to be in proper working order.
  • Brightfield – Koehler illumination was set properly, with all adjustments and centering being properly achieved.
  • Phase Contrast – All phase objectives performed well.  Good contrast images were achieved.
  • Incident Reflected Fluorescence – HBO Bulb was properly centered obtaining bright, clear, and uniform illumination distribution across the complete field of view.
  • The 40x Plan-Neofluar objective is the one rated for fluorescence. It was used for testing. It performed well and excellent quality images were obtained for both FITC and TRITC dichroic filter sets.

Motorization and Internal Configuration Tested:

  • This is a motorized microscope that has to be configured for the users application.  It is configured for the installed objectives, dichroic cubes, and light intensity needs.
  • As a part of our service to our customers, we do this configuration.  Please contact us about your special needs.
  • We fully tested all motorized components as well as checked the computer connectivity.
  • The RS232 serial port is confirmed to be in good operational condition and a computer was used to communicate and control the microscope functions.
  • Custom configuration was reset internally to default user standards as well as to the specific configuration the microscope has now.
  • Light manager settings were adjusted to conform to the current objective configuration.
  • One point to note:  As a safety precaution, the microscope is configured to switch on the halogen transmitted light if the fluorescence reflector turret is rotated to a different cube.  You simply press the FL button to switch back to fluorescent imaging once the new cube is in place.

Optional Accessories:

  • We have a wide variety of optional scientific cameras, both monochrome and color, with and without Peltier cooling.
  • Other stage mounting plates are available for use with other sizes of petri dishes and cell culture vessels.
  • DIC differential interference contrast is possible on this frame. Contact us for details about how to add this technique.
  • Other objectives can be configured.
  • Brand new Chroma hard coated filter cubes with lifetime warranty may be added.  Cost is USD $750/set for the dichroic filter (emission filter, dichroic mirror, barrier filter) and includes the blank cube.

Good Economic Value:

This equipment is priced to sell.

When comparing other prices, be sure to see if they are simply dumping an item they got really cheaply, or if they are fully testing and refurbishing it.  Check if it is complete. Even small parts can be very costly to acquire, and they are often not available. We keep a large inventory of replacement parts and accessories for this model.

Most sellers simply obtain the equipment then turn around and offer it for sale, doing nothing more than dusting it off and taking some photos.  They have no idea if the internal parts are working properly. They can press some buttons and watch the movement of some parts, and say it works fine.  Does it really get good imaging? What about the computer connectivity? Is the RS232 port damaged from static electricity? Can the internal configuration be changed to what is required by the new user?  If this was originally designed for a laser scanning confocal system, can that configuration be reset to basic usage and has it been properly converted to normal usage? We take care of all that for you and ensure it is in good working order.  You are paying us for the hardware, refurbishing, repairing as needed, adding missing components, testing, configuring, technical support to see the equipment meets your needs, warranty, and guarantee. If you simply want a unit, straight from a lab’s salvage dock, then the price can be much lower.

In addition, we are including a one year warranty, money back guarantee, and free shipping that are value added additions not given by most resellers and should be added to the value.

User Manual and Instructions:

Click this link: Zeiss Axiovert 200 Brochure.pdf

Click this link: Zeiss Axiovert 200 and 200M Operating Manual.pdf


TERMS AND CONDITIONS:

One Year Parts and Labor Warranty:
We warrant this Microscope to be free from defects due to normal usage in normal operating conditions for a period of one year. Camera equipment (if included) is given a three month warranty. Objective lenses are excluded from warranty.
Additional warranty on microscope may be purchased if desired.

We will repair or replace equipment at no charge, during the one year warranty period. Both parts and labor are included. Buyer is responsible for shipping costs BOTH ways, paying for shipping cost to our designated repair facility and shipping cost back to buyer. Bulbs are considered user replaceable items and not covered.

Warranty Excludes Objective Lenses:
Our warranty excludes the objective lenses. There are several reasons for this. First of all, if the objective is good, it will continue good performance unless there is some user or environmental abuse. Abuse can be from oil getting on a non-oil immersion lens, contact with a solution that degrades the cement around the glass, contact with other chemicals that may stain, etch or pit the glass, scratching the lens by incorrect cleaning methods such as cloths not of lens cleaning quality, damaging the lens by scraping it on slides or metal slide holders on the stage, dropping on a hard surface, subjecting the objective to extreme humidity causing internal mold or mildew, etc.
In addition, objectives can’t feasibly be repaired. If an objective is damaged so that the optical quality is significantly diminished, it is suggested to throw it away. One solution is to send it back to the factory and incur a repair fee equal to about half the price of a new replacement. That is usually cost prohibitive. We professionally clean the front and back lens, and the outside barrel of the objective. But we do not open them up. That should only be done by the factory under strict conditions and with optical laser alignment. Generally, when someone other than the factory messes with a lens, the performance may still be acceptable, but likely will be noticeably lower quality when compared side by side with a new lens. So since defective objectives are generally thrown away, and replaced with another one, there is no need to warranty them. The user can easily find a matching objective and replace it on their own.

Objective Lenses – Condition:
All objectives have been professionally cleaned.
All are guaranteed to be free from optical defects. If any defect is found, it will be clearly noted in the ad.
Our inspection of the objective lenses includes checking for the following:
lens cracking, pitting, lens cement not intact, internal oil damage or oil seepage, glass fogging, glass hazing, stains on optical glass, mold or mildew stains, and delamination (separation of internal lenses).

Condition of Equipment:
This reconditioned microscope is complete and in excellent working order and has been completely checked out and serviced.

Technical Sales and Support:
Most offerings of used microscopes are by simple flippers of equipment who have obtained defective and rejected microscopes from labs discarding the equipment. They resell exactly what they got, as they got it, and without any technical knowledge of it. You can rest assured when purchasing from us that we are professional dealers who are well trained to service and provide technical support of the microscopy equipment. We test, repair and refurbish all equipment to excellent working conditions. We are well trained and able to give you technical advice including pre-sale and post-sale support.

Microscope Training – Setup Support – Software Assistance:
Concerned about how to set up and operate this equipment? Need training? Need help with software for the camera? We can help. Contact us for more details.

Free Application Evaluation and Recommendation:
We strongly encourage all potential buyers to first contact us with regards to their specific application. In most situations, we need to customize certain features of the microscope in order to best fit the end user’s technical requirements. We want to ensure you have the correct and optimal configuration for your application.

Fluorescence Filter Sets – Customized:
We are dealers of both Chroma and Omega brands (Made in USA) of dichroic filters. Please contact us regarding the specific fluorophores you are using so we can be sure the filter sets provided are a proper match. Incorrect matching will give you poor quality or no visible fluorescing.

Free Worldwide Shipping:
Equipment may ship from Outside USA. We provide free worldwide shipping. The method of shipping may vary, depending on destination country, but may be via commercial air cargo. Not all countries will have door to door service. Contact us for further details so we can discuss shipping arrangements.

Customs Duty and Tax:
Any and all customs brokerage, customs entry, VAT and duty/tax are the responsibility of the buyer. Buyers in USA can contact us in advance to see if there are any entry fees.

Voltage Requirement:
Our equipment may show 110V and/or 220V external power supplies. Some power supplies are not Volt selectable. Depending on your country of final destination, and the Voltage supply, we may need to change the power supply shown in the ad to one that matches your power requirements. Contact us first with your Voltage requirement so we can be certain we have the required power supply if it needs to be changed from what is shown in the ad.

Payment Method Accepted:
We generally accept purchase orders from government, educational, and industrial facilities in some countries. For some preapproved orders, we accept credit cards. We also accept bank wire (telegraphic) transfers. Contact us for details. We properly screen all buyers to protect against fraudulent transactions. We reserve the right to deny transactions deemed to be potentially fraudulent.

Financing Available for Select Customers:
If you are unable to afford the full purchase price, please contact us about financing details. Our financial partner offers 90 Days “Same as Cash” and deferred payments up to 6 Months.

Rental:
We have rental plans available for some companies and universities. Contact us for details.

Money Back Guarantee:
We guarantee you will be satisfied with your purchase. If in the unlikely event you are not satisfied and want to return your item, please contact us within 14 days of receiving it. We will then arrange to get you details about how to return it. We have no restocking fees but the actual cost we paid for shipping will be deducted from refund amount. We give free shipping, but for returned items, this cost will be charged to buyer.

Beware of Counterfeit Fake Parts:
Be sure of whom you are buying from as a lot of “dealers” are selling counterfeit parts, passing them off as originals. Click this link.

All Original Parts – Not Counterfeit.html

Warning: UV light and Mercury Bulbs are Dangerous! YOU MUST Read BEFORE purchasing!

Click this link.

Safety with UV Light
