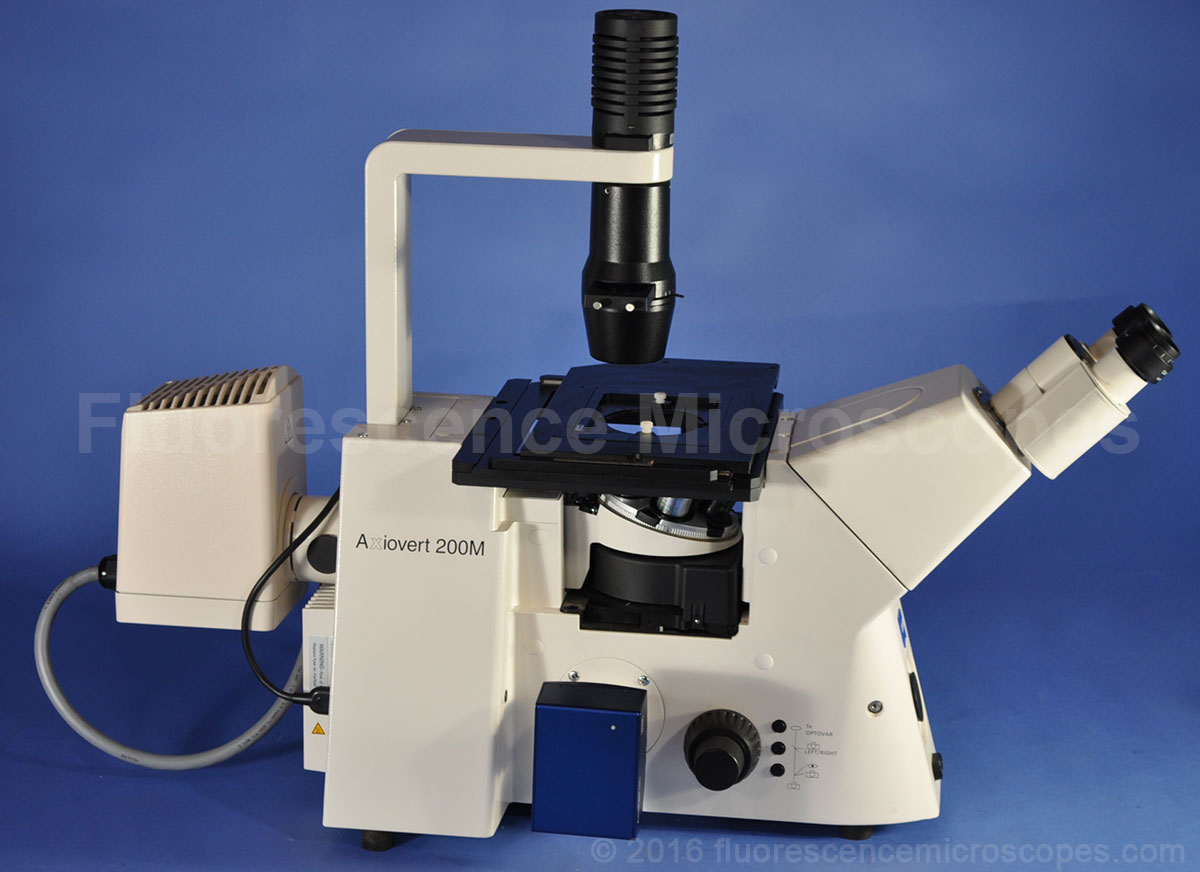

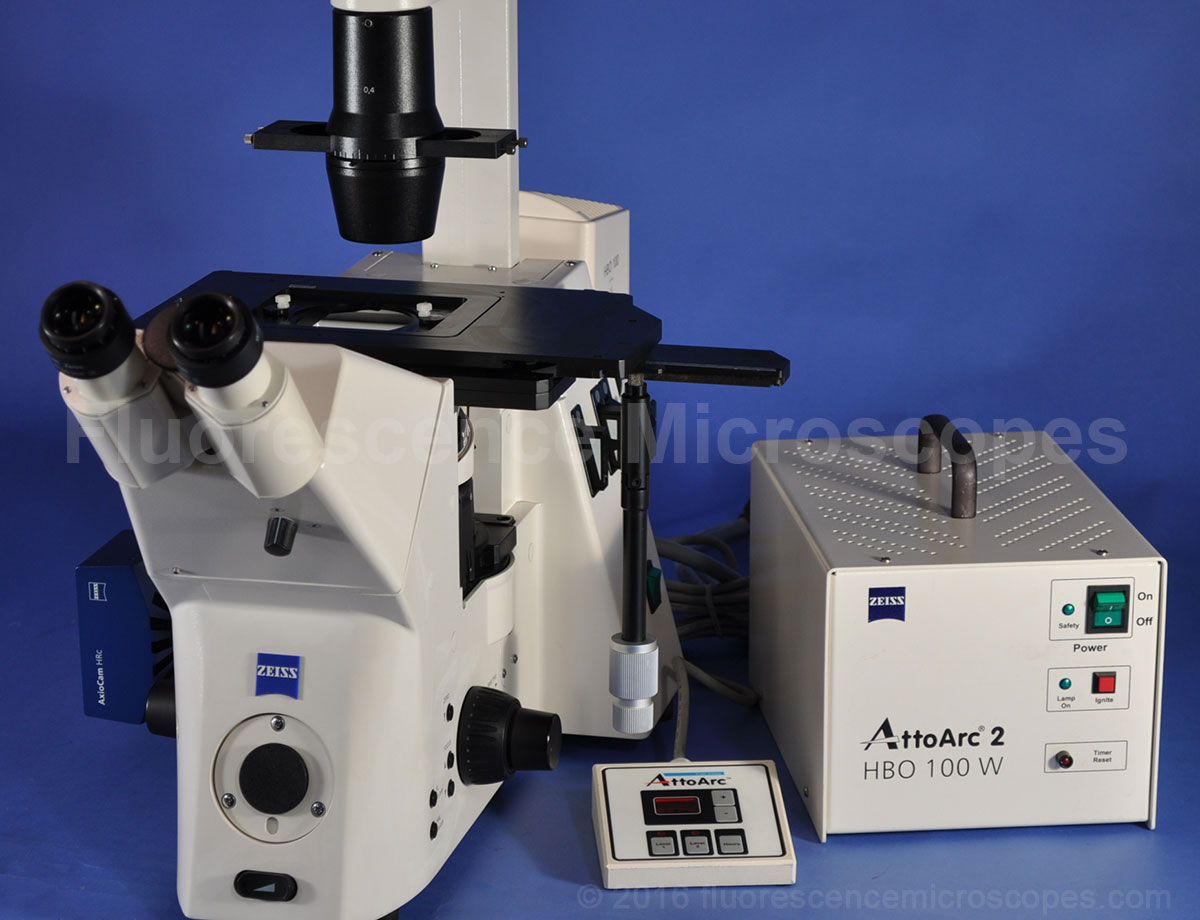

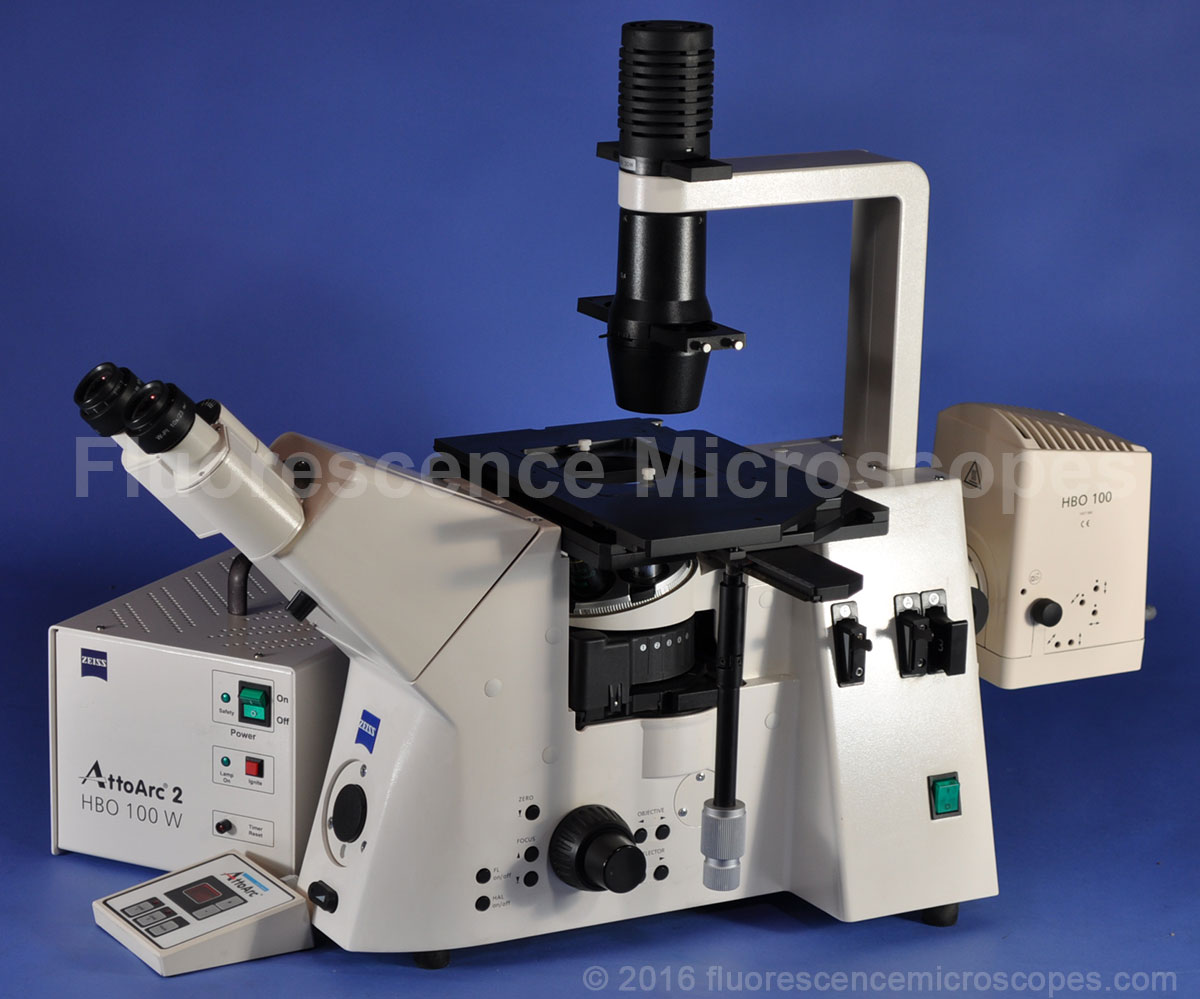

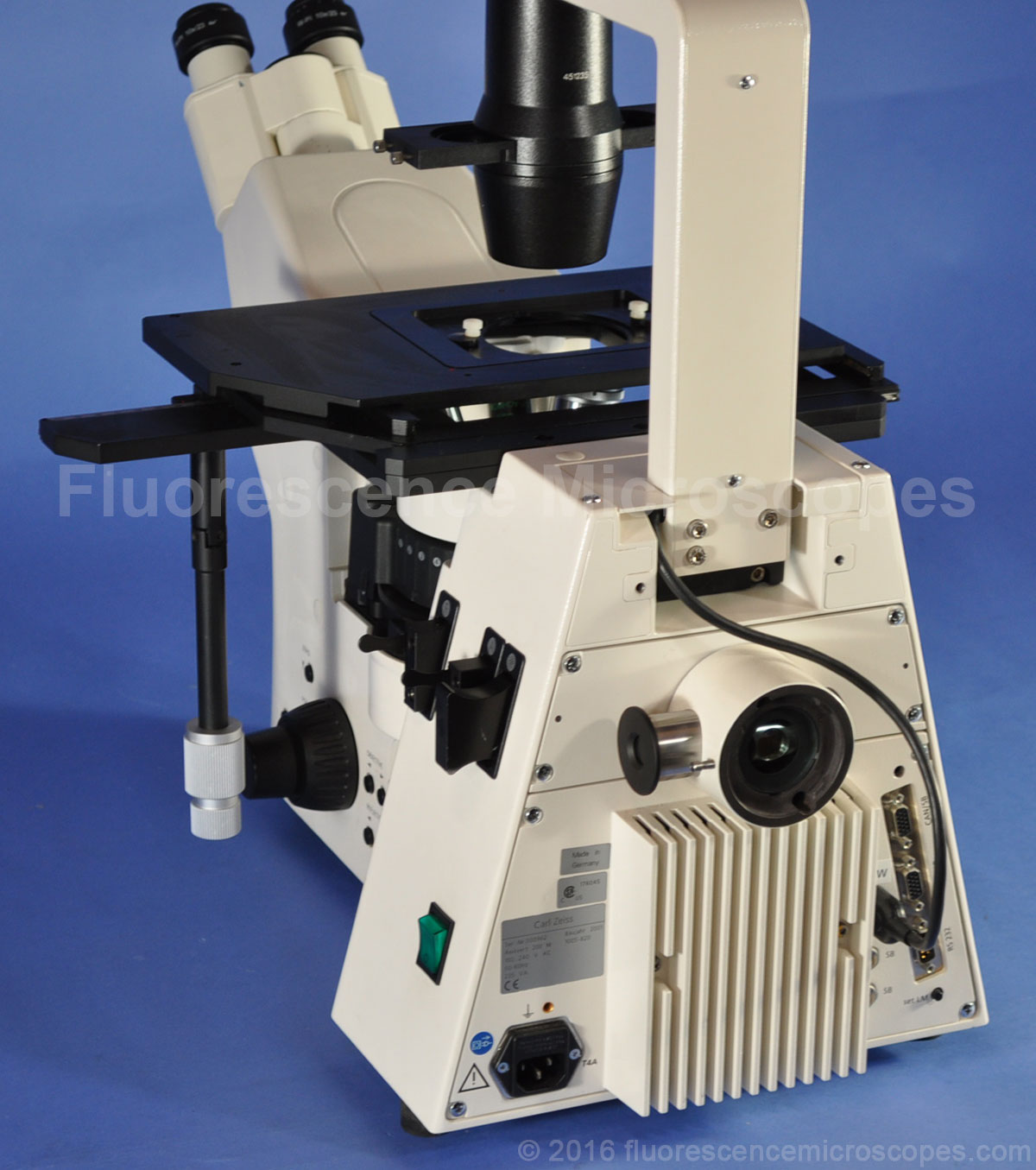

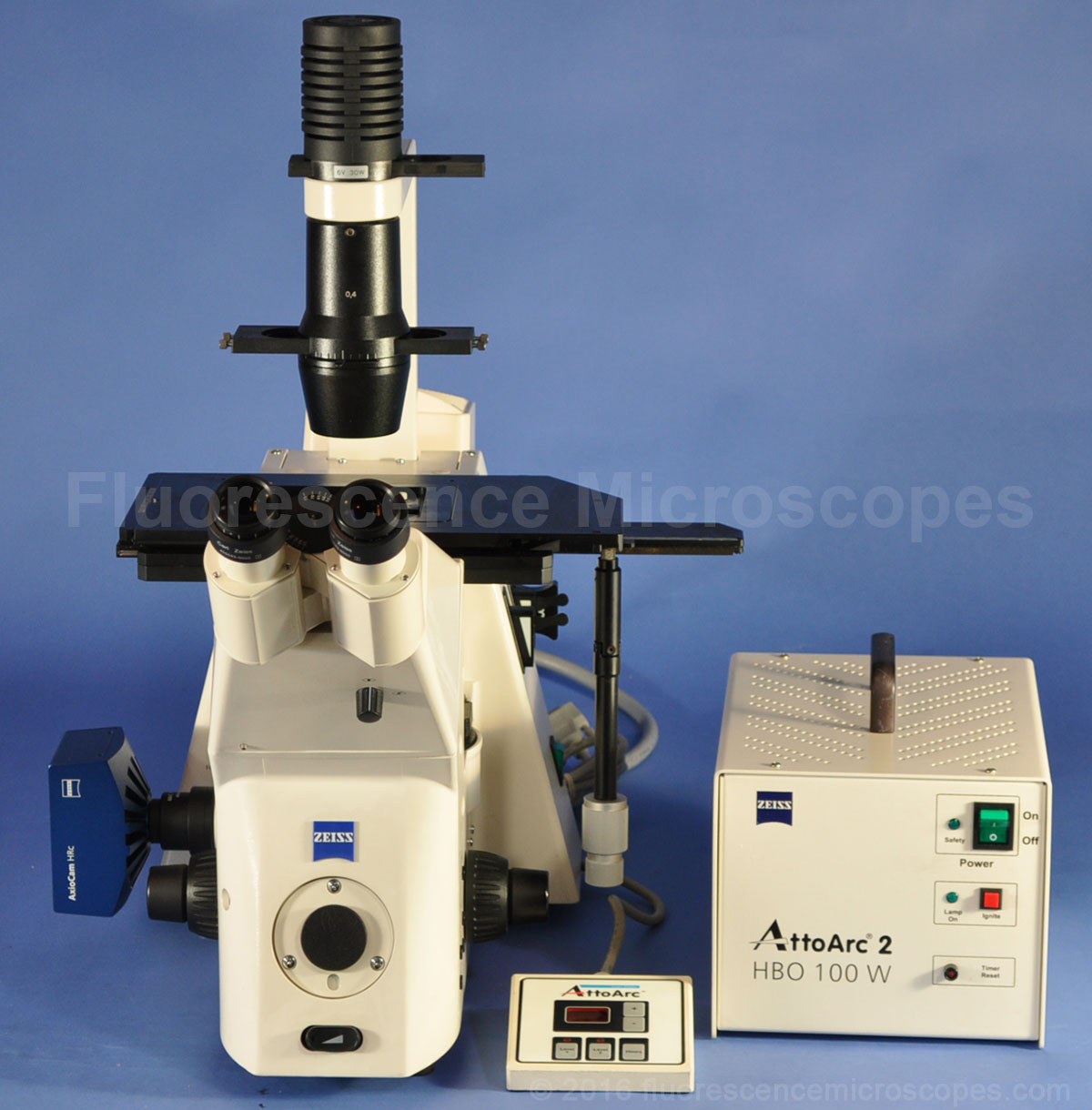

Zeiss Axiovert 200M Inverted Phase Contrast Fluorescence Microscope

USD $13,500.00


MODEL: AxioVert 200M
Shipping Cost: To be determined

Description Overview:

  • Motorization for easy control of many functions.
  • 100W HBO Illuminator.
  • Side Camera Port.

Photography System:

  • Left side port for attaching cameras.
  • Comes with a 1x c-mount adapter for the left side port.

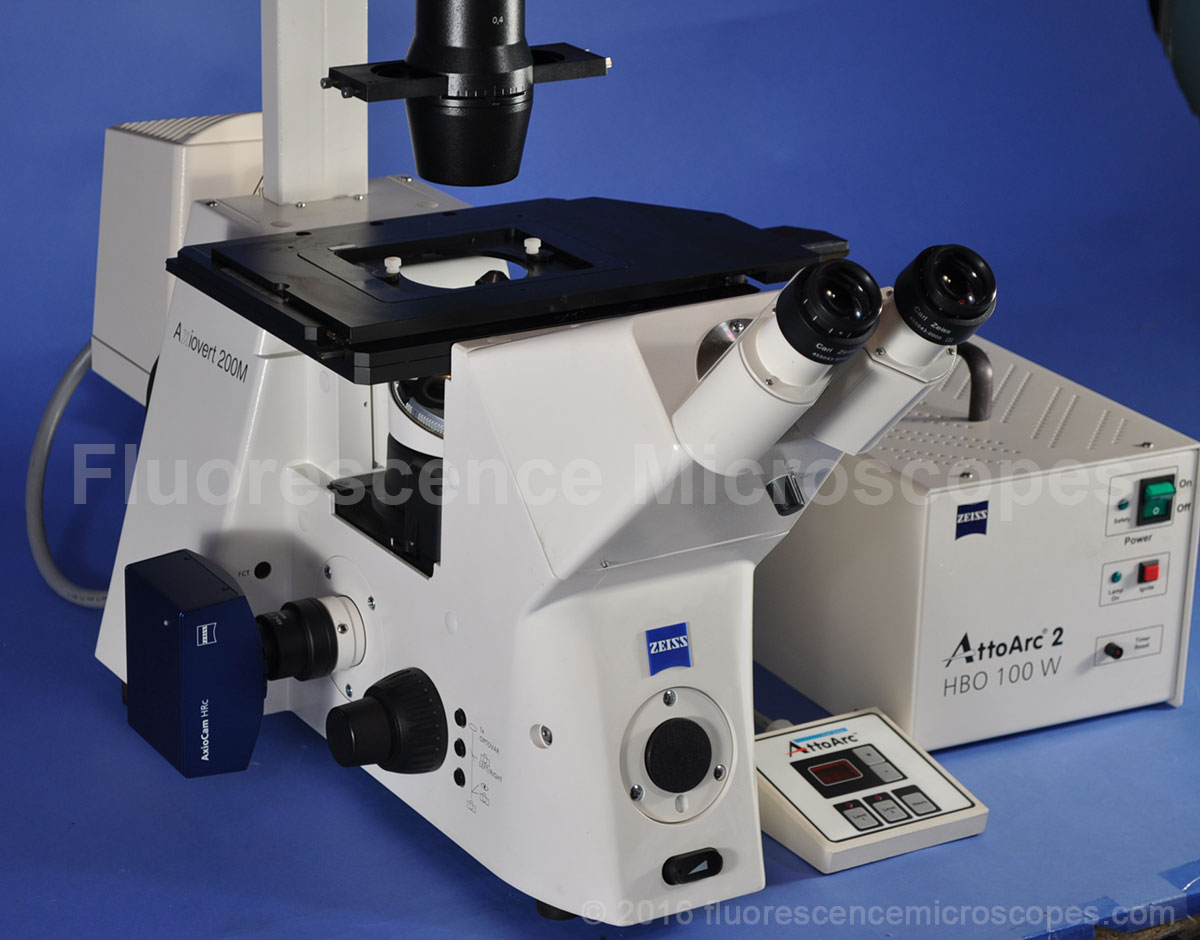

  • The photos show a Zeiss camera but this is only present to demonstrate the capability and how to connect a camera. It is not included.
  • This frame comes with the front photography port. This was a factory option and is not on many models. No camera mount has been included for the front port but it is capable of being added.
  • There are NO cameras included.
  • Pair of W-Pl 10x/23 high eyepoint eyepieces.

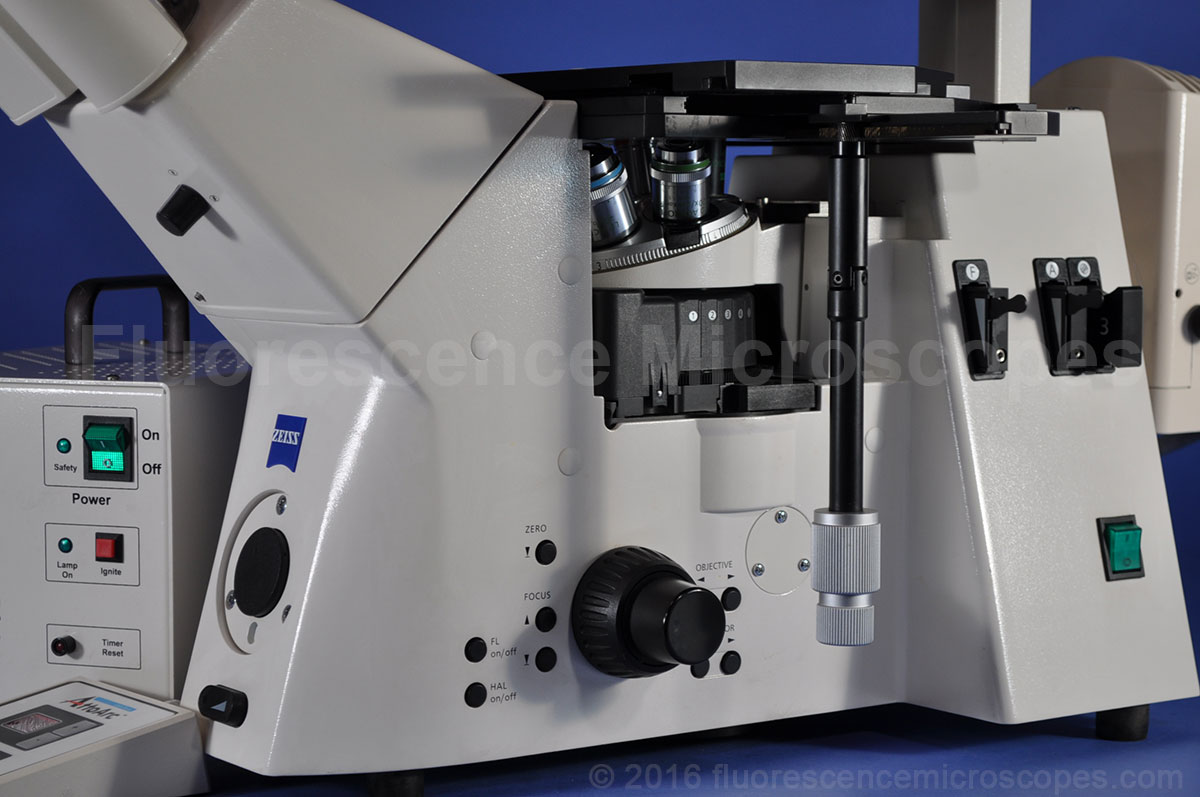

  • The following are motorized: focusing, objective nosepiece turret, reflector cube turret, fluorescence shutter, switch between upper and lower light.

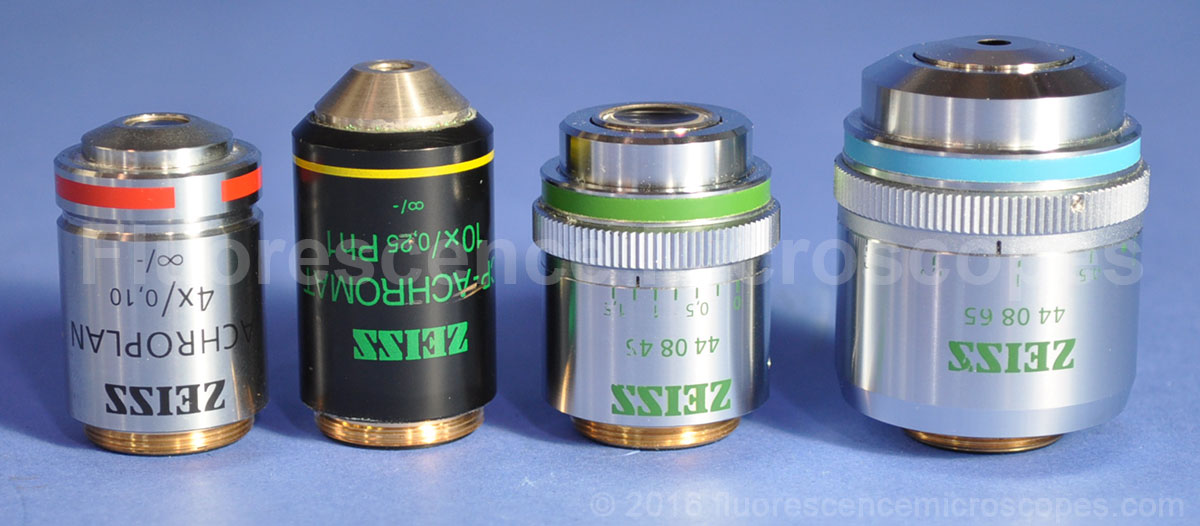

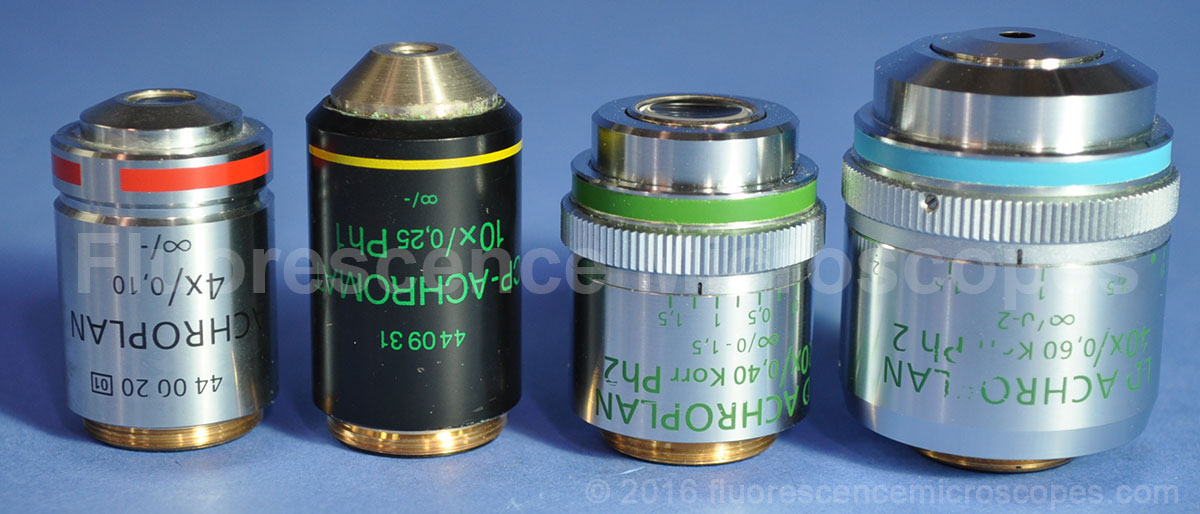

  • AchroPlan 4x/0.10. Infinity/-. Part number 440020. (not phase).
  • CP-Achromat 10x/0.25. Infinity/-. Ph1. Part number 440931.
  • LD AchroPlan 20x/0.40. Korr. Infinity/0-1.5. Ph2. Part number 440845. Phase
  • Contrast. Correction Collar.
  • LD AchroPlan 40x/0.60. Korr. Infinity/0-2. Ph2. Part number 440865. Phase Contrast. Correction Collar.
  • 6-Place Nosepiece. ?


  • 0.40 Numerical Aperature.
  • Condenser settings for H (brightfield), Ph1, and Ph2. Includes iris diaphragm.
  • Phase Contrast Slider with two phase settings: Ph1 – 0,4; Ph2 – 0.4.

General Specifications:

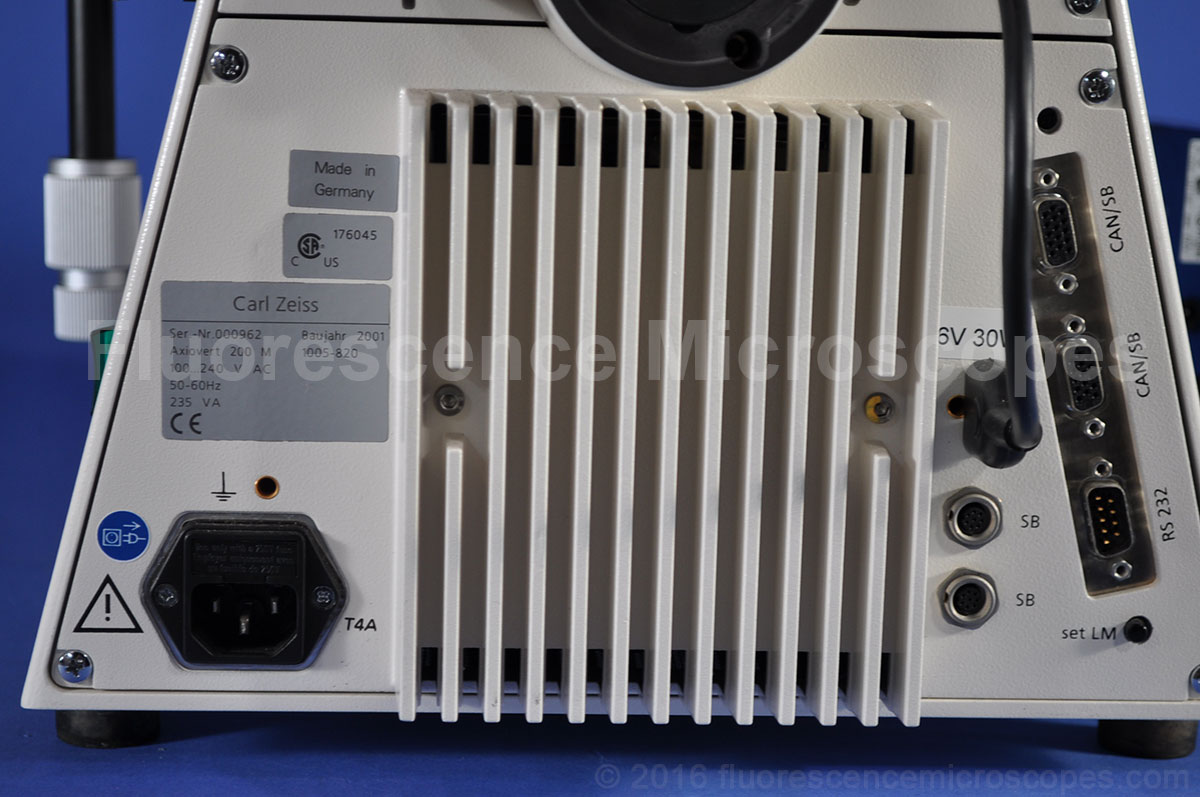

  • Made in Germany.

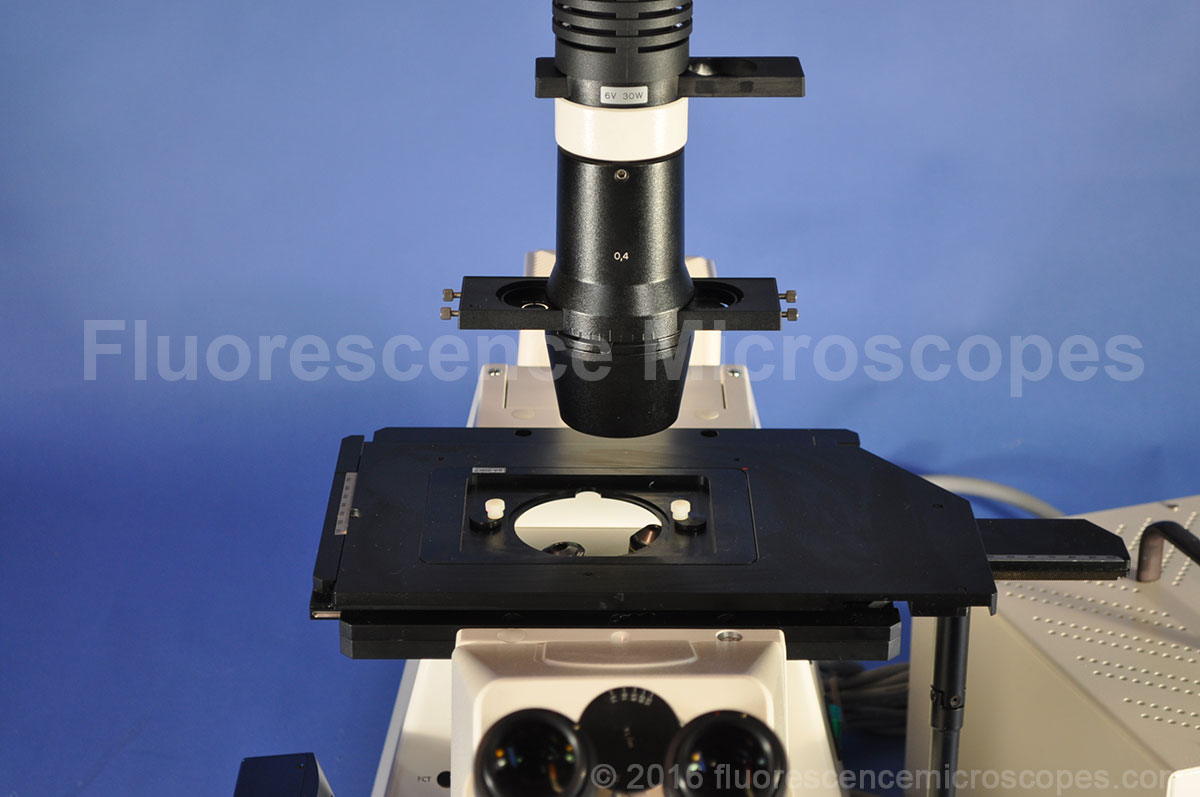

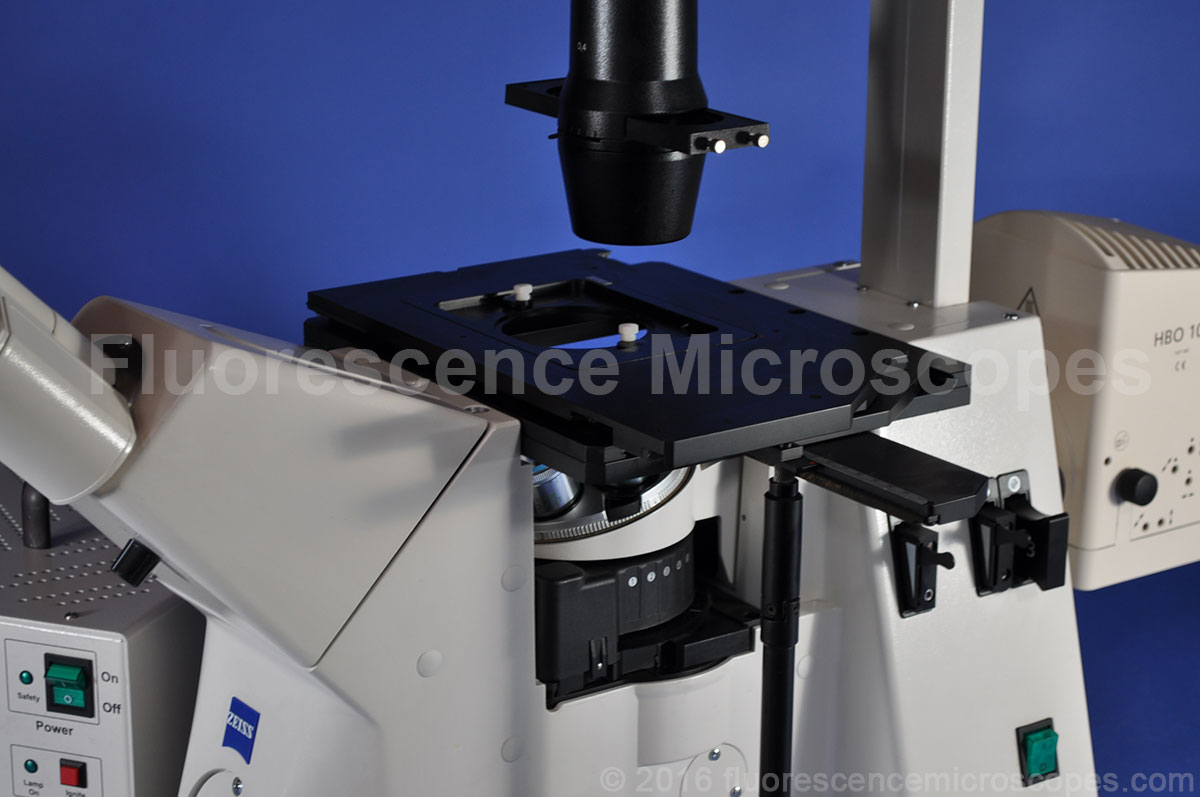

  • Mechanical Stage.

Fluorescent Light Details:

  • Filter Cubes:
  • DAPI. Zeiss Set 01. Band Pass Excitation 365/12. Zeiss Part#488001. (New).
  • FITC. Zeiss Set 10. Band Pass Excitation 450-490. Zeiss Part#488010. (New).
  • TRITC. Zeiss Set 15. Band Pass Excitation 546/12. Zeiss Part#488015. (Used
  • Condition with some signs of usage).
  • 6-place turret reflector.
  • HBO 100 Lamp Housing: Part 1007-980.

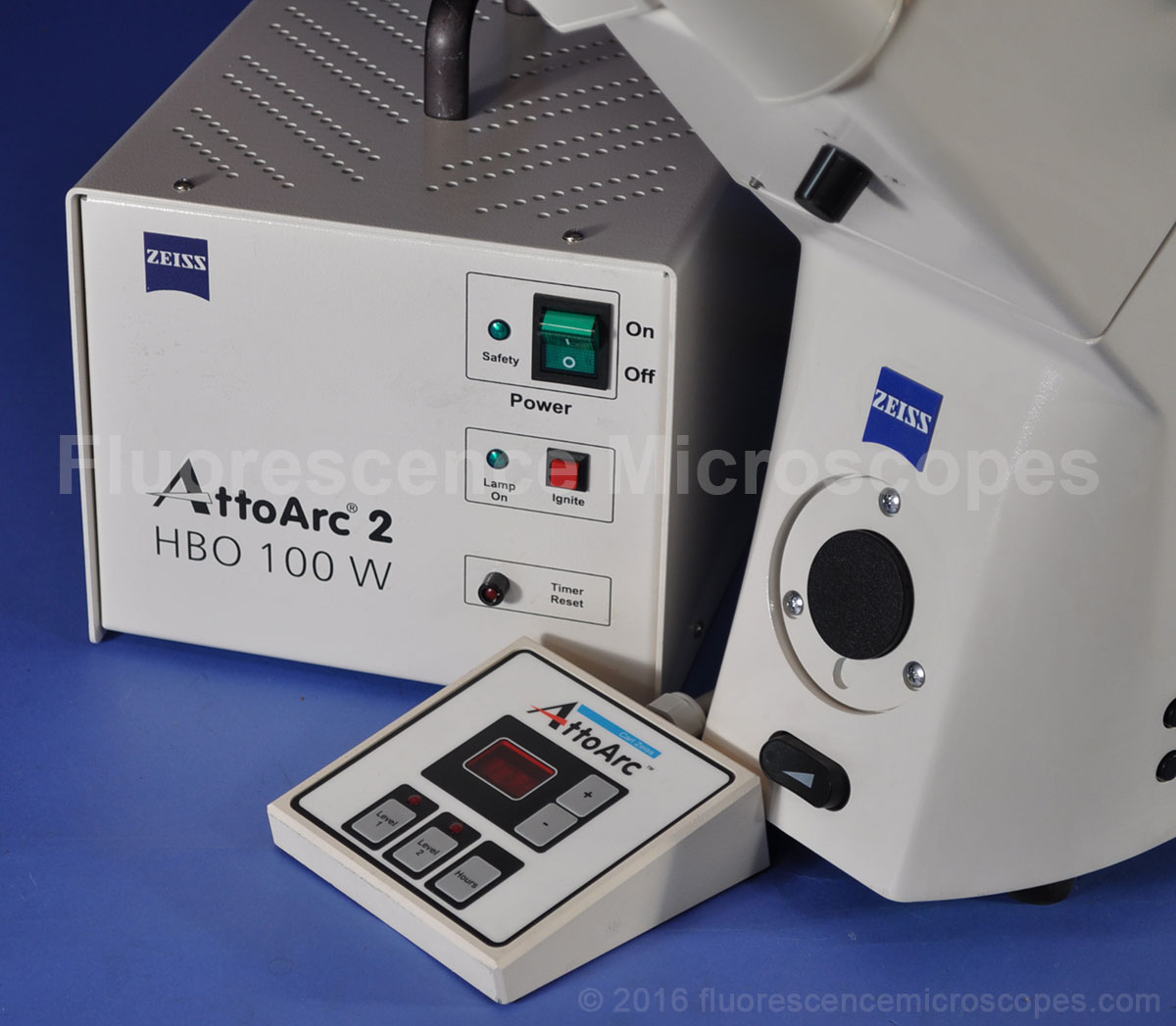

  • Power Supply: AttoArc-2, 100W HBO.
  • Keypad controller with variable Intensity.

Transmitted Illumination:

  • 6V-30W Halogen Illuminator.

Computer Connectivity:

  • The unit can be ran from a computer using Zeiss Axiovision software. The computer, control cables and software are not included.

General Notes:

  • Microscope is in good condition. We guarantee all functions work fine.


  • We will warrant this Microscope free from defects due to normal usage for a period of three months.

User Manual and Instructions:
click this link: Zeiss Axiovert 200 Brochure.pdf

click this link: Zeiss Axiovert 200 and 200M Operating Manual.pdf
