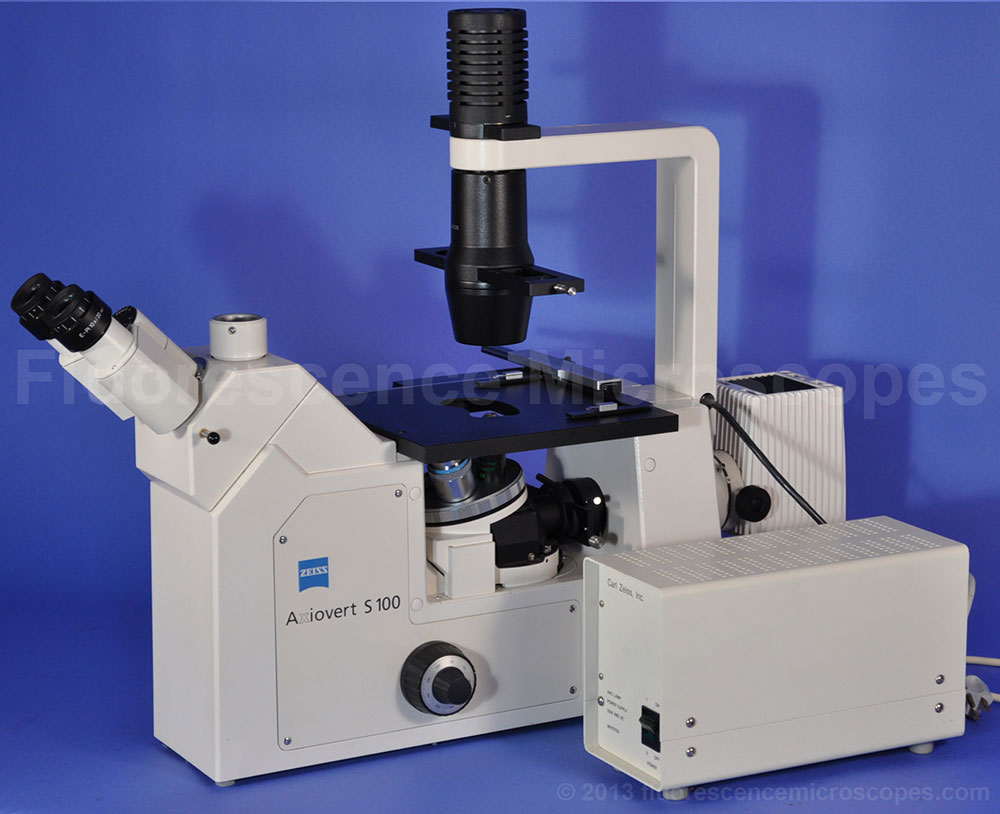

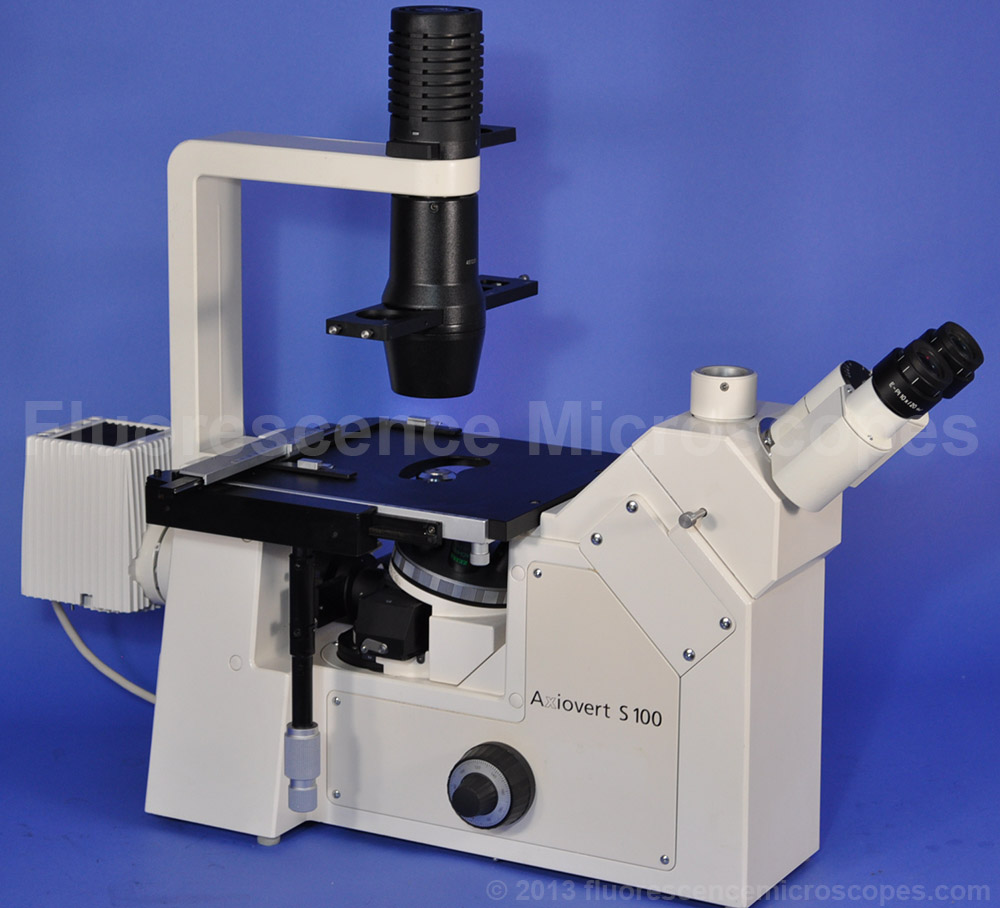

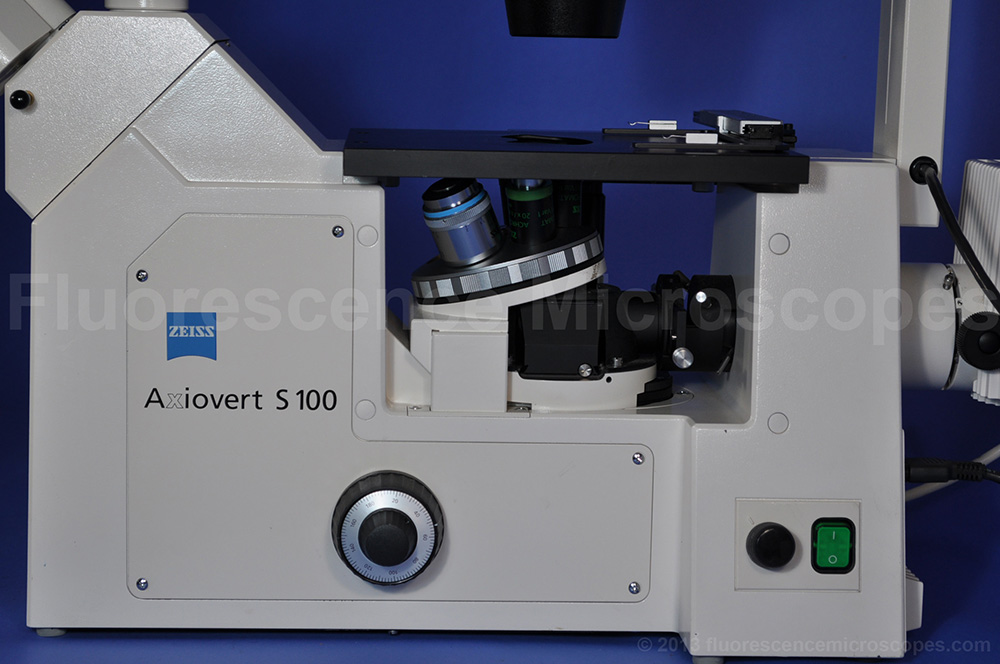

Carl Zeiss
AxioVert S100
Inverted Fluorescence
Phase Contrast
Trinocular Microscope

USD $5700.00

SOLD – BUT HAVE SIMILAR UNITS. PLEASE EMAIL US

MODEL: Carl Zeiss
ITEM CODE: 607
Shipping Cost: To be determined

Objectives:

  • 10X: CP-Achromat 10x/0.25, Infinity/-, Ph1 Var1. (Phase contrast objective)
  • 20X: L.D. AchroStigmat 20x/0.30, Infinity/0-2, Ph1 Var1. (phase contrast, long working distance)
  • 32X: L.D. AchroStigmat 32x/0.40, Infinity/0.5-1.5, Ph1. Part# 44 01 49. (Phase contrast, long working distance)
  • 40X: LD AchroPlan 40x/0.60 Korr, Infinity/0-2. Zeiss Part#44 08 64. Correction Collar 0-2mm. (long working distance)

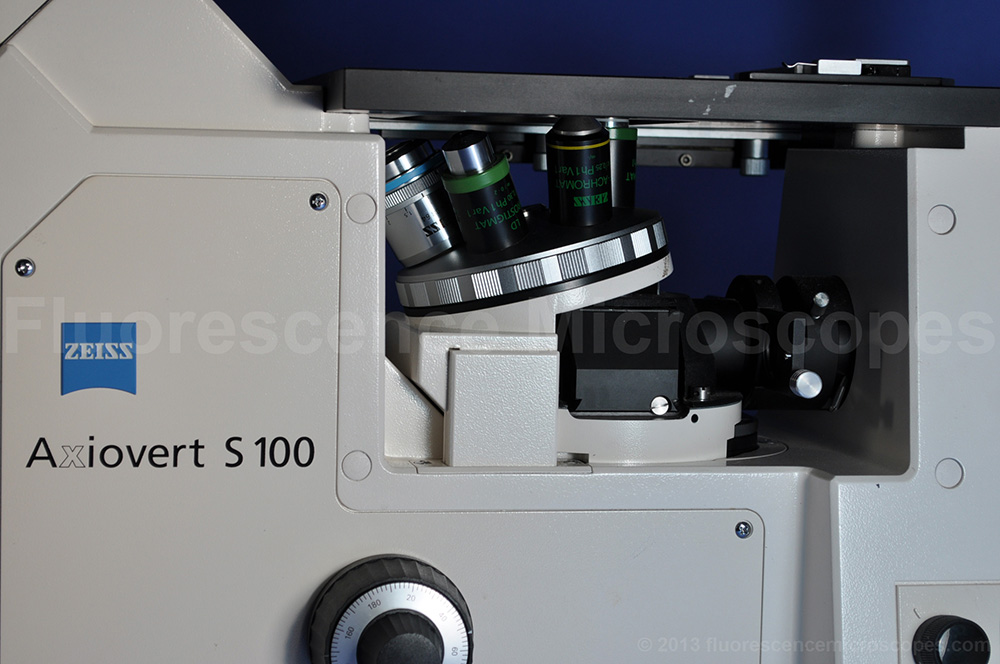

Sextuple Objective Nosepiece (6-place). Empty space for two more objectives.

Fluorescent System:

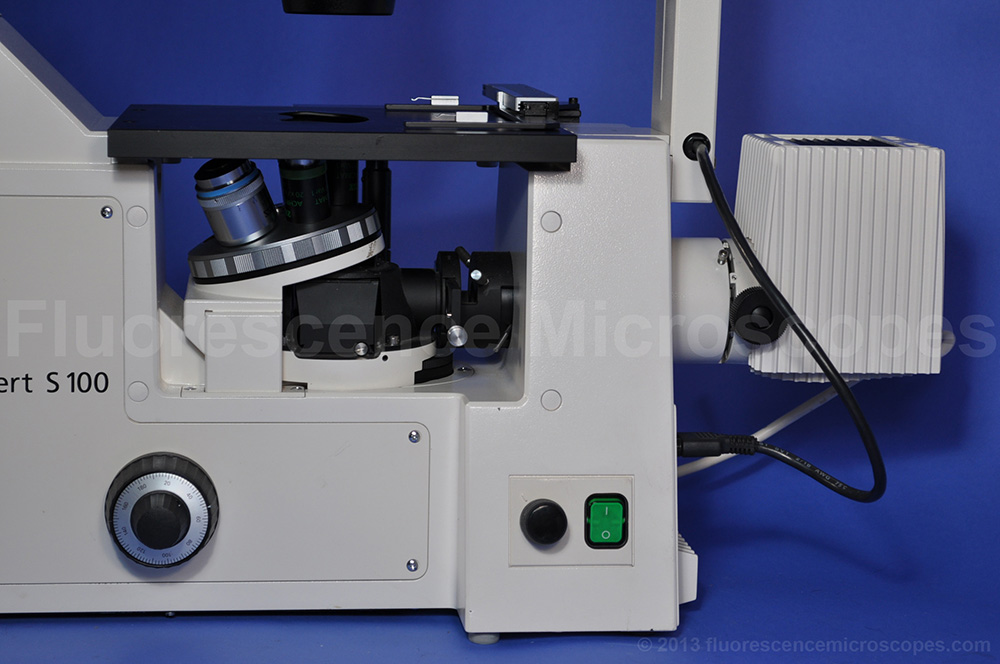

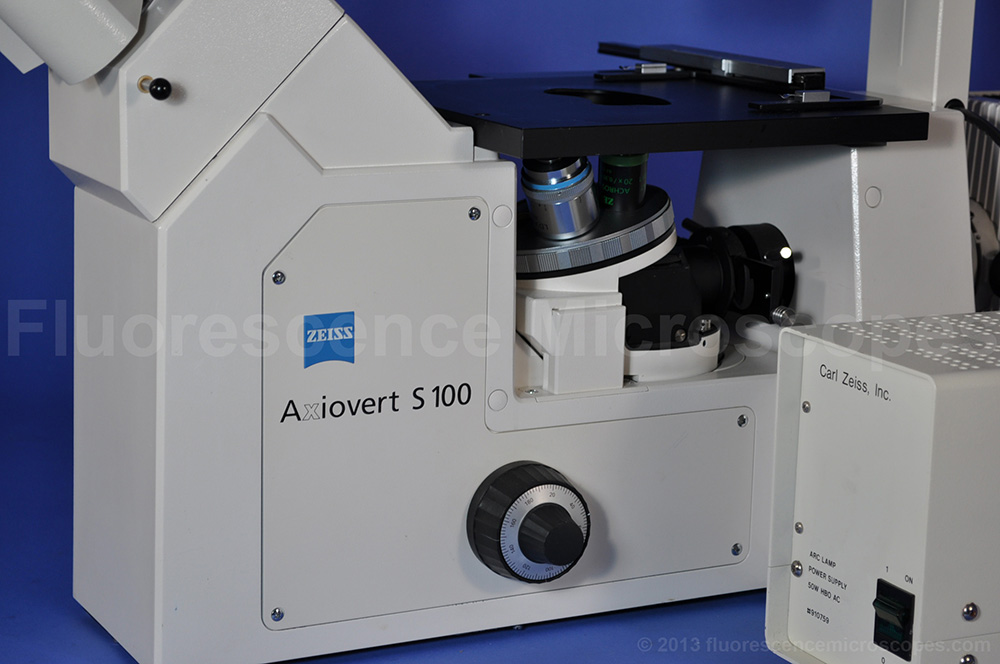

  • 50W HBO Zeiss Arc Lamp Power Supply.
  • Lamp Housing, rear mounted, for 50W HBO bulb. Part#447216.
  • Includes Mercury Arc 50W bulb.
  • Filter Cube Slider Model 3FL #451366 – Three positions available.
  • Position I: Blank for brightfield/phase.
  • Dichroic Filter Cube – Position II: Excitation HQ405/20 X 19589. Emissions HQ435 LP M !7344.
  • Dichroic Filter Cube – Position III: Excitation HQ480/20 X 36663. Emissions HQ510/20 M 36699.
  • Other filters can be installed as needed. We are a dealer for Omega filters.

Phase Contrast System:
Phase Slider with these three settings: Ph1-0.4 / Var1-0.4 / Filter (for brightfield).

The brightfield filter looks like a polarizing lens. Any filter could be inserted here.

General Features:

  • Inverted objectives – useful for observation of tissue culture specimen through the bottom of a glass or plastic petri dish.

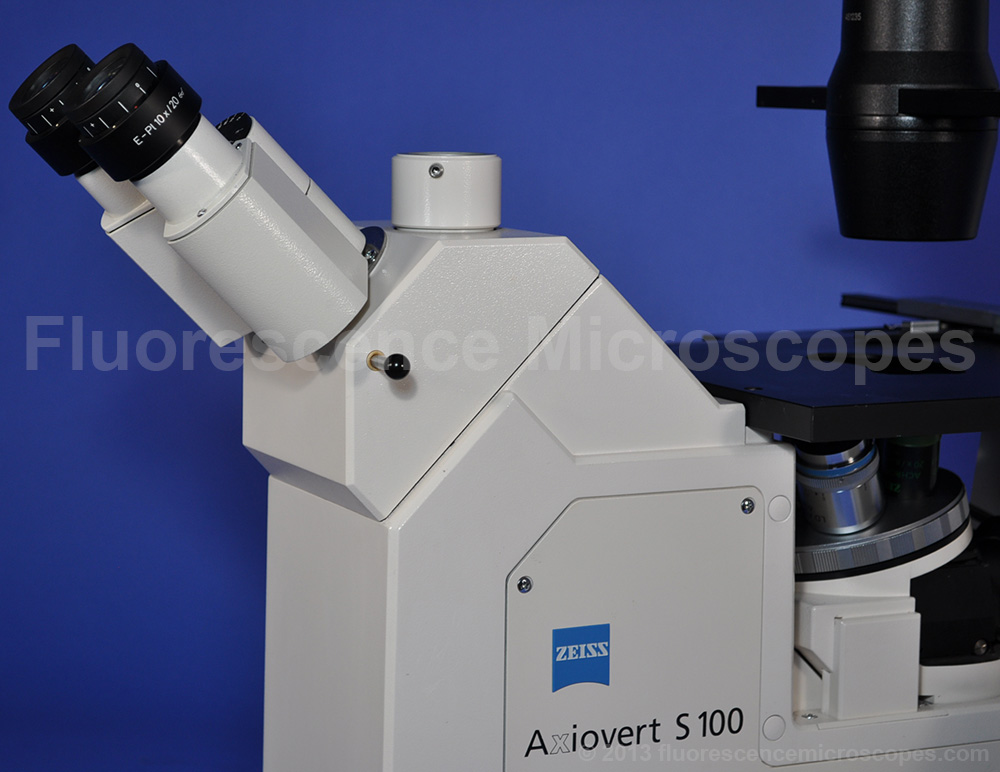

  • Trinocular head capable of attaching USB Digital cameras, CCD video cameras, etc, with the correct matching camera adapters (adapters not included).
  • Viewing Eyepiece Pair: E-Pl 10x/20 with high eyepoint (acceptable for eyeglasses). Both with diopter adjustments.

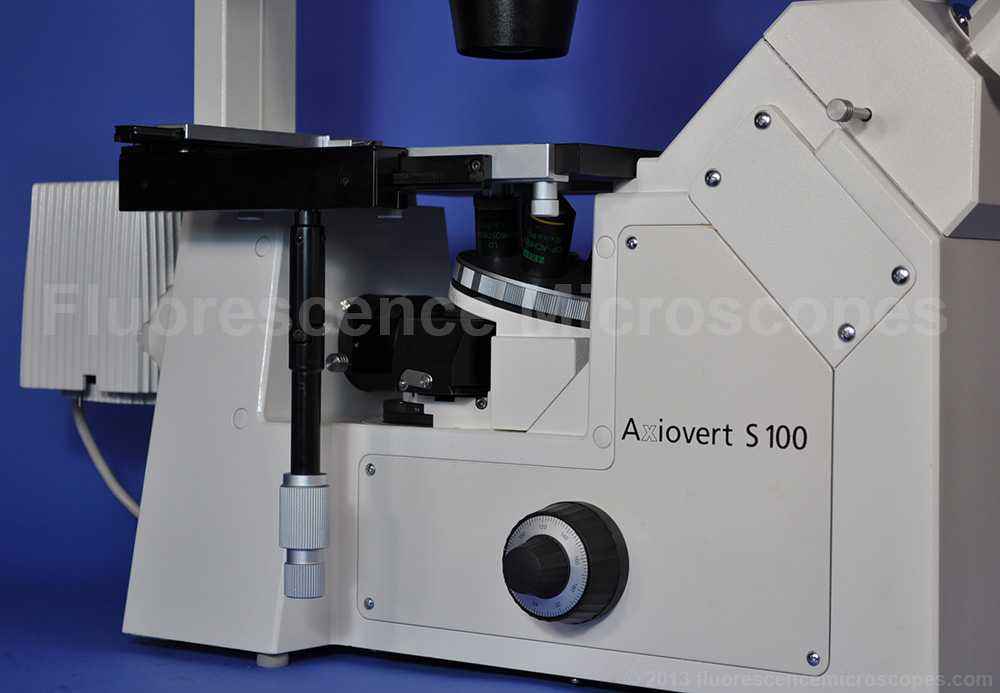

  • XY stage slider movement with low position controller on left side.

Transmitted Illumination:

  • Bulb type: 12V-100W.
  • Filter slider above phase slider. Has two empty filter openings.
  • Iris diaphragm.

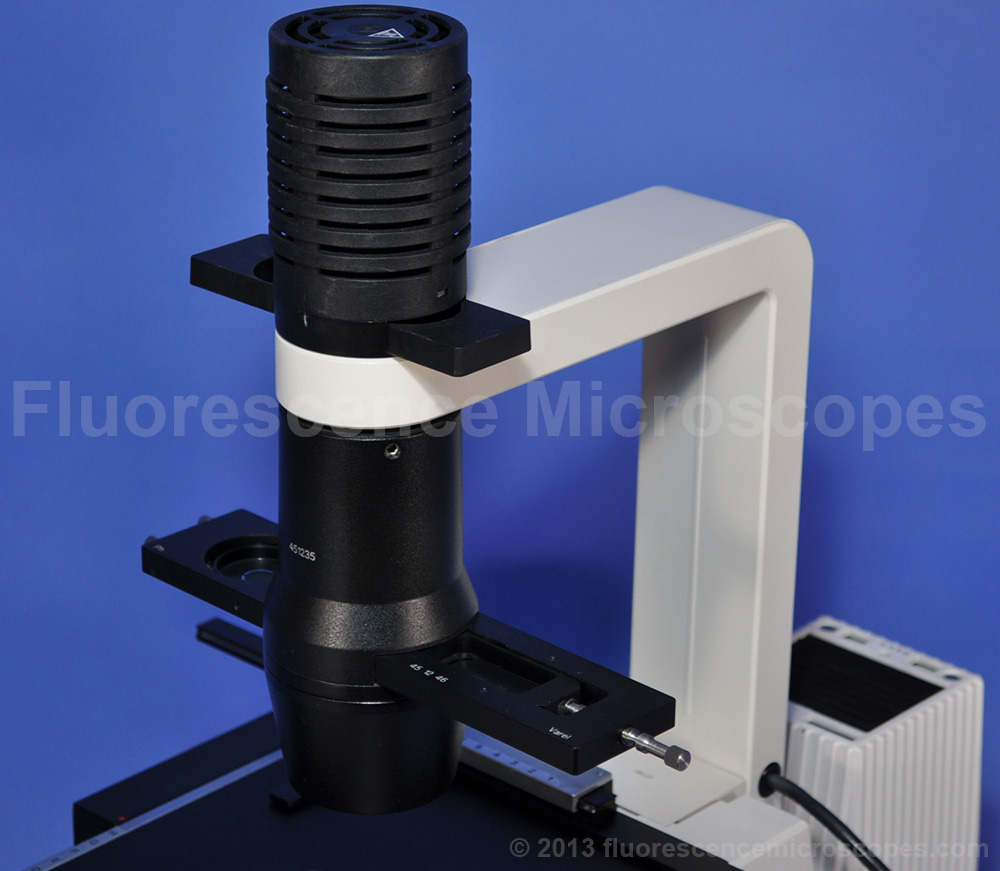

  • Light Condenser with 0.4 numerical aperature. Model #451235.

115V/230V. Selectable Voltage.

Condition:

This is a reconditioned microscope and is in good working condition.

User Manual and Instructions:
Click this link: Zeiss Axiovert 100 and 135 and 135M Microscope Manual
Click this link: LEP Mercury 50W Lamp Power Supply Manual
