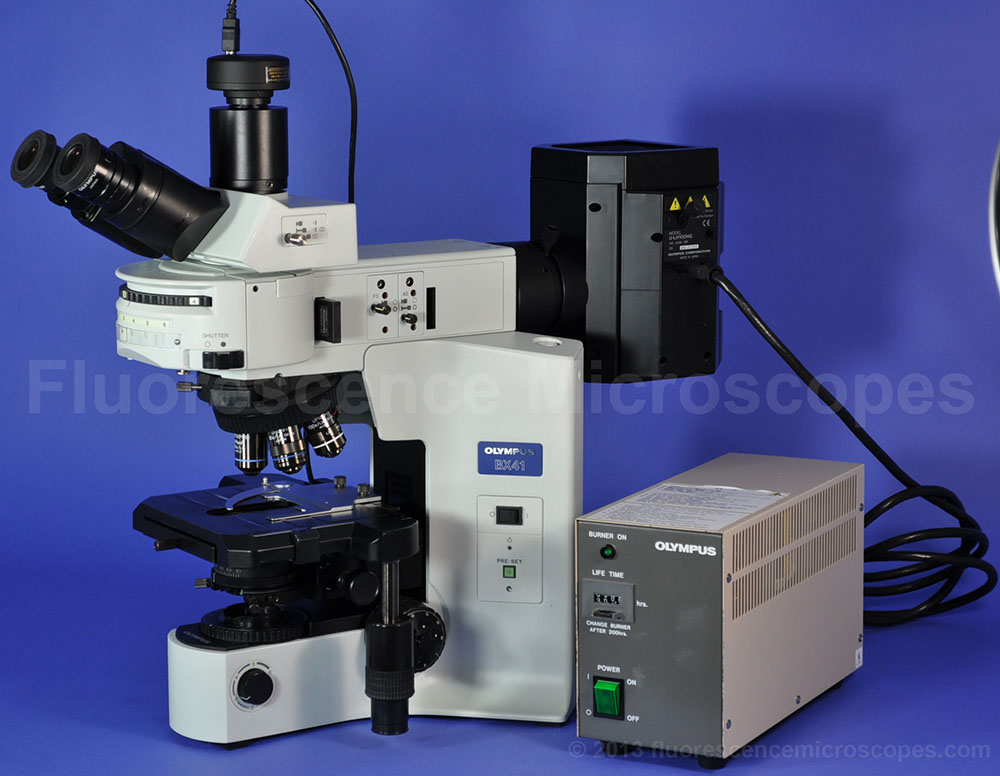

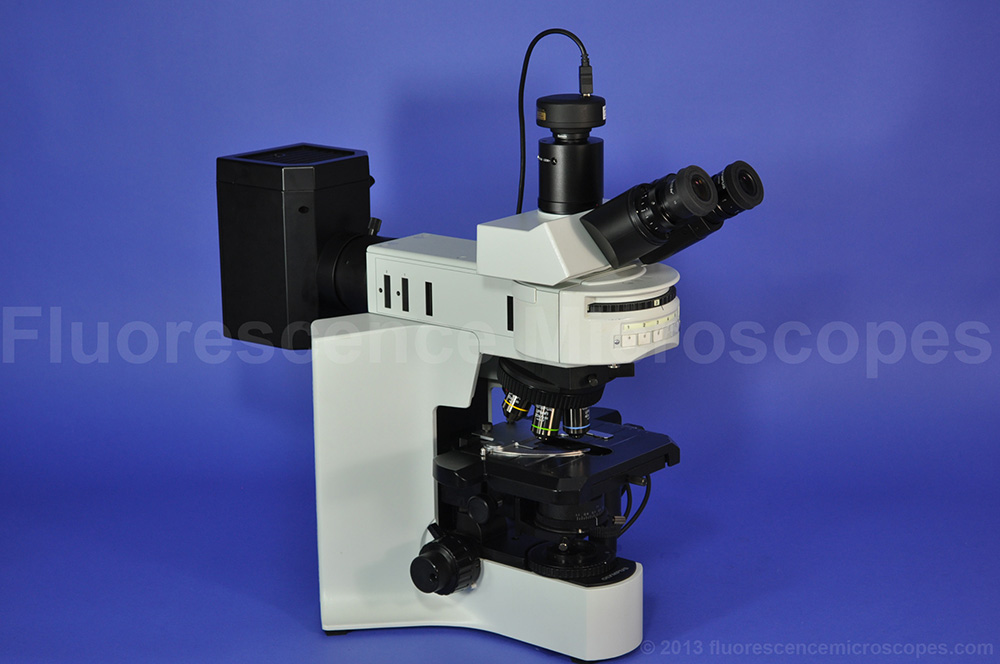

Olympus Model BX41
Fluorescence Microscope
Set of UplanFl Objectives

USD $13,500

MODEL: Olympus BX41
Shipping Cost: To be determined

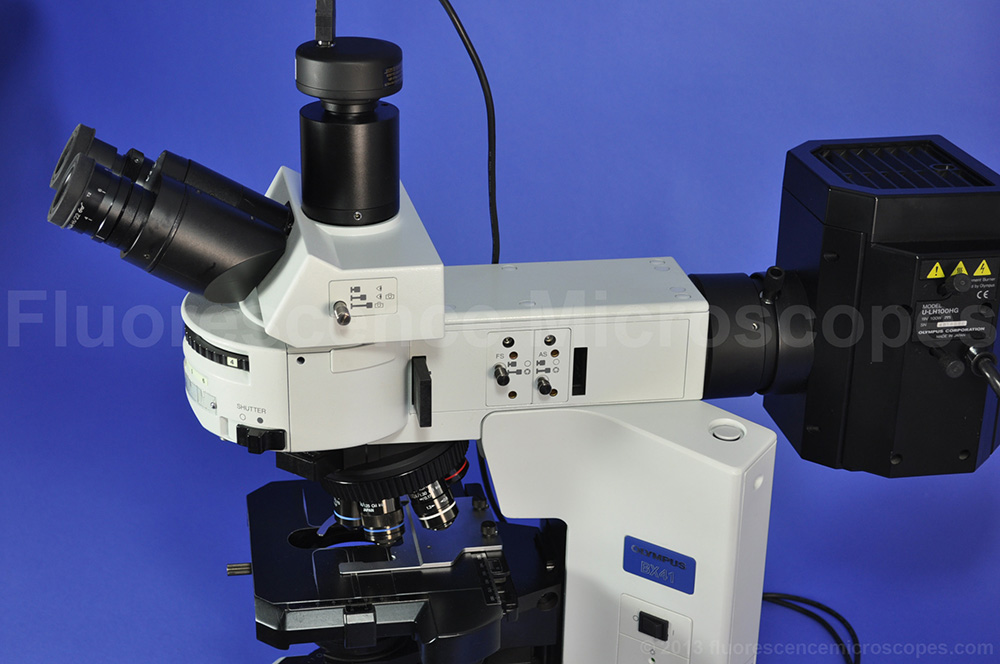

Trinocular Photography Port:

  • U-TR-30-2: Trinocular Head with three positions: all light to eyepieces, all light to camera, or split.
  • Has port to attach optional digital USB camera equipment.

Special Features:

  • Fluorescence Vertical Illuminator for Reflected Light.
  • Halogen Bottom Illuminator for Transmitted Light.
  • Low Postion XY stage moment for Right Hand Operation.

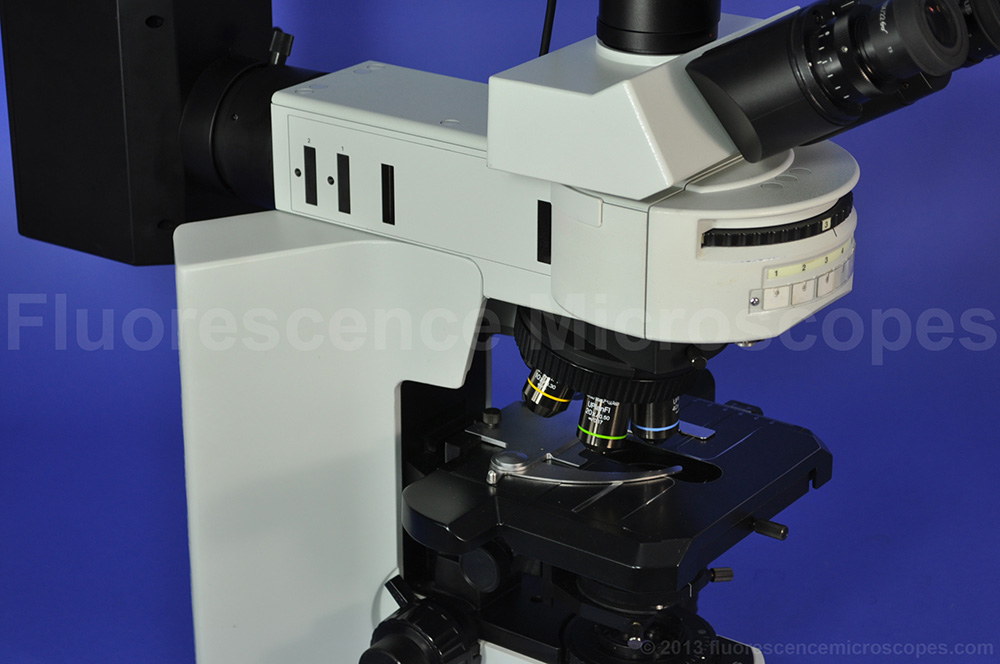

  • U-D6RE: Sextuple 6-Place Nosepiece.
  • Slot in Nosepiece for adding optional sliders.
  • U-25ND6 Neutral Density Filter Slider (Vertical Illumination Light Path).

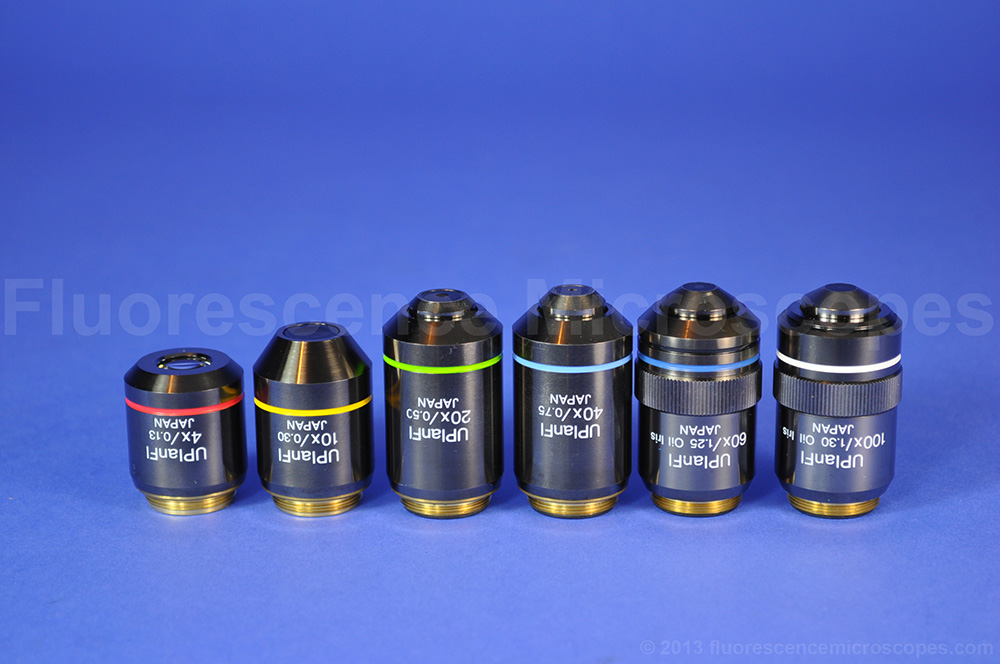

Objective Lenses: (All marked Olympus Japan)

  • UPlanFl 4x/0.13 Infinity /-
  • UPlanFl 10x/0.30 Infinity /-
  • UPlanFl 20x/0.50 Infinity /0.17
  • UPlanFl 40x/0.75 Infinity /0.17
  • UPlanFl 60x/1.25 Oil Immersion, Infinity /0.17, Iris Diaphragm.
  • UPlanFl 100x/1.30 Oil Immersion, Infinity /0.17, Iris Diaphragm.

Total Power of Magnifications in Eyepieces: 40x, 100x, 200x, 400x, 600x, 1000x.

Fluorescence Filter Cubes:

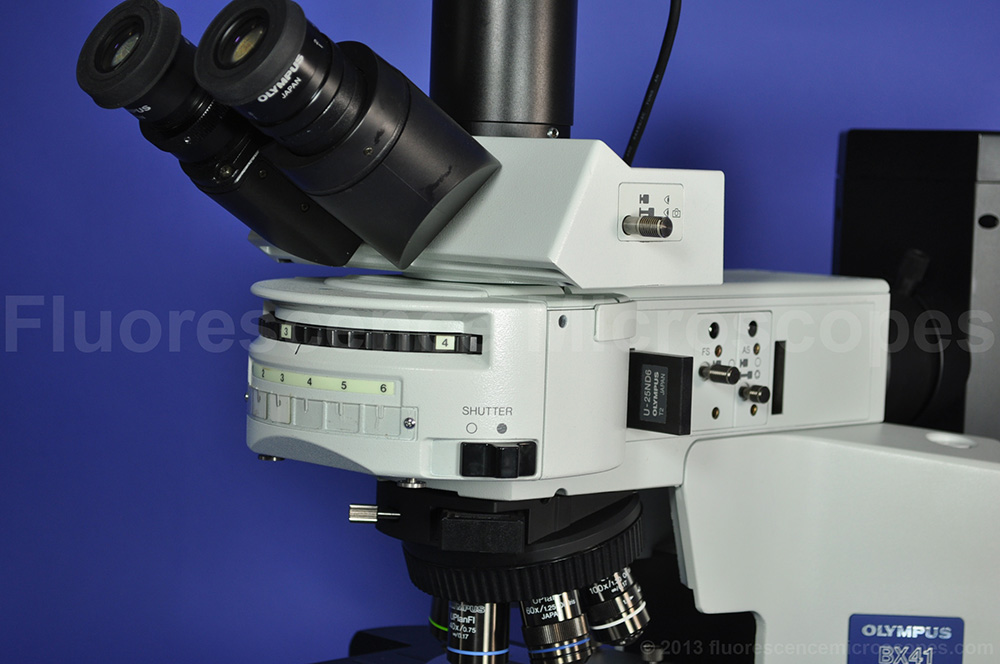

Rotating Turret Holder with places for Six cubes.

We have refurbished this equipment and included the following brand new dichroic filter cube sets.

Click this link for more information.
Refurbished with brand new Omega filters

General Features:

Frame Model: Olympus BX41TF, Made in Japan.

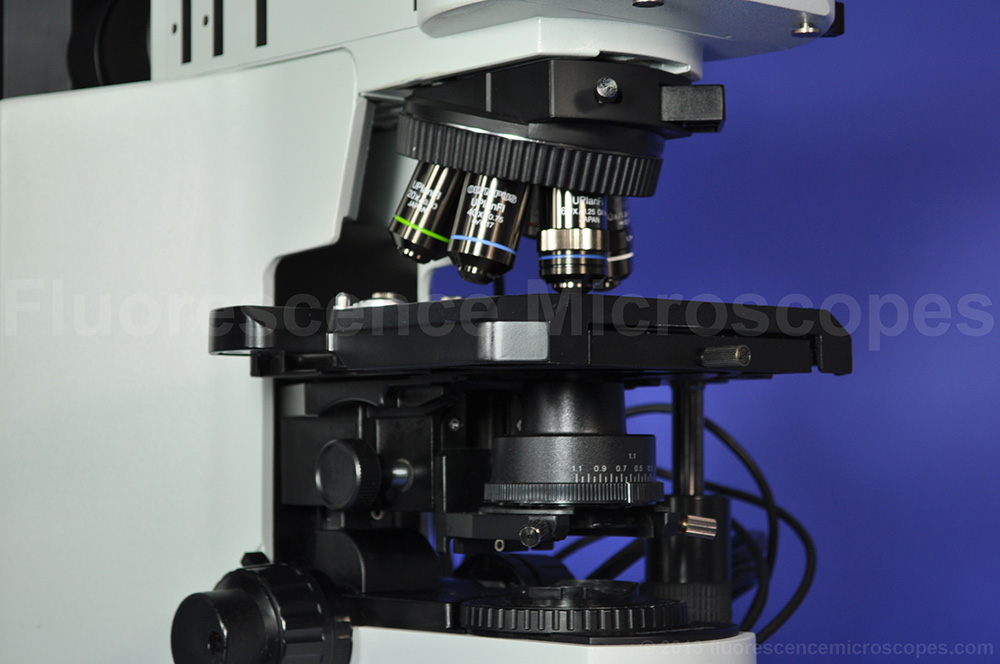

Stage Model: U-SVRO.

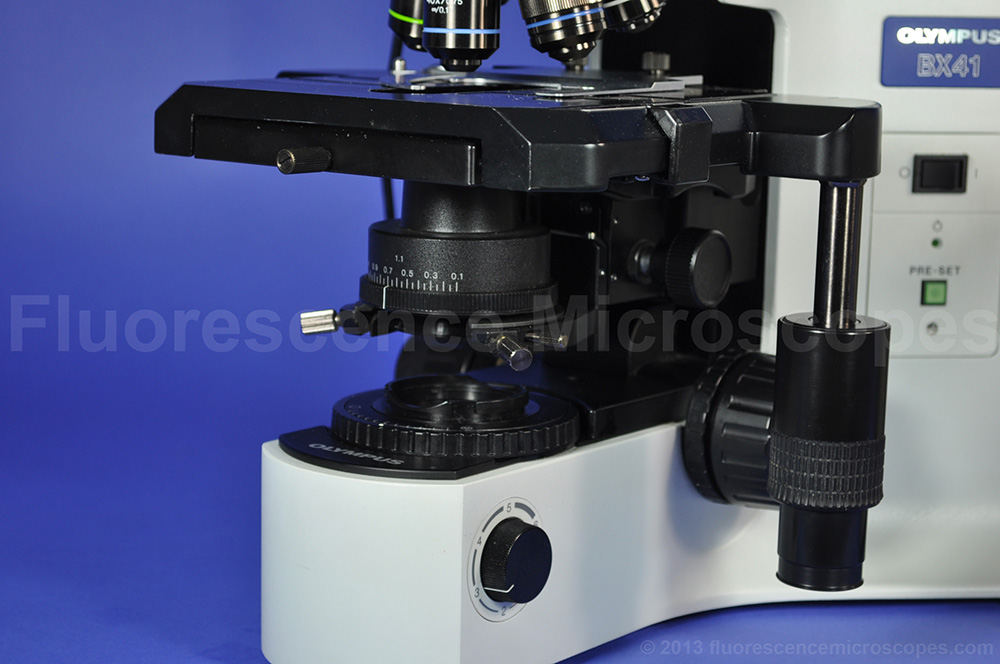

  • Substage Light Condenser Model: U-AC2.
  • WH 10X/22. Widefield High Eyepoint (can use eyeglasses when viewing) Eyepieces. Field of view 22mm.

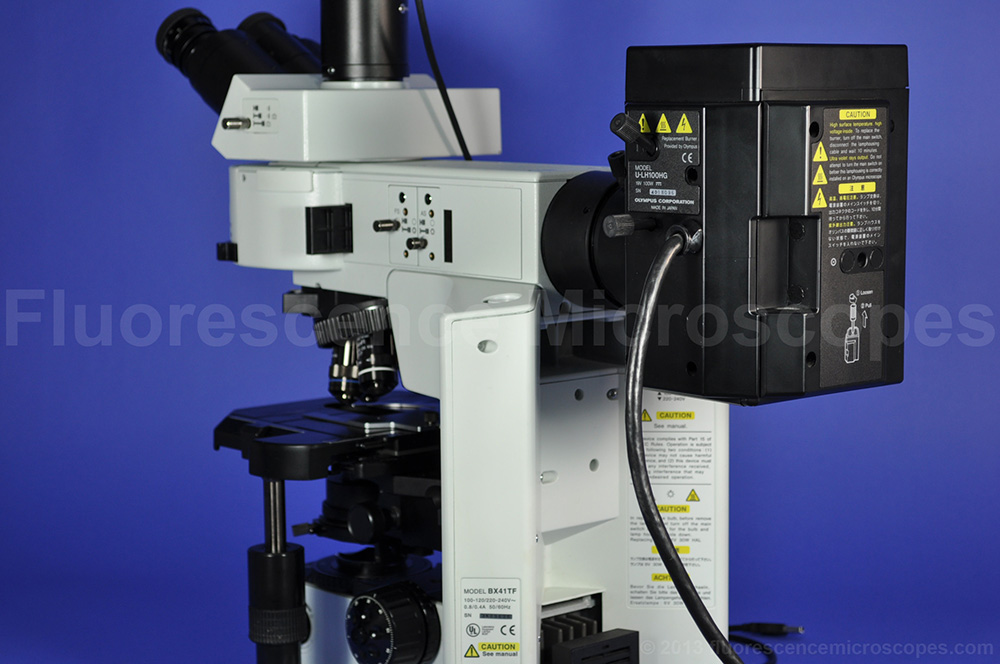

  • U-LH100HG: 100 Watt High Pressure Mercury Arc Lamp Housing.
  • Mercury Bulb 100W Power Supply: BH2-RFL-T3 (100-120V).
  • U-LS30: 12 Volt, 30 Watt Quartz Halogen Lamp Housing.
  • 100-120V/220-240V, 50/60 Hz.
  • Power Cord. This is supplied but not shown in the images.


This is a reconditioned microscope and is in excellent working condition.

User Manual and Instructions:
Click this link: Olympus BX41 Microscope Manual
Click this link: Olympus RFS Reflected Fluorescence System Microscope Manual BX51

Optional Accessories:

Need a high sensitivity camera for good fluorescence imaging? Click here for details. No camera is included, however, we can provide.

Payment Method:

We generally accept purchase orders from government, educational, and industrial facilities. For some orders, we accept credit cards. We also accept bank wire (telegraphic transfers) transfers. Contact us for details.

Shipping Costs:

Shipping costs vary. Please contact us and we will review your location and the cost to ship.

Money Back Guarantee:

We guarantee you will be satisfied with your purchase. If in the unlikely event you are not satisfied and want to return your item, please contact us within 10 days of receiving it. We will then arrange to get you an RMA number and details about how to return it. Shipping costs are non-refundable. We have no restocking fees. We will refund the full price of the equipment.


We warranty all our reconditioned products to be in good working order. We will repair or replace equipment at no charge, during our 90 day warranty period. We have a one year warranty period for labor.

Beware of counterfeit fake parts:

Be sure of who you are buying from as a lot of “used dealers” are selling counterfeit parts, passing them off as originals.

Click this link.
All Original Parts – Not Counterfeit


UV light and Mercury Bulbs are Dangerous! YOU MUST Read BEFORE purchasing!

Click this link.
Safety with UV Light
