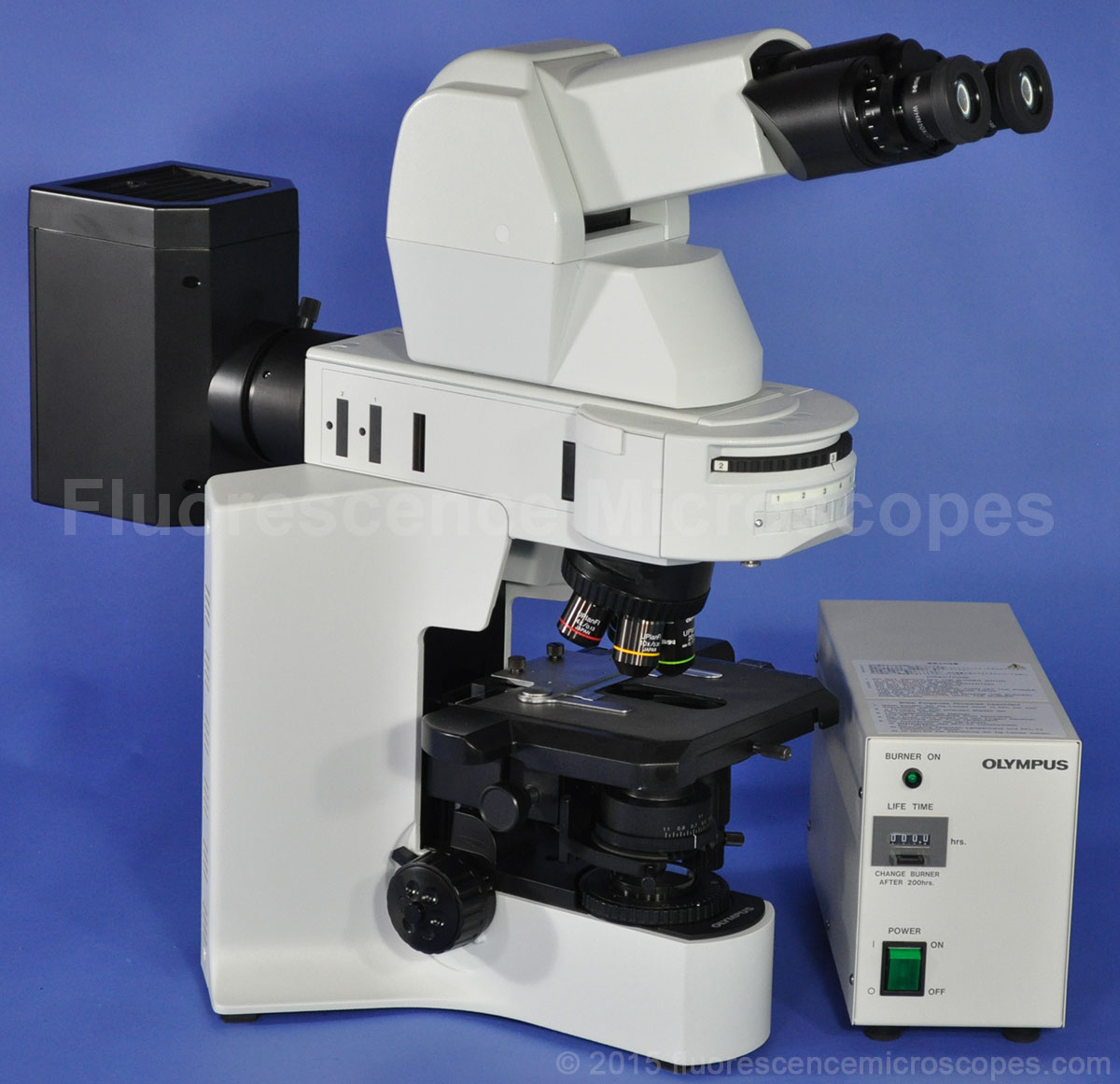

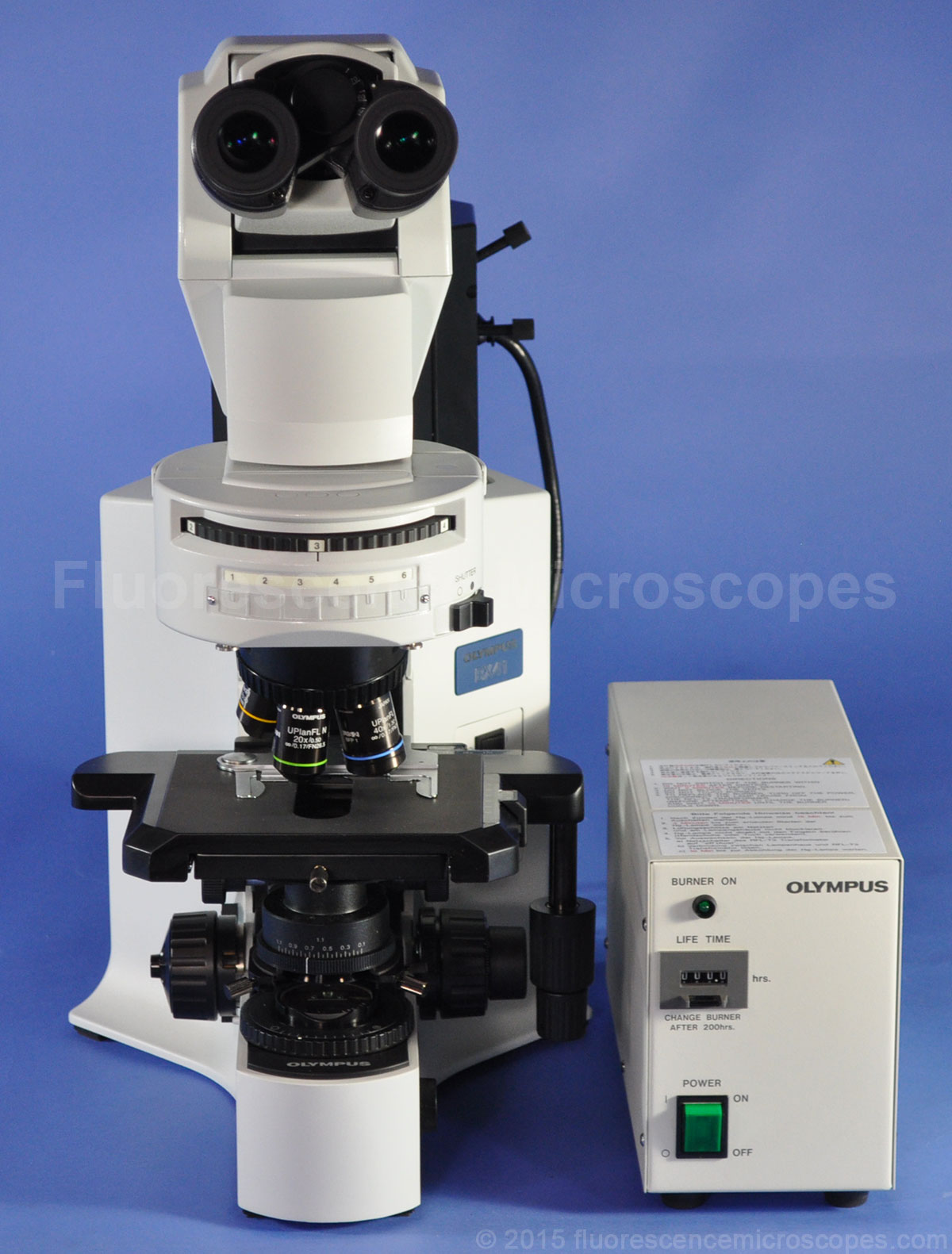

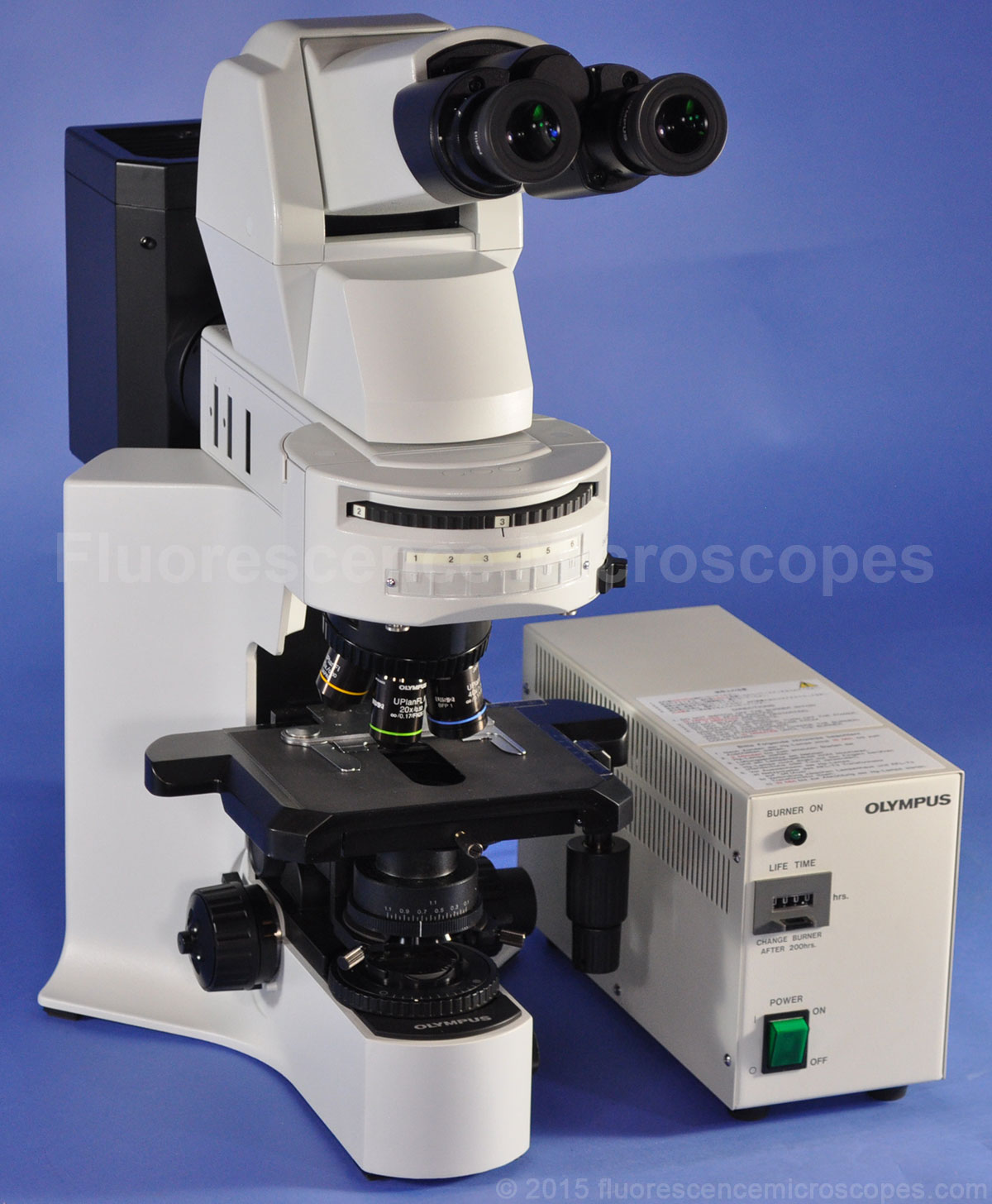

Olympus Model BX41
Telescoping Ergonomic Head
UPlanFl Objectives

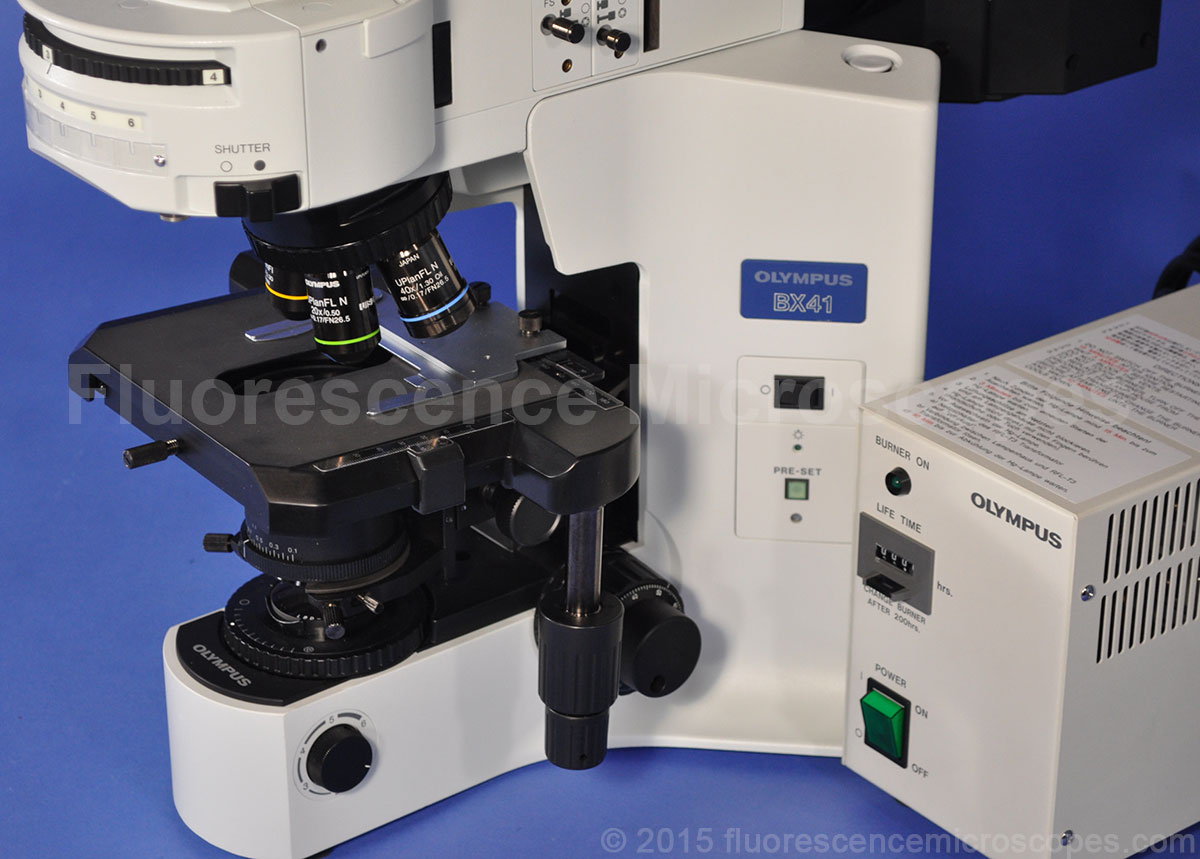

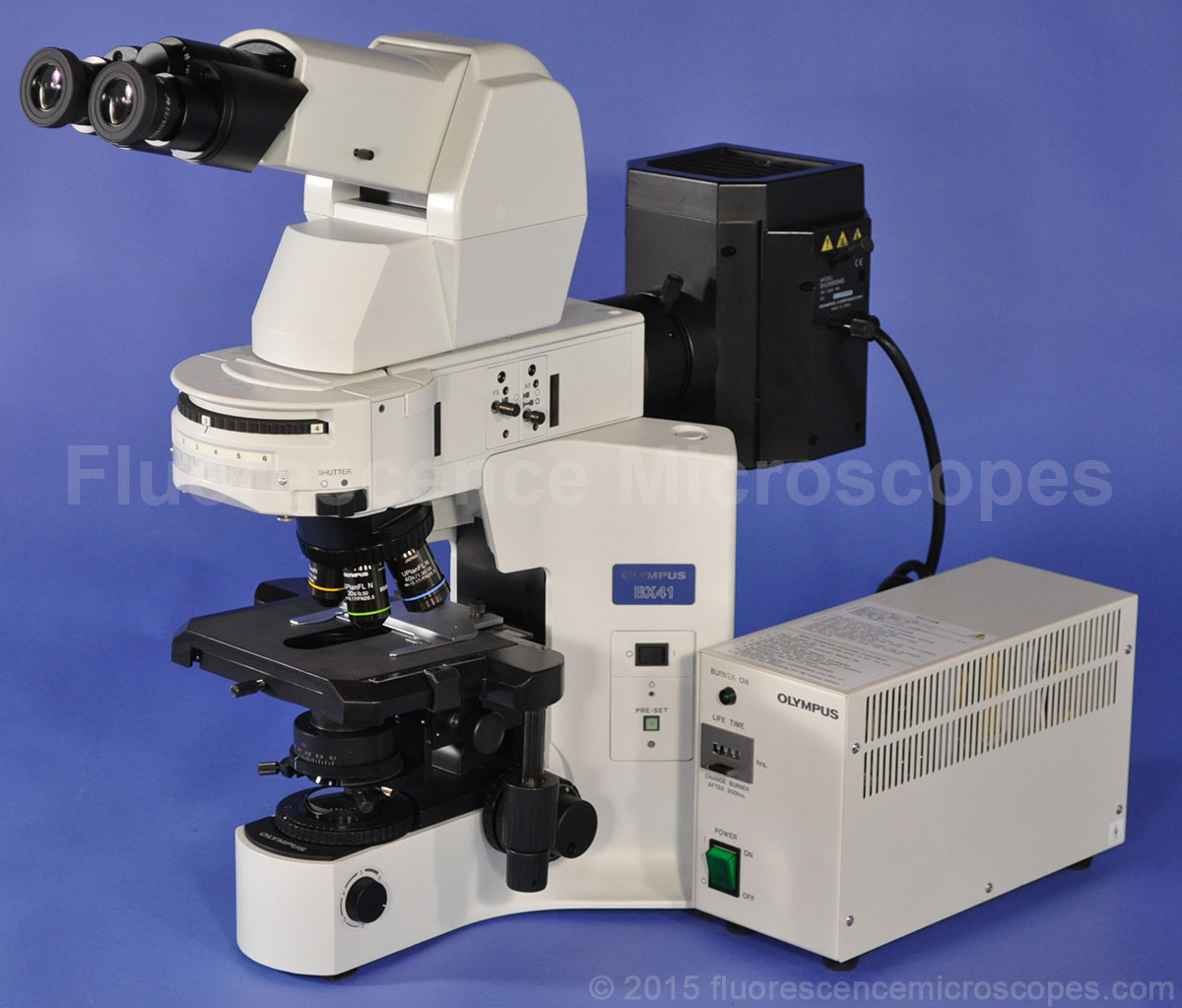

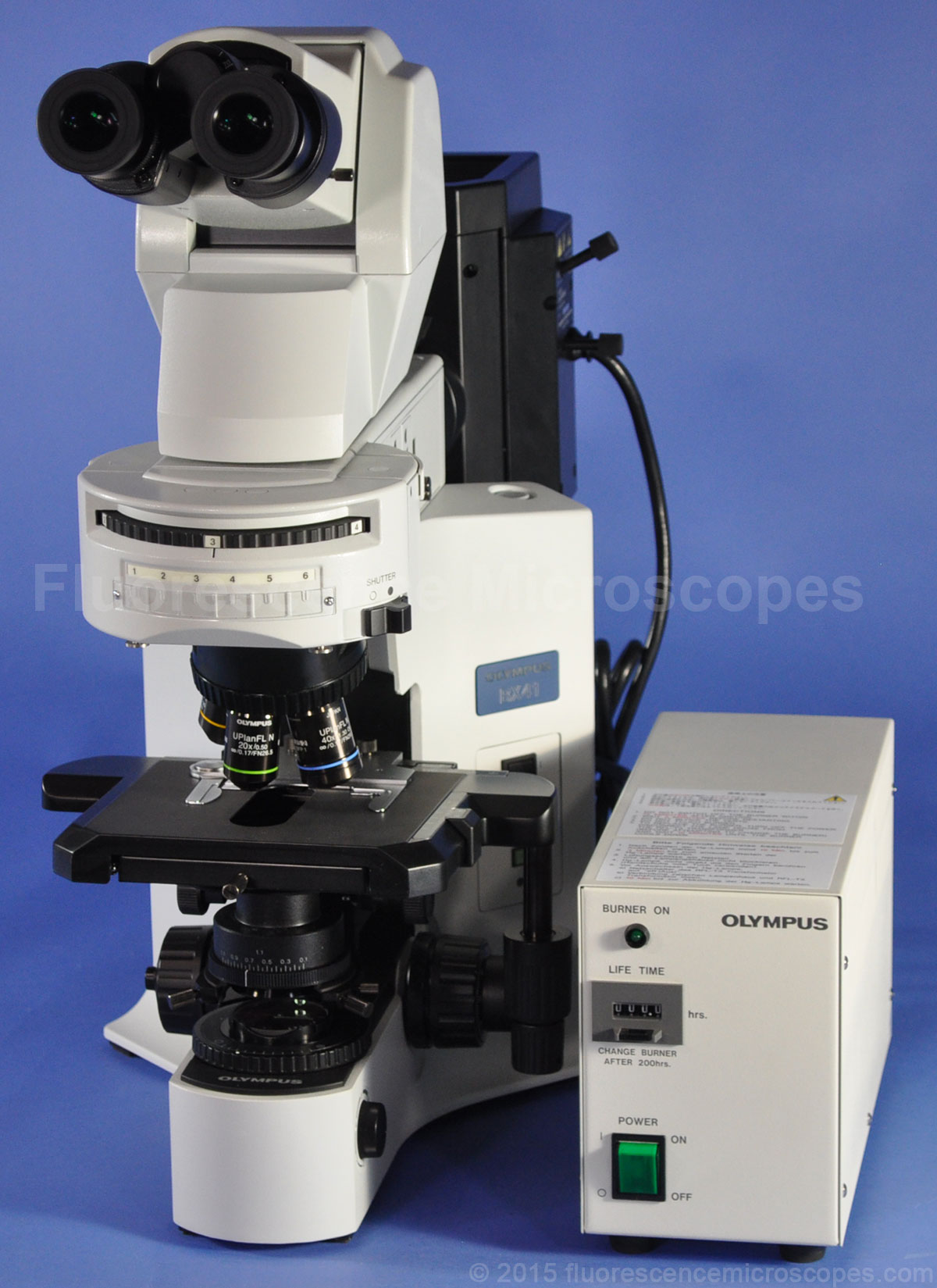

Fluorescence Microscope

USD $12,000.00


MODEL: Olympus BX41
Shipping Cost: To be determined

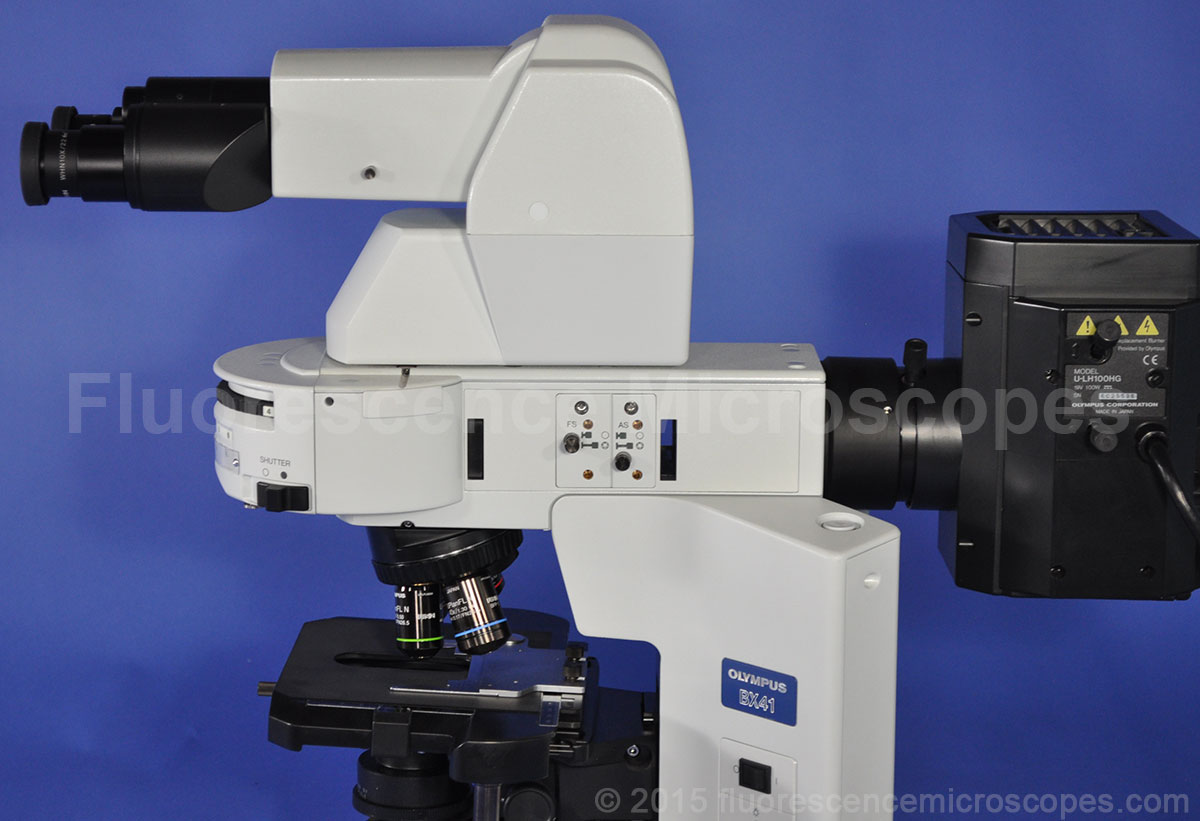

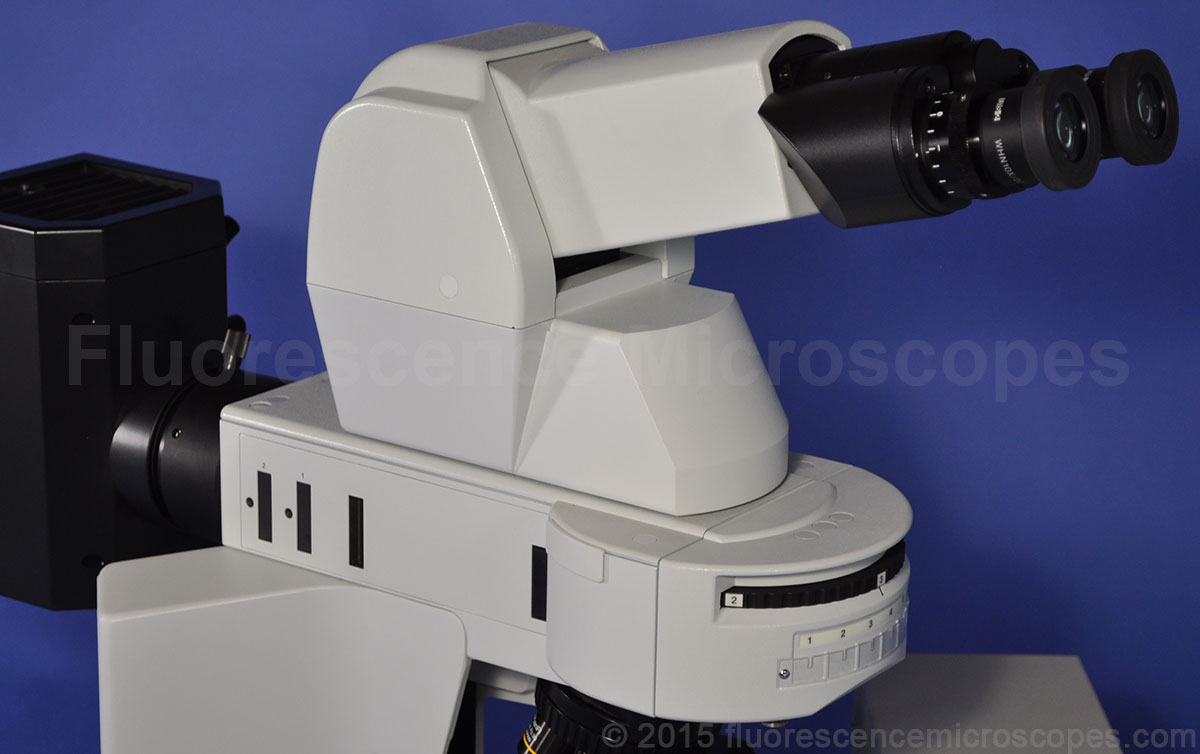

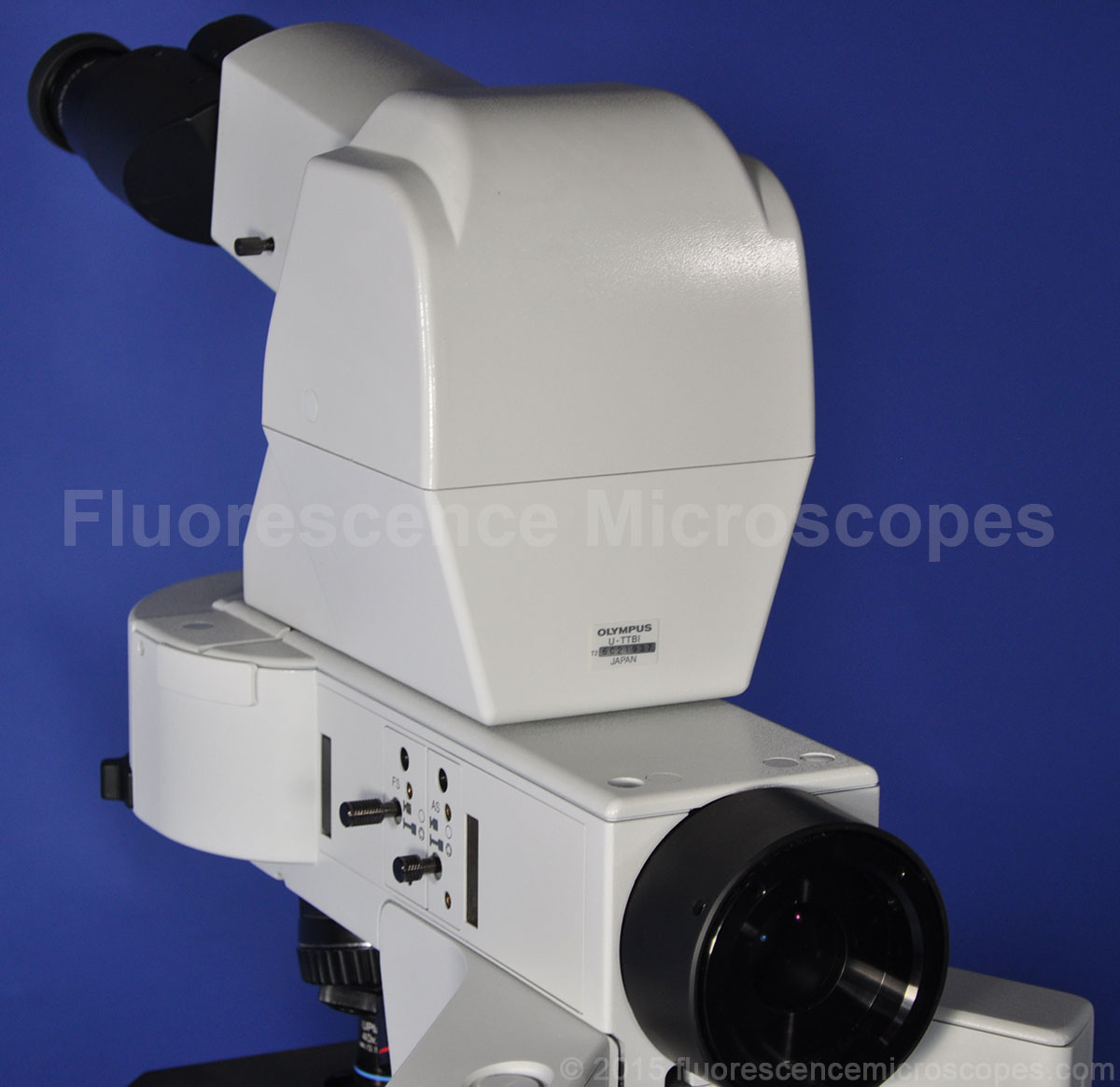

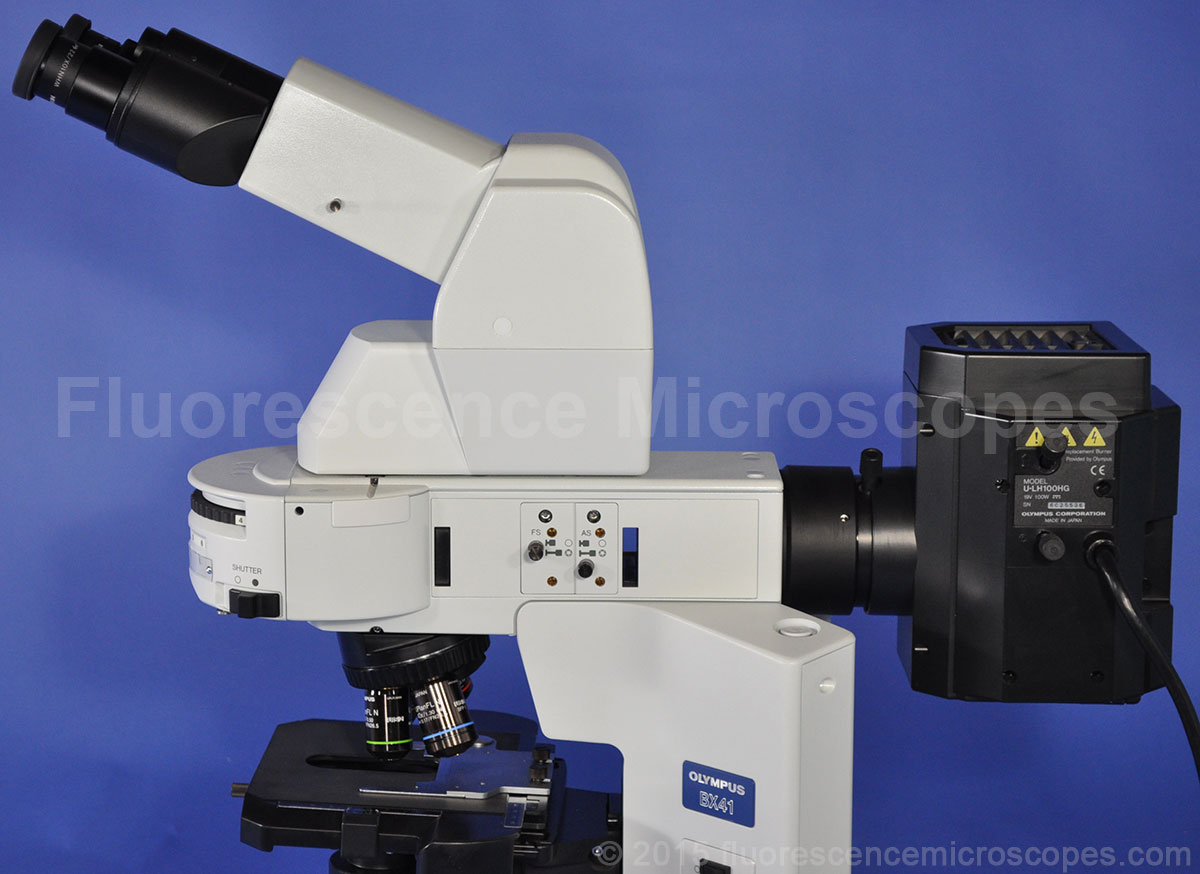

Ergonomic Head:

  • Special Ergonomic Head. This head has the unique ability to tilt on an angle. It can be inclined to whatever angle is most appropriate for the user’s physical needs.

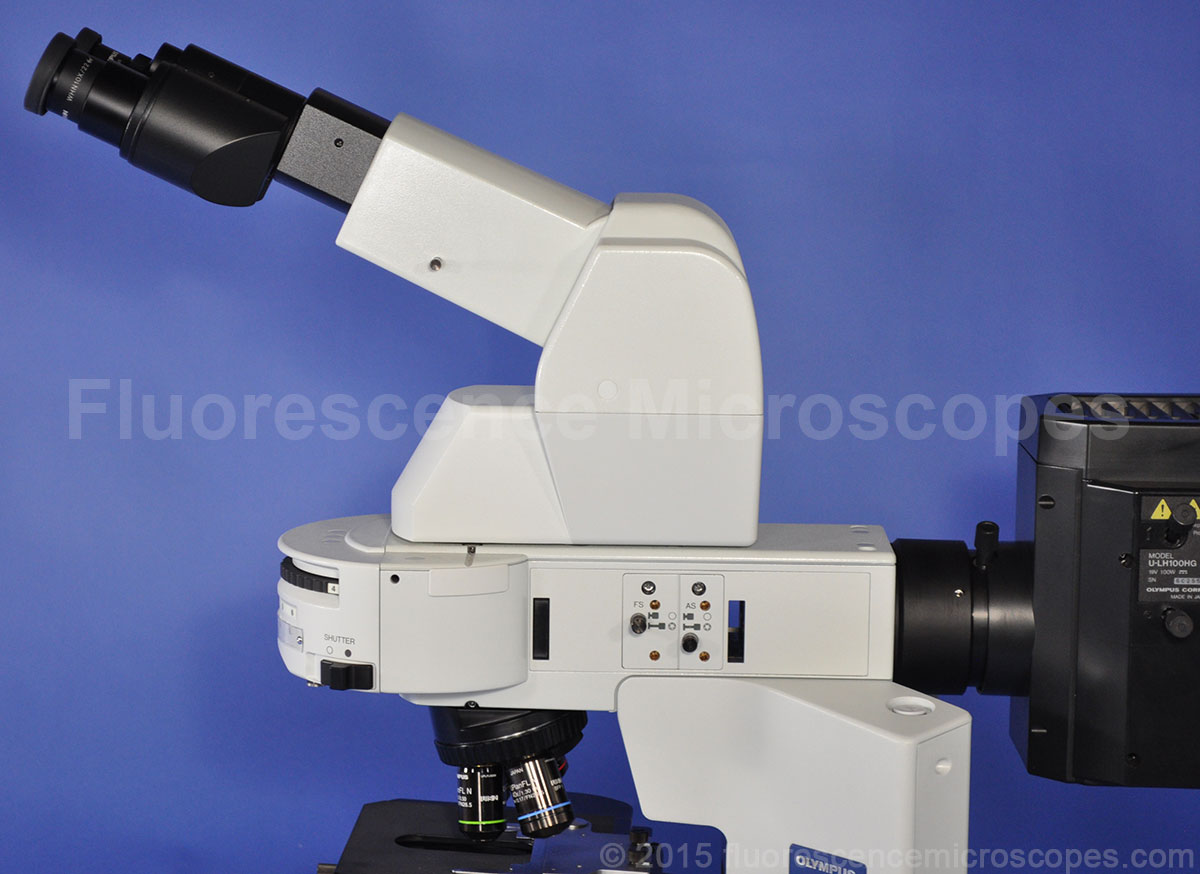

  • In addition, the binocular viewing head is a telescoping version, with the ability to move in or out, to meet the user’s eyes while they sit in a comfortable position.
  • These features allow the maximum of ergonomic conform to the microscopist or clinical technician. If the clinical work takes more than one hour a day, having these ergonomics will significantly reduce neck and back strain.
  • Olympus part number U-TTBI.

Main Features:

  • 100W HBO Mercury Illuminator. Intergral built-in vertical illuminator.
  • 30W Halogen Bottom Transmitted Illuminator.

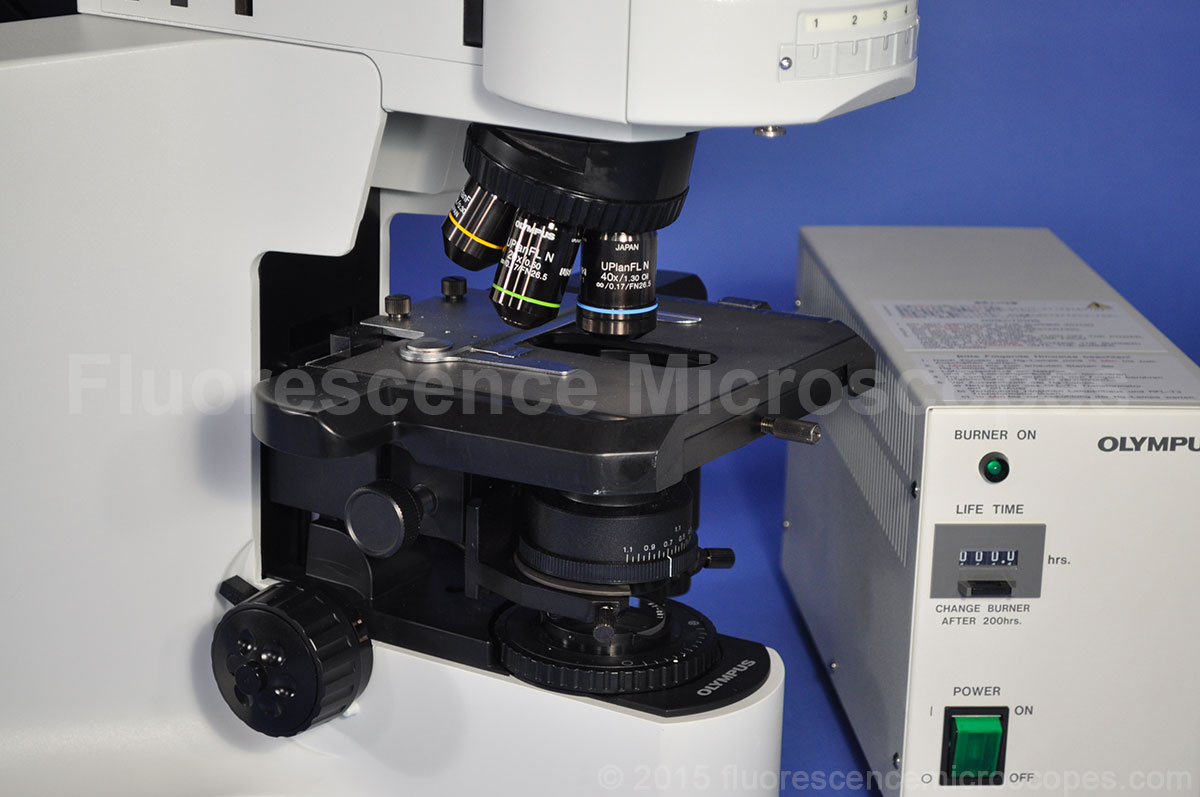

  • U-5RE-2 Pentuple Nosepiece for holding a maximum of five objectives.

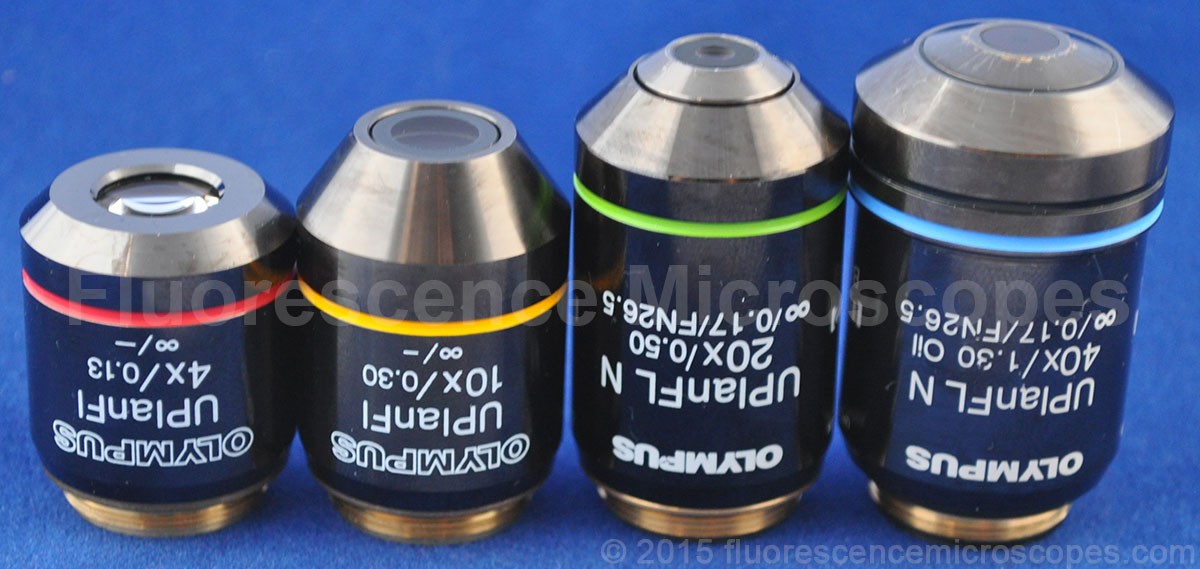

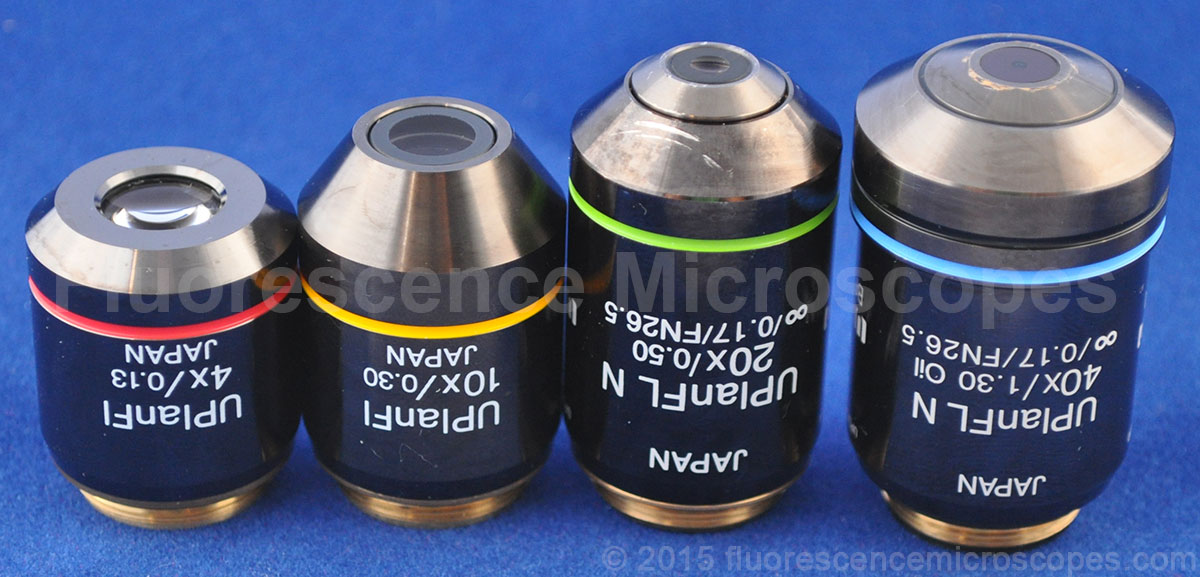

Objective Lenses:

  • UPlanFl 4x/0.13 Infinity /-
  • UPlanFl 10x/0.30 Infinity /-
  • UPlanFl N 20x/0.50 Infinity /0.17. FN 26.5.
  • UPlanFl N 40x/1.30 Oil Immersion, Infinity /0.17. FN26.5.

Available Magnifications: 40x, 100x, 200x, 400x.
The nosepiece can handle one additional objective. An optional 100x UPlanFl can be purchased separately.

Reflector Turret and Dichroic Filter Cubes:

  • Reflector turret holds a maximum of Six dichroic filter cubes.
  • Cubes and fluorescent filters sold separately.
  • We can provide brand new Chroma filters through our Chroma dealership. Just let us know your specific application. We can custom tailor your filters for your needs.
  • No filters or cubes included. These are sold separately, based on what you may need.

Reflected Fluorescent Illumination:

  • U-LH100HG. 19V/100W. CE certification. Lamp housing.
  • Power Supply: BH2-RFL-T3. Voltage Rating 100-120V at 50/60 Hz. Power supply for 100W high pressure mercury bulb.
  • Use replacement bulb: USHIO USH-102D.
  • Microscope will ship with a Mercury bulb.

Transmitted Illumination:

  • 6V-30W Halogen Lamp (Bulb).
  • Lamp Housing model U-LS30-4.
  • Light Balancing Daylight filter. Includes LBD-IF filter on top of field diaphragm.
  • This compensates for the halogen lamp color and gives color correction.

General Specifications:

  • This instrument is quality Made in Japan.

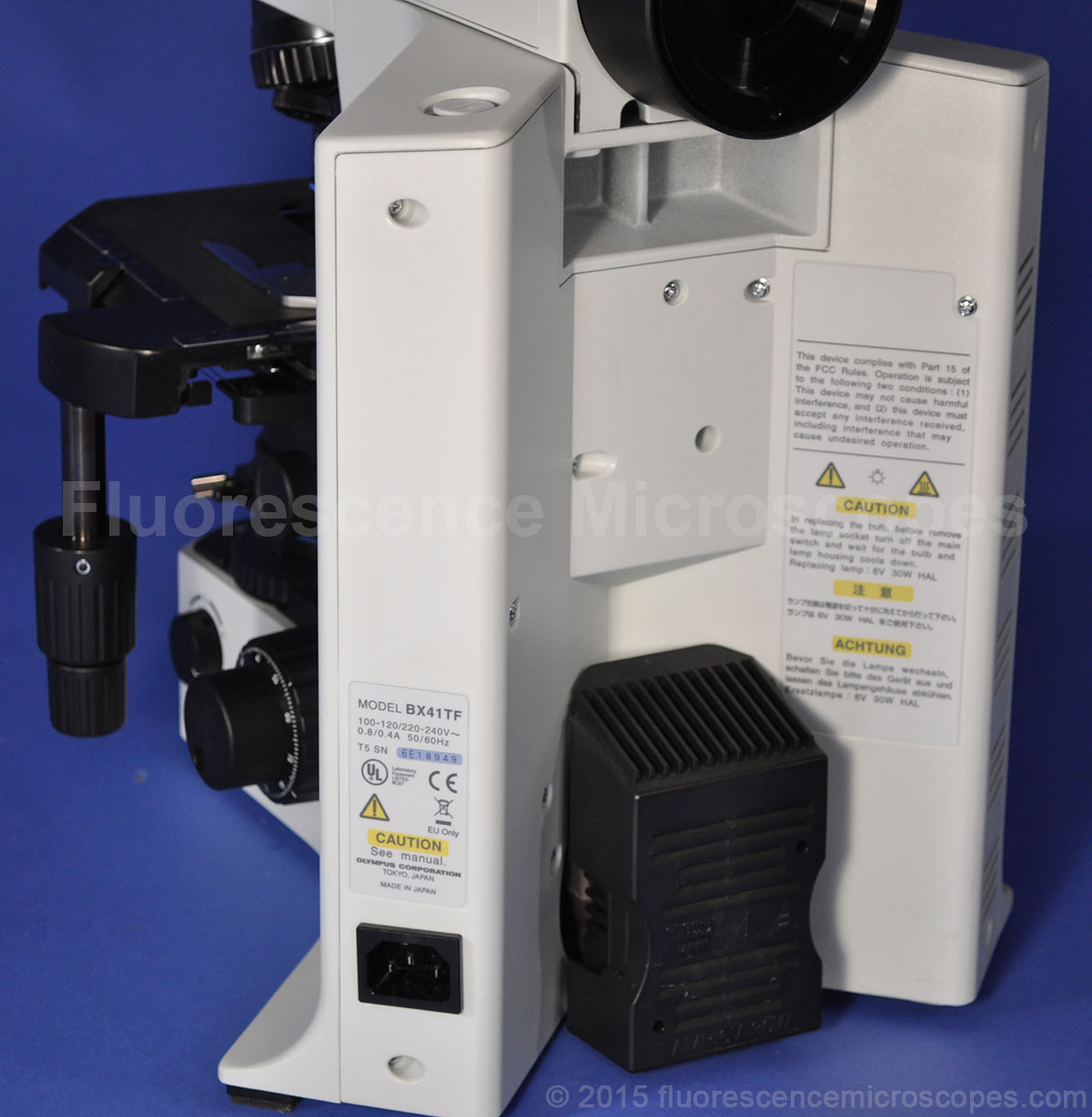

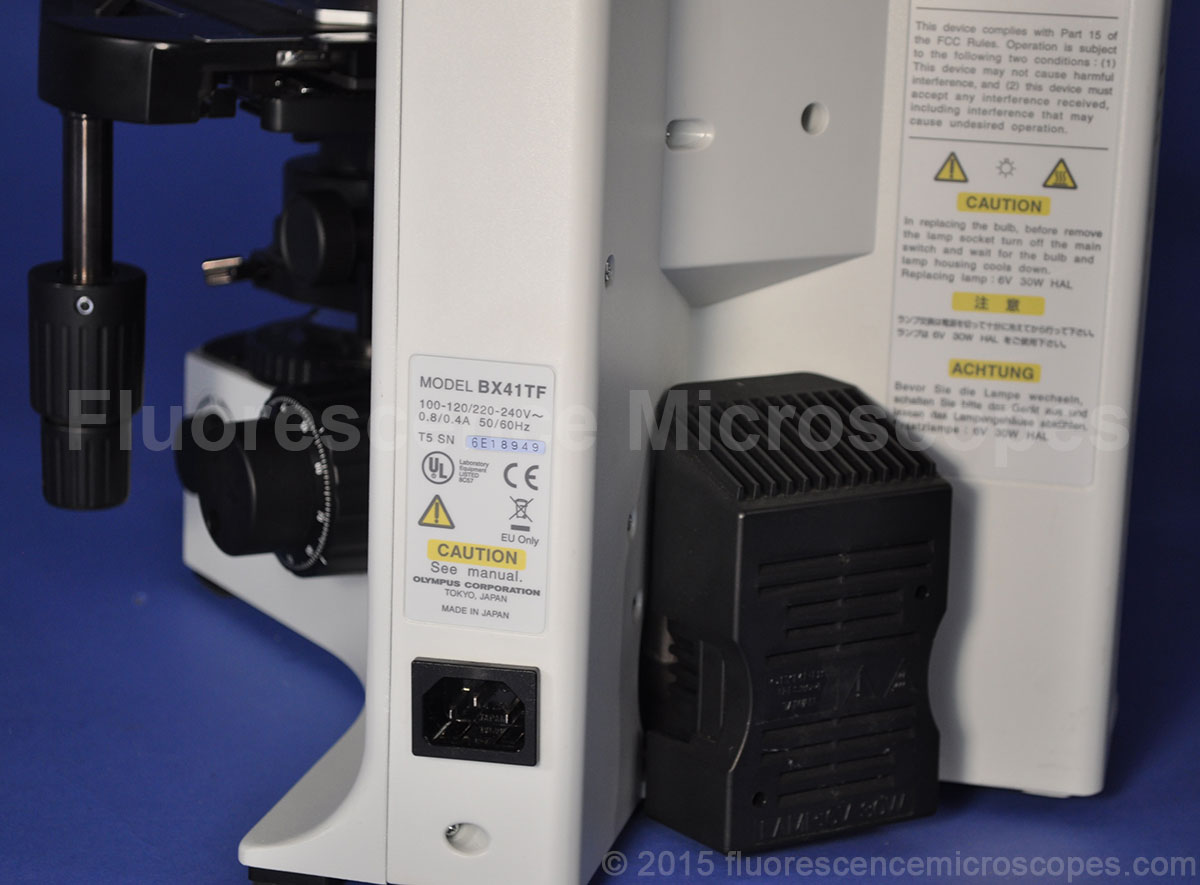

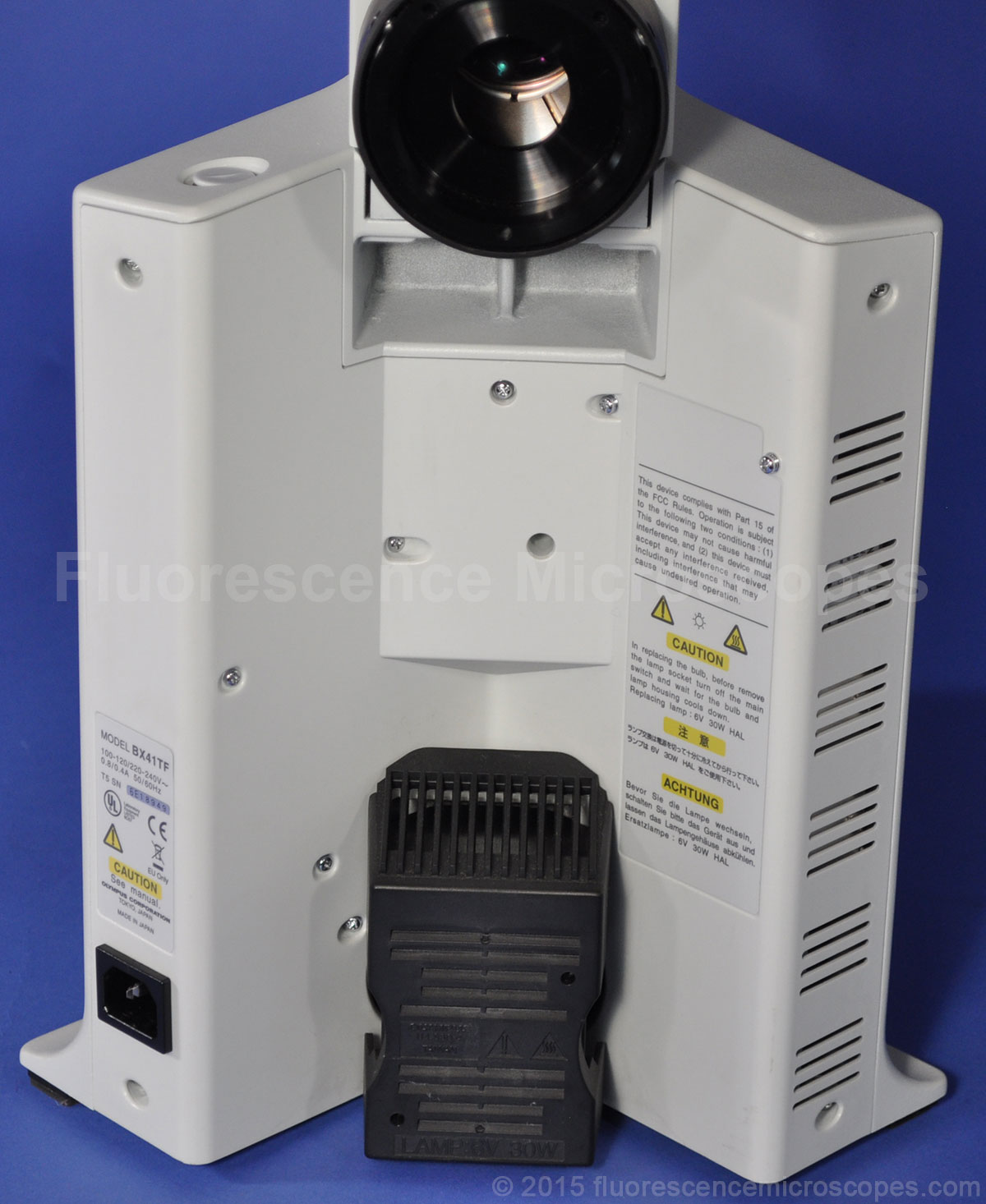

  • Frame: BX41TF
  • Right Hand Mechanical Stage. Part number U-SVRB-4.
  • U-AC2 Substage Light Condenser with iris diaphragm.
  • WHN 10X/22. Widefield Eyepieces. With high eyepoint in case eyeglasses need to be worn.
  • Power Cord is included, but not shown in the photo.
  • Frame Voltage: 100V-120V / 220V-240V. 50/60 Hz. With UL and CE certification.

Optional Accessories:

  • If a camera port is desired, to attach a camera, we can provide this. The ergonomic tiltable telescoping head can still be used. It doesn’t need to be switched out to a non-ergonomic trinocular head. We simply insert a beam splitter under the head, and have a c-mount camera adapter connected to that. Contact us for details.
  • Need a high sensitivity camera for good fluorescence imaging? Click here for details. No camera is included, however, we can provide.
    Optional high-end camera for fluorescence microscopy
  • Not Included: U-25ND25 Neutral Density Filter Slider (Vertical Illumination Light Path).
  • We have a variety of other objective lenses that can be added. For instance, we can add the Plan Apo for highest color correction. Please let us know your requirements.

This is a reconditioned microscope and is in excellent working condition.

User Manual and Instructions:
Click this link: Olympus BX41 Microscope Manual
Click this link: Olympus RFS Reflected Fluorescence System Microscope Manual BX51
